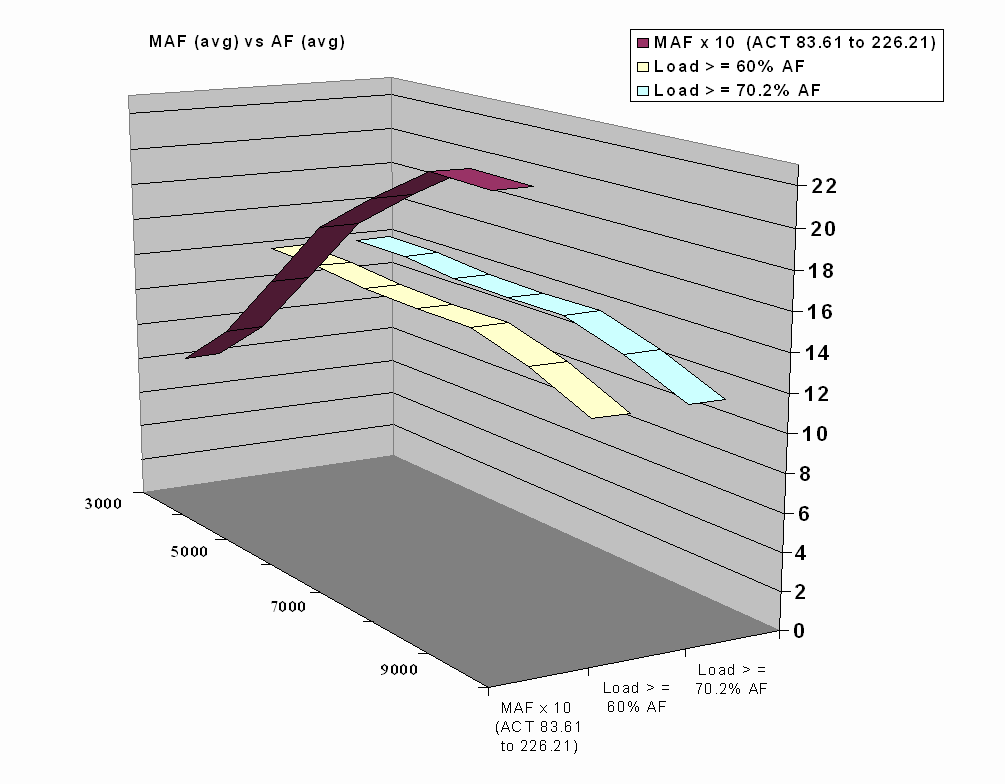

Here one can see the direct correlation between MAF and AF

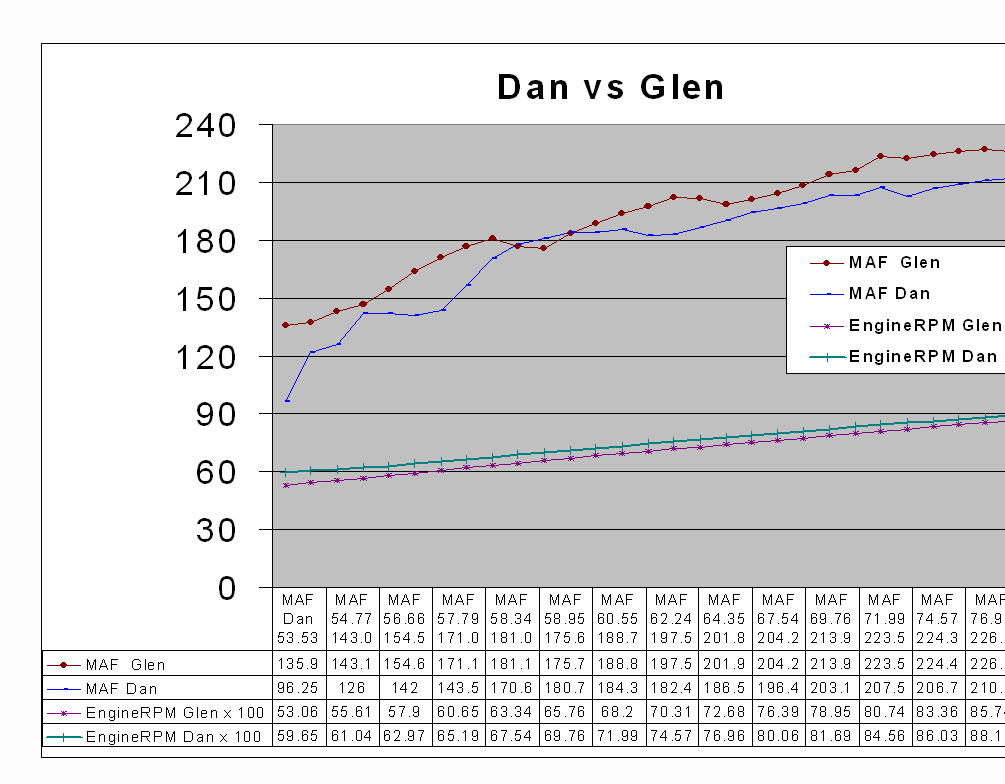

Chart two show two RX8 the same except one has a header and the other has the Mazsport ignitionw/fly

Ngo is much leaner w/same map therefore less at the MAF. He has since upped his map to make him richer.



Thats a sweet afr graph! Could you produce one like that for WOT?



That is WOT

I just don't show a higher load and RPM



geez Razz, you're having a field day with that data we logged. Damn, I should have charged for my services...



Razz is faster than Jedi54 - woot !!!!



Generally what average temp range should we be shooting for? Obviously as you turn up the heat to get more output your going to be running a higher % of duty all over...so how hot, is too hot, for how long?



Hot?



Nice...haa



Got mine this morning. It's glorious!

I haven't done much with it but I flashed the stock style map and watched the various screens on my way to work.

The only thing on my wish list is it would be nice if it had an option to display values in metric. I changed my car's temp display to Fahrenheit so I had a reference as to what the AP was telling me my intake temp was. Ambient was 30F, intake temp was 34-36F. Not bad! MS/AEM intake at work.



to quote you from another thread "I see what you did there"

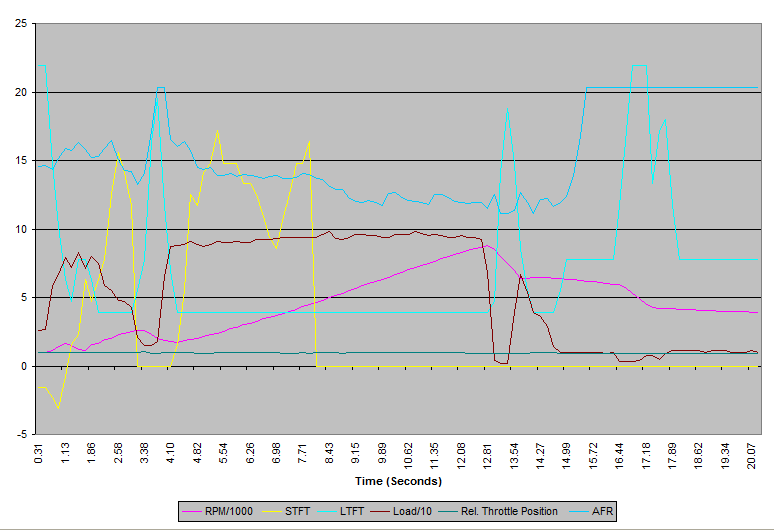

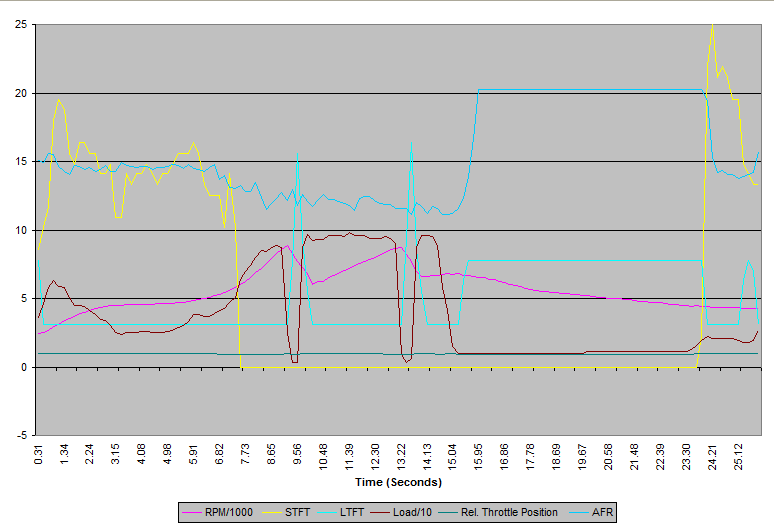

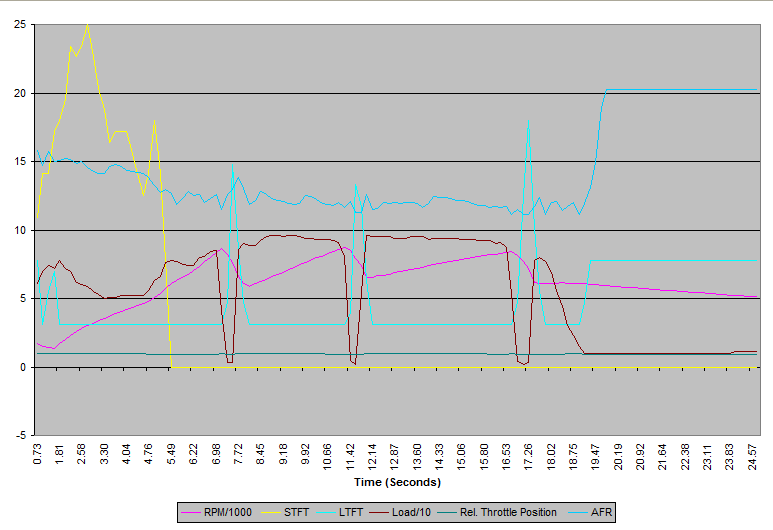

Last night I logged 3 different runs with my Canscan on the way home from work. I dumped all three into Excel and made a few charts. These were all done with the Cobb "Stock" map. I logged the following items...

* RPM
* STFT
* LTFT
* Calculated Load
* Relative Throttle Pos
* O2S1 Sensor

I couldn't find a direct way to log AFR, so I took the O2S1 data and multiplied by 14.7. Attached are a few screenshots of the charts. Please send me a PM if you want to see the original excel file.



Yes!!! Great news from Jeff



ACK!!! havent we been thru this enough?



No data logging was done for my car. That's Ngo and Razz.



it would be sweet if they made software for Mac OS X.

anyways, can anyone tell me or send me the AFR's for the Stage one? also see if you can send the EGT? just wondering about the numbers of those couple things. thanks



It can be run in emulation.

If anyone wants an AccessPORT by next week, I have my last PO in March going out tomorrow.



Jeff. How did the tuning session with the Pettit 6 port go??



right. would it require a specific emulator, or just any that runs windows programs on OSx.

btw MM, next week tuesday or wednesday i will most likely order the AP from you, just to let you know



If you have an Intel based mac, check out VMWare Fusion. PPC macs are stuck with less than perfect emulation.



Fusion works great, I've been running XP on my new iMac for a couple weeks now with no problems. I ordered an AP too, I'll report back when I get it all running.



dude seriously.... Eyes are the only tool we need for Logging that data. when you weigh 200lbs more than the other guy you are going to be slower.



BUT I've been watching my girlish figure...



btw, anyone with a scangauge2, I can confirm the STFT is available as an xgauge. Tomorrow I'll try out the LTFT ... the last gauge I'd like to see is the EGT (cat temp sensor).

Guess I'm not selling the scangauge2 as I was planning

While you can read these values with the AP, the scangauge2 is instant on, and mounts nicely on the dash. So no menu setup and no fuss. It just turns on with your car and updates without delays.



Actually, there's a thread on the AP forum about settings and desired features. If the AP had a pref that allowed it to start up and go to live data mode, and could display readouts for more than 1 item at a time, it could be a very useful display in it's own right. The only prob I see is the need to disconnect the odb2 sometimes or it gets comm errors.



i have the Macbook, so yes i have the intel CPU. VMWare is a little more expensive than other ones that i have seen, but i guess if it works good, it is worth it.
