Mechanical Changes On RX-8 Series I to II
#251
Super Moderator
Thread Starter
New Yaw Rate Sensor Unit.
#252
Super Moderator
Thread Starter

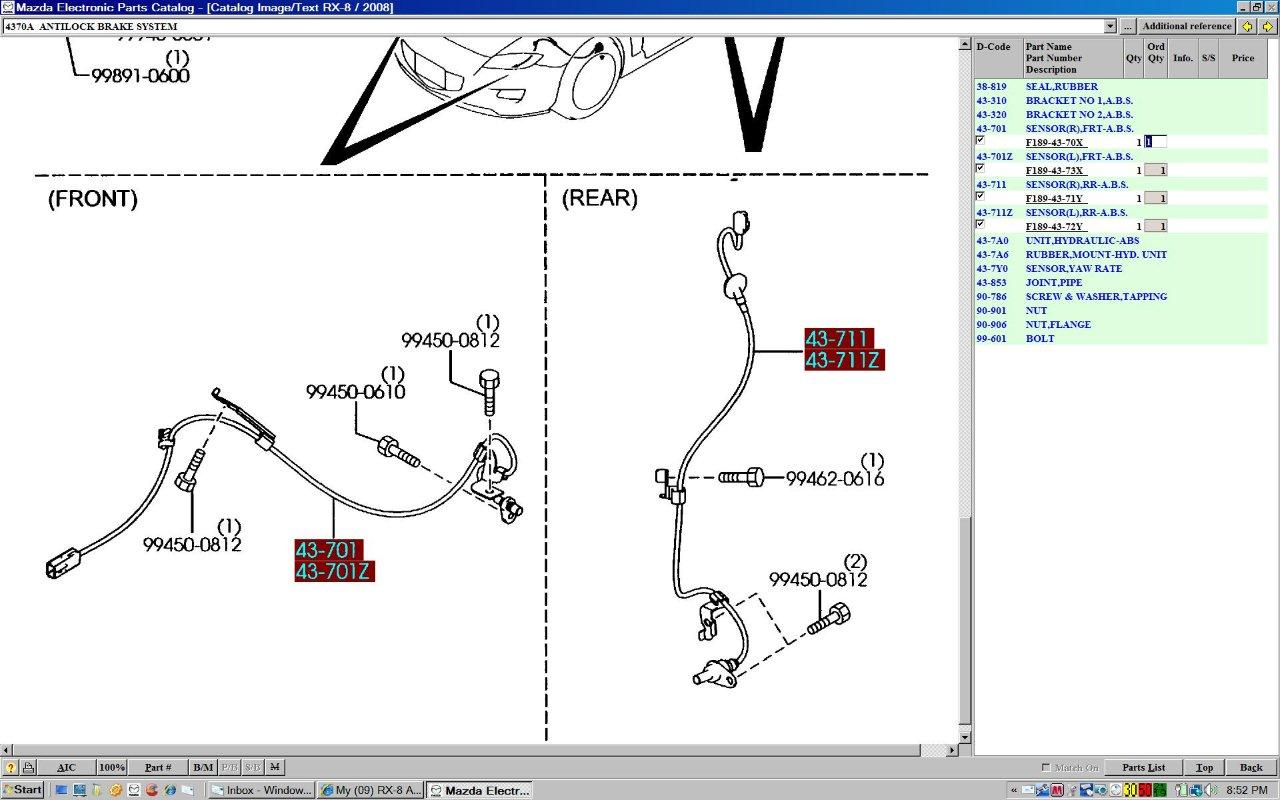

New ABS Wheel Sensors (All 4 Wheels)
#253
...pondering...
this may be a silly question - but I noticed the redline on the manuals was reduced to 8200 rpm on the series II - any reason for this? Does this have to do with the new gearing (are they preventing a certain load on the rotors or something)? And/or does this mean we should not be taking our series I's to 9000?
#254
Super Moderator
Thread Starter

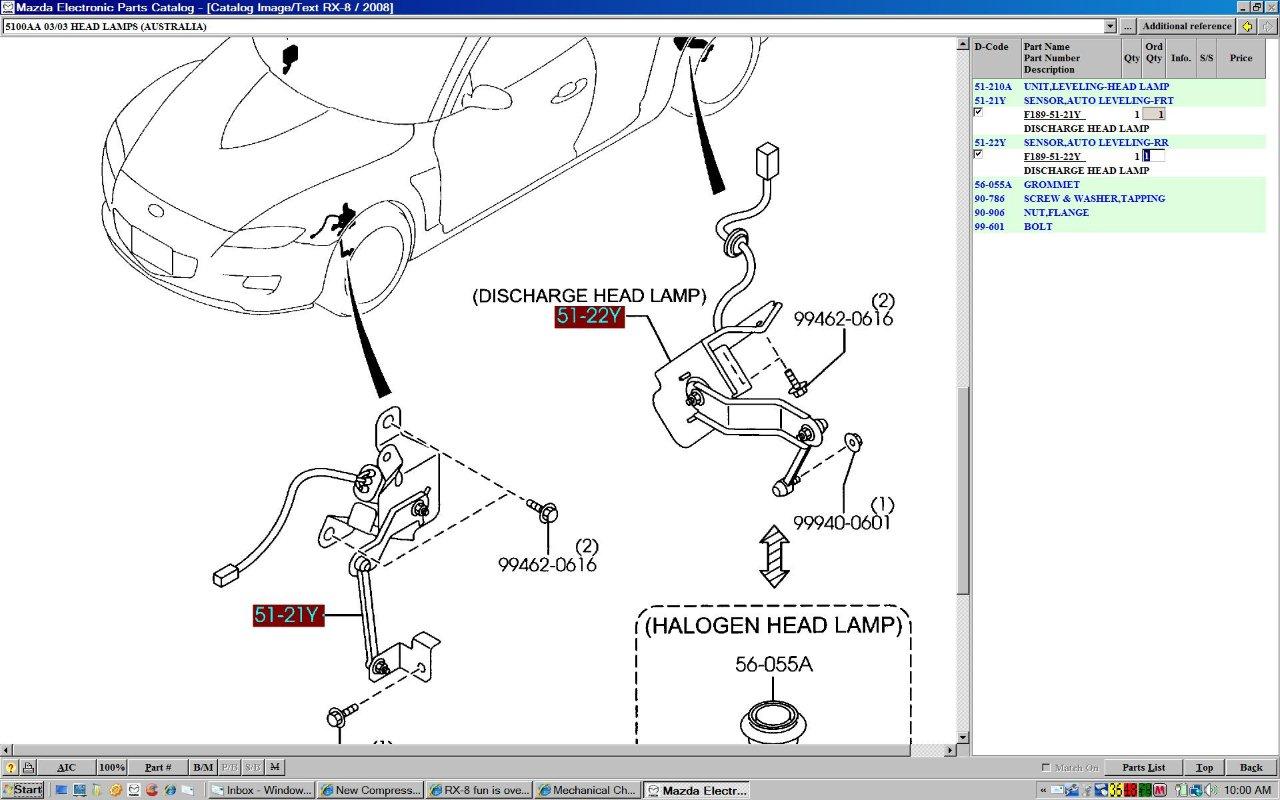

Revised Headlamp Auto Leveling Sensors.
#255
Super Moderator
Thread Starter
this may be a silly question - but I noticed the redline on the manuals was reduced to 8200 rpm on the series II - any reason for this? Does this have to do with the new gearing (are they preventing a certain load on the rotors or something)? And/or does this mean we should not be taking our series I's to 9000?
There is a difference with the Automatics Tacho and Speedo's, and the car PCM restricts the RPM , I cant tell you how high it will let you go but not as far as the manual, by about 800 RPM ... I think.
#257
Super Moderator
Thread Starter
#258
Super Moderator
Thread Starter
New Differential Fixing Plate Washer on PPF (Power Plant Frame)
#259
Pictures Renesis 2009

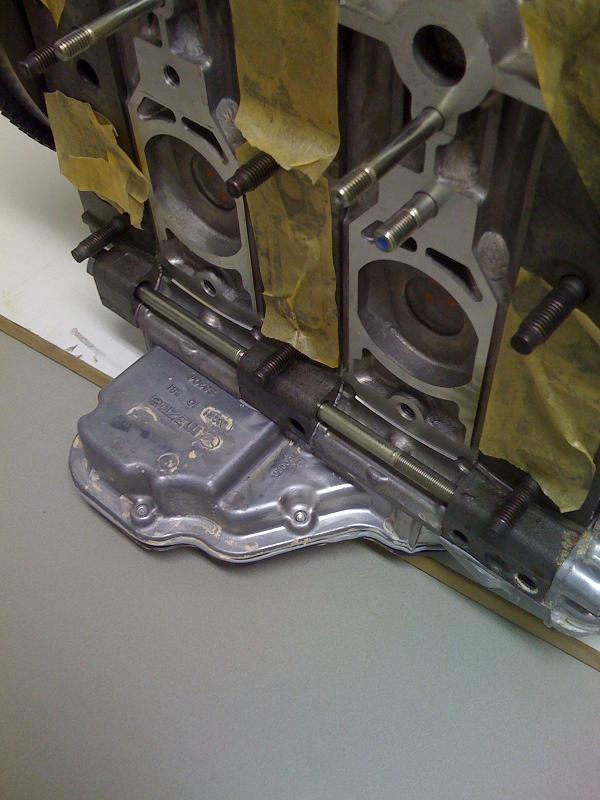

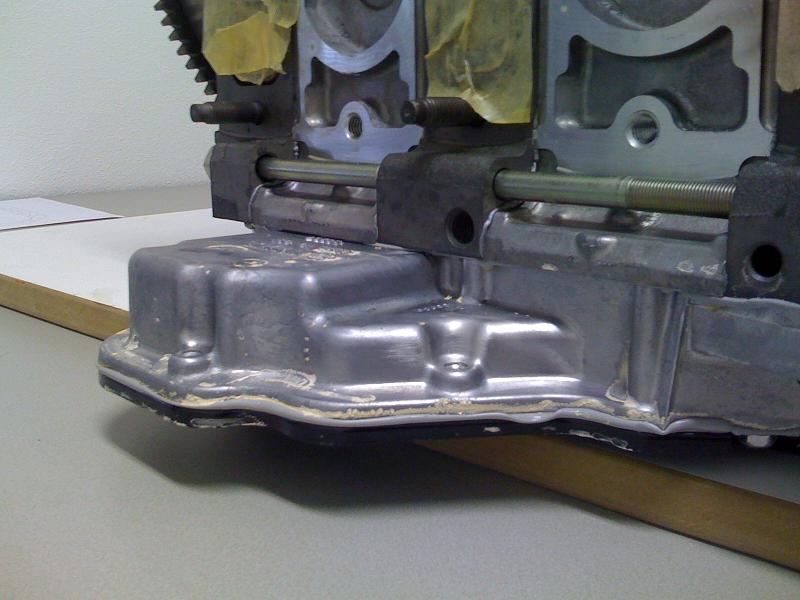

I happened to have a 2009 Renesis engine lying around (don't ask me why, long story...) so I took some pictures for you guys. Notable changes: new oil pan in two parts with annex (any explanations welcome), front cover is modified, 3 oil injectors (for reason the RG already explained). If any of the big contributors to this forum have requests, let me know.
#261
I happened to have a 2009 Renesis engine lying around (don't ask me why, long story...) so I took some pictures for you guys. Notable changes: new oil pan in two parts with annex (any explanations welcome), front cover is modified, 3 oil injectors (for reason the RG already explained). If any of the big contributors to this forum have requests, let me know.
#262
Super Moderator
Thread Starter
Interesting..
See the front oil filter, like I posted previously Mazda have added this alloy flange protector around Half the oil filter body, this is the area you see when you go to change the oil filter under your 09 RX-8, almost impossible to do, unless you have the GENUINE Mazda wrench 49-G014-001, or use a screw driver and stab the filter body (messy).
You can see that you can not install a larger diameter oil filter, you have to stick with genuine.
Also that silver round tube adapter on top of front housing is the oil pick up for the EMOP's.
See the front oil filter, like I posted previously Mazda have added this alloy flange protector around Half the oil filter body, this is the area you see when you go to change the oil filter under your 09 RX-8, almost impossible to do, unless you have the GENUINE Mazda wrench 49-G014-001, or use a screw driver and stab the filter body (messy).
You can see that you can not install a larger diameter oil filter, you have to stick with genuine.
Also that silver round tube adapter on top of front housing is the oil pick up for the EMOP's.
Last edited by ASH8; 09-22-2009 at 11:13 PM.
#263
Super Moderator
Thread Starter

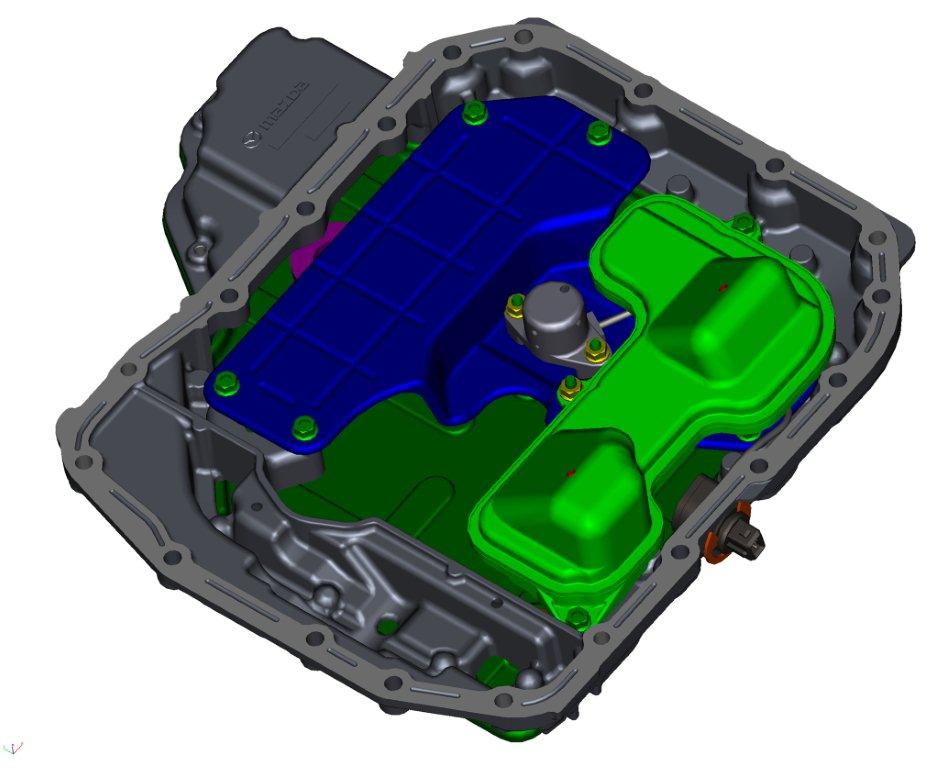

Oil Pan
The changes or extension to the oil pan under the exhaust manifold is to increase the oil holding capacity only.
That PINK disc is a Sump Magnet, newly introduced to the 09 RX-8 and last used in the FC RX-7.
That PINK disc is a Sump Magnet, newly introduced to the 09 RX-8 and last used in the FC RX-7.
Last edited by ASH8; 03-04-2009 at 02:09 PM.
#264
Super Moderator
Thread Starter

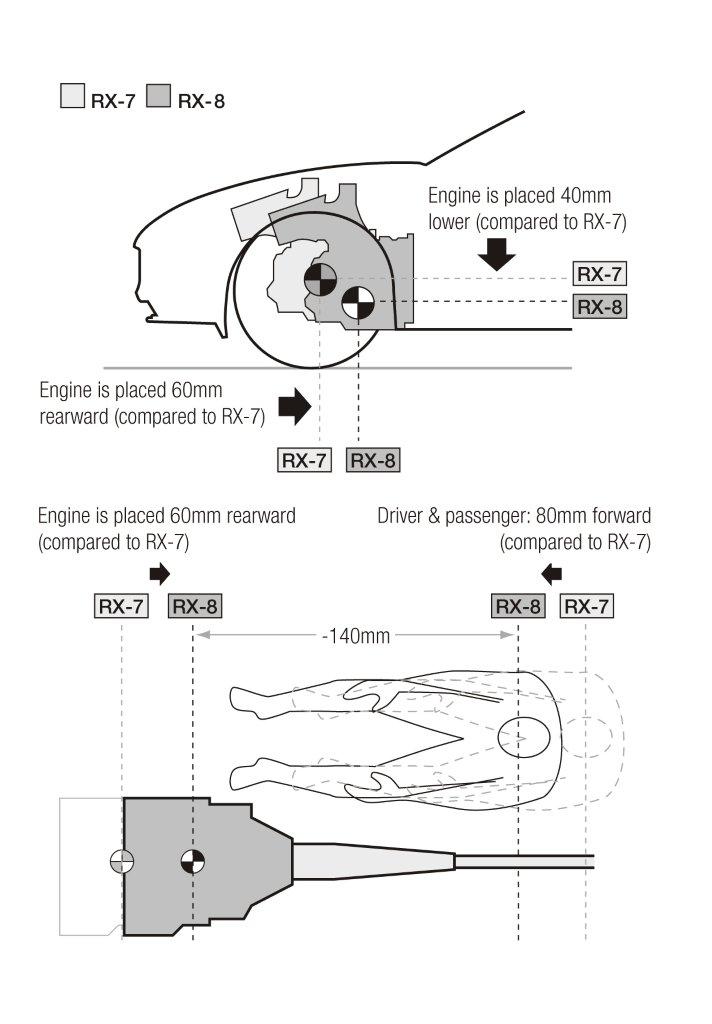

Drive Train Locations Between RX-8 and FD RX-7
Drive Train Locations Between RX-8 and FD RX-7.
#265
Registered
#266
Super Moderator
Thread Starter
2009 Service HIGHLIGHTS Manual is available to download thanks to Jon316G..
https://www.rx8club.com/series-i-tech-garage-22/2009-rx-8-service-highlights-manual-170733/
Very interesting information on ALL the Substantial changes in the 09 RX-8...
There are diagrams that shows the internals of the Oil Pump, plus all the new Codes and lots of information, including Oil Pressure Info and comparisons between S1 and S2 RX-8's...
The New Water Pumps has a Plastic Impeller (not metal) for "reduced water pump drag"
https://www.rx8club.com/series-i-tech-garage-22/2009-rx-8-service-highlights-manual-170733/
Very interesting information on ALL the Substantial changes in the 09 RX-8...
There are diagrams that shows the internals of the Oil Pump, plus all the new Codes and lots of information, including Oil Pressure Info and comparisons between S1 and S2 RX-8's...
The New Water Pumps has a Plastic Impeller (not metal) for "reduced water pump drag"
#267
Super Moderator
Thread Starter
Radiator Cooling Fans now have a 3 Speed Operation (previously 2 speed) depending on Coolant Temperature. High, Middle and Low Speed Operation.
The rotation speed of the cooling fan motor is switched between three levels according to a combination of the cooling fan relays.
The cooling fan rotates at low speed when only cooling fan relay No.1 is on, at middle speed when cooling fans, in addition to No.1, No.2 and No.3 are on, and at high speed when cooling fans No.4 and No.5 turn on.
Cooling Fan OFF at 97 oC {207 oF} or below.
Cooling Fan Low between 97—101 oC {207—213 oF}
Cooling Fan Middle Speed 101—108 oC {214—226 oF}
Cooling Fan High Speed 108 oC {226 oF} or higher.
You also have variables when the Air Conditioner is ON and also depending on Refrigerant Pressure.
If Engine Compartment Temperature exceeds 110 oC {230 oF} or more with Ignition (Engine) OFF, Fans will switch on Middle Speed.
The rotation speed of the cooling fan motor is switched between three levels according to a combination of the cooling fan relays.
The cooling fan rotates at low speed when only cooling fan relay No.1 is on, at middle speed when cooling fans, in addition to No.1, No.2 and No.3 are on, and at high speed when cooling fans No.4 and No.5 turn on.
Cooling Fan OFF at 97 oC {207 oF} or below.
Cooling Fan Low between 97—101 oC {207—213 oF}
Cooling Fan Middle Speed 101—108 oC {214—226 oF}
Cooling Fan High Speed 108 oC {226 oF} or higher.
You also have variables when the Air Conditioner is ON and also depending on Refrigerant Pressure.
If Engine Compartment Temperature exceeds 110 oC {230 oF} or more with Ignition (Engine) OFF, Fans will switch on Middle Speed.
Last edited by ASH8; 04-07-2009 at 10:30 PM.
#268
Super Moderator
Thread Starter
New Generator/Alternator Information...
With the elimination of the voltage regulator, generator control is carried out by the PCM. Excitation current in the field coil is increased or decreased by the duty signal from the PCM sent to the power transistor built into the generator.
With the elimination of the voltage regulator, generator control is carried out by the PCM. Excitation current in the field coil is increased or decreased by the duty signal from the PCM sent to the power transistor built into the generator.
#269
Super Moderator
Thread Starter
The OCV "Oil Control Valve" for the EMOP's has a "Cleaning MODE" controlled by the PCM, if any "foreign material" is detected in the oil, the Oil Control Valve Purges and cleans repeatedly until cleaning mode is completed.
I am not sure where this "foreign matter" goes...?
I am not sure where this "foreign matter" goes...?
#270
Super Moderator
Thread Starter
Variable Red Zone Control in Tachometer..
All 2009~ have a 3 position Red Zone LED inside the Tachometer...
From a Cold Engine ALL 3 LED Sets Are ON.
First One Goes out when Coolant Temp is 40 oC or 104 oF or MORE, But LESS than
70 oC or 158 oF.
Second Zone LED Set Goes Out when Coolant Temp is 70 oC or 158 oF or MORE.
Third Zone always remains ON.
RPM ENGINE RESTRICTIONS Controlled by Cars PCM....
ALL 3 LED ZONES ON RPM LIMIT IS 5,000 rpm.
2 LED ZONES ON RPM LIMIT IS 7,000 rpm (MT) 6,500 rpm (Auto)
1 LED Zone (Normal Engine Temp) RPM LIMIT IS 9,000 rpm (MT) 7,500 rpm (Auto)
From a Cold Engine ALL 3 LED Sets Are ON.
First One Goes out when Coolant Temp is 40 oC or 104 oF or MORE, But LESS than
70 oC or 158 oF.
Second Zone LED Set Goes Out when Coolant Temp is 70 oC or 158 oF or MORE.
Third Zone always remains ON.
RPM ENGINE RESTRICTIONS Controlled by Cars PCM....
ALL 3 LED ZONES ON RPM LIMIT IS 5,000 rpm.
2 LED ZONES ON RPM LIMIT IS 7,000 rpm (MT) 6,500 rpm (Auto)
1 LED Zone (Normal Engine Temp) RPM LIMIT IS 9,000 rpm (MT) 7,500 rpm (Auto)
#271
Ayrton Senna Forever
2009 Service HIGHLIGHTS Manual is available to download thanks to Jon316G..
https://www.rx8club.com/showthread.php?t=170733
Very interesting information on ALL the Substantial changes in the 09 RX-8...
There are diagrams that shows the internals of the Oil Pump, plus all the new Codes and lots of information, including Oil Pressure Info and comparisons between S1 and S2 RX-8's...
The New Water Pumps has a Plastic Impeller (not metal) for "reduced water pump drag"
https://www.rx8club.com/showthread.php?t=170733
Very interesting information on ALL the Substantial changes in the 09 RX-8...
There are diagrams that shows the internals of the Oil Pump, plus all the new Codes and lots of information, including Oil Pressure Info and comparisons between S1 and S2 RX-8's...
The New Water Pumps has a Plastic Impeller (not metal) for "reduced water pump drag"
#272
not liking a plastic water pump impeller..... wont it turn brittle and possibly crack with age due to heat ?
also the new front cover and oil filter locaction makes it impossible to add a dry sump kit?
and a MOP adapter to inject 2-cycle is also out of the question? A completely different one needs to be developed if its even possible!
also the new front cover and oil filter locaction makes it impossible to add a dry sump kit?
and a MOP adapter to inject 2-cycle is also out of the question? A completely different one needs to be developed if its even possible!
Last edited by neit_jnf; 04-10-2009 at 10:08 AM.
#274
Certified Mazda Tech
coolant and plastic should be avoided, im surprised they went with that.
kevin.
#275
Super Moderator
Thread Starter
Frankly I would not be worried about the oil pressure in your RX-8, as it is clear Mazda's Revised Oil Pump and Increased Oil Pump pressure as it is also the main and only feeder pump to the 6 Oil Injection Nozzles.
The two EMOP's are not really pumps (Just called that) they are electromagnetic (solenoid) operated chambers with a main plunger that lets the oil through to the sub plungers (4 or 2) which are basically a one way spring loaded stop valve.
The PCM sends a current via the EMOP Driver which operates the solenoid(s), opens the main plunger, with the current off (solenoid off) the spring loaded main plunger turns off the oil flow.
With the EMOP's off oil is bypassed back into the sump.
There are no spinning Impellers or Rotors in the EMOP's to be called a true Pump.
As we know the 2 "Emops" sit on a bracket on top of the rotary engine.
