Mechanical Changes On RX-8 Series I to II
#276
Super Moderator
Thread Starter

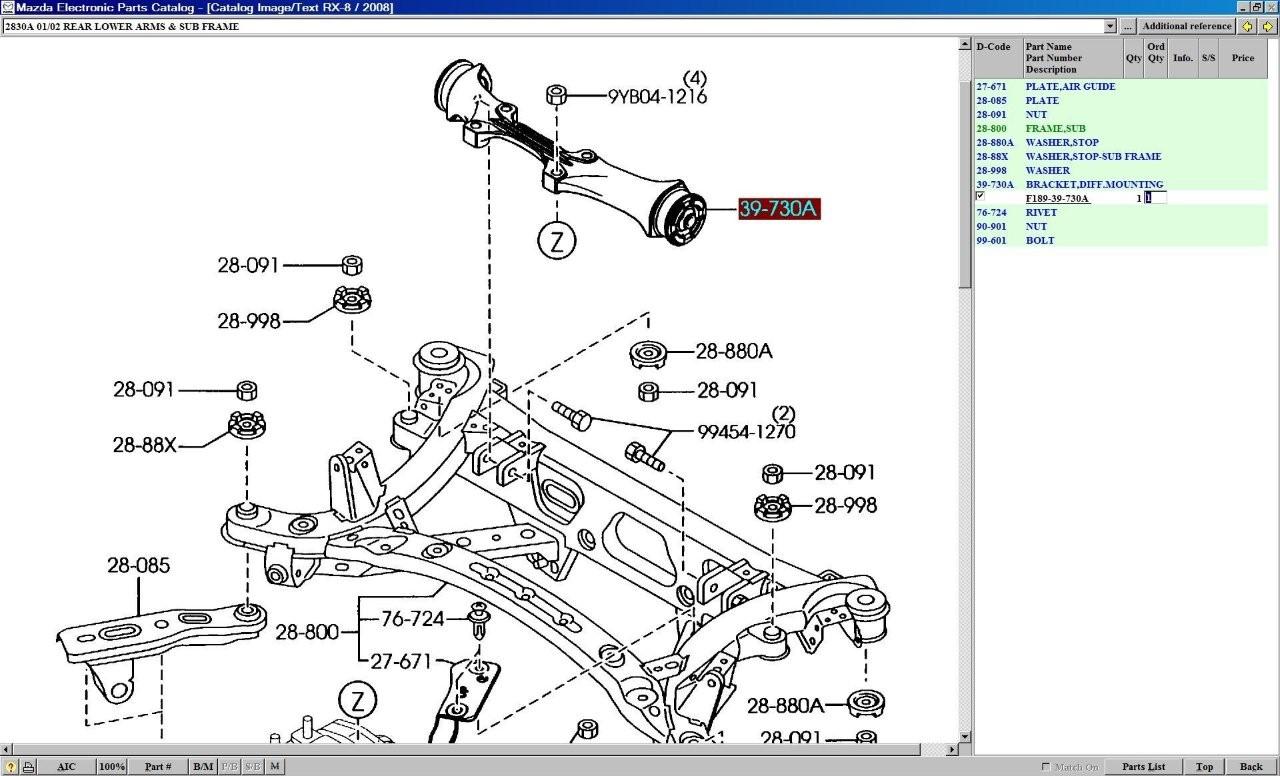

New Differential Mounting Bracket.
#278
road warrior
Join Date: Feb 2006
Location: Oakland and Los Angeles, CA
Posts: 1,861
Likes: 0
Received 3 Likes
on
3 Posts
Well the art and science of plastic production has advanced greatly since the days of the FC. If engineered correctly, I'd feel pretty comfortable with the lifespan of some of the available plastic options out there. An interesting comparison would be to see how similar the new impeller design is compared to the RE-medy impeller.
#281
Super Moderator
Thread Starter
Yes you need new specs, there is still the same VFAD on Series II RX-8's, it is tucked behind the Bumper.
Ash
#283
Super Moderator
Thread Starter
#284
Registered
iTrader: (1)
Join Date: Jan 2009
Location: Wilmington, DE
Posts: 147
Likes: 0
Received 0 Likes
on
0 Posts
I just installed Unorthodox pulleys and the alternator and Crank pulleys seem to work. My car runs, and no CELs at least. Not sure if there will be a problem running hte pulleys since I only replaced the two pieces on the out. Couldn't install the water pump one unfortunately.
#285
Registered User
2004 MAZDA RX8 plugs
Hi everyone... i have this 2004 MAZDA RX8 it's japan version and non turbo matic transmission
I hope some can help me / answer my question if i can used other brand of spark plugs instead using the NGK OEM plugs? Can anyone suggest and tried using different brand?
I hope some can help me / answer my question if i can used other brand of spark plugs instead using the NGK OEM plugs? Can anyone suggest and tried using different brand?
#286
Super Moderator
Thread Starter
Wrong thread to ask these questions mate, do a search on Spark Plugs you will find the places to buy OEM.
But, NO there are No "Cheap Design" alternatives.
NGK OEM are the best and really only plugs to use.
But, NO there are No "Cheap Design" alternatives.
NGK OEM are the best and really only plugs to use.
#288
the enemy in the mirror
Join Date: Oct 2006
Location: billerica, ma
Posts: 440
Likes: 0
Received 0 Likes
on
0 Posts
To get the thread back on track I'll ask a question that's been in the back of my mind that I don't think has been fully explained...
How are the series II spark plug leads different? (different length? the coils are still in the same spot, right?)
I was holding out on asking 'till I got to take a look at an 09 for myself; but I've been busy. (Maybe someone knows...)
Thanks.
How are the series II spark plug leads different? (different length? the coils are still in the same spot, right?)
I was holding out on asking 'till I got to take a look at an 09 for myself; but I've been busy. (Maybe someone knows...)
Thanks.
Last edited by secret8gent; 10-14-2009 at 12:43 PM. Reason: grammar fail
#289
Super Moderator
Thread Starter
To get the thread back on track I'll ask a question that's been in the back of my mind that I don't think has been fully explained...
How are the series II spark plug leads different? (different length? the coils are still in the same spot, right?)
I was holding asking out 'till I got to take a look at an 09 for myself; but I've been busy. (Maybe someone knows...)
Thanks.
How are the series II spark plug leads different? (different length? the coils are still in the same spot, right?)
I was holding asking out 'till I got to take a look at an 09 for myself; but I've been busy. (Maybe someone knows...)
Thanks.
#290
the enemy in the mirror
Join Date: Oct 2006
Location: billerica, ma
Posts: 440
Likes: 0
Received 0 Likes
on
0 Posts
So if the coils are in the same spot, the length should be virtually the same. (clip is probably the same too...)
Anything in the series II shop manual about normal specified resistance?
series I
Resistance
1.0-4.0 kilohms [20 °C {68 °F}]
Regards.
Anything in the series II shop manual about normal specified resistance?
series I
Resistance
1.0-4.0 kilohms [20 °C {68 °F}]
Regards.
#292
Super Moderator
Thread Starter
Have you tried the MX-5 Forums, and or the UK one it is basically the same as the NC MX-5 gearbox...or Mark 3 as the English call them.
I think I recall them talking about a SS for the MX-5...could be wrong?
I think I recall them talking about a SS for the MX-5...could be wrong?
#293
Registered
iTrader: (1)
Join Date: Jan 2009
Location: Wilmington, DE
Posts: 147
Likes: 0
Received 0 Likes
on
0 Posts
I just looked briefly. It looks like it could work and I hear they basically took the MX5 transmission for the new model. Both the shifters have two grooves in the ball part, which looks like it would work. I would try to find a friend with a MX5 to test it before I actually purchase one.
#294
Super Moderator
Thread Starter
I just looked briefly. It looks like it could work and I hear they basically took the MX5 transmission for the new model. Both the shifters have two grooves in the ball part, which looks like it would work. I would try to find a friend with a MX5 to test it before I actually purchase one.
#295
Registered
Join Date: Oct 2004
Location: South Bucks, UK
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Awesome thread ASH. This and the Technical document posted elsewhere is really enlightening me to the real changes between my old S1 (sadly written off on a track-day incident), and my newly acquired R3
#297
Super Moderator
Thread Starter
NEW COIL PACK Mounting Bracket...

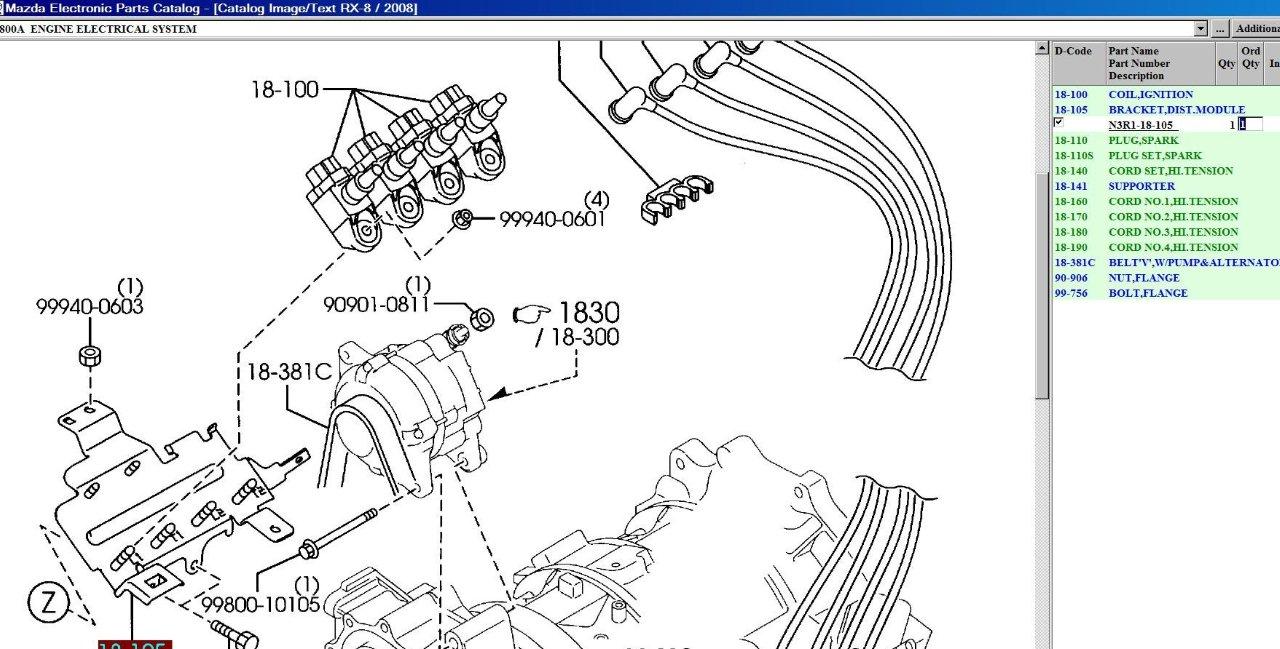

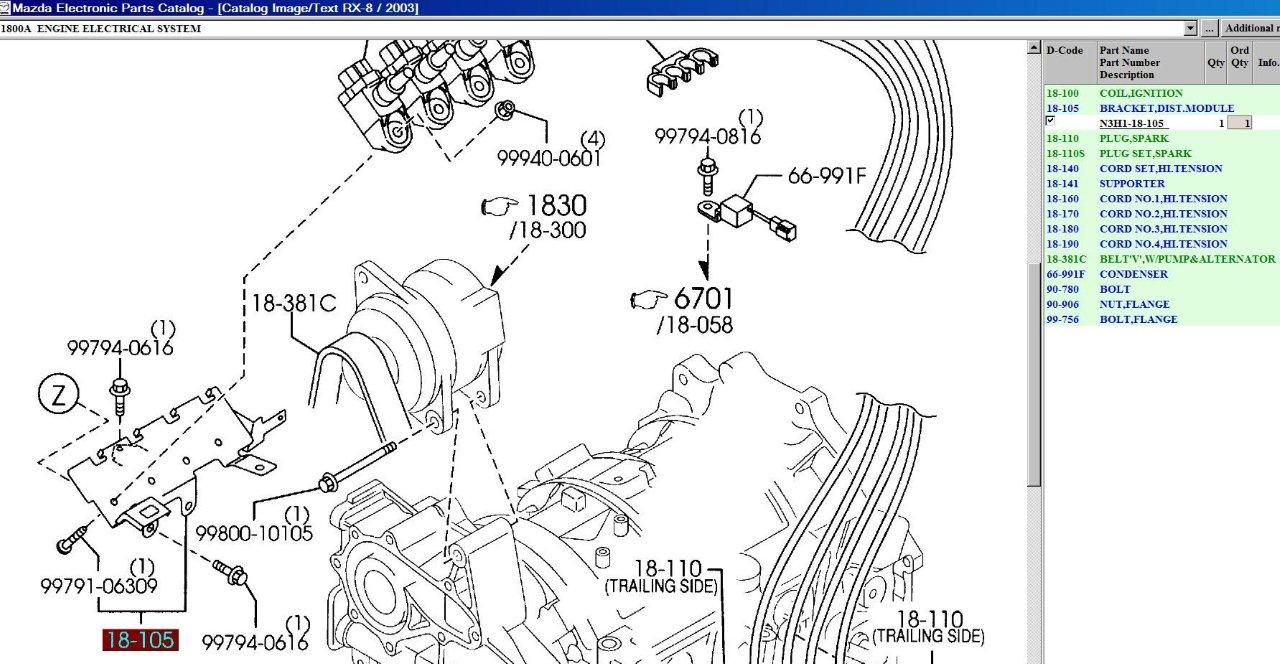

You can see from these two Part's Diagrams of the Ignition Coil Mounting Bracket's, that Mazda appear to have made a long elongated Hole at the base plate to allow for better heat dissipation and cooling of the 4 coils...(S2 PIC)
Many Series 1 RX-8 owners are Modifying/Cutting their Coil Bracket Base Plate with Holes under each of the 4 Coil Packs to assist in venting and cooling of the Coils.
Heat and or Arcing is a major issue in Coil failures seen in Series 1 RX-8's, also the Coils were updated by Mazda on the 1st March 2006 and then again to the latest on the 1st December 2007 PRODUCTION DATE.
Here is a "Modified" Series 1 Base Plate with the 4 holes cut out..
Many Series 1 RX-8 owners are Modifying/Cutting their Coil Bracket Base Plate with Holes under each of the 4 Coil Packs to assist in venting and cooling of the Coils.
Heat and or Arcing is a major issue in Coil failures seen in Series 1 RX-8's, also the Coils were updated by Mazda on the 1st March 2006 and then again to the latest on the 1st December 2007 PRODUCTION DATE.
Here is a "Modified" Series 1 Base Plate with the 4 holes cut out..
Last edited by ASH8; 11-19-2009 at 11:04 PM.
The following users liked this post:
hufflepuff (02-02-2018)
#298
Momentum Keeps Me Going
You can see from these two Part's Diagrams of the Ignition Coil Mounting Bracket's, that Mazda appear to have made a long elongated Hole at the base plate to allow for better heat dissipation and cooling of the 4 coils...(S2 PIC)
Many Series 1 RX-8 owners are Modifying/Cutting their Coil Bracket Base Plate with Holes under each of the 4 Coil Packs to assist in venting and cooling of the Coils.
Heat and or Arcing is a major issue in Coil failures seen in Series 1 RX-8's, also the Coils were updated by Mazda on the 1st March 2006 and then again to the latest on the 1st December 2007 PRODUCTION DATE.
Here is a "Modified" Series 1 Base Plate with the 4 holes cut out..
Many Series 1 RX-8 owners are Modifying/Cutting their Coil Bracket Base Plate with Holes under each of the 4 Coil Packs to assist in venting and cooling of the Coils.
Heat and or Arcing is a major issue in Coil failures seen in Series 1 RX-8's, also the Coils were updated by Mazda on the 1st March 2006 and then again to the latest on the 1st December 2007 PRODUCTION DATE.
Here is a "Modified" Series 1 Base Plate with the 4 holes cut out..
The direct air transfer path from the coils is far far less effective. In the case of these coils they are in close proximity to a high heat radiating source (the engine) and any airflow is dependent on motion, and again the abysmal plastic coil material to air interface.
Take CPU cooling, another high heat in a small area producer, similar to our coils. Metal heatsinks are the norm. If ambient air only is used to cool the heatsink, you have one mother of a metal sink because, again, the air to metal heat transfer is not very good. If fan forced air is used, somewhat less heatsink is required, and if water is used to remove the heat, there is virtually no heatsink.
#300
Super Moderator
Thread Starter
The Yellow Coil Bracket pic is from the Pettit Installation Guide, they are the ones that recommend the 4 Holes..
As for the factory Series 2 Coil Bracket, it looks like it is a long hole in the middle but could be a "tunnel groove"??
Denny, sent you an email mate..
As for the factory Series 2 Coil Bracket, it looks like it is a long hole in the middle but could be a "tunnel groove"??
Denny, sent you an email mate..
