Mechanical Changes On RX-8 Series I to II

Old 12-26-2014, 05:03 PM
  #401
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,563
Likes: 0
Liked 282 Times in 232 Posts
I can't seem to find the diagram/part # for the bracket between the rear of the triangulated shock tower brace and the cowl/firewall?

Originally Posted by ASH8 View Post
Auto's Remains a Single Piece Brace.

TeamRX8 is online now
Old 12-29-2014, 10:14 PM
  #402
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,563
Likes: 0
Liked 282 Times in 232 Posts

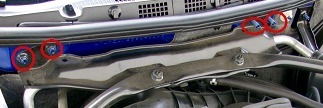

This bracket



(Photo credit to Palmon Sorer)
Attached Thumbnails Mechanical Changes On RX-8 Series I to II-image.jpg
TeamRX8 is online now
Old 12-30-2014, 03:50 AM
  #403
Super Moderator
Thread Starter

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
Talking

Originally Posted by TeamRX8 View Post
This bracket



(Photo credit to Palmon Sorer)
Hey Mark....

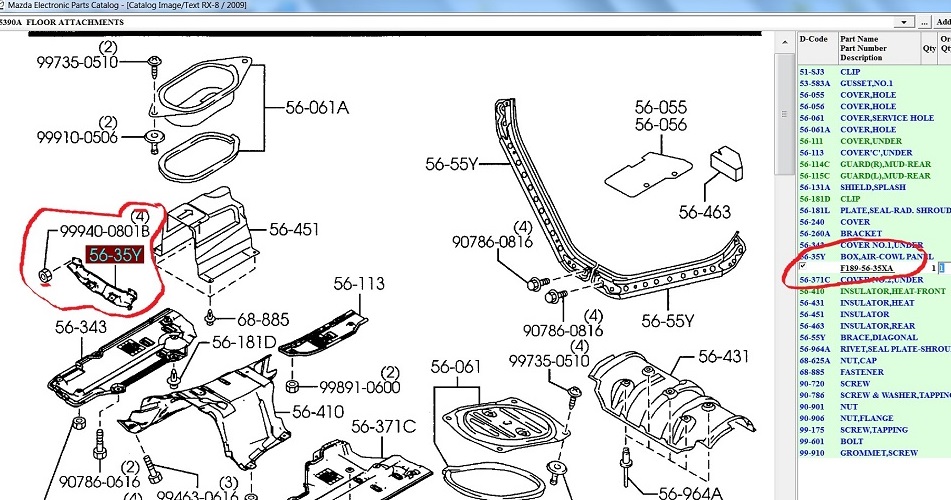

99.55% certain this is it...

F189-56-35XA

Mazda's EPC 'description' is not always accurate, p/n's usually are.

The 4 standardized nuts 9994-00-801B look to be correct by p/n too.
Also in this case the B on p/n end means painted nuts in Black colour.

Un-painted Nuts are slightly cheaper 9994-00-801

HNY

Ash

Attached Thumbnails Mechanical Changes On RX-8 Series I to II-f189-56-35xa.jpg
ASH8 is offline
Old 12-30-2014, 09:04 PM
  #404
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,563
Likes: 0
Liked 282 Times in 232 Posts
Thanks Ash. I did look at that EPC screen before starting the thread, but failed to recognize the part.
TeamRX8 is online now
Old 12-30-2014, 09:40 PM
  #405
Super Moderator
Thread Starter

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
Yeah it can be a PITA (EPC parts locations) as the Japanese keep changing their minds every few years.

BTW: This bracket (F189-56-35XA) is Series II specific (F189) which also confirms the part.
ASH8 is offline
Old 04-29-2015, 08:49 AM
  #406
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,563
Likes: 0
Liked 282 Times in 232 Posts
I overhauled the original rear suspension arms in my 2005 S1 with all new S2 arms last night and did a detailed comparison. There is only one noteable physical difference that I could find. The center rod diameter on the rear tie-rods/toe-control links increased 0.070" and they are noticeably heavier. Pretty sure they bulked those up due to complaints from road track racers that the S1 rear toe links would get bent too easy in minor wheel-wheel contact. Otherwise everything else including ball joint sizes, bushing sizes, arm lengths, etc. were all identical to a tee. Other than the toe-links are far as I can tell the only major changes to the suspension links are the part numbers ...


Originally Posted by ASH8 View Post
New Rear Suspension Control Links (Rods) Upper/Lower and Trailing Ball Joint wrist area increased in Diameter/Size


Originally Posted by ASH8 View Post




Revised Hubs.


Last edited by TeamRX8; 04-29-2015 at 08:58 AM.
TeamRX8 is online now
Old 04-29-2015, 09:00 AM
  #407
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,739
Liked 335 Times in 270 Posts
Did you measure the axle diameter?
9krpmrx8 is offline
Old 04-29-2015, 04:36 PM
  #408
Super Moderator
Thread Starter

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
This is what I have...???

Bit blurry..




It is a bit like front lower control arms (Wishbones) between S1 and S2, different PNs.
Same with NC, different part numbers.

When I compare NC and S2 lower front wishbones there is no difference in physical appearance, none, they even use the exact same bolts and nuts (PN) to mount in every 3 positions, but where the difference is in the bush (rubber insert), again identical to look at between the two but the rubber compound is harder in the S2 when compared to the NC.
ASH8 is offline
Old 04-29-2015, 04:41 PM
  #409
Super Moderator
Thread Starter

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
Mark post a pic of your old S1 link @ ball joints and I will compare again with what I have.
ASH8 is offline
Old 04-29-2015, 07:34 PM
  #410
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,563
Likes: 0
Liked 282 Times in 232 Posts
I physically compared the actual arms of each directly myself. They are not like that comparison at all. My S1 arms look like the one on the left. Those may be non-Sport links or something. I have a 2005 6-port/speed Sport-Suspension Base model (no DSC, 12/2004 build date). Even on the toe-control links the head and bushing ends are the same, just the larger OD center tube on the S2 link. S2 arms are all installed.

bushing durometer or internal design could be different, grease in boot could be different, paint spec could be different, steel type or treatment could be different, supplier could be different, etc.

Almost anything can result in a Part # change.



.

Last edited by TeamRX8; 04-29-2015 at 07:46 PM.
TeamRX8 is online now
Old 04-29-2015, 07:35 PM
  #411
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,563
Likes: 0
Liked 282 Times in 232 Posts
Originally Posted by 9krpmrx8 View Post
Did you measure the axle diameter?
I can. Didn't think to since I don't have S2 axle assemblies to measure.


.

Last edited by TeamRX8; 04-29-2015 at 07:41 PM.
TeamRX8 is online now
Old 04-29-2015, 09:56 PM
  #412
Super Moderator
Thread Starter

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
Originally Posted by TeamRX8 View Post
I can. Didn't think to since I don't have S2 axle assemblies to measure.


.
I have...

Mark, post some S1 axle pics showing where you took/take your measurements from and each of the diameters in mm, I can post what the S2 sizes in same areas, from memory I think it is about 1 or 1.5mm larger in diameter for the manual transmission S2 RX-8's, with no changes for the Auto's.
Have not got Mazda epc handy at the mo.

The rear wheel bearing size (part no.) are identical inner and outer race at rear alloy hub, even though these hubs themselves were upgraded for the S2.

At the diff spline end of axels the two diff housing oil seals have not changed,
and afaik internal Diff spline coupling are the same.

Axle Boot, Clip and Grease kit packs have changed for S2 MT's.
ASH8 is offline
Old 04-30-2015, 09:29 AM
  #413
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,563
Likes: 0
Liked 282 Times in 232 Posts
When I looked at an axle last night there were so many different diameters I just said screw it. Did mean to take a pic of the S1 rear link ball joint ends and it slipped by me. Will do another time.
TeamRX8 is online now
Old 05-01-2015, 04:43 PM
  #414
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,563
Likes: 0
Liked 282 Times in 232 Posts
2005 S1 Sport Suspension Original Rear Links



same as S2 almost looks like the supposed S1 link below wasn't inserted fully in the arm center tube


Originally Posted by ASH8 View Post
This is what I have...???

Bit blurry..


TeamRX8 is online now
Old 05-01-2015, 06:51 PM
  #415
Super Moderator
Thread Starter

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
F If I K Then...?

Here is a S2 right side (the longest one) (Manual Trans) Drive Shaft I have, MA06-25-50X, where do you want to measure again..

S1 MT is MA02-25-50XB


ASH8 is offline
Old 05-02-2015, 07:06 AM
  #416
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,563
Likes: 0
Liked 282 Times in 232 Posts
All that matters is the smallest diameter i.e. weakest link in the chain
TeamRX8 is online now
Old 05-02-2015, 01:48 PM
  #417
Super Moderator
Thread Starter

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
Shakes head...
ASH8 is offline
Old 06-15-2015, 06:11 PM
  #418
Registered
iTrader: (2)

Hi Flying 8's Avatar

Join Date: Oct 2003
Location: Colorado
Posts: 179
Likes: 0
Liked 2 Times in 2 Posts
Hey Ash, 9K, Has anyone compared front springs between S1 and S2 yet? Can't seem to find anything.

My S2 seems to sit higher than my S1 with Koni yellows on the S2 and the stock S2 shocks on the S1. I just switched the shocks between the two front setups.
Hi Flying 8 is offline
Old 06-16-2015, 02:52 AM
  #419
Super Moderator
Thread Starter

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
Hi,

As OEM replacements all the part numbers are different between S1 and S2 Shocks and Springs front and rear, sorry I have not physically compared between S1 and S2.

I have only compared my S2 Tokico (Sport) between S2 Bilsteins (R3) and also my NC2 MX-5 (Miata) Bilstiens.

From what I can recall from discussions years ago in here with Mark (Team) is the S2 Fronts will fit OK on S1, but the rears have/use a slightly different perch position of the Spring to the rear tower bodywork area.

In MY S2, I have compared my OEM Sport (Tokico) set up for my 18 inch wheels to the S2 Bilstein shocks (which I have as new spare parts) for 19 inch wheels.

All I can tell is the alloy Spring perch plate position on Bilstein shocks are just under 1/2 inch difference for the larger 19 inch R3 wheels between the perch plate and the lower shock mount eyelet bolt.

I don't have the Springs to compare.

As for Koni, sorry cant help.
ASH8 is offline
Old 06-16-2015, 01:04 PM
  #420
Registered
iTrader: (2)

Hi Flying 8's Avatar

Join Date: Oct 2003
Location: Colorado
Posts: 179
Likes: 0
Liked 2 Times in 2 Posts
Thanks, Ash. I guess I will have to pull one spring off of each car and compare and may do a little measurement otherwise to see why the levels are different. I know Jason Isley (Ullose) said years ago when he was winning the SCCA Solo championships, that he had accumulated a number of stock springs and selected the shortest for his car as there was that much difference in tolerences.

It may be a little while, but I will report back with my findings for clarification.
Hi Flying 8 is offline
Old 01-19-2018, 10:48 PM
  #421
Super Moderator
Thread Starter

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,617
Liked 149 Times in 107 Posts
PLEASE take a look at this link, we need your help now, it is self explained.

https://www.rx8club.com/lounge-4/you...3/#post4849721
