Mechanical Changes On RX-8 Series I to II
#326
Super Moderator
Thread Starter
Yep, as I said, the VFAD "door flap" is used on High Power engines (6 ports) and the Tube without a VFAD Door is for Low Power (4 port) engines...
That is how it has always been hasn't it??
That is how it has always been hasn't it??
#329
Super Moderator
Thread Starter
Well if this is the case looks like for 2010 Mazda have changed the Air Intake Hose.
I don't have a 2010 EPC, but, my Series 2 shows a change at production date November 1st, 2008, where the Standard Power went to the same High Power and VFAD.
In other words ALL RX-8's from Nov 1st, 2008 had ONE VFAD, Only the High Power
N3H3-13-200C.
At some stage after this date (late 2009 a guess) Mazda Changed yet again for the Auto's with NO VFAD Flap.
I wonder 9k if the 6 speed Manuals still have the VFAD flap set up??
I will get back to you with some Part Numbers and Info..
#332
Super Moderator
Thread Starter
#335
Registered User
Join Date: May 2008
Location: Piraeus, Greece
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
ash8,
once more a very very big thumbs up for all your knowledge that you keep sharing with us...
i have a rather important issue to ask & discuss...
i know you can compare and contrast all RX engines...
have you seen a apex seal/ oil seal difference in materials regarding Renesis I vs Renesis II ??
if not, the misinformative propaganda on Mazda's part regarding synthetic oil use and that it gumps up sensitive internal oil seals etc can be once and for all disproved & busted
and i don't know whether you noticed, but on Renesis II owners manual, synth oil use ban changed from "damage to internal oil seals" to "starting performance could worsen"
once more a very very big thumbs up for all your knowledge that you keep sharing with us...
i have a rather important issue to ask & discuss...
i know you can compare and contrast all RX engines...
have you seen a apex seal/ oil seal difference in materials regarding Renesis I vs Renesis II ??
if not, the misinformative propaganda on Mazda's part regarding synthetic oil use and that it gumps up sensitive internal oil seals etc can be once and for all disproved & busted
and i don't know whether you noticed, but on Renesis II owners manual, synth oil use ban changed from "damage to internal oil seals" to "starting performance could worsen"
#336
Super Moderator
Thread Starter
No Difference between Series 1 and 2 as far as Internals go..
The Synthetic issue was to do with the Oil Control Ring "O" Rings,,,the OEM ones, with A Particular BRAND of Fully Synth (real POA) Engine Oils.
It was easier for Mazda Japan to say NO to ALL rather than single out a brand, and the "fallacy" that Synthetic Oils require less maintenance activity or topping off with rotaries or ANY engine which is also WRONG.
Sorry, But I am NOT going to discuss OILS anymore in this thread, as it is Boring, been done to death and meaningless.
The Synthetic issue was to do with the Oil Control Ring "O" Rings,,,the OEM ones, with A Particular BRAND of Fully Synth (real POA) Engine Oils.
It was easier for Mazda Japan to say NO to ALL rather than single out a brand, and the "fallacy" that Synthetic Oils require less maintenance activity or topping off with rotaries or ANY engine which is also WRONG.
Sorry, But I am NOT going to discuss OILS anymore in this thread, as it is Boring, been done to death and meaningless.
#338
Super Moderator
Thread Starter
A TRUNK what????, I guess you are Talking TRUNK Lid, or Trunk Badge, Or Trunk Hinges, or TRUNK Stays????
I will go for LID...
OK, In this case there are more than ONE, and that depends on whether the RX-8 you are talking about has Side Spoilers, which will also Identify a Trunk Lid Spoiler??..
OEM's new replacements have Holes in them for Spoilers??..
Also,depending on VIN or Date of Car Manufacture in the Series 1 would also depend on "which" Trunk Lid..
Mazda did a production change on S1's on 2nd, Feb, 2007, not only the Trunk Lid, But the Rear Bumper, for Clearance or Gap between Trunk Lid Lip and Bumper and Rear Tail Lamps.
So basically a S2 will not fit a S1 made Before 2nd Feb, 2007, there are a few other Variables..
BUT, you need to tell me what is the purpose of your question, in this instance.
Are you wanting to put a Second Hand S2 lid on a S1?..
Or are you "trying" to install S2 LED Tail Lamps on a S1??..
Either way, I need more info for EXACT response...Including your VIN Number.
#339
I'm nervous that even the dealership is gonna get things wrong with the later cars when things need to be done down the road. Hell I went to to the parts counter there and the puerto rican still brought out the old, incorrect oil filter even though I told him right off the bat that the 09 and up have a different part #!
#340
Super Moderator
Thread Starter
Yes, unfortunately there are no "Schools" for Parts guys for ANY Brand/Make of car, in most cases Dealers use young Guys who like cars, they may stay for a few years and leave or they may stay on to be management material..
For a Parts guy the Salary is terrible (not much better than a Wall-mart, McDonalds worker or whatever).
Only in Management do you earn reasonable money.
So, given that 99.9% of ALL Retail Car Dealers are privately owned, what is expected?
Unfortunately we (parts guys) are expected to READ Peoples minds (see above) and it can become VERY tiring.
Plus you have a model of Mazda (the RX-8) which is SOLD in very small numbers at a Dealership (6-12 a year or less), so the parts guy get very little hands on experience with the S2 8.
For a Parts guy the Salary is terrible (not much better than a Wall-mart, McDonalds worker or whatever).
Only in Management do you earn reasonable money.
So, given that 99.9% of ALL Retail Car Dealers are privately owned, what is expected?
Unfortunately we (parts guys) are expected to READ Peoples minds (see above) and it can become VERY tiring.
Plus you have a model of Mazda (the RX-8) which is SOLD in very small numbers at a Dealership (6-12 a year or less), so the parts guy get very little hands on experience with the S2 8.
#342
Super Moderator
Thread Starter
Yeah, it is interesting...
Originally the Auto's never had the VFAD Duct, having said that My Mazda EPC says for Series 2 the Auto went to the Manuals VFAD from 1st Nov, 2008 (H3H3-13-200C), before that date the STD Power used a H3H1-13-200B.
I need to get my 2010 EPC Update done, so sorry I can't confirm the changes in 2010 models.
Does not seem to make sense to go to the VFAD (same as Manuals) in 1st Nov, 2008 for Autos, and then back to a NON VFAD in 2010??
I will try and find out more info..
Originally the Auto's never had the VFAD Duct, having said that My Mazda EPC says for Series 2 the Auto went to the Manuals VFAD from 1st Nov, 2008 (H3H3-13-200C), before that date the STD Power used a H3H1-13-200B.
I need to get my 2010 EPC Update done, so sorry I can't confirm the changes in 2010 models.
Does not seem to make sense to go to the VFAD (same as Manuals) in 1st Nov, 2008 for Autos, and then back to a NON VFAD in 2010??
I will try and find out more info..
#343
Momentum Keeps Me Going
^ what doesn't seem to make a lot of sense anymore is to have had the V-FAD in the 1st place.
I realize and can appreciate all the theoretical reasoning for its being there, but then MazdaSpeed the 'performance' arm of Mazda ditched it w/their CAI, Racing Beat ditched it for their 'performance ram duct', all other CAIs do as well, and now, with this, Mazda proper has seen fit to ditch it after making the auto rpm range closer to the manual, soon after they added it in! As I use the RB duct, and have for several yrs, all I can remember of the V-FAD is that it gave a hickup in the power delivery every time it kicked in on track going through the gears....something like...
zooooooom (cough) zoom, new gear zoooooom (cough) zoom, etc
...guess Mazda came to the same conclusion .. or something?
I realize and can appreciate all the theoretical reasoning for its being there, but then MazdaSpeed the 'performance' arm of Mazda ditched it w/their CAI, Racing Beat ditched it for their 'performance ram duct', all other CAIs do as well, and now, with this, Mazda proper has seen fit to ditch it after making the auto rpm range closer to the manual, soon after they added it in! As I use the RB duct, and have for several yrs, all I can remember of the V-FAD is that it gave a hickup in the power delivery every time it kicked in on track going through the gears....something like...
zooooooom (cough) zoom, new gear zoooooom (cough) zoom, etc
...guess Mazda came to the same conclusion .. or something?
#346
Super Moderator
Thread Starter
OK, 9K, got a reply from my Mazda Spare Parts Manager here in South Australia, he has been with Mazda Parts for over 25 years...I asked him for 2010 RX-8 Fresh Air Duct sets..
His reply..
Hi Ash. All they list is std-power part number is N3H1-13-200B
There is also a high power part number: N3H3-13-200C.
Which is the same info I have listed???
His reply..
Hi Ash. All they list is std-power part number is N3H1-13-200B
There is also a high power part number: N3H3-13-200C.
Which is the same info I have listed???
#348
Super Moderator
Thread Starter
am thinking of putting a wing on it, since it is mounted differently from my factory ones.
And as I said the LID from an 04 wont fit an 09 correctly....give it a try if you want to.
As far as a Complete Trunk (Boot) lid changeover from a S1 to S2, as I said there is a change in S1...see above, watch out for Tail Lamp Clearance...if that is what you are doing??
#349
SARX Legend
iTrader: (46)
OK, 9K, got a reply from my Mazda Spare Parts Manager here in South Australia, he has been with Mazda Parts for over 25 years...I asked him for 2010 RX-8 Fresh Air Duct sets..
His reply..
Hi Ash. All they list is std-power part number is N3H1-13-200B
There is also a high power part number: N3H3-13-200C.
Which is the same info I have listed???
His reply..
Hi Ash. All they list is std-power part number is N3H1-13-200B
There is also a high power part number: N3H3-13-200C.
Which is the same info I have listed???
#350
Registered
iTrader: (2)
Rear Differential Differences

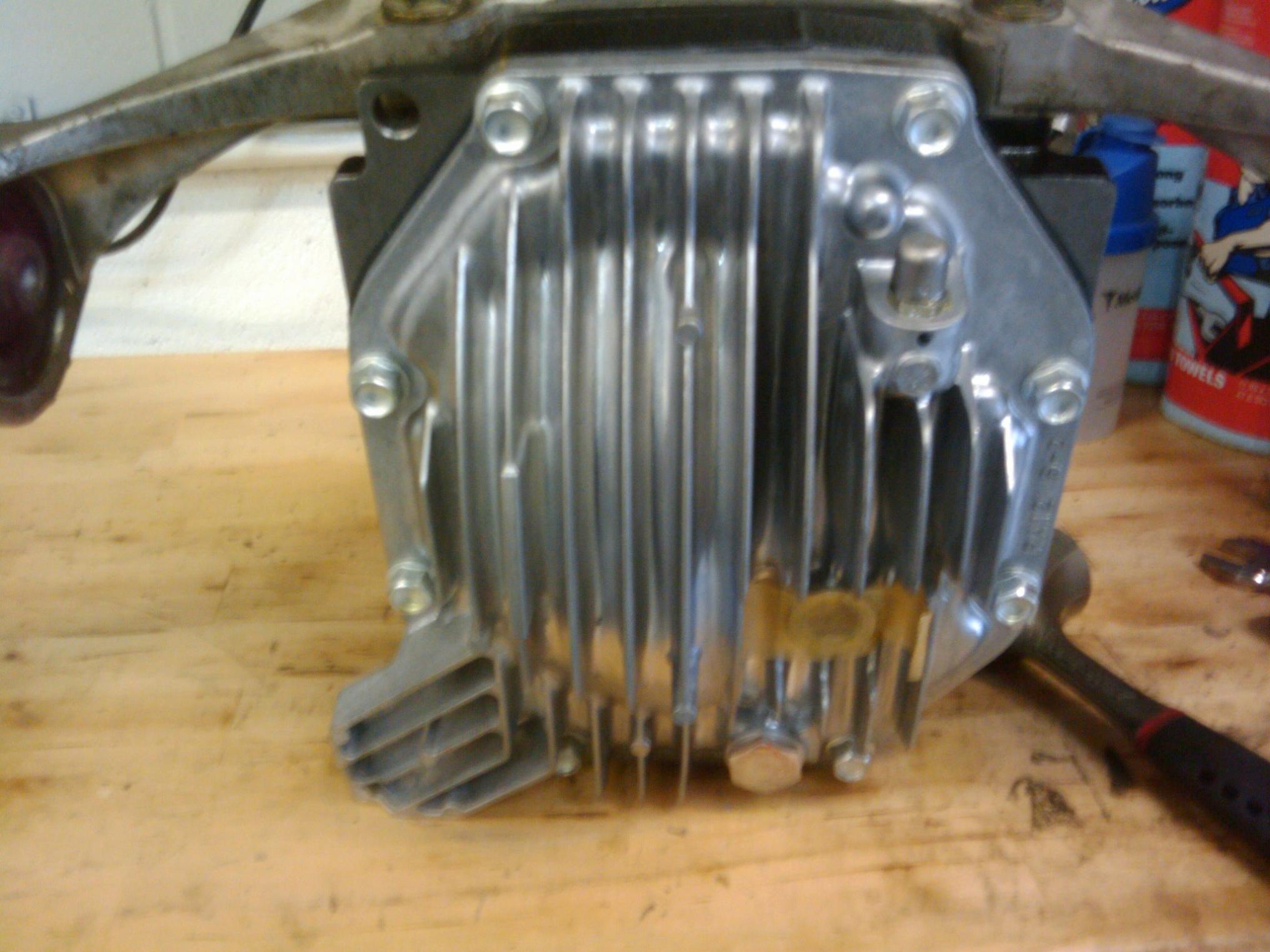

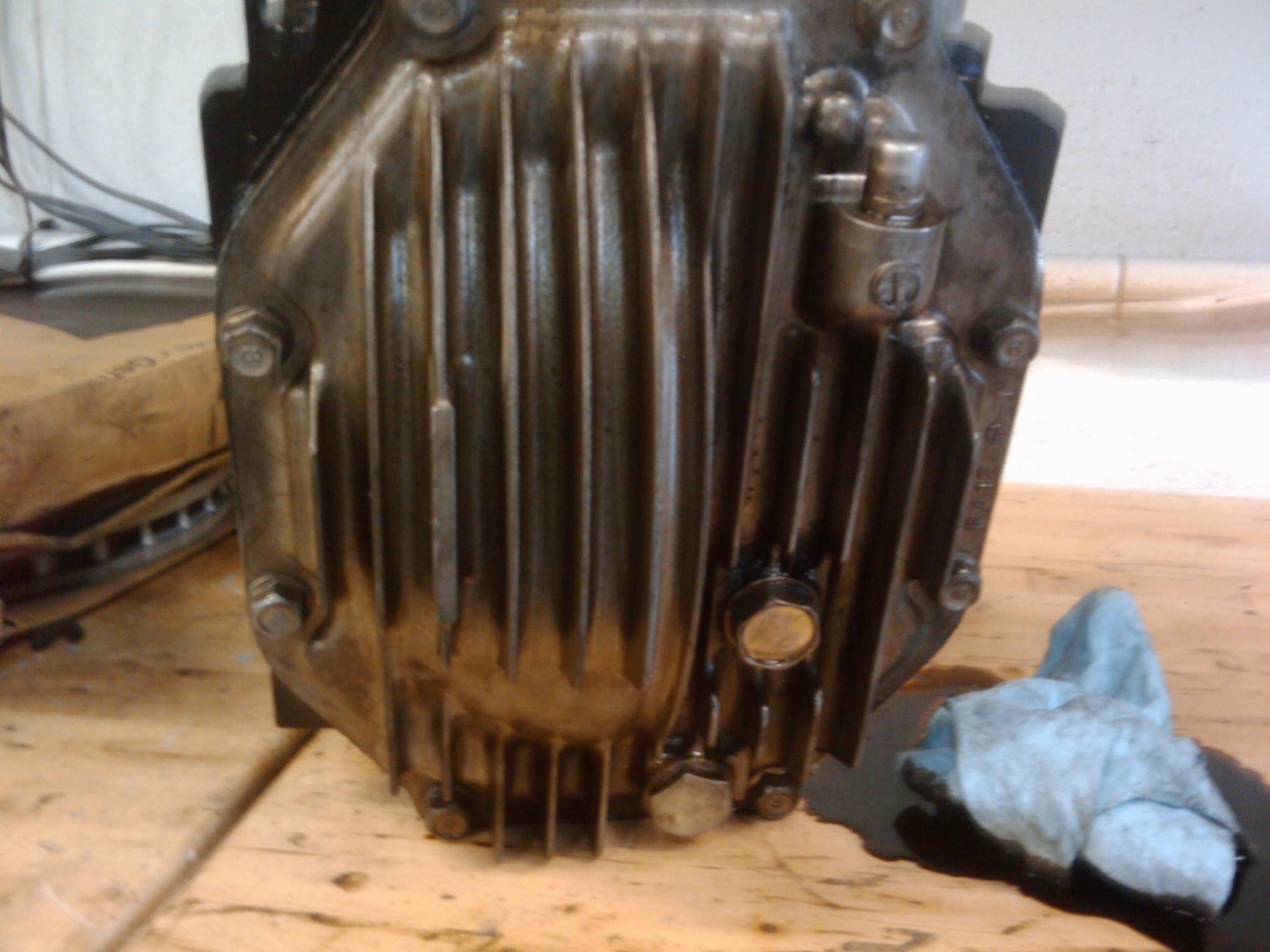

I recently installed a 2010 model rear differential in my 2005 RX-8 Race car and noticed that besides just the gear ratio change they've also mildly redesigned the whole differential and differential cover. The main difference is that the differential cover has much deeper fins and a cooling extension off one lower corner. Look like it must provide at least a little bit more cooling to the differential. 2010 differential on left and original 2005 differential on right.
Last edited by MagnusRacing; 09-28-2010 at 06:54 PM.
