shr3da

either my fuel tank is broken or when I bottomed out the force was so violent that fuel came out from the tank where the assembly is because I didn't get around to double checking the correct tq for the cap on the fuel tank, yeah I fucked up.

Did Tim also tell you that my cat is already starting to crumble? I believe I have the same cat as you 200cell, cant remember the brand.

When are you up for a reefton run or track day? You have no excuse not to come to Nationals now, were struggling for numbers.

tofu_box

My cat is still going strong, just pulled it out and it was perfect.

Are you premixing too much?

When is the national this year? Im travelling alot this year for work.

Im getting car tuned tomorrow, gonna put another 5k into the transmission then flush with amsoil transmission oil, so i am good to go after that

*edit* I cant make 17th of August i will be overseas.

shr3da

mazdaedit?

I have been running no premix lately, been lazy and before that it was like 50mm a tank.

your always overseas.

Garage Cafe this friday tho, better make it!!!

tofu_box

No can do this friday, im getting a 6 hour tattoo session from 11-5, will be exhausted after

shr3da

baby, oh well let us know how your dyno tunning goes!

tofu_box

Well tuning is partially done.

So far 270.48 hp at the wheels.

Interesting thing happened though, it appears the car is activating it's torque reducer of some kind.

We are aiming at 8250 rpm, however when approaching 7750, it is activating what appears to a be a torque reducer therefore pulling out timing, and or completely activating transmission light and cutting it completely.

When it was set to have 7-8 degree of timing, data log is showing -2 - -3 timing.

The tuner has found fair few tables in MazdaEdit that appears to be the table for transmission, however this are not labelled yet, also apart from that the current version of MazdaEdit is unable to log the required values other then the typical canbus items.

Also belt is showing signs of slipping at near 7750 rpm.

We are in contact now with EpiFan to sort out these tables and sort out the logging, once we have that information and possibly a chance of changing the pulley setup we will recommence tuning.

But i was told to easily expect another 20 hp once these things are all sorted... maybe 300 isnt impossible O.O

shr3da

good to hear.

Maybe you will have to lower the redline to 8?

have you ever taken the car to 8250 before?

Whos dyno are you using?

Brettus

iTrader: (2)

what logging parameters are you missing ? I have pretty much all i need bar injector% and trailing timing.

The timing being pulled is in line with the knock tables - is there any knock ? If not you can alter these to prevent timing being pulled.

tofu_box

Just got the a GoPro cam, so i have now incorporated recordings into my logging runs for the AFR gauge, since my OEM seems to be running rich.
This was the latest run that i recorded and thought i'd share

Here is the clip, it is a 2nd gear pull, on a 4 speed AT RX8 with 4.77 Final Gear



Ive also thrown together quickly two 2D Charts.

First one.
X Axis: RPM
RED: Absolute Load
YELLOW: Speed
Grey: Intake Air Temp
Green: Air Fuel Ratios

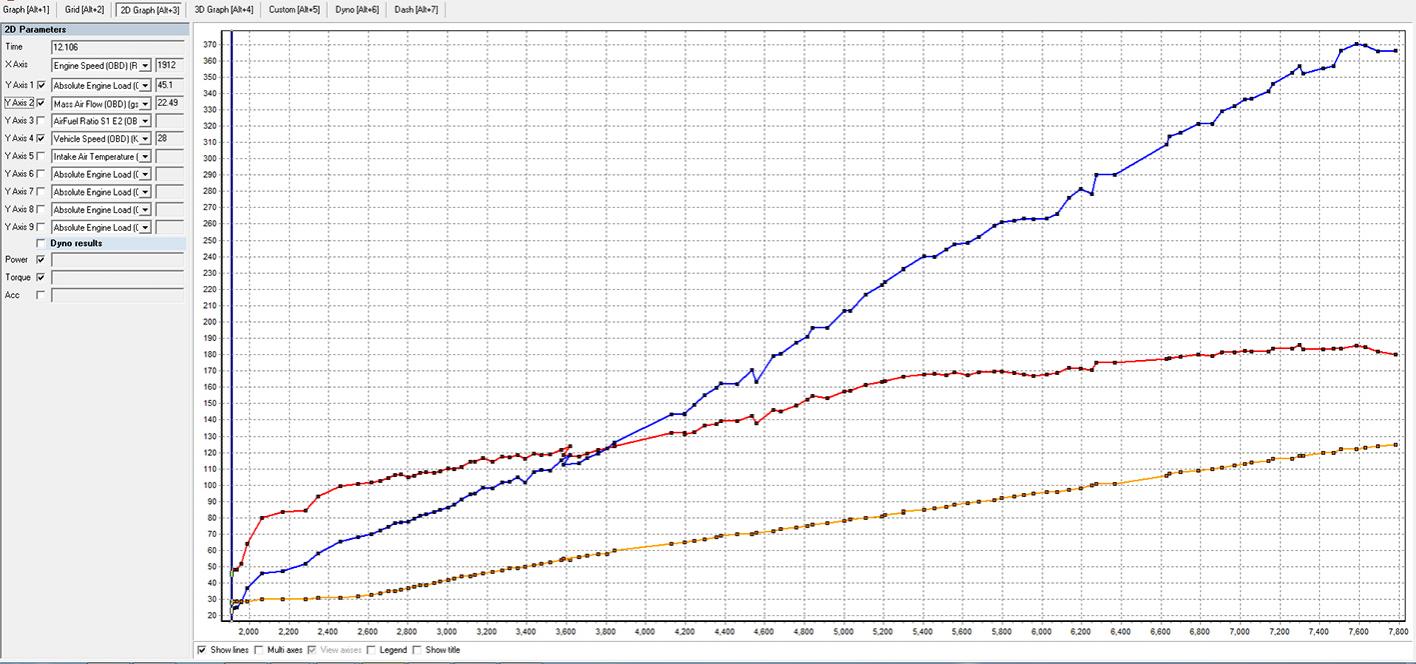

2nd Chart
X Axis: RPM
Red: Absolute Load
YELLOW: Speed
Blue: Mass Air Flow (GS)



Still can prob go another 700 RPM, but keeping it at 7,800 for now, until i can get my IAT downs abit further.

Anyways tune is still not quite finished, trying to sort out minor bits and pieces now

Anyways tuning using MazdaEdit, Big Props to Brettus for tuning the car! Still work in progress, Brettus keep wanting to make the tune better!

Brettus

iTrader: (2)

Yeah man - your car has to be the toughest I've ever had to tune . Has taken me ages to sort out what was going on with the injectors . Sorry for all the mucking around but I think the end result is good.

I now understand why so few FI 4port Autos have been successful as there is a major tuning trap not seen on the 6 ports .

pdxhak

iTrader: (2)

How much HP is it making?

Brettus

iTrader: (2)

Tofus dyno is in AT section below . This current setup is around the same WHP as shown - maybe a little more. All the tuning was more about making the car more driveable than for more power.

https://www.rx8club.com/series-i-maj...7/#post3158241

tofu_box

yea its been tough brett, thanks for hanging in there!

Not only is there tuning traps, but things kept breaking too haha, had alot of interruptions, this the recent tuning period is probs the longest we kept logging and tuning.

and @pdxhak its around 260 rwhp maybe abit more havnt dynoed it in a while

tofu_box

Just did a virtual dyno with brettus its reading roughly around 270 rwhp

09Factor

Pics or it didn't happen.

tofu_box

here ya go

Brettus

iTrader: (2)

Just for the record ... that curve is an odd shap like that because of some missing data points on the logs . With that resolved we would see more of a straight line peaking later in the rev range at about the same figure.

JamesD31

:O Where did you get paddle shifters?!

pdxhak

iTrader: (2)

Nice work

Impressive!

tofu_box

Appreciated!

Did a virtual dyno and its reading out to be roughly 280 rwhp, will get it dynoed properly soon when i get a chance!

nuke0907

iTrader: (2)

So you're still using an Adaptronic? what kind of "hurdles" did you have trying to figure out the tune?

Brettus

iTrader: (2)

He is using mazdaedit personal and we did the tune via email/logging etc.
The main hurdle was in how the stock ecu handled the staging of the secondary ID1000 injectors . Was a real mission to work it out . But we got there in the end.

skc

Good to see that Mazda edit is turning out to be a viable tuning solution. This may be something for me to consider in the future.

Brettus

iTrader: (2)

It really is way ahead of Protuner in lots of ways and the extra features make it better than the AP as well in my opinion.

nuke0907

iTrader: (2)

When can we see a real dyno graph?
