Another Top Mount Setup - Page 19

Feb 21, 2011 | 02:14 PM

#451

sauceyI986

Registered

Joined: Jun 2006

Posts: 855

Likes: 0

From: Laveen,Az

Quote:

Originally Posted by Phish806

Looks like i will be purchasing a GT35 hybrid from Turblown for my build in the next day or two. Basically it will be used in place of the esmeril turbo. I just need to put the turbo on and get the car back together along with installing the meth injection, and i am ready for the trip to TX for a tune. Curious to see what this style of turbo will do on my car without the Turblown manifold. I am also going to go with the smaller A/R then what was used in this thread.

wish u the best of luck. for some reason i always had my mind set on GT35's for some reason. i dont know why.

Last edited by sauceyI986; Feb 22, 2011 at 06:38 AM.

Feb 21, 2011 | 09:34 PM

#452

TeamRX8

Registered

iTrader: (25)

Joined: Apr 2005

Posts: 26,936

Likes: 2,140

Quote:

Originally Posted by california style

That might work on a dyno, but its not a great idea on the road!

So you would rather the engine disintegrate in the process of shutting itself down?

Feb 27, 2011 | 11:11 PM

#453

Jamaalsmith

Registered User

Joined: Jul 2009

Posts: 121

Likes: 0

From: Your Mouth

bump

Elliot how would you expect porting to affect turbo response?

Feb 28, 2011 | 04:29 PM

#454

Turblown

Thread Starter

Boostin'

Joined: Feb 2006

Posts: 641

Likes: 1

From: Twin Cities, MN

Hard to say, maybe just slightly more top end with the aux ports open. Don't think response will really change from porting alone. The biggest difference will come from having more sealing compression. I expect that to raise torque everywhere....

Feb 28, 2011 | 05:54 PM

#455

jayscoobs

Registered

Joined: May 2010

Posts: 347

Likes: 0

From: Bay Area, CA

Hey Elliot you have a PM sir.

Mar 12, 2011 | 09:47 PM

#456

Turblown

Thread Starter

Boostin'

Joined: Feb 2006

Posts: 641

Likes: 1

From: Twin Cities, MN

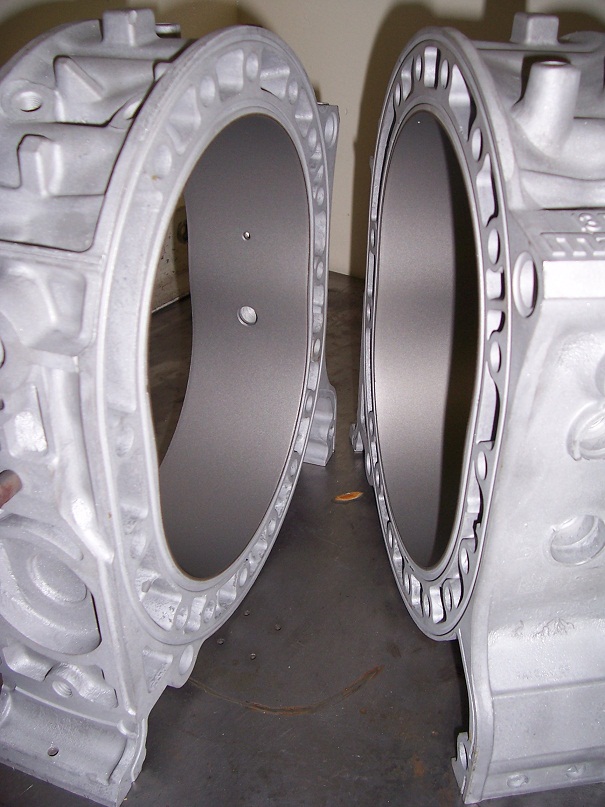

Recondition and Coated Rotor Housings for the new street-ported engine. As soon as we are in our new shop we are going to knock this new engine out and see what 15psi nets us..

Attached Thumbnails

Another Top Mount Setup-coatedmsphousings.jpg

Mar 13, 2011 | 11:34 AM

#457

Jamaalsmith

Registered User

Joined: Jul 2009

Posts: 121

Likes: 0

From: Your Mouth

mmmmmmmmcoated....gahhhhghhhhhhh

Mar 22, 2011 | 12:27 AM

#458

Turblown

Thread Starter

Boostin'

Joined: Feb 2006

Posts: 641

Likes: 1

From: Twin Cities, MN

Here are the apex seals we will be using for this build;

http://www.turblown.net/store/index.php?productID=260

A great inexpensive alternative to the OEM units. We've had great success with them.
Curious to see how high of compression numbers we can get on Jamaal's Engine, compared to the factory engine...

Mar 22, 2011 | 01:41 AM

#459

Brettus

Boosted Kiwi

iTrader: (2)

Joined: Apr 2006

Posts: 20,844

Likes: 1,798

From: Y-cat-o NZ

Quote:

Originally Posted by Turblown

It says direct replacement , but they look taller than stock seals ?

Mar 22, 2011 | 01:44 AM

#460

MazdaManiac

Banned

iTrader: (3)

Joined: Oct 2003

Posts: 16,386

Likes: 28

From: Under my car

They look the same height, but without the slot for the short spring.

Mar 22, 2011 | 01:46 AM

#461

Turblown

Thread Starter

Boostin'

Joined: Feb 2006

Posts: 641

Likes: 1

From: Twin Cities, MN

Quote:

Originally Posted by Brettus

It says direct replacement , but they look taller than stock seals ?

Unfortunately those aren't an actual Rx-8 apex seal photo... They are direct replacement, we've built Rx-8 engines with them. Never got around to taking a photo, will shortly

Mar 22, 2011 | 12:26 PM

#462

JETS3T8

Registered

Joined: Jun 2008

Posts: 305

Likes: 18

From: SoCal

Quote:

Originally Posted by Turblown

Unfortunately those aren't an actual Rx-8 apex seal photo... They are direct replacement, we've built Rx-8 engines with them. Never got around to taking a photo, will shortly

Gotcha covered, here ya go:

Mar 22, 2011 | 12:43 PM

#463

Chris

Turbo Member

iTrader: (10)

Joined: May 2006

Posts: 2,496

Likes: 29

From: Tampa, FL

second time I heard goopy come up in the past month.

Mar 22, 2011 | 01:15 PM

#464

MazdaManiac

Banned

iTrader: (3)

Joined: Oct 2003

Posts: 16,386

Likes: 28

From: Under my car

I like the wider corner piece. Less likely to exit the groove in a detonation event.

Mar 22, 2011 | 02:43 PM

#465

Brettus

Boosted Kiwi

iTrader: (2)

Joined: Apr 2006

Posts: 20,844

Likes: 1,798

From: Y-cat-o NZ

I wonder about the name . Having something 'goopy' spinning around at speed inside my engine .... don't know .

Mar 22, 2011 | 02:59 PM

#466

csl

Registered

Joined: Mar 2007

Posts: 417

Likes: 0

No description/data on wear rate, highest boost ever tested or etc. If it will finished at 20-30k miles or max boost 10 PSI then I would prefer to machined the rotor for those unbreakable seal like super seal, south coast rotary and etc. gasket and o-ring kit ain't cheap.

Mar 22, 2011 | 04:09 PM

#467

Turblown

Thread Starter

Boostin'

Joined: Feb 2006

Posts: 641

Likes: 1

From: Twin Cities, MN

Quote:

Originally Posted by csl

63 psi and 1070rwhp, they are also in the fastest 12A in the world( 7.40 @ 181mph).
I know they are in a 13B running a 7.10 @ 191mph too. These seals have been manufactured for 5 years, and the company has 10 total years of producing apex seals. There are several street customers with 10-20k miles on their engines.

Mar 28, 2011 | 08:46 AM

#468

olddragger

Registered

iTrader: (3)

Joined: Apr 2004

Posts: 10,828

Likes: 40

From: macon, georgia

with the apv's wired open--what do yall do about the hot combustion gasses that come back into the intake during decell?
OD

Mar 29, 2011 | 11:51 AM

#469

Turblown

Thread Starter

Boostin'

Joined: Feb 2006

Posts: 641

Likes: 1

From: Twin Cities, MN

Quote:

Originally Posted by olddragger

with the apv's wired open--what do yall do about the hot combustion gasses that come back into the intake during decell?
OD

On decel the injectors are turned off, there isn't any combustion.

Now low rpms, out of boost on the throttle you might see a little bit, but again not in boost so gonna be hard to damage the engine. Load is low.

We are finally moved into our new shop, waiting for this car to arrive..

Mar 29, 2011 | 02:50 PM

#470

sauceyI986

Registered

Joined: Jun 2006

Posts: 855

Likes: 0

From: Laveen,Az

That's good u guys are in your shop finally.

Mar 31, 2011 | 08:48 AM

#471

hoss -05

Lucky #33

iTrader: (4)

Joined: Feb 2009

Posts: 2,851

Likes: 5

From: San Antonio, SARX Garage

Quote:

Recondition and Coated Rotor Housings for the new street-ported engine.

What sort of coating are you using in the housings?

Apr 1, 2011 | 12:54 PM

#472

Turblown

Thread Starter

Boostin'

Joined: Feb 2006

Posts: 641

Likes: 1

From: Twin Cities, MN

Quote:

Originally Posted by hoss -05

What sort of coating are you using in the housings?

http://www.turblown.net/store/index.php?productID=98

Car is slatted to arrive in 3 hours!

Apr 1, 2011 | 12:59 PM

#473

bse50

#50

Joined: Nov 2007

Posts: 7,521

Likes: 11

From: Caput Mundi

If it's something like molykote, as it seems from the specs, then the price is very nice. Applying it in the right way is a pain.

Apr 7, 2011 | 10:12 AM

#474

09Factor

Original Turbo 'd Auto !!

Joined: Mar 2004

Posts: 2,136

Likes: 5

From: Surprise, Arizona

Pics or this isn't happening.

Apr 8, 2011 | 05:38 AM

#475

Jamaalsmith

Registered User

Joined: Jul 2009

Posts: 121

Likes: 0

From: Your Mouth

Quote:

Originally Posted by 09Factor

Pics or this isn't happening.

I second this motion!!!
