My point was (and still is ) that I don't think we will see that engine on the street very soon (that is to say, I wouldn't hope to find this engine in the restyled Rx-8).



Will this fit in my 8

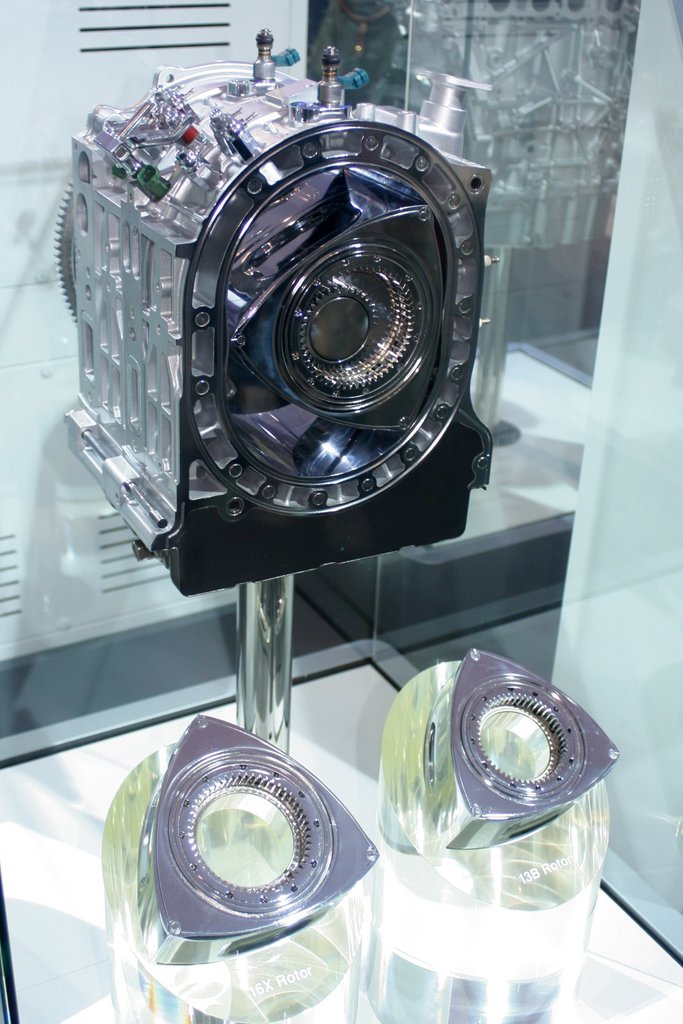

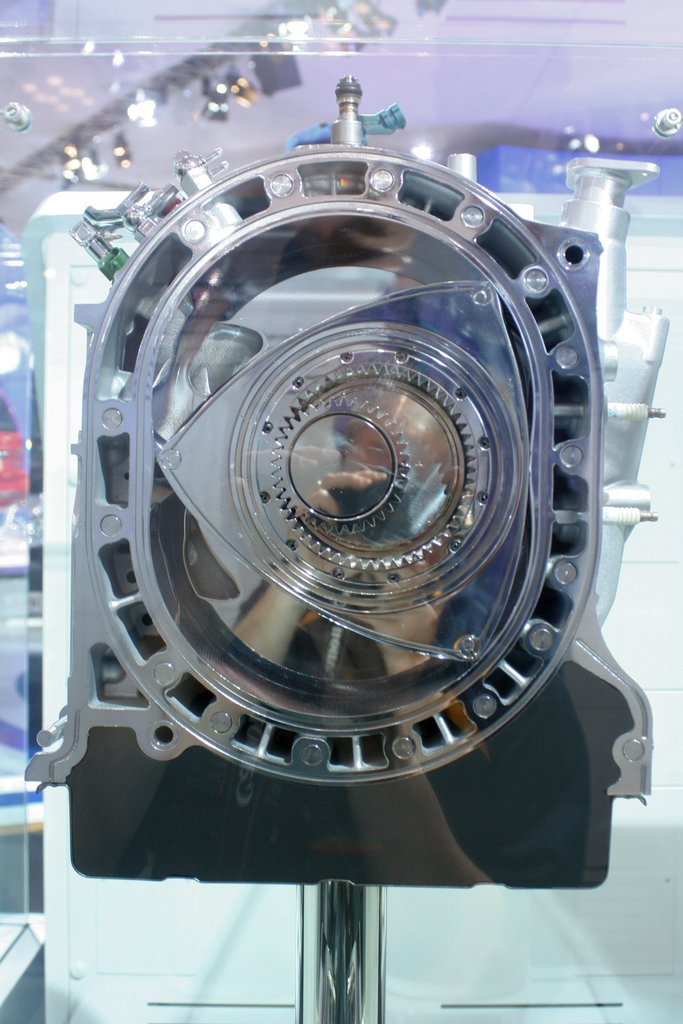

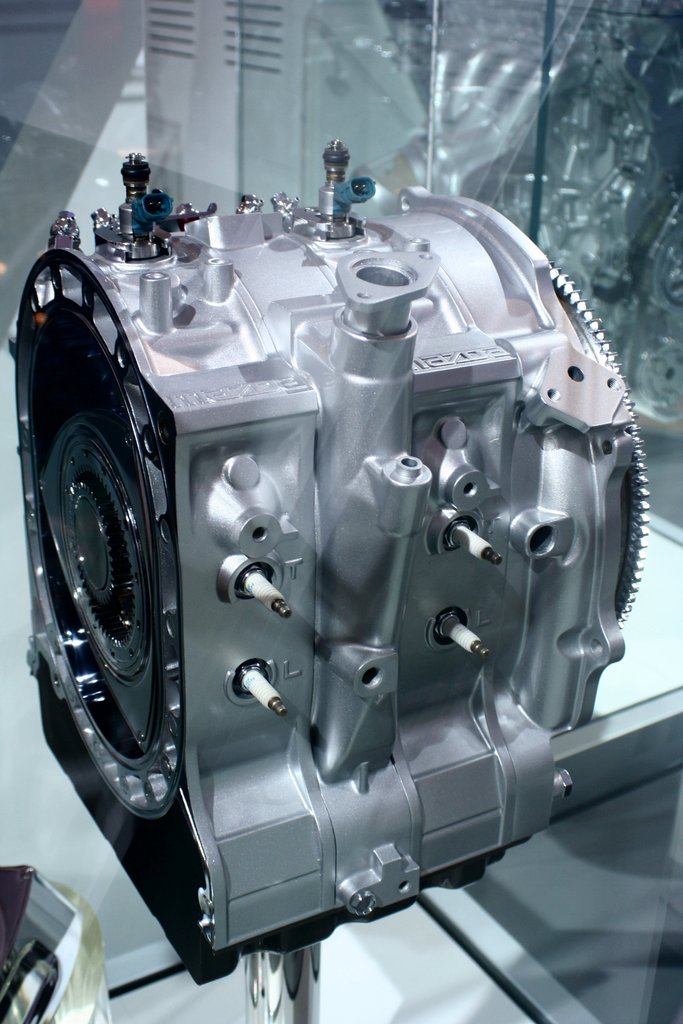

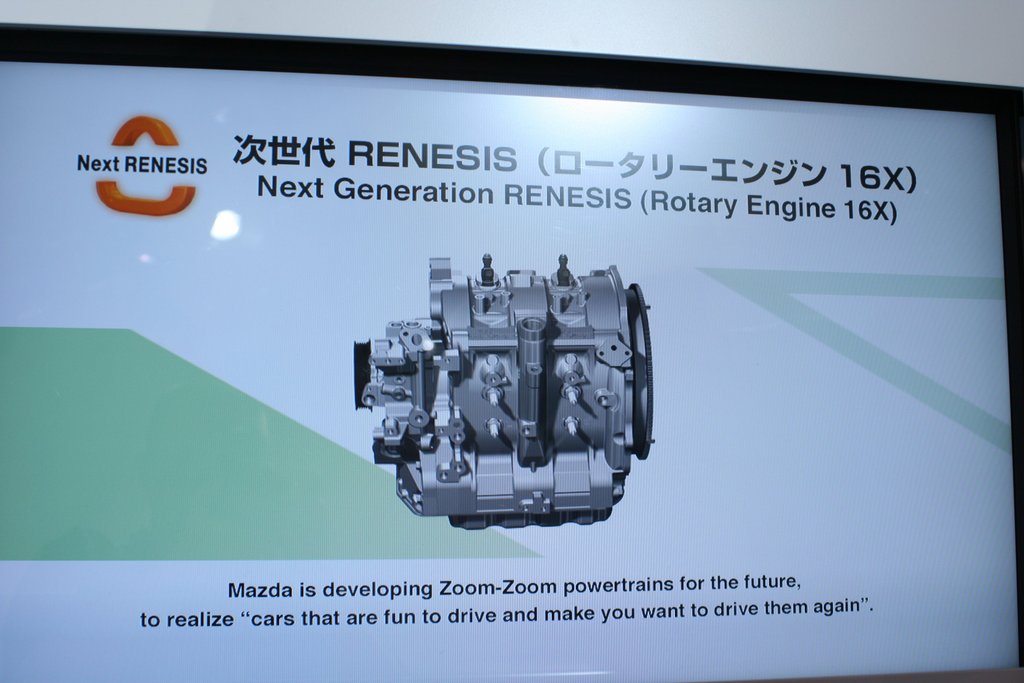

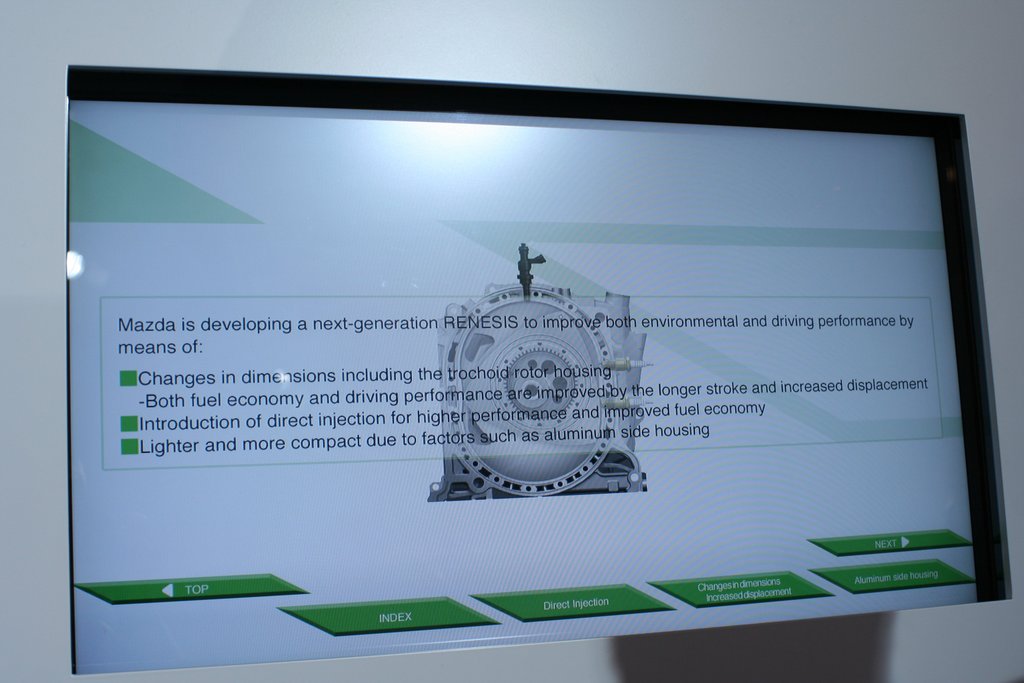

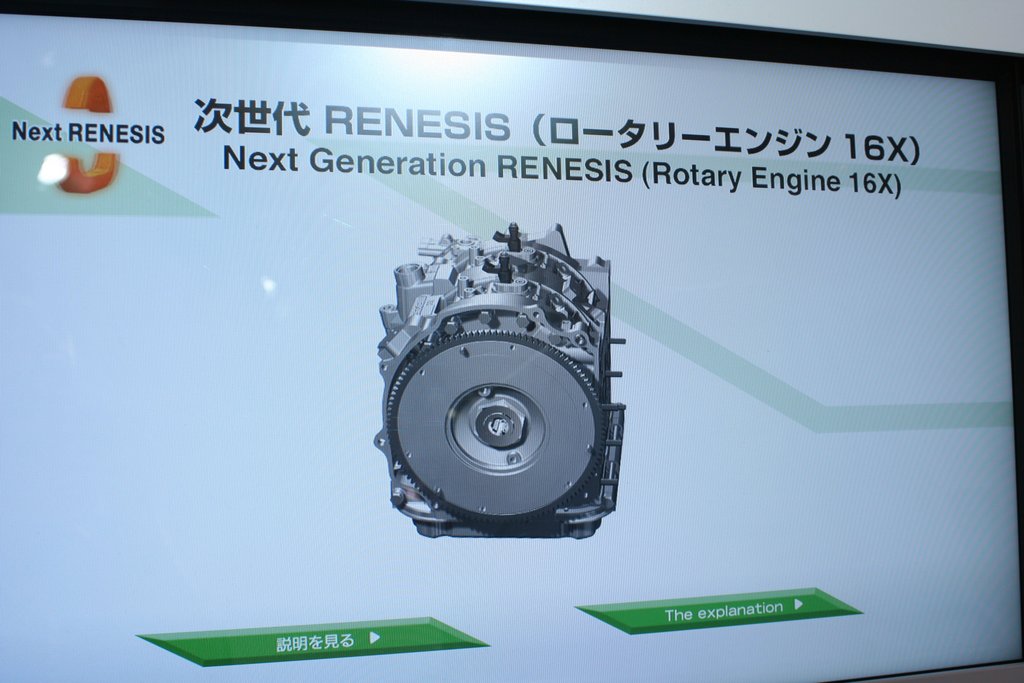

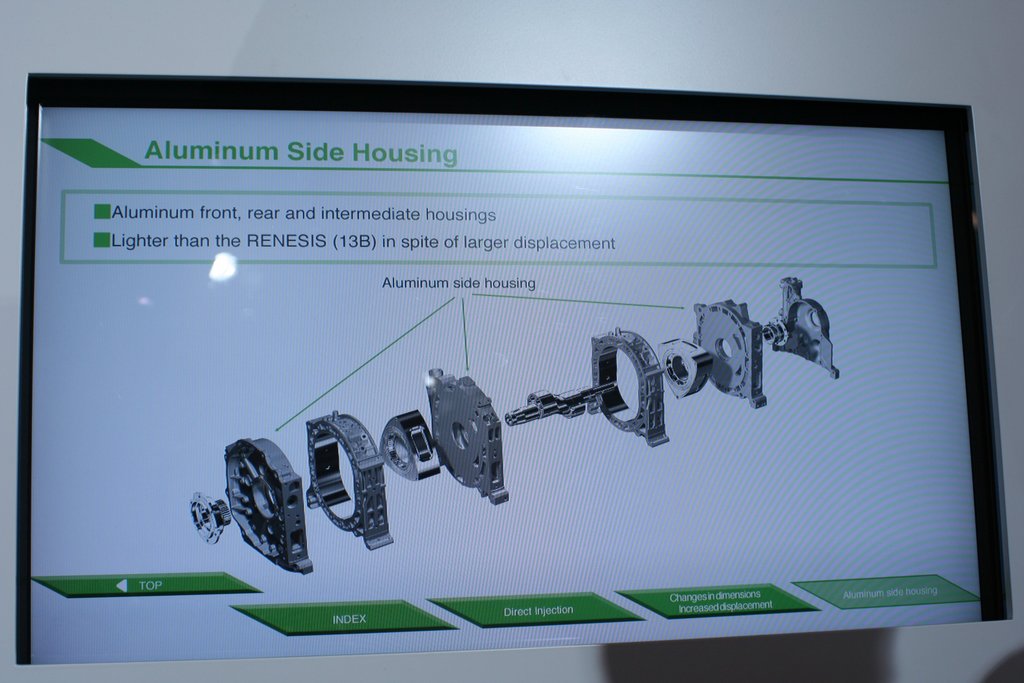

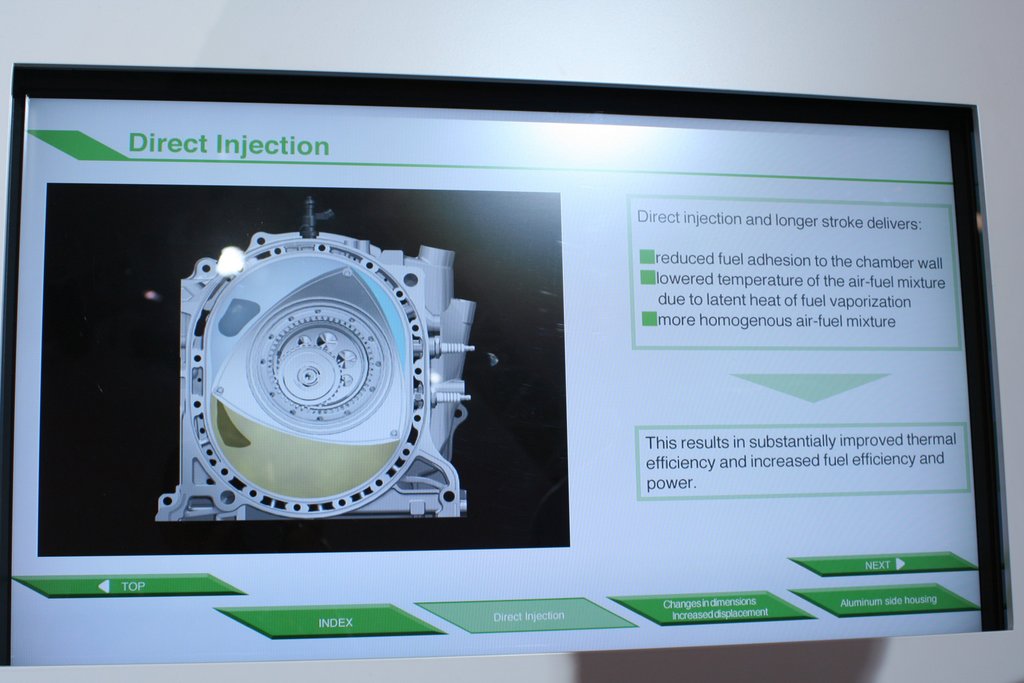

These are the BEST Pics yet of the new 16X...

Thanks to a new Australian Forum Member ORX-800

I thought I would repost here for others to see....

Thanks ORX!



These are the BEST Pics yet of the new 16X...

Thanks to a new Australian Forum Member ORX-800

I thought I would repost here for others to see....

Thanks ORX!!!



These are the BEST Pics yet of the new 16X...

Thanks to a new Australian Forum Member ORX-800

I thought I would repost here for others to see....

Thanks ORX!

Great Shots!!



Are the ports larger than the AT 4 port thats out right now?



It's a 6port....



Eventually people will realize that the engine depicted is a 4 port. Whether that's what we'll get in production is another question.

Paul.

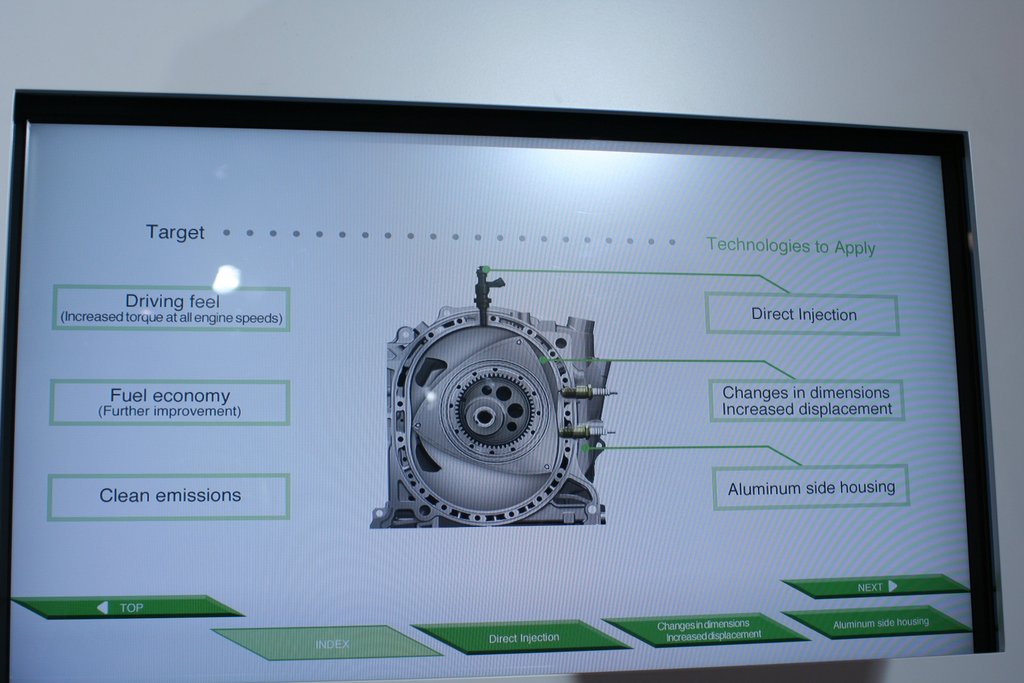

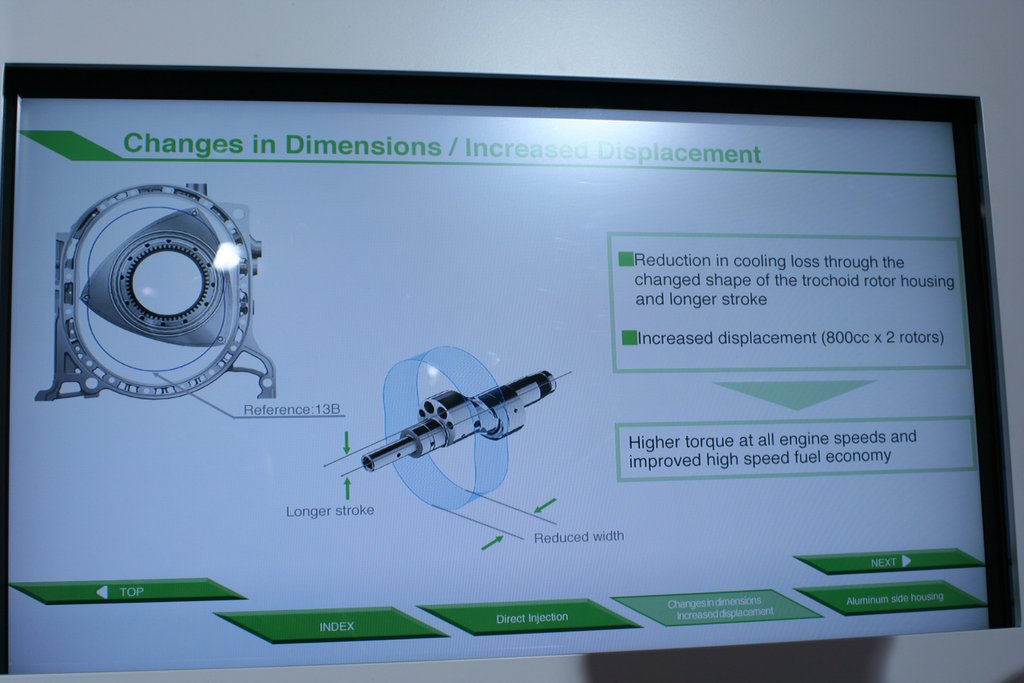

If you look at the "Blown Up" pic from the computer terminal...you can see them...

Its in the Aussie pic thread...I'll see if I can get link...



I think it is a 6 port. There is one intake port for each rotor in the center plate and then two intake ports for each rotor on the end plates. You can only see one intake port on the cutaway view because the endplate where the other 2 are has been removed.

Here's what I mean. The red circles encompass the intake runners for the 3 ports on the rear rotor.



How do you figure Paul? I see 6 ports. Even the cutaway view on the computer screen shows a 6 port and those plates are clearly the new aluminum units.



Found it....



So are you guys saying that it's a 6 port from the upper intake manifold standpoint to the side housings, but those 2 ports feed into a single large port?

IE 2 intake runners -> 2 intake ports on the external side housing -> 1 intake port on the internal side housing?
Cuz that's what it looks like to me. I don't see the "aux port" on the interior of the housing.



It's there. Save it and zoom in closer.



Seriously, this is what I'm talking about.


EDIT: Oh duh. i think i get it now. What that picture shows is the center plate and front rotor housing. The other port would be on the front plate.



If you are talking about what you see on the rotor housing face, that's the reflection of the rotor dish. That's the intermediate housing anyways. There has always only been 1 port there.



Yea, see my edit above. I figured it out.



I keep saying rotor dish reflection. It's not. It's the reflection of the port.

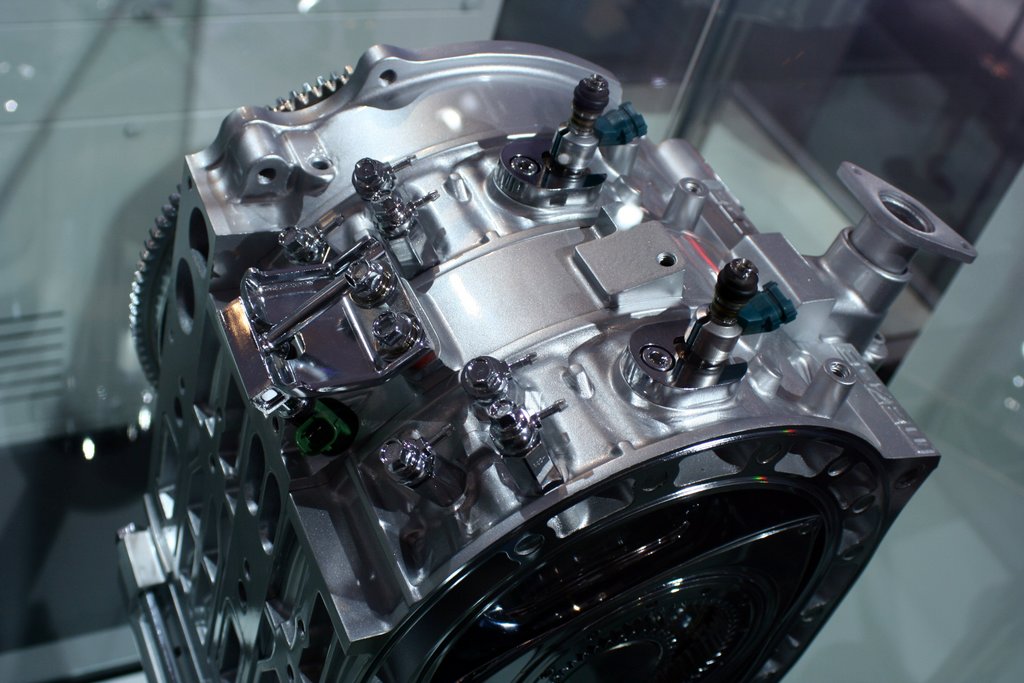

the ports on this thing look beautiful compared to the renesis.
i wish we could drop a fiber optic camera down them to see how they look inside.



They look about the same to me. Maybe just bigger. I think the Renesis ports are crap so what I can see from the pictures doesn't make me all that happy. I hate that siamesed exhaust port. I can only hope at the very least that the water jacket doesn't run in the exact same places around the ports that the current engine's do. Something tells me they do though. If that's the case, it is extremely hard to modify.



Anybody have access to this PDF link from the Green Car Congress web page?



Mazda debuts new-gen Rotary in Taiki show car

Hmm... maybe a Mazdaspeed RX8 with the 16X in 2009 or 10.



I wonder why the exhaust ports were packaged as rectangles? It seems like the flow would be better if they were full circles like the intake runners. Especially since they will be flowing into circular exhaust pipes. I would think that would be better for cooling as well since there would be more homogeneous heat transfer and wall temperatures.



Damnit stop making sense! Your making everyone else look bad...jeez...



Oh my children , and I can get away with saying that because I'm getting up there.

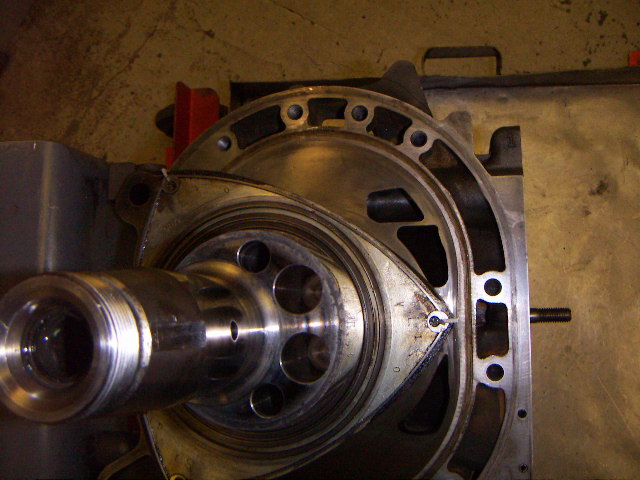

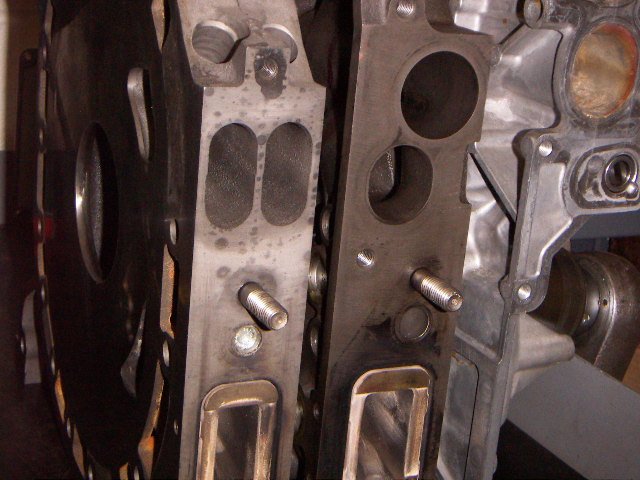

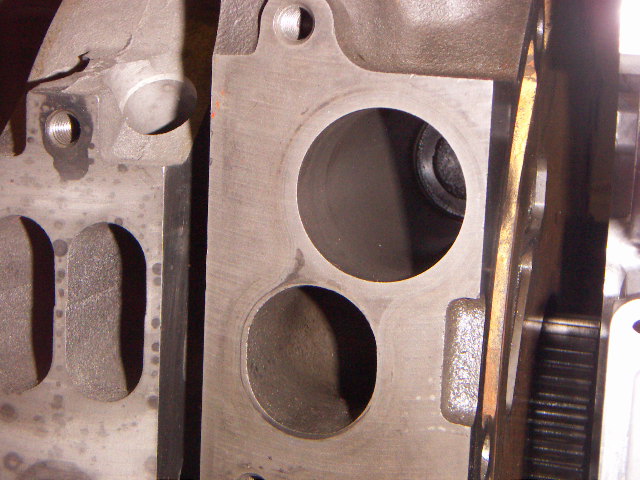

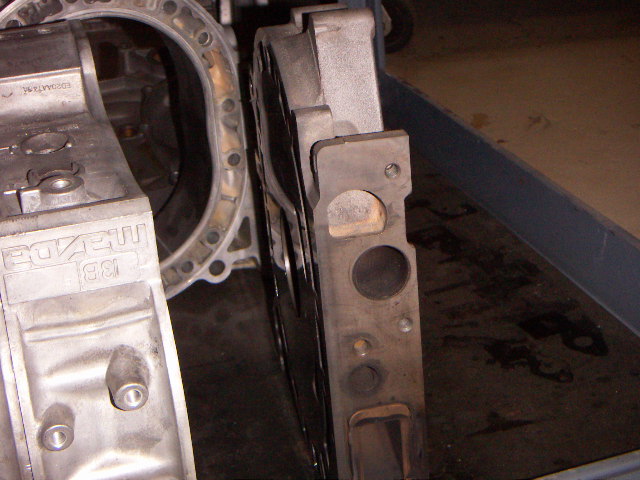

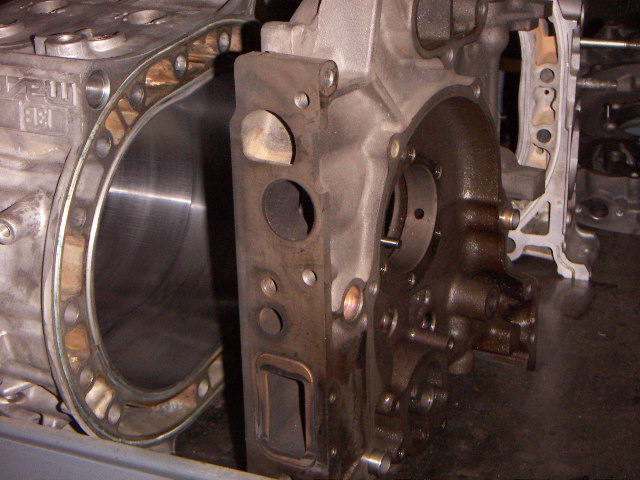

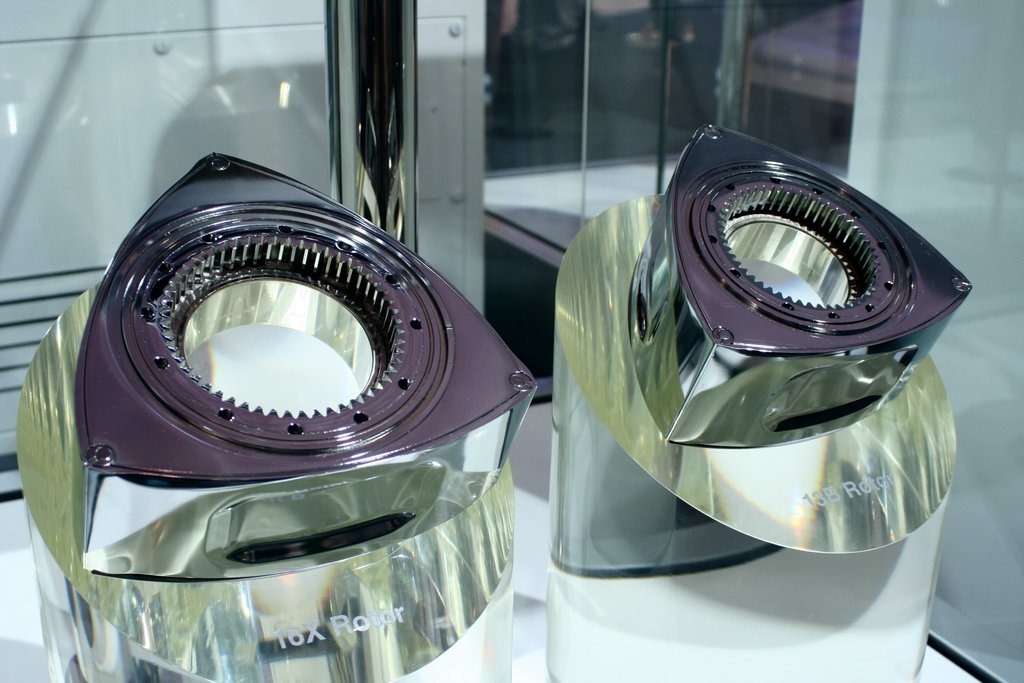

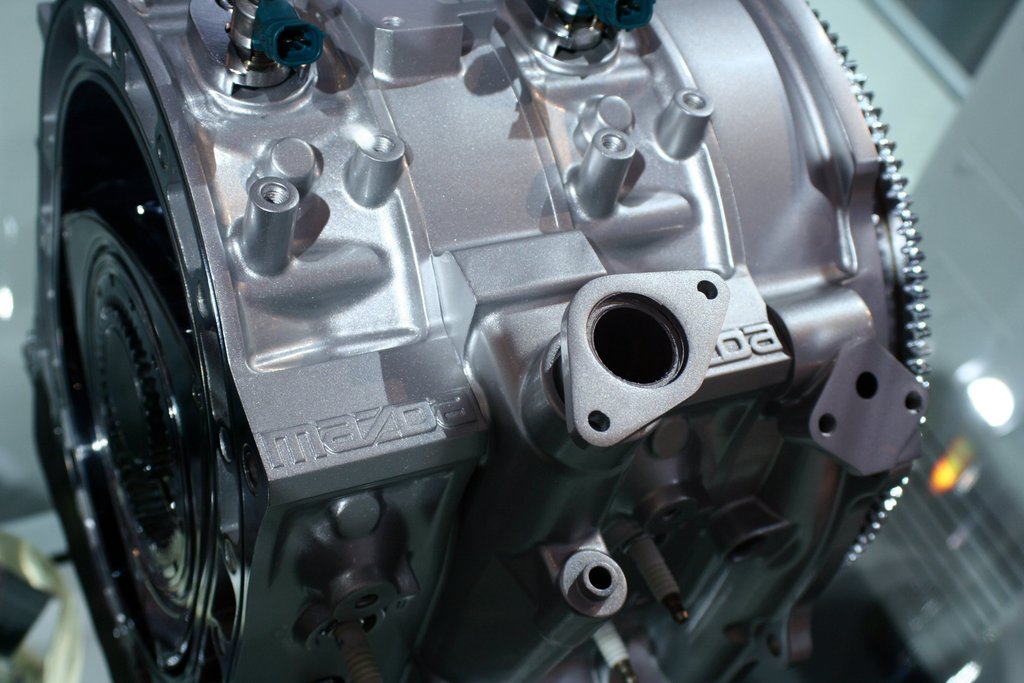

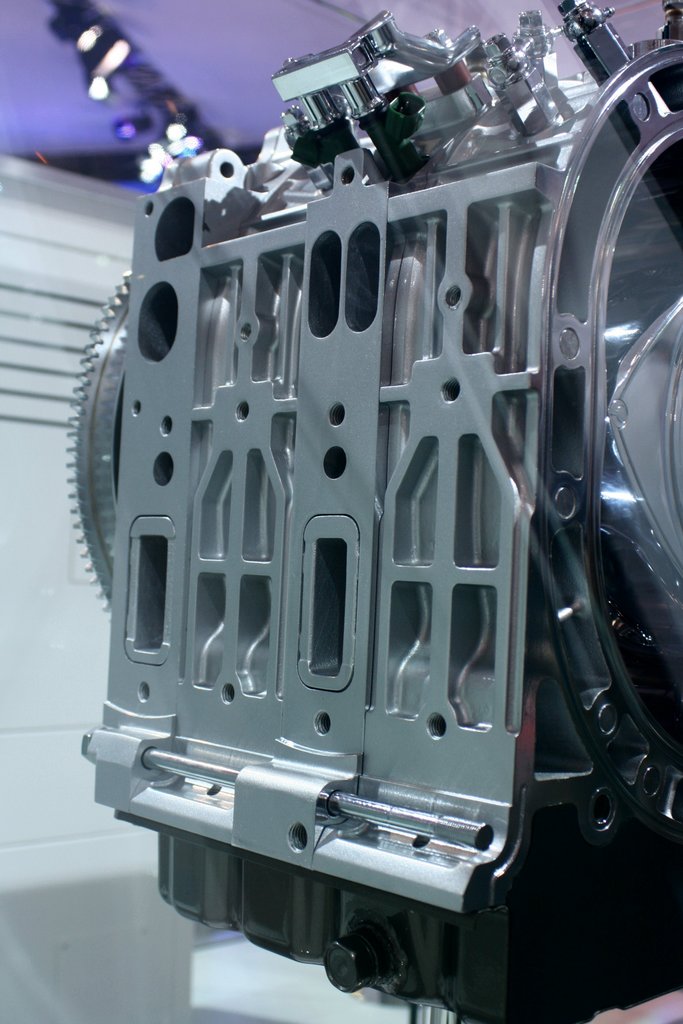

I thought I'd show you some 4 port vs 6 port pics, lest you think I've totally lost it.

Paul.
