well i have decided it is time for me to start a turbo project. I love the rx8 the way it sits and should have everything finished up as far as exterior and support mods soon, but i find myself wanting a little more. I looked into and tossed around the idea of a premade kit, custom top mount or manifold mount. In the end i came to i want to build my own kit just for the experience and rear mount because of space. I do not have any determined goals Ill be happy with any extra i achieve no matter how little or great it may be in the end.

I have the major parts sitting here at the house to get started and still have to buy a few thing and the ones that are unplanned for (bolts and fitting here and there). I do not have a estimated cost on the project because one its expensive to do it right and if i had it laying around and the girlfriend seen it she would think im even more nuts that she already think and puts up with.

Now on to the build. I will be running a gt35r turbo. I have a china made one that was given to me to use for fabrication. I plan on buying one for turblown as the project progresses. I may stay with a journal bearing or go to a ball bearing. right now mine is a 82 hot side and plan to reduce to a 63.

I have a v mount intercooler so not to block the radiator up front. 2.5" hotside and using the aem for the cold side with a little custom fabbing. synapse BOV with the option of a anti-stall kit (came as a package). All T bolt clamps and silicone couplers

I will be using the turbo xs midpipe and exhaust (3") till the last flange and building from there. I also have the synapse 50mm wastegate and greddy profec B spec2.

K&N filter and sock because it may be exposed to some of the elements being under the car (i never drive in the rain unless i get stuck)

The oil i will be using a rb racing pump and 3/8 stainless tubing from a filtered relocation kit. then flex stainless lines with an fittings. also a greddy oil pan. I plan on getting the sohn adapter so i can try and get a few more miles out of a oil change due to the extra volume.

Lastly I have a AP. i gladly happened to pick up before they got discontinued. I am debating on working with MM for a tune or a fourm member.

I still need to get fuel injectors worked over and a fuel pump, also tossing around the idea of a return fuel system. then a snow stage 2 water/meth kit, wideband/boost gauge, and BOV WG plumbing

Im not sure if ill need to run coolent lines back but that will be detrimed later on.

This will be a slower build due to working 60 plus hours a week and not much daylight and only occasional weekends. Also a buddy of mine has to weld the aluminum as i do not have a AC welder.

I may have a few questions through out the build mainly to confirm a set up. I have read may threads and asked question to the right people and am confident to tackle the project.

bumblebeerx8

iTrader: (7)

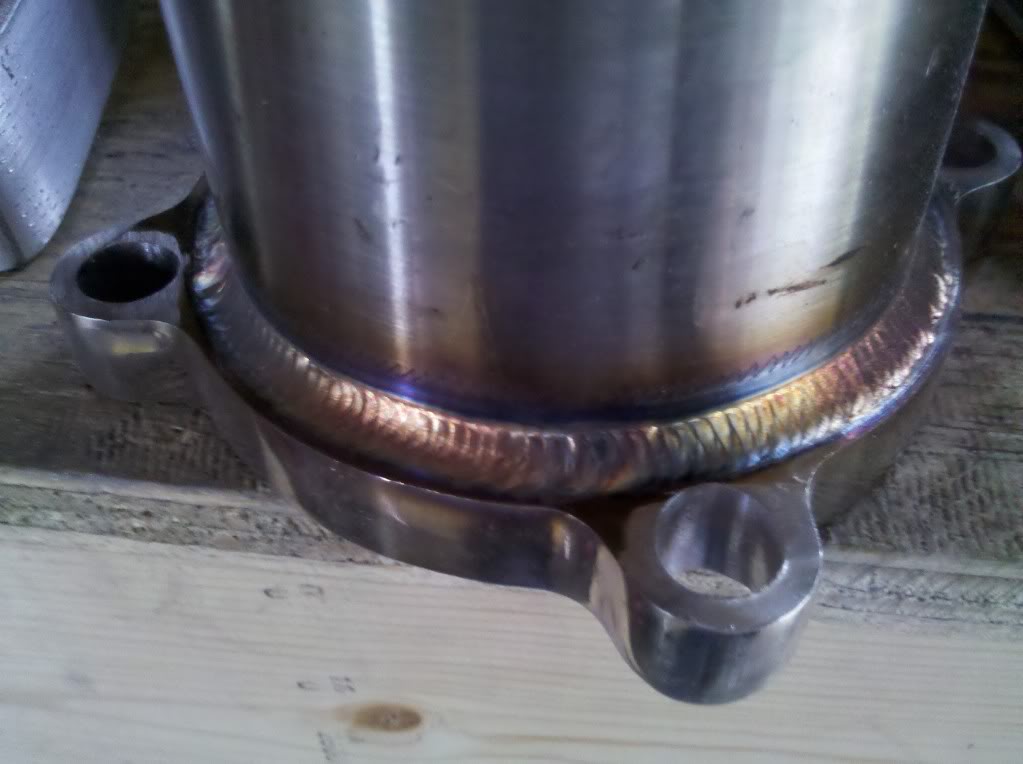

new reworked flanges to get th turbo higher off the ground

Tacked up wastegate almost done piping to the driver exhaust tip

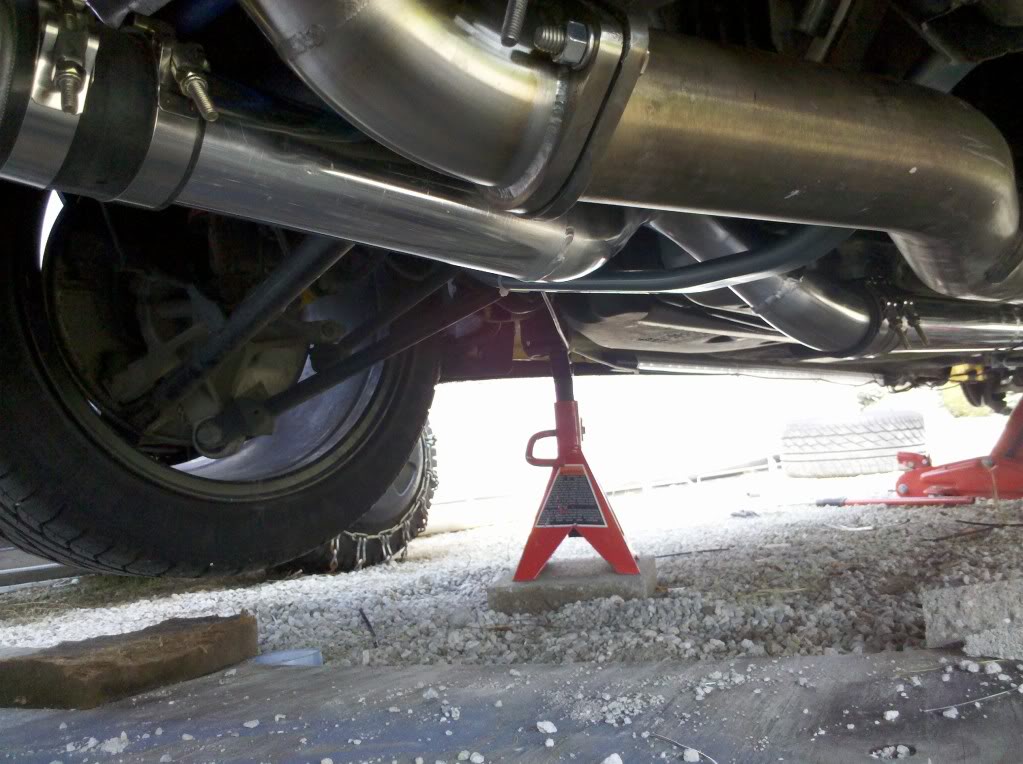

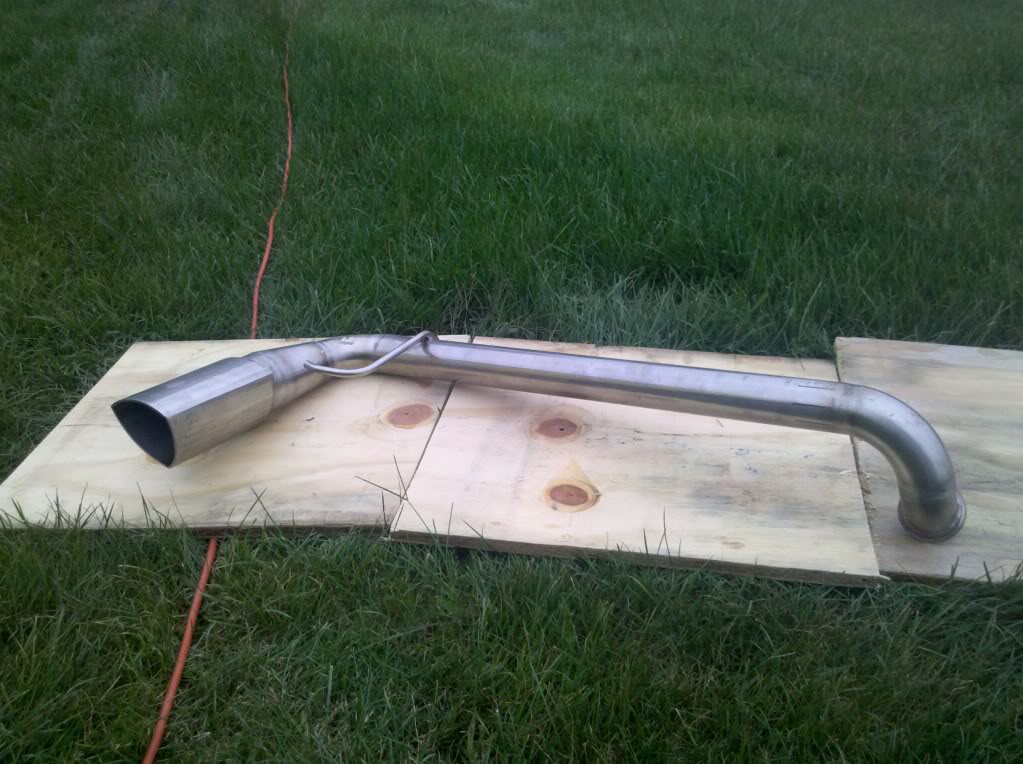

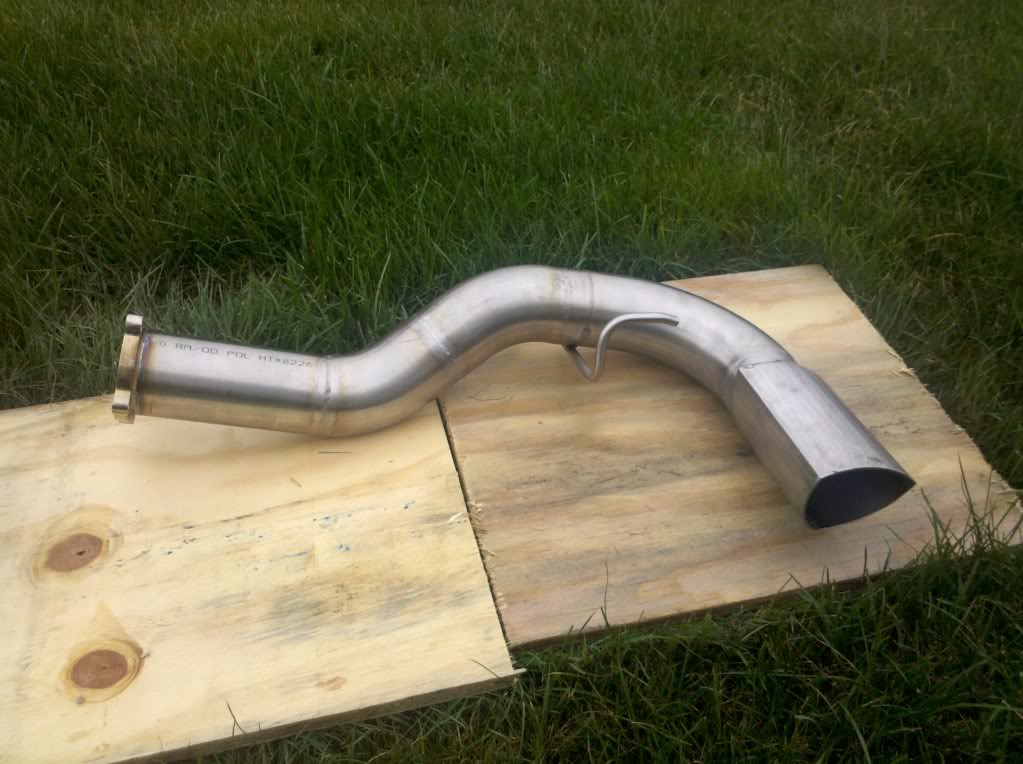

pipe to exhaust tip complete

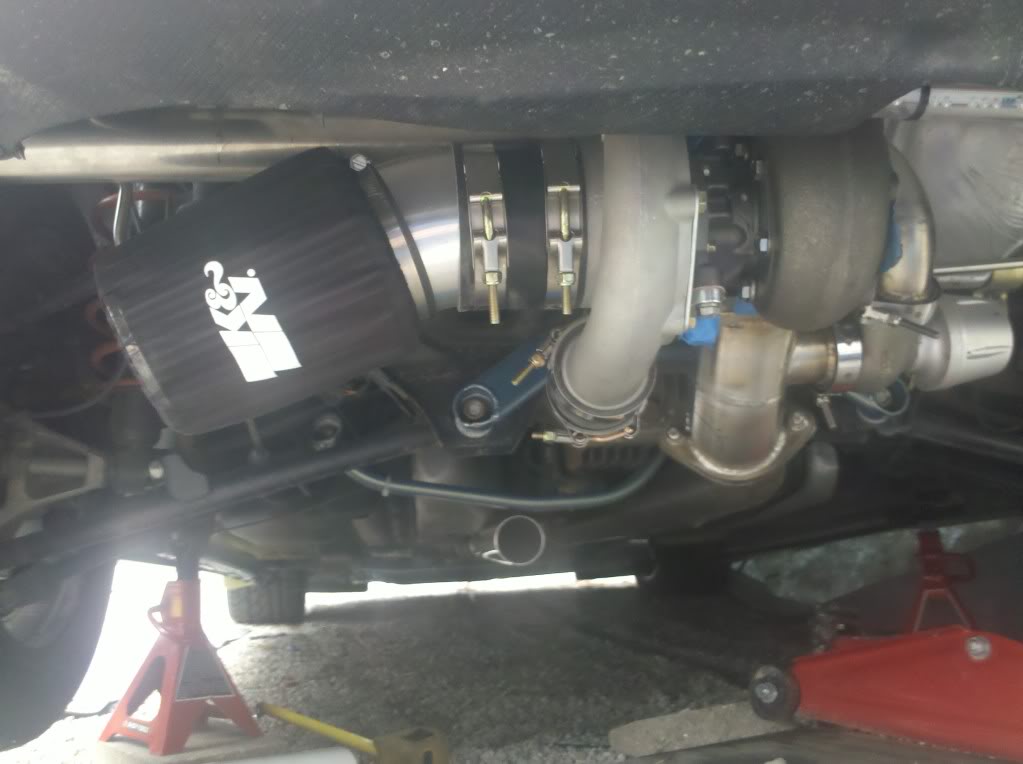

intake filter and everything welded up

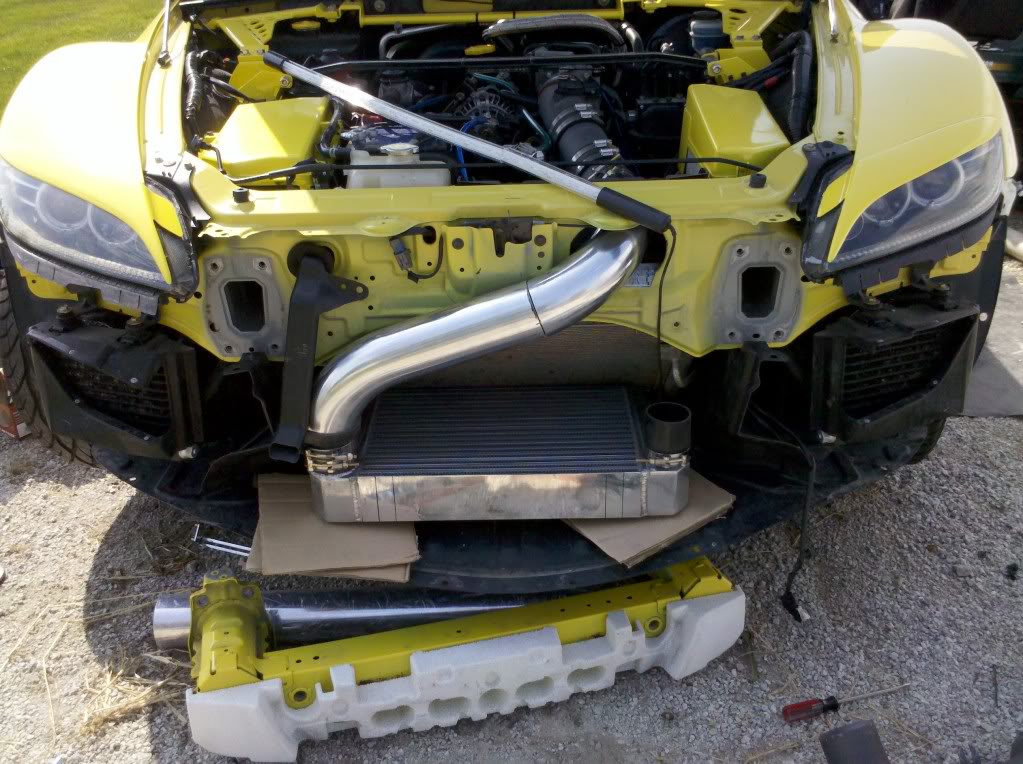

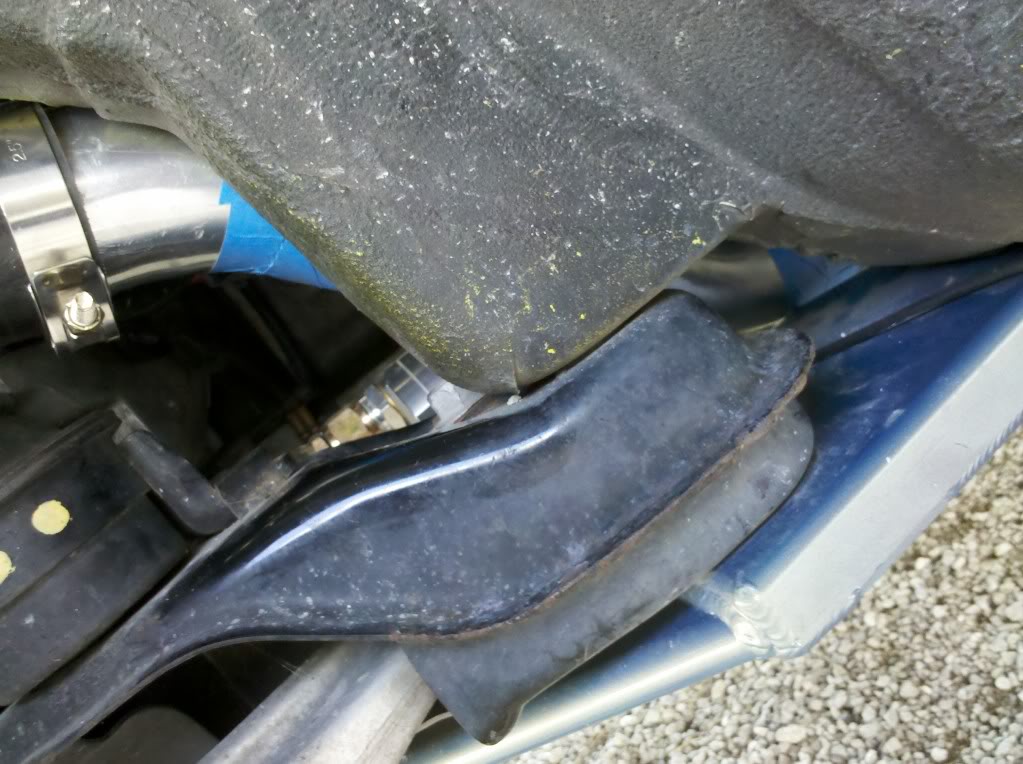

cold side of the intercooler mock up

hot side of the intercooler started mock up

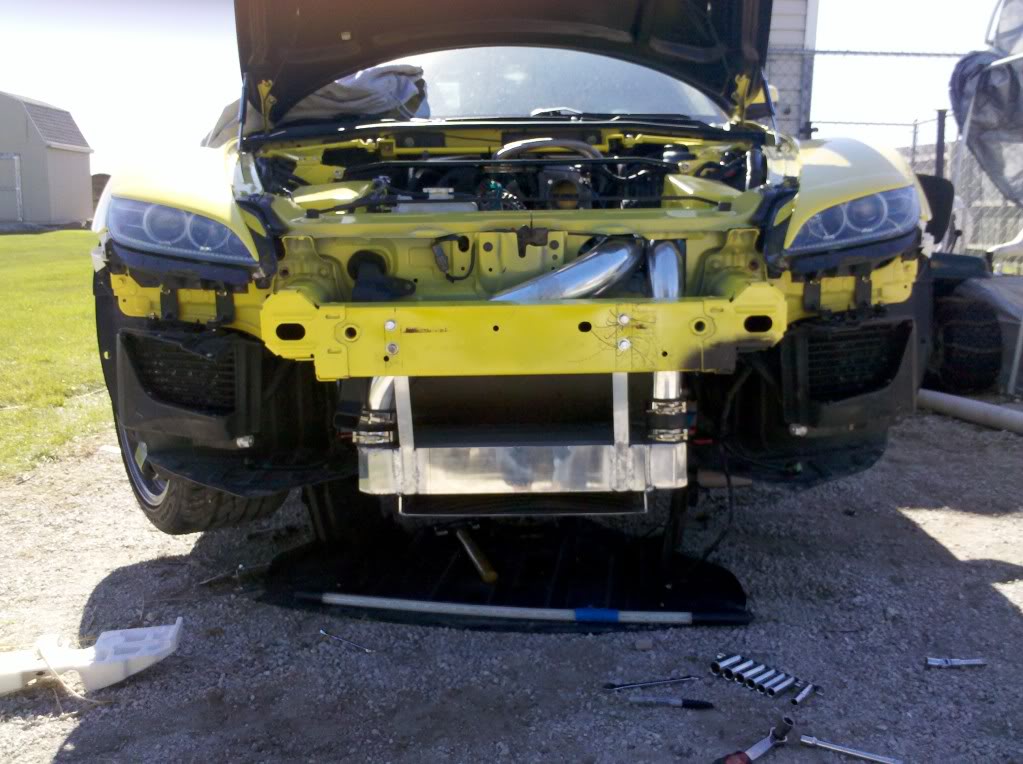

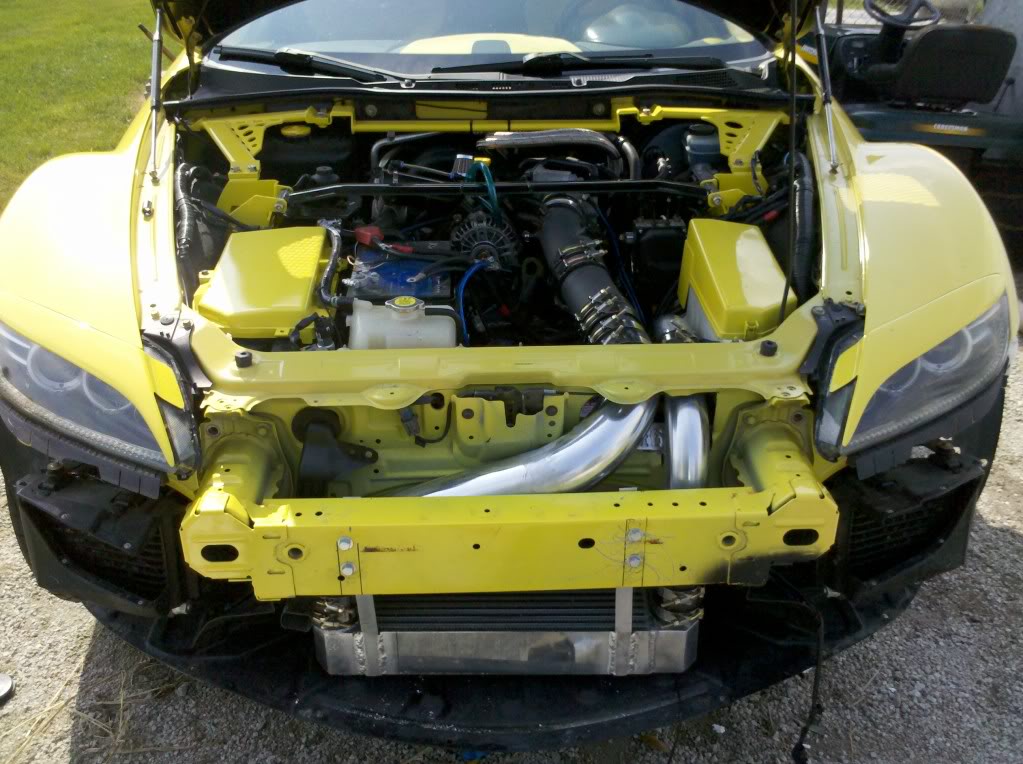

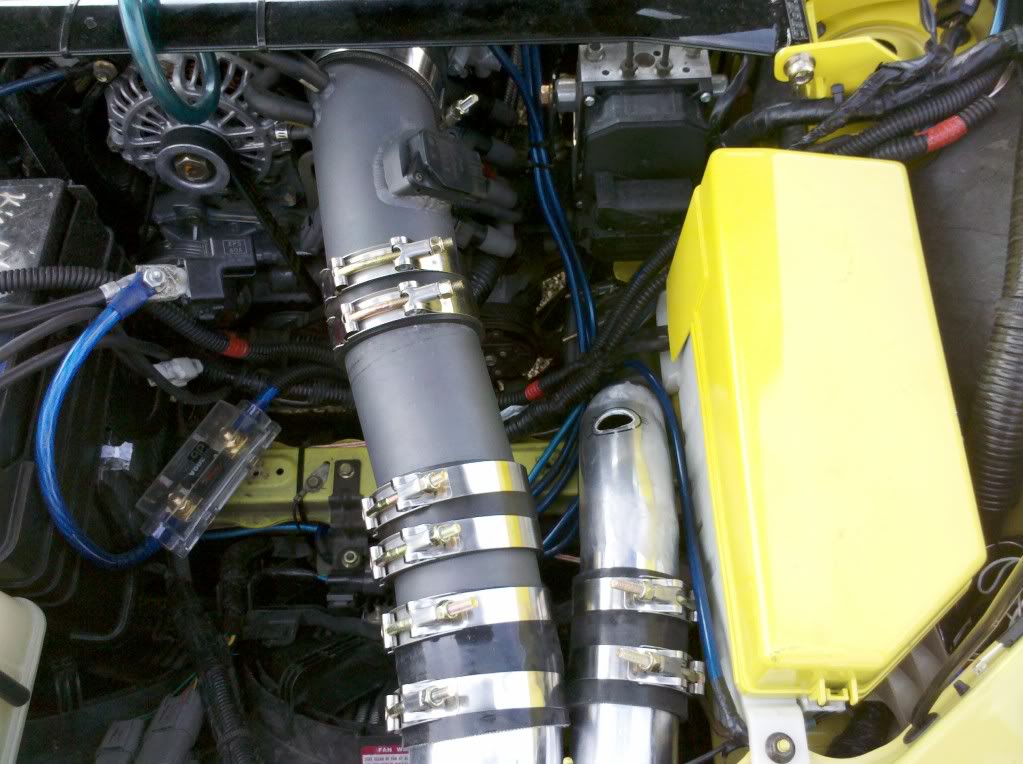

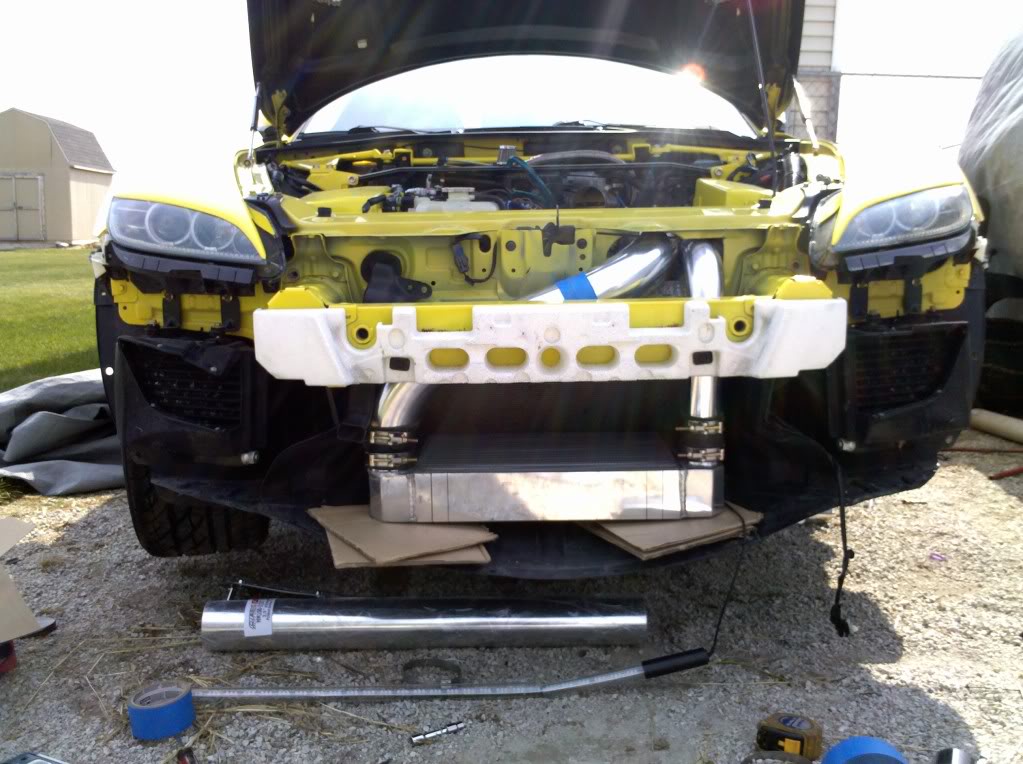

picture of the engine bay from a distance and front brackets for the intercooler

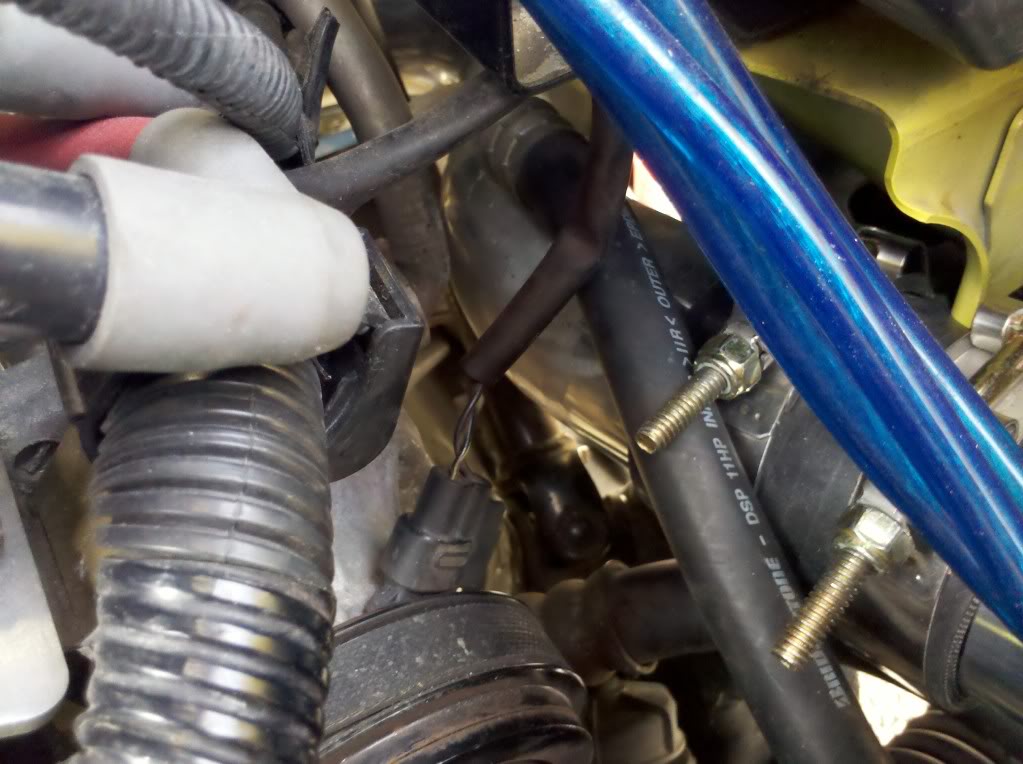

engine bay with cut out for bov

hard to see whe exactly it runs but you can get a idea when you look at your car

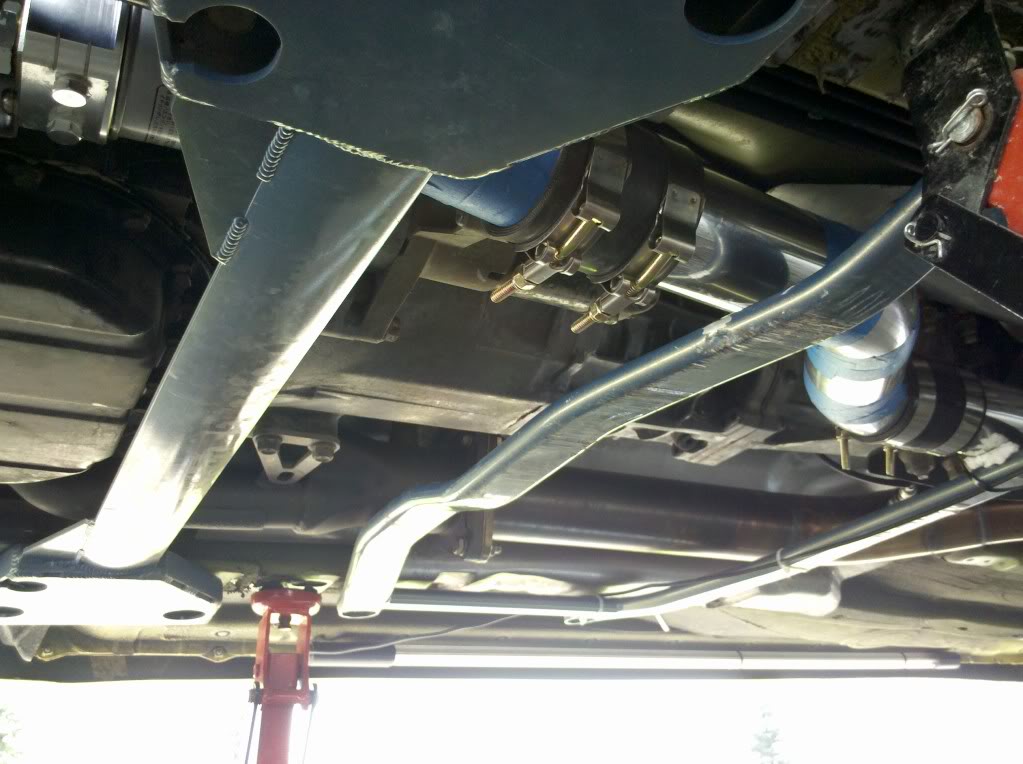

taken from driver wheel well had to make clearence for the steering shaft brake line bracket had to be removed to get pipe into place

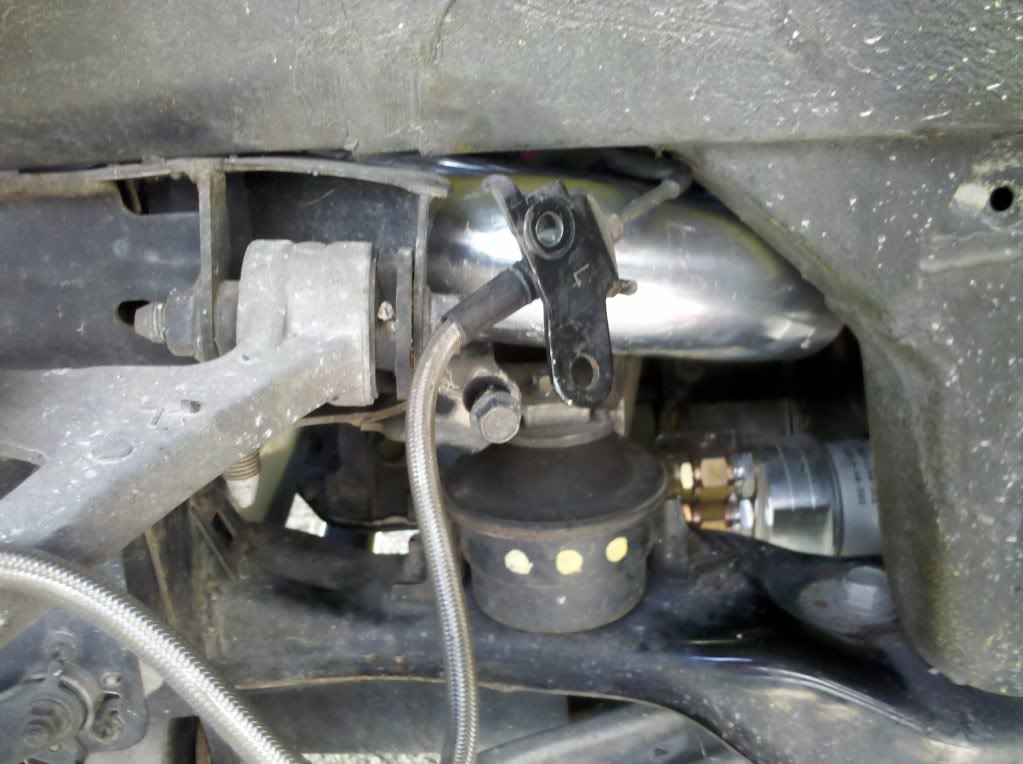

after wheel well down to starter

last bend to mate up with straight run to the back

picture from rear an run to the front

bumblebeerx8

iTrader: (7)

exhaust exit flange

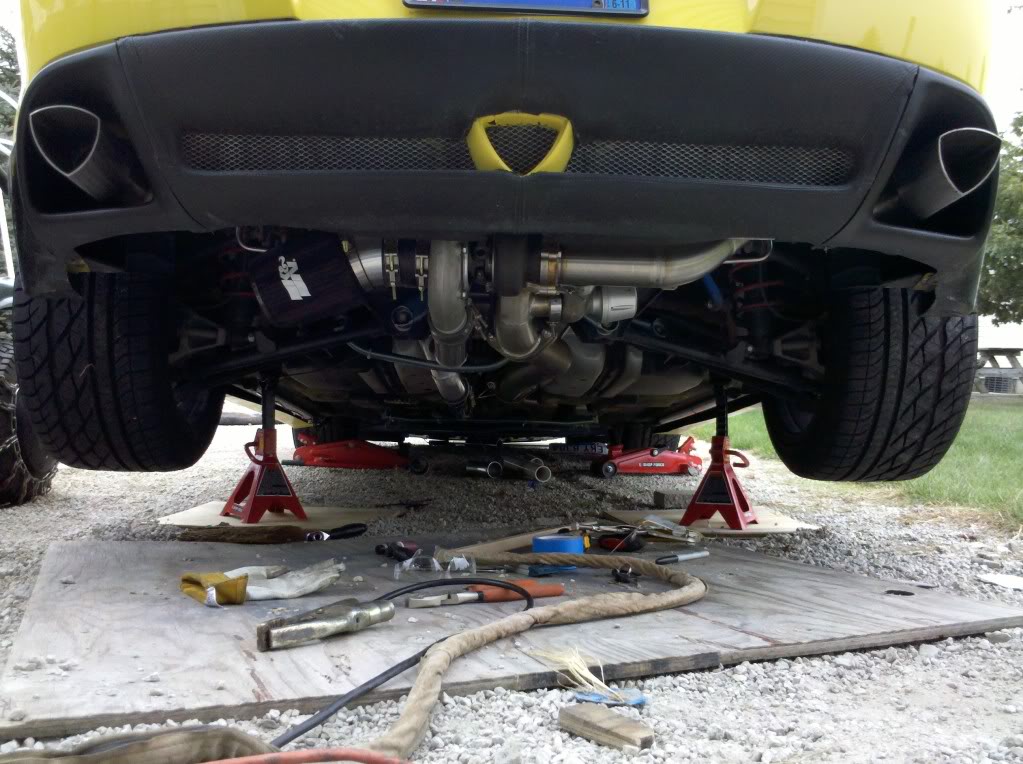

all fabbed up in the back using the new bb gt35r

exhaust exit(downpipe)

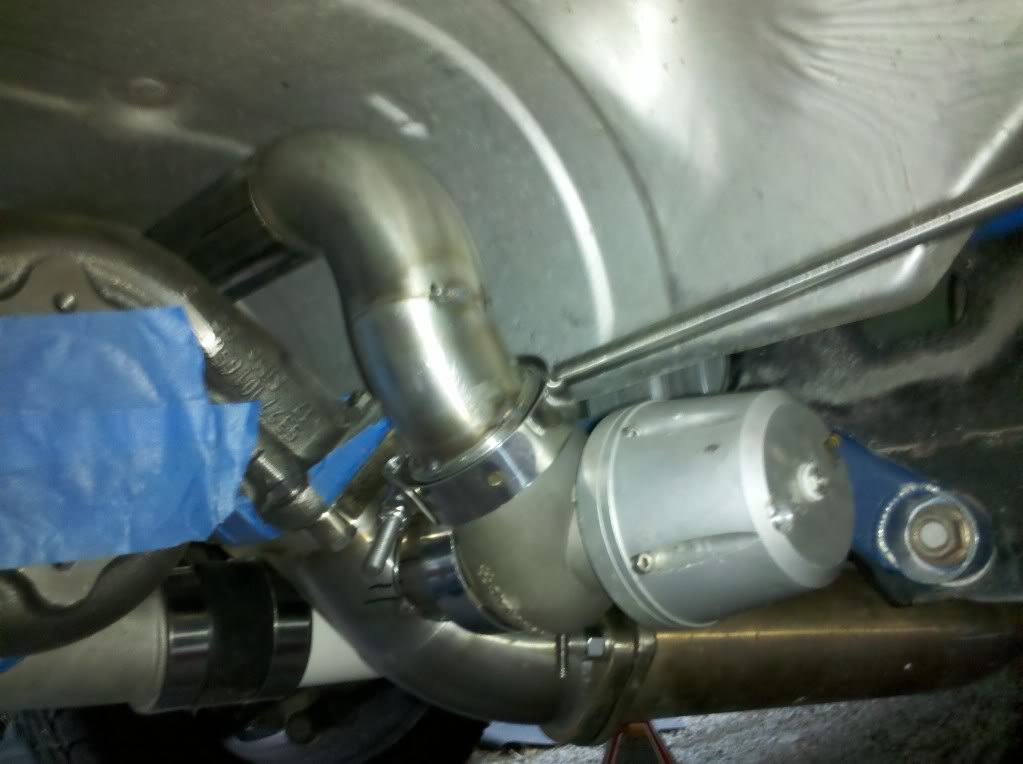

wastegate discharge

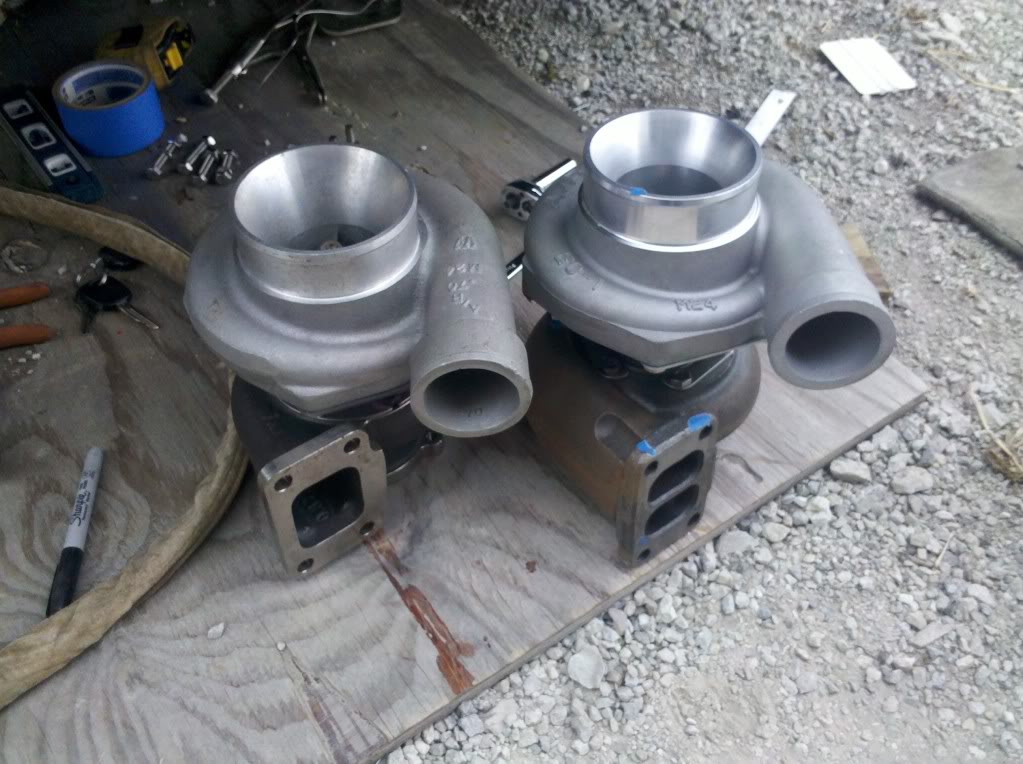

garrett unit on the left verse chinamade on right

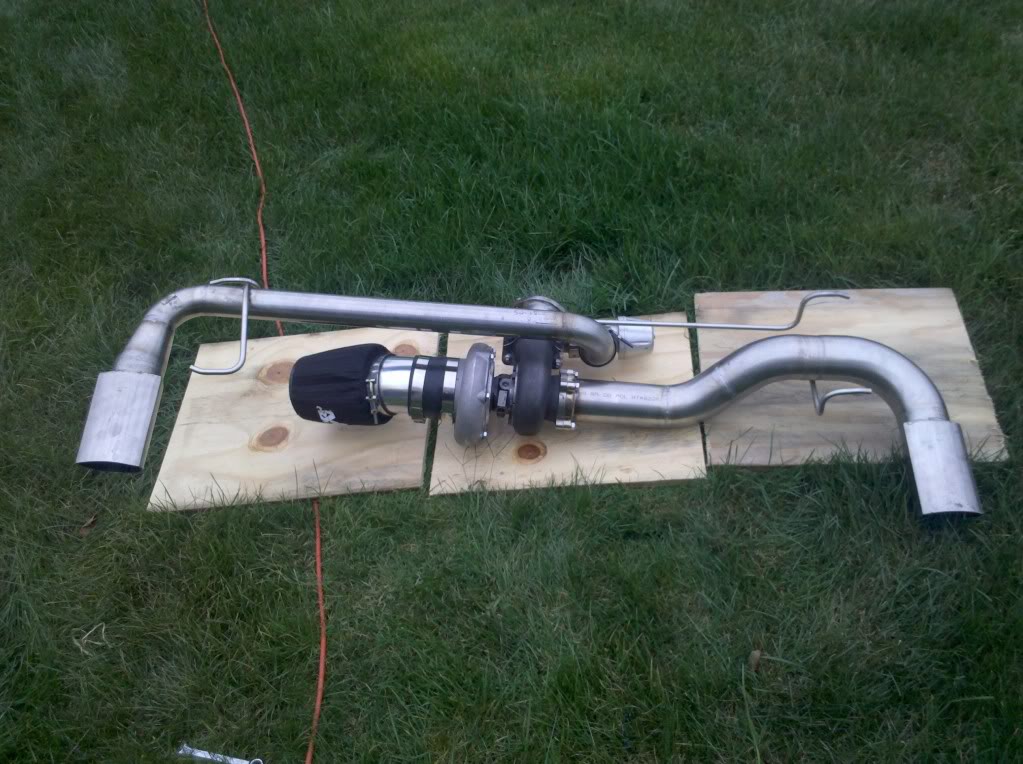

put together off the car


the new scoop for the underside of the intercooler

bumblebeerx8

iTrader: (7)

Offical Parts List
Garrett gt35r BB turbo, .63 and .82 housing
Access Port
Custom Windshield Washer reservoir
BHR ignition
Prosport digital Wideband A/F
Prosport preformance Boost Gauge w/ electric sender
Prosport digital egt gauge
RB gauge pod
Evo R cluster gauge pod
Custom column gauge pod
Custom intake tray
Greddy Profec B spec 2
stainless push connect fittings for wastgate plumbing
PTFE wastegate tubing
Polyethylene Bov, boost gauge, and Boost controller plumbing
Polyethylene push connect fitting for Polyethylene tubing

Coolant
turbo banjo fittings
3/8 O.D. stainless lines with swagelok fittings
Mazmart water pump
Mazmart thermostat
BHR radiator
Prosport water temp adapter
Prosport digital water temp gauge
water wetter

OILING
10an drain flangewith 10 an stainless line
4an restricted inlet with 4an stainless line
an fittings from JEGS
RB racing small oil scavenge pump
scavenge pump timer
1psi oil check
10 micron oil filter
3/8 O.D. stainless oil lines with swagelok fittings
RB Oil Sandwich Plate
Greddy Oil pan
Prosport digital oil pressure/temp gauges
Mazmart oil pressure mod
sohn adapter
sohn reservoir with 4an feed line
lucas 2 cycle oil for sohn and premix

INTAKE
4" K&N filter with K&N filter sock
2.5" charge pipe to intercooler
CX Racing V mount intercooler
3.5" cold side tubing using the AEM intake
Silicone couplers
t bolt clamps
synapse BOV

FUEL
KG parts injectors clean with modified P2s 338,420,800
walbro 255lh fuel pump

WATER/METH
AEM Water/Meth Injection system
Custom Water/Meth reservoir
BHR throttlebody spacer
kill switched

EXHAUST
Boost Brothers header
Viberant Flanges
3" stainless pipe
2 resonators
Synapse 50mm wastegate
2" wastgate dump pipe to driver side
3" turbo exhaust to passanger side
custom rotary shaped exhaust tips
ceramic coated

bumblebeerx8

iTrader: (7)

saved for pictures 4

alnielsen

iTrader: (4)

Subscribing, I would like to try this type of turbo setup. There have been a couple of others that have tried going this route. I have always wondered if an intercooler would be necessary with all that pipe that is going from the rear to the front of the car.

bumblebeerx8

iTrader: (7)

The only member I have seen do a rear mount is talic and he is still working out small issues last I talked to him. From what I have read a intercooler is still need just a smaller core. There is a cooling effect under the car but not enough. I thought one would not be need either in the beginning. The hardest part which I still am not 100% sure about is Turbo sizing. The hot side must be smaller because of reduced exhaust tempature, but I have yet to find and rules or help on how much smallersmaller

b'Eight'

Following this

bumblebeerx8

iTrader: (7)

one thing i have ran into is trying to place a hanger to support the turbo weight. I can drill through the trunk and bolt something, but i am trying to avoid that hoping the wastegate and exit side piping with the exhaust hangers will be enough.

alnielsen

iTrader: (4)

I was considering building a frame work that used the 4 muffler exhaust hangers. I was also going to use PVC pipe to mock-up the line that would be the pressure feed.

WTBRotary!

iTrader: (6)

We will see how this goes... subscribed, and best of luck...

Brettus

iTrader: (2)

Hmmm - the only person to do this successfully so far decided to improve it by mounting it where the cat goes . Tells you something ...............IMO

bumblebeerx8

iTrader: (7)

the only thing with pvc is the fittings are a lot shorter raius than mandrel bent fittings. and i have been looking at the idea of makng a type of rame work

stinksause

iTrader: (5)

first I wanna say ... great idea and great project! Next, I am wondering how you are going to mount the think with keeping in mind that he entire assembly needs to be able to move as the car goes over bumps, your engine moves due to the torque it produces etc.

Bash me if you will, but the exhaust hangers are rubber and are designed to be flexible for this very reason.

bumblebeerx8

iTrader: (7)

Yes I will utilize the rubber Exhaust hanger the only thing I may have to mount soild is the Turbo. I am tying to avoid any soild mounts if possible. I'm looking at adding another hook in the center to make another hanger with rubber in the center over the Turbo because that is truely all the weight.

Talic

what i did was made an h pattern utalizing the oem rubber hooks
it allows the whole exahust and turbo to move together and doesnt hit the aluminum shielding under the trunk
i just got back and catching up to the real world from a month out in afghanistan
untill i get flowing back in i cant tidy up mine to send pictures

also im 63 on hot side and 70 on cold
its crazy cfm at 5,500 and full boost around 4200ish
but im still getting help from MM to bring it down between my ebc and tune
same as above videos and sound bites to come

ps sorry for thread stealing just throwing in my 2 cents

bumblebeerx8

iTrader: (7)

Oh no problem talic. I did use 2 of the hangers for the Turbo. I will use the other 2 for the wastegate side and exhaust tip and the exit side and tip. Ill work on it a bit today before I go out of town for the weekend.

lordagrabah

iTrader: (1)

Wouldn't it just be easier to work with a STS turbo setup?

bumblebeerx8

iTrader: (7)

Sure if they made one. It wouldn't do much good to buy a kit for another car and modify it in fact that would be totally worthless. A turbo that is not sized for the car, fabrication that is worthless. Plus doing all the Fab work is a breeze its what I do for a living as a pipe fitter.

alnielsen

iTrader: (4)

They make a universal kit. However, it may not come with everything needed to customize it to the car.

bumblebeerx8

iTrader: (7)

ah i see they make one now. i havent looked in awhile. the kit looks like a decent start but you dont really get to choose your components and the small things here and there is what can kill you. i figure ill have around the price of the new greddy kit+some upgrades when complete

thats pretty much what im looking for is full spool around 3800, so on the highway your not in full boost and it acts similar to a supercharger. My plan is to run a BB version of what you have that should help the spool time a bit by a few hundred rpms (which i may just go ahead and order while the cash is sitting here).

9krpmrx8

iTrader: (46)

I have always loved this idea, good luck. I followed the first thread on this as well (rotorocks?)

willnordacgreen1211

iTrader: (3)

check this out man it may help you somewhat

http://rotarycarclub.com/rotary_foru...ad.php?t=10080

bumblebeerx8

iTrader: (7)

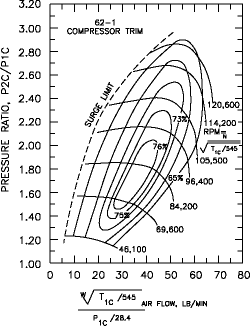

well with school and work an vacation i have not even touched the car. I have been concidering a bit of a redesign to get the turbo higher and a cleaner look. I have been looking into buying the final turbo. talic is running a china made gt35 journal bearing .63/.70 and is seein full spool around 4200. Im looking at a BB gt35r .63/.70 or a turbonetics gt35r (they claim more power and faster spool by 25%) i have not seen confimed data though. also looking at the turbonetics 62-1 with stage 5 wheel .63/.70. i want to keep a 2.5 outlet/4" inlet compressor and 4 bolt 3" exit/t3 inlet. im only looking for full spool around 3600-3800 and good flow. has anyone had an experiences with any of these. here are some maps

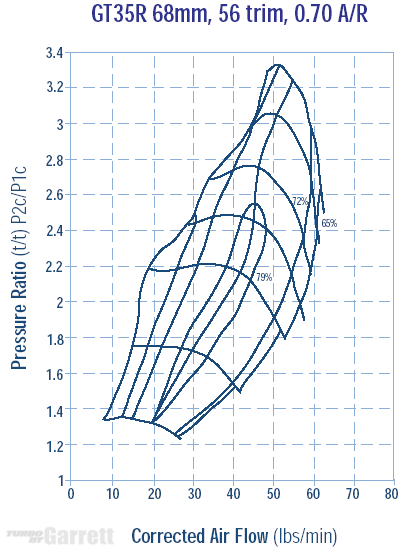

bumblebeerx8

iTrader: (7)

well got layed off from work so ill have some time to work on this. I reworked the piece i made to put the turbo higher off the ground. Next will be cutting the pipe in and running it to the driver side exhust tip.
