halimsteven

hi, i have a turbo set up for awhile using t67 precision, but decided to change the turbo set up to G35r with T04E, and planning to change my intercooler set up.

as a current , my intercooler is a big one, but it blocks the whole radiator, so just try to get some advice from the community.

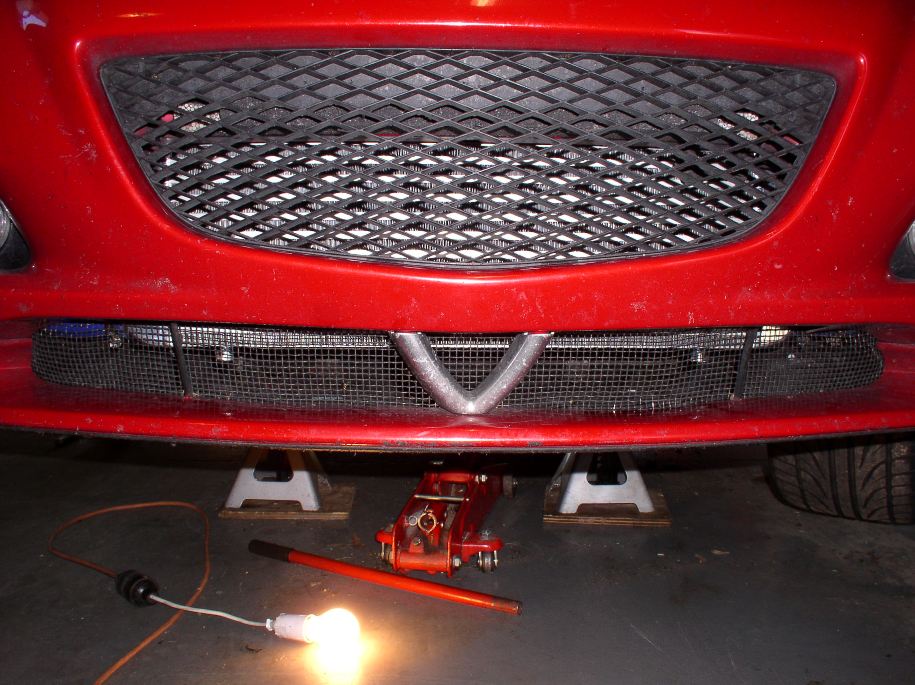

this is my current:

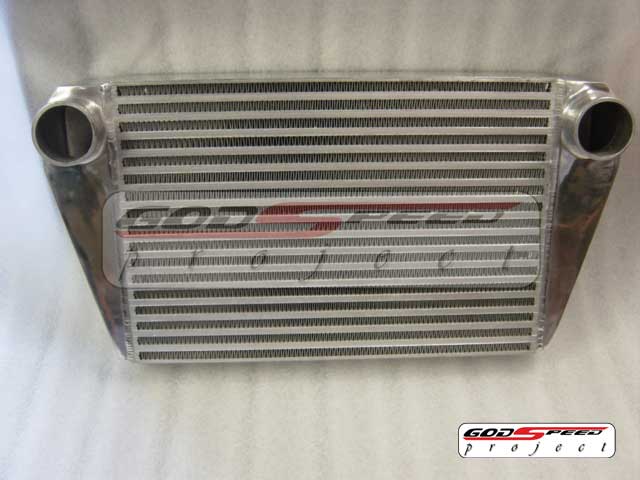

and looking around, Godspeed..it's a cheap one, but doens't mean it will not work. i believe some people use them in trubo RX8...


what do you guys think?

well, at the same time, if you guys have some aftermarket intercooler, please if you guys don't mine sharing it in this thread....

steven

Turblown

Steven,

You could just move to a quality Garrett core that would be half that size around 6" tall. This would only block a smaller section of the radiator's air. Combined with a larger mouth bumper, and no crash bar like you currently have it should improve it a lot.

halimsteven

ELIOT,
i saw your intercooler, but how much is it? do you think it's good for the turbo that i will get? what's the inlet and outlet size? do you think i can lay it down'?
steven

ssspeedfreak

iTrader: (1)

Air/water intercooler?

halimsteven

it's air to air for the turbo...

ssspeedfreak

iTrader: (1)

That's what i have in my set up, takes up lots more engine bay but less up front.

FazdaRX_8

iTrader: (1)

yeah something shorter would help alot

That filter seems really small imo

ssspeedfreak

iTrader: (1)

[/IMG]

shr3da

Have you considered v mount?

There was some recent discussion here about v mount set ups. https://www.rx8club.com/series-i-major-horsepower-upgrades-93/turblown-turbo-system-differences-226354/page2/

ssspeedfreak

iTrader: (1)

this is the best mount but he still needs to select an intercooler.

Brettus

iTrader: (2)

I have a cheap 10" high x 3" deep X 24" wide core that is just the right size to get maximum flow whilst not restricting air to the rad . Works great .

TeamRX8

iTrader: (25)

decisions and choices have their advantages and consequences, a top mount turbo pretty much precludes using a v-mount radiator/IC setup since they both require using the same piece of real estate

halimsteven

george,

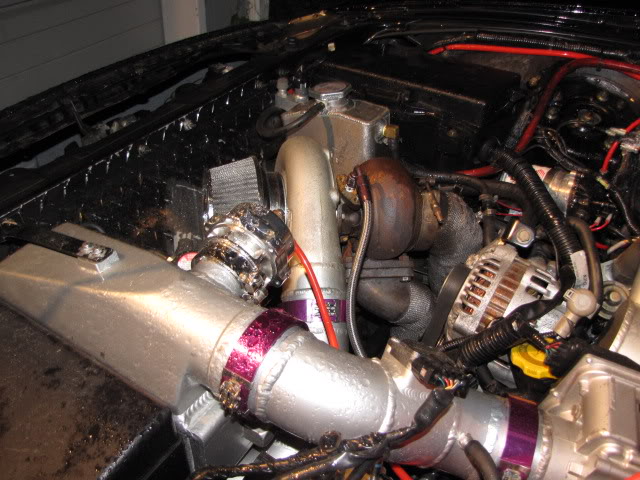

it's negative because i remove my coilsto where you put the coils are...so i have to use a smaller intercooler that can handle my set up..it's exacly like how turblown intercooler where you lay it down. so, the godspeed style is really good with the type i want, but i don't know the quality...you can see the pic below my coils...



yeah i know, that's what i am working on, but i need the different style of intercooler which is like the godspeed. but i don't know the quality of it or it works the same as regular IC..i like the turblown set up, but i need to get the same size with decent price..

halimsteven

brettus, i read your thread which you got the bigger IC and you got the heat problem because it blocks the radiator. where do you get it from ? what brand is it? and how much? if you don't mind i ask...

i just need to know if it works the same as a regular IC ?

steven

halimsteven

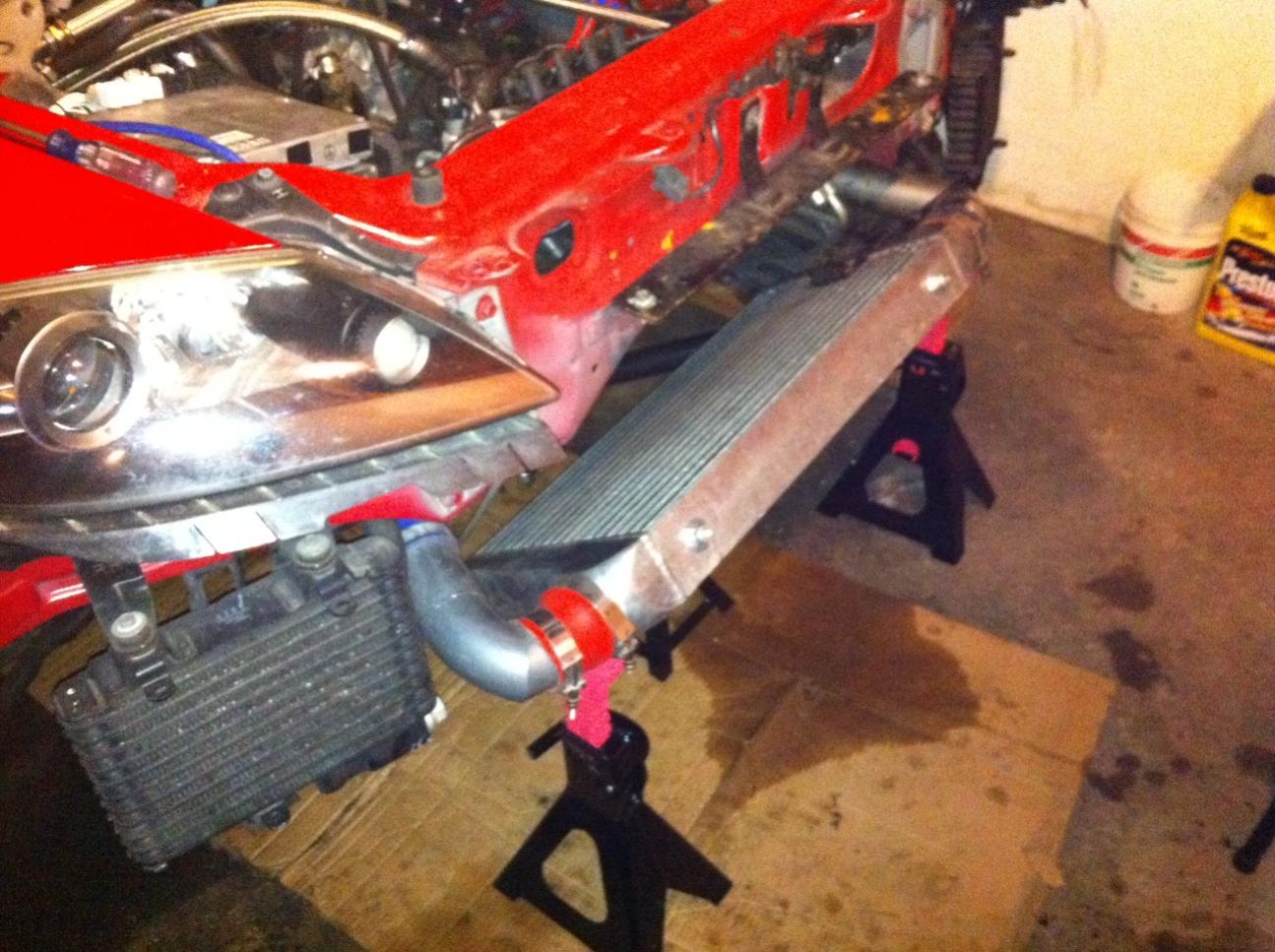

i have a top mount, but what i am trying to do is using the GODspeed intercooler that i showed in the picture, and lay it flat or angled...the inlet and outlet is front of the car.

..

above is just a try to change the set up...lol...but if i use the GODspeed style, and put the outlet and inlet in the same position and flat it or angle up little bit, it will be nice...but i don't know about the GodSpeed ..i don't want it to create a hot air instead of cooler air..lol..

steven

TeamRX8

iTrader: (25)

just because it's angled doesn't make it a v-mount, you would be wise to reconsider Turblown's earlier reply

halimsteven

i agree with you ..but i just want to try the IC from Godspeed if it works...lol..

i don't really care about Vmount or not , but if i can lay or angle the IC, do you think the IC will get the same air as the Radiator?

i think one of member in this forum has it..wait, let me see..i think it's greg..



like the set up above...turblown makes it too..have you ever had an experience toward the godspeed IC?

steven

Brettus

iTrader: (2)

The one i got was a cheap Chinese one and I don't see any drawbacks at all . Flows and cools better than the stock Greddy- and best of all ..... no overheating.
If you read the last page of that thread I detailed the differences.

Turblown

Steven,

5/6 years ago I had an FD show up at my shop with that unit installed. It was terrible( it was however installed without any ducting, in the Stock Mount Location which is right above the radiator). I can tell you by looking at it the end tank design is terrible, and you probably won't use much of that core. The ebay cores do have less pressure drop than Garrett units, but they don't cool anywhere near as good. You have to consider a lot of things when selecting an inter-cooler, one is ambient temps, discharge temperature of the turbo, and how the car is being driven. If its not road course raced, you don't need those huge inter-coolers( like what you currently have). This is especially true on an Rx-8 as 99% of people aren't running high enough boost to create high turbo discharge temps. If you are going to lay the intercooler flat( parallel to the ground) it should be a bigger core. I will try and get a picture of the smaller intercooler setup..

I will get your turbo on its way soon. Happy new years.

Turblown

Steven,

Here it is;

Garrett intercooler 24" Wide - 6.5" Tall - 3.0" Thickness. 2.5" inlet and outlet

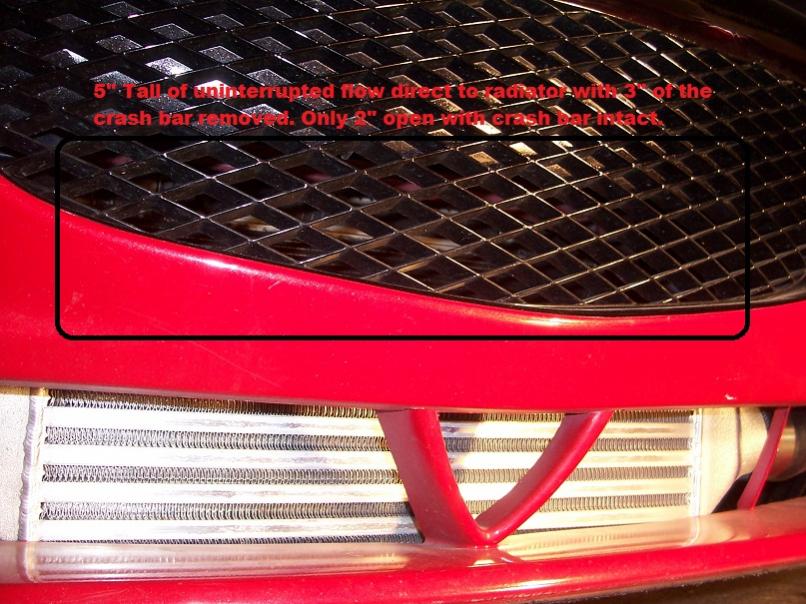

On the car here currently the crash bar has 3" of the center area behind the mouth of the bumper removed. So there is 5" by the width of the bumper mouth of uninterrupted airflow direct to the radiator. If I remember correctly pretty similiar to the greddy unit, just higher cooling efficiency from the garrett design.

halimsteven

I decided to share my experience in one thread what I started with..
finally, I did lot of researches about intercoolers, and now I found a good size intercooler..
core: 22"x8"x3.5" bar/plate with staggered fins and louvered front fins..it's medium density fins..
I decided to go with the end tank design because I believe it will use the whole rows, bottow to top for better cooling.

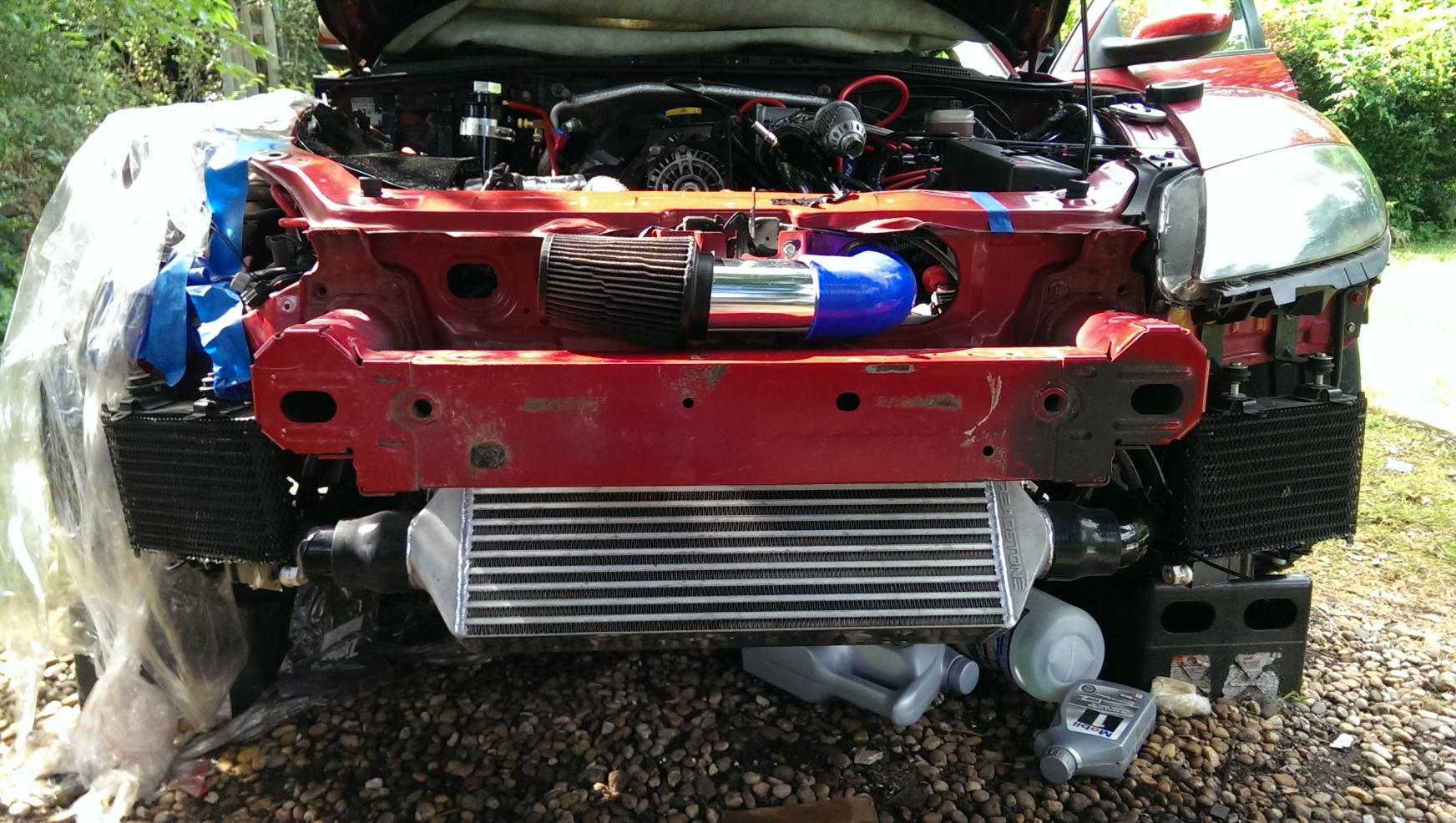

next, I tilt it on the certain angle (not too low), so I can still have the air going in into the top radiator, but at the same time the intercooler will receive the same amount of air, as how it is mounted vertically..

I decided to get the smaller intercooler because my future veiside bumper has a smaller front opening compare to mazdaspeed, and bigger is not always better....
my car is not readyyet, but once it's started again, I will report the temp..

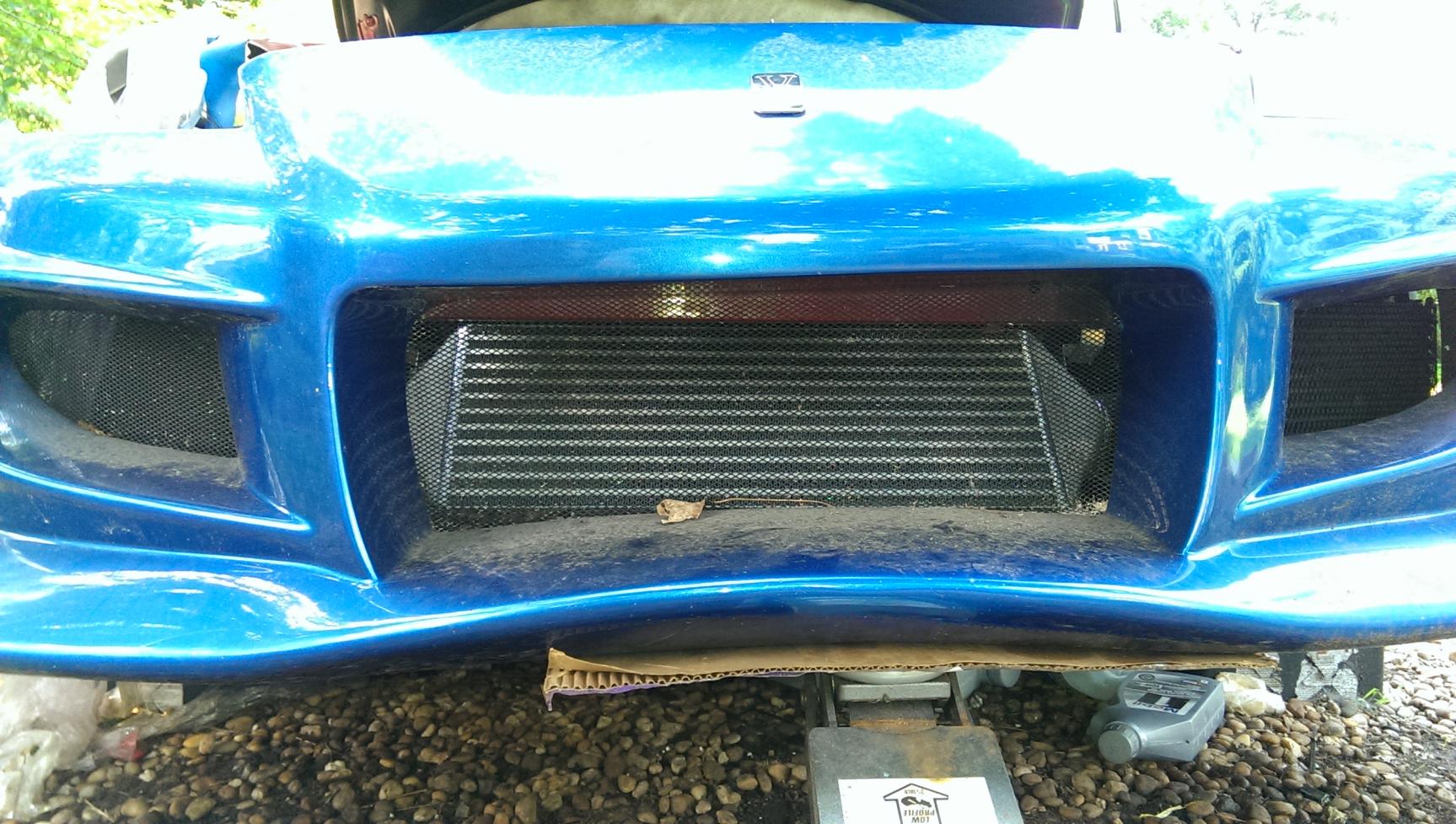

the intercooler looks flush with the front bumper because of the veilside bumper....
I still need to trim the reinforcement bar..

this is just rough look....I hit a car on the passenger side, so I can't relly mount the bumper, but it's just a trial..

if you have any ideas, advices, and experiences, please share here for the intercooler set up....please keep the thread positive..
steven

9krpmrx8

iTrader: (46)

Any data on how efficient this intercooler?

halimsteven

well, with my big intercooler, the temp is 55F on the idle, with the ambient temp of 82F (just idle)..i will start it again this weekend with this intercooler, I will always post for the data, to see how good this intercooler of it's size..they say it's good for 500hp..
