ShellDude

iTrader: (12)

It seems for me on a personal level this past year has been a huge leap knowledge and application wise. And by application I don't mean all the silly android apps I've been spitting out

nycgps

iTrader: (1)

probably because more and more cars are out of warranty, even their engine core extended warranty, so more and more people are willing to take more ＊risk＊ than ever, thus making the progress that this community has been dying for.

HiFlite999

iTrader: (2)

It's also possible that without a certain, now banned, person denegrating every effort to learn about tuning, the discussion can progress in a productive way.

nycgps

iTrader: (1)

Hmm ... *cough*

well let's move on, shall we ?

*take cover!*

Brettus

iTrader: (2)

That might explain the burning sensation in my ears a while back
There were times i actually enjoyed an argument with that missing member , although it often led to him becoming abusive, making it quite unpleasant for me .
Although I initially felt we lost someone who had a lot to offer us , I now feel that maybe we are much better off without him.

olddragger

iTrader: (3)

agreed.

ShellDude

iTrader: (12)

Brettus ... would it be possible for you to post the dwell related map(s) from mazdaedit? curious to see them in their "raw" format.

Brettus

iTrader: (2)

/\ it looks just the same as the AP map .

dannobre

iTrader: (3)

LOL...I hope so ...they are exactly the same

The question would be....what other maps can we figure out ......

Brettus

iTrader: (2)

not as funny as you think - many of the maps have totally different numbers to the AP maps and need calculating into a number you might recognise.

Harlan

iTrader: (3)

Just a point of order. Current across an ignition coil secondary is dependent on dwell time. As it is an inductor its resistance starts high then drops as it saturates until it is just wire resistance (which is what you read with a meter). I'm playing with coils that dwell about .2ms at 30volts. The only issues I have with them is that if my code hangs for even fraction of a second it fries the drive transistor.

I would not worry about setting high dwell at high rpm, since you can't over dwell the coils in the time available, however I don't know if the ECU is smart enough to make sure the coils have enough time to fire, and that could also lead to excessive dwell/coil failure.

Brettus

iTrader: (2)

which reminds me - A few years ago I stated that I had found some success in increasing the dwell on the STOCK oem coils . Was told at the time I was dreaming but I know for a fact that it enabled me to increase boost safely past a certain level ( around the 320whp mark ).
I didn't bother arguing about it back then but in the light of recent revelations it might be worth revisiting for those that have not upgraded their coils.

What I did back then was increase dwell (above 5000rpm) 10% initially but then eased that back to 5% and still got good results from that.

Tamas

iTrader: (1)

How much dwell increase is safe with the stock coils? Just curious...

I remember the tuner referred to in this thread said that the dwell settings for the BHR ignition will quickly melt the stock coils, is that indeed the case?

Brettus

iTrader: (2)

i would say he is correct there . I ran at 5% more than stock above 5000rpm for a good 50000kms and the coils were still fine when i replaced them. I did always have good quality leads which i believe made a difference as well.

olddragger

iTrader: (3)

Harlan ( and others if they wish) --what do you think about keeping the dwell table intact and just boosting the supplied voltage in a controlled way to the coils at an elective point?

Harlan

iTrader: (3)

Boosting the voltage decreases the dwell time. It's almost linear. If you had a HV power supply you could decrease the dwell. The problem in this application is that you would have to make the table identical for every voltage so that it would only change with rpm. It would however allow you to run a shorter dwell at all rpms. I think the stock table tapers off at high rpms to prevent frying the coils, but with better coils you should be able run full dwell on the coil even at 9k. Ideally with perfect coils and a stable power supply you could only use one value for dwell.

olddragger

iTrader: (3)

thanks harlan--respect your opinion.

WreakLoosE

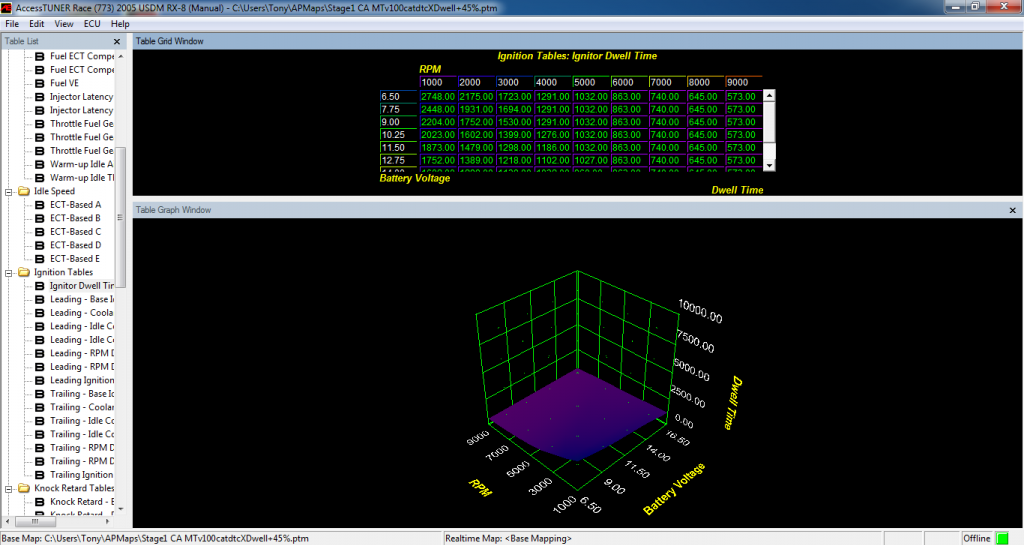

This is making my head explode So I took the Multiplier of 1.45 = 45% for the whole table and got this..

does this look decent to anybody? HELP!.

TeamRX8

iTrader: (25)

no, the 1.x multiplier was the old, incorrect method

auzoom

I would also add decent for what?

TeamRX8

iTrader: (25)

if you can't understand what is going on here then you shouldn't be doing this yourself:

https://www.rx8club.com/engine-tunin...5/#post4260808

auzoom

Who was that directed at?

WreakLoosE

Ok Let me check out the spread sheet.. I saw this once before

TeamRX8

iTrader: (25)

anyone who might be trying to do their own tuning ...

WreakLoosE

Ok... post 108 was golden..

I am an NA application just wanted to make sure my BHR GM Coils are running properly but I can see how the simple Multiplier is not correct.
Thanks guys.
