Coil Dwell Settings with ProTuner & AccessPort

OK Brettus started a thread in Ignition Timing that spawned a crap fest on Dwell settings. I was actually starting to get into the whole discussion but it was distracting the original threads intention.

I thought I would start a thread to continue the dwell discussion.

So to start with,

Originally Posted by a_ahlan View Post
Kane,

I work with Ignition computers as I'm involved in conversion of Diesel engines in to NGV (Natural Gas). In the software I use to program the stand alone ignition computer, the dwell value can be adjusted in - % percentage. Basically 100% would mean dwell will be same duration as the spark duration. 110% means the coil will take 10% longer to charge and then provide spark with the same duration.

Looking at my SPT dwell map, could the map be battery voltage vs % time of dwell? That would mean 1208 might be 120.8% and 395 might be 39.5% of spark duration.
And then

Originally Posted by MazdaManiac View Post
Wow. There it is. (EDIT - Sorta. Its not a direct % of available spark time, but crank rotation time.)

So after months of speculating and even erroneous input from people who are actively involved in RX-8 calibration testing and development, it took a professional ignition calibrator's input to figure out what I managed to figure out in my garage in 10 minutes with a cheap scope meter.

I'm not picking on you, a_ahlan. You are just sharing what you know.
But its just sad that all of the whiners in this thread just couldn't be bothered with the R&D, just because they knew someone had already figured it out.
It was more worthwhile to complain about it.
So now we believe/understand that the dwell table shows % of crank rotation time I am curious what people are running with what coil setups.

We have 3 common setups that I am aware of OEM, LS2 (BHR) and Bosch HEC 715 (MazSport). I am curious what people are runnning.

Kane posted some in the Timing thread:






EDIT: Updated this to a more recent map that is working much better

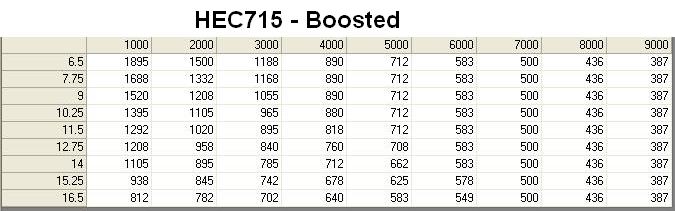

HEC715
Attached Thumbnails Coil Dwell Settings with ProTuner & AccessPort-hec715-dwell.jpg

Last edited by auzoom; 08-28-2009 at 08:50 AM.
auzoom is offline
Reply With Quote
Old 07-19-2009, 02:29 AM
  #2
Boosted Kiwi
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 18,135
Thanked 186 Times in 143 Posts
I deleted the dwell thread I started because there was too much misleading info in it .
From that thread I learned a few little titbits but still do not understand how the mazda map relates to the actual dwell at the coils .
I did get this gem of info from someone though :

It is so unbelievably simple that a trained monkey could work it out . However no-one apart from MM ever did , so maybe you actually need to be one
Brettus is offline
Reply With Quote
Old 07-19-2009, 02:52 AM
  #3
hakuna matata!
iTrader: (41)

alz0rz's Avatar

Join Date: Aug 2007
Location: NYC
Posts: 6,002
Thanks: 0
Thanked 1 Time in 1 Post
i love this community.
alz0rz is offline
Reply With Quote
Old 07-19-2009, 03:32 AM
  #4
rot8ing
iTrader: (1)

myriadshalaks's Avatar

Join Date: Feb 2007
Location: merritt island, fl
Posts: 1,538
Thanks: 0
Thanked 0 Times in 0 Posts
cool thread. lots of questions.

you're not that far from stock with the HEC. you have a shorter charge time towards the top, right?

what effect does charge time have on performance?

is a longer charge time in the later rpms better?

is a longer charge time tougher on coils?

the bhr coils have a long charge towards the top, right?

can dwell be tuned for performance without changing coils?
myriadshalaks is offline
Reply With Quote
Old 07-19-2009, 07:52 AM
  #5
Hmmmmmm.........
Thread Starter

auzoom's Avatar

Join Date: Mar 2005
Location: Melbourne, Australia
Posts: 3,549
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Brettus View Post
I deleted the dwell thread I started because there was too much misleading info in it .
From that thread I learned a few little titbits but still do not understand how the mazda map relates to the actual dwell at the coils .
I did get this gem of info from someone though :

It is so unbelievably simple that a trained monkey could work it out . However no-one apart from MM ever did , so maybe you actually need to be one
That just makes me sing the theme song for a TV show here called "Are you smarter than a 5th Grader" (replace 5th grader with trained monkey).

Originally Posted by alz0rz View Post
i love this community.
It has its moments!

Originally Posted by myriadshalaks View Post
you're not that far from stock with the HEC. you have a shorter charge time towards the top, right?
yes. BUt that doesn't mean its what works best. In fact its one of the reasons I started this thread was to find out what people were doing with them.

Originally Posted by myriadshalaks View Post
what effect does charge time have on performance?
I will start by saying I am the last person to be answering this but my first thoughts are that its like a camera flash, it needs to charge long enough to have sufficient power to light the bulb. If the charge time isn't long enough, the spark may not be strong enough to light the fuel. Not sure what happens if you charge to long.

Originally Posted by myriadshalaks View Post
is a longer charge time in the later rpms better?
This is one of the things I am trying to figure out...

Originally Posted by myriadshalaks View Post
is a longer charge time tougher on coils?
Good question, not sure.

Originally Posted by myriadshalaks View Post
the bhr coils have a long charge towards the top, right?
In comparison to the OEM ones in NA form yeah. Not sure how they would be configured in FI form. I am making the assumption here that the same coil should be different NA v FI.

Originally Posted by myriadshalaks View Post
can dwell be tuned for performance without changing coils?
No idea about performance but regardless of the coil on the car you can change the dwell settings.

Cheers

Andrew
auzoom is offline
Reply With Quote
Old 07-20-2009, 07:27 AM
  #6
Hmmmmmm.........
Thread Starter

auzoom's Avatar

Join Date: Mar 2005
Location: Melbourne, Australia
Posts: 3,549
Thanks: 0
Thanked 0 Times in 0 Posts
No one got any feedback on the dwell of the Bosch/Mazsport Coils?
auzoom is offline
Reply With Quote
Old 07-20-2009, 08:17 AM
  #7
3-wheeler

Flashwing's Avatar

Join Date: Dec 2005
Location: Phoenix
Posts: 2,734
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by myriadshalaks View Post
cool thread. lots of questions.

you're not that far from stock with the HEC. you have a shorter charge time towards the top, right?

what effect does charge time have on performance?

is a longer charge time in the later rpms better?

is a longer charge time tougher on coils?

the bhr coils have a long charge towards the top, right?

can dwell be tuned for performance without changing coils?
Ooooo good questions!

To establish a basis, my understanding is dwell is the overall charge time where the coil generates a magnetic field. When this field collapses it creates a discharge which is what lights the electrode on the spark plug. Someone stop me if I'm off base.

Different ignition coils have different dwell operational ranges. It mostly depends on the vehicle application. The longer the dwell the larger the charge. There are extremes on both sides.

If a coil isn't given enough dwell time it's not able to form a strong enough magnetic field which results in a weak spark. With this you're looking at incomplete or no combustion at all. On the flip side, there is a point where excessive charging doesn't result in a more powerful field and instead it's turned into heat energy.

Excessive charging will overheat the coils and shorten their life. Also you only have so much crank rotation time before you have to fire off the spark plug.

Longer dwell times only become an issue in the upper RPM band because as the motor spins faster you have less time to charge the coil.

Spark discharge needs to be its strongest at the torque peak because this is where combustion chamber pressures will be at their highest.

Dwell can be adjusted without changing the coils, however it will depend on the design of the coils in question as to what dwell settings are effective.
Flashwing is offline
Reply With Quote
Old 07-20-2009, 08:27 AM
  #8
Illudium Q-36 Space Moderator
iTrader: (1)

Kane's Avatar

Join Date: Jan 2007
Location: PCB
Posts: 6,360
Thanked 27 Times in 20 Posts
The coil properties should not be any different from NA to FI - they should be what the coil wants / needs to make maximum energy without burning out.

Having said that - I have confirmed the dwell test in the TSM - and OD got me this info... so it looks like I am right for wrong reasons maybe... but I really don't care about the why - only that it works.

Originally Posted by olddragger
Hey Dude--dont know if you need this or not but here it is
Volts Dwell
8 9.5
9 7.7
10 5.9
11 4.9
12 4.2
13 3.7
14 3.3
15 2.9
this is oem of course
Denny /olddragger
And again BHR needs 5ms of dwell.

This jives with the Service Manual testing procedures. 3.3/5 or 3.7/5 = 135 to 150% increase in dwell..... I don't know why this is so mysterious.
Kane is offline
Reply With Quote
Old 07-20-2009, 02:57 PM
  #9
Registered
iTrader: (1)

Join Date: May 2003
Location: PA
Posts: 3,753
Thanks: 0
Thanked 0 Times in 0 Posts
Kane, when I did my dwell map i noticed that on yours you decresed the dwell at 1,000 rpms from the stock dwell time??
r0tor is offline
Reply With Quote
Old 07-20-2009, 03:13 PM
  #10
Illudium Q-36 Space Moderator
iTrader: (1)

Kane's Avatar

Join Date: Jan 2007
Location: PCB
Posts: 6,360
Thanked 27 Times in 20 Posts
I don't think so.... I may have made a mistake.... Hmm.

Looked it up and you are right.... I wonder how that happened.
Kane is offline
Reply With Quote
Old 07-20-2009, 09:00 PM
  #11
Registered User
iTrader: (7)

Join Date: Jan 2009
Location: Longview, WA
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
Can someone please show me how to adjust the BHR coils to 5ms of dwell using AP? I'm not much of a tuning guy.
L2K-8 is offline
Reply With Quote
Old 07-20-2009, 09:01 PM
  #12
Boosted Kiwi
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 18,135
Thanked 186 Times in 143 Posts
/\ that my freind is what all the fuss is about ....
Brettus is offline
Reply With Quote
Old 07-20-2009, 09:54 PM
  #13
Illudium Q-36 Space Moderator
iTrader: (1)

Kane's Avatar

Join Date: Jan 2007
Location: PCB
Posts: 6,360
Thanked 27 Times in 20 Posts
You guys are ****** killing me....
Kane is offline
Reply With Quote
Old 07-20-2009, 10:06 PM
  #14
U-Stink-But-I-♥-U
iTrader: (1)

carbonRX8's Avatar

Join Date: Mar 2005
Location: 12 o'clock on the Beltway.
Posts: 2,003
Thanks: 0
Thanked 0 Times in 0 Posts
It looks like this has been solved, then? Yes?


I take it there is no longer need to dwell on this issue? Wow, that never gets old.
carbonRX8 is offline
Reply With Quote
Old 07-20-2009, 10:18 PM
  #15
Illudium Q-36 Space Moderator
iTrader: (1)

Kane's Avatar

Join Date: Jan 2007
Location: PCB
Posts: 6,360
Thanked 27 Times in 20 Posts
Good one.
Kane is offline
Reply With Quote
Old 07-20-2009, 11:33 PM
  #16
Registered
iTrader: (3)

Macius8's Avatar

Join Date: Aug 2004
Location: chicago
Posts: 436
Thanks: 0
Thanked 0 Times in 0 Posts
is there any concern on longevity with increasing dwell 135-150%?
Macius8 is offline
Reply With Quote
Old 07-20-2009, 11:47 PM
  #17
Registered
iTrader: (3)

Macius8's Avatar

Join Date: Aug 2004
Location: chicago
Posts: 436
Thanks: 0
Thanked 0 Times in 0 Posts
in the first post, how come the bhr coil values are not 135-150% of the oem dwell?
Where are these values from?
Macius8 is offline
Reply With Quote
Old 07-20-2009, 11:48 PM
  #18
U-Stink-But-I-♥-U
iTrader: (1)

carbonRX8's Avatar

Join Date: Mar 2005
Location: 12 o'clock on the Beltway.
Posts: 2,003
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Macius8 View Post
is there any concern on longevity with increasing dwell 135-150%?
On stock coils? I have been told, yes. You will burn them out and there is no reason to do it anyway.

On Yukons? Again, this is the core of the whole issue, but Yukons are fine out to 8ms, I think, where they have an internal quench or cutoff.

Last edited by carbonRX8; 07-20-2009 at 11:53 PM.
carbonRX8 is offline
Reply With Quote
Old 07-21-2009, 12:40 AM
  #19
Boosted Kiwi
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 18,135
Thanked 186 Times in 143 Posts
Originally Posted by carbonRX8 View Post
It looks like this has been solved, then? Yes?


I take it there is no longer need to dwell on this issue? Wow, that never gets old.
does not look solved to me but i've always been a "gotta know how stuff works" kinda guy .
Did MM threaten to burn down your house if you divulged anything ?
Brettus is offline
Reply With Quote
Old 07-21-2009, 12:44 AM
  #20
Banned
iTrader: (3)

Join Date: Oct 2003
Location: Under my car
Posts: 16,386
Thanks: 0
Thanked 2 Times in 2 Posts
You guys crack me up.

Take a step back and look at what you are trying to do.

It is genuinely so simple, its sickening.
MazdaManiac is offline
Reply With Quote
Old 07-21-2009, 12:47 AM
  #21
Jedi Master
iTrader: (7)

Jedi54's Avatar

Join Date: Mar 2004
Location: The Dark Side
Posts: 21,100
Thanked 445 Times in 291 Posts
yup, so easy that I updated my dwell settings yesterday.
Jedi54 is offline
Reply With Quote
Old 07-21-2009, 12:49 AM
  #22
Registered

shazy's Avatar

Join Date: Oct 2008
Location: Montreal,QC
Posts: 2,256
Thanks: 0
Thanked 0 Times in 0 Posts
Interesting. what does 5ms mean? Sorry I just don't know even half the stuff about coils that other people do.
shazy is offline
Reply With Quote
Old 07-21-2009, 12:51 AM
  #23
Banned
iTrader: (3)

Join Date: Oct 2003
Location: Under my car
Posts: 16,386
Thanks: 0
Thanked 2 Times in 2 Posts
Originally Posted by Jedi54 View Post
yup, so easy that I updated my dwell settings yesterday.
lol!

You cheated!
MazdaManiac is offline
Reply With Quote
Old 07-21-2009, 12:52 AM
  #24
Jedi Master
iTrader: (7)

Jedi54's Avatar

Join Date: Mar 2004
Location: The Dark Side
Posts: 21,100
Thanked 445 Times in 291 Posts
if you're not cheating, you're not trying hard enough.
Jedi54 is offline
Reply With Quote
Old 07-21-2009, 12:58 AM
  #25
U-Stink-But-I-♥-U
iTrader: (1)

carbonRX8's Avatar

Join Date: Mar 2005
Location: 12 o'clock on the Beltway.
Posts: 2,003
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Brettus View Post
does not look solved to me but i've always been a "gotta know how stuff works" kinda guy .
Did MM threaten to burn down your house if you divulged anything ?
lol. You give me too much credit. I know just about as much as you do. The only thing that I know more than you is that I know that all I know is no more than you know.

Like I said. Once I can confirm what I learned from MM, I will be happy to share. Stick it to the man, so to speak. Until then, all I could say would be hearsay.

Besides, the whole drama is entertaining. Like "Days of our Lives" 20 years later I fully expect Bo and Hope to be almost getting married. And Sammy or Stephano trying to kill everyone.
carbonRX8 is offline
Reply With Quote

Thread Tools
Search this Thread
Rate This Thread
Rate This Thread:
You have already rated this thread Rating: Thread Rating: 0 votes,  average.

Quick Reply: Coil Dwell Settings with ProTuner & AccessPort


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
