I was going to ask about the hose fittings too on the water lines but I finally got them on. The bottom line is a mother f'r to get the clamp on. I just used the t/b lines and the one was super long and the other one just barely gets in there. Im hoping it wont leak from the amount of times I took it on and off. Need to try and tie the one line to something cause it hangs really close to the turbo.
#80
Turbocharger Guru
you guys give me some suggestions about the water lines. If they need to be shortened I would like to make the corrections so that other customers will have it easier!
Bryan@BNR
Bryan@BNR
#83

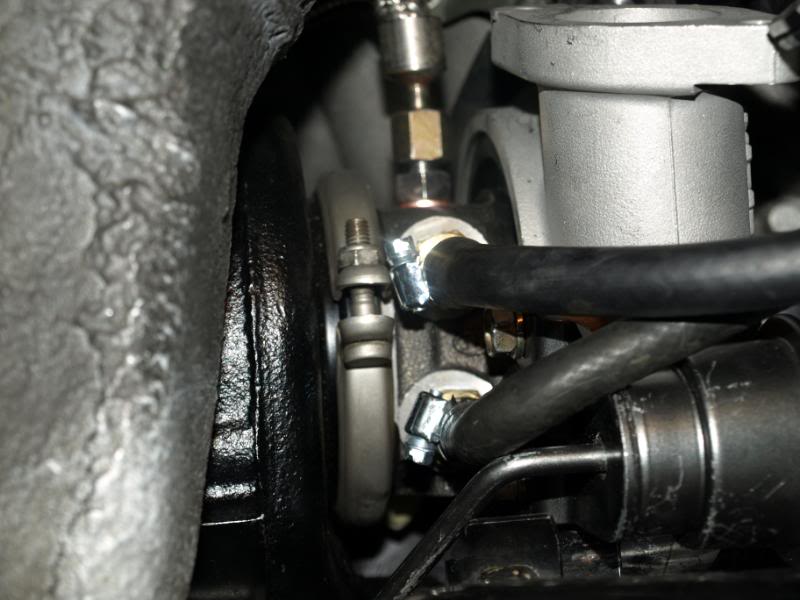

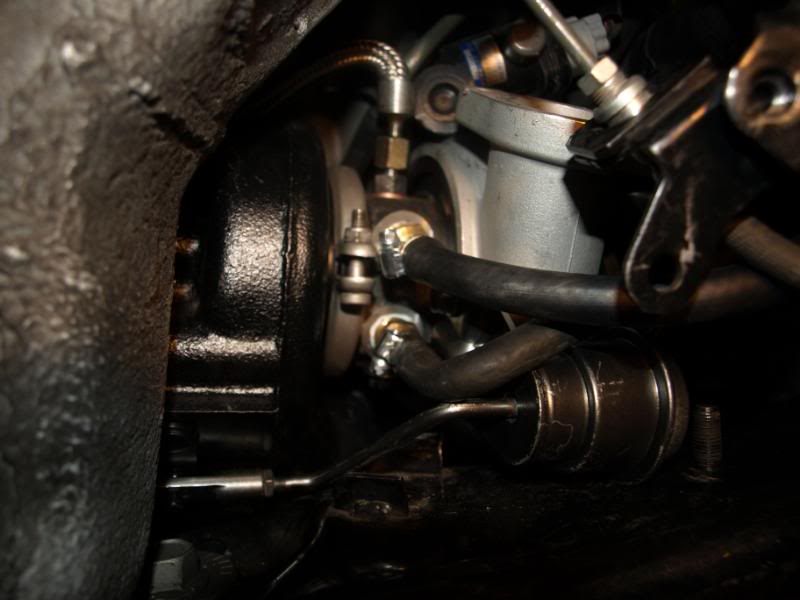

saturday i was able to spend a couple of hours on putting the car back together, got the coolant lines hooked up to the turbo..the way bryan supplied the coolant lines i was able to hook up the hoses without clearance issues or kinks...one concern is the lower line is lightly resting against the wastegate shaft, think it will be ok?

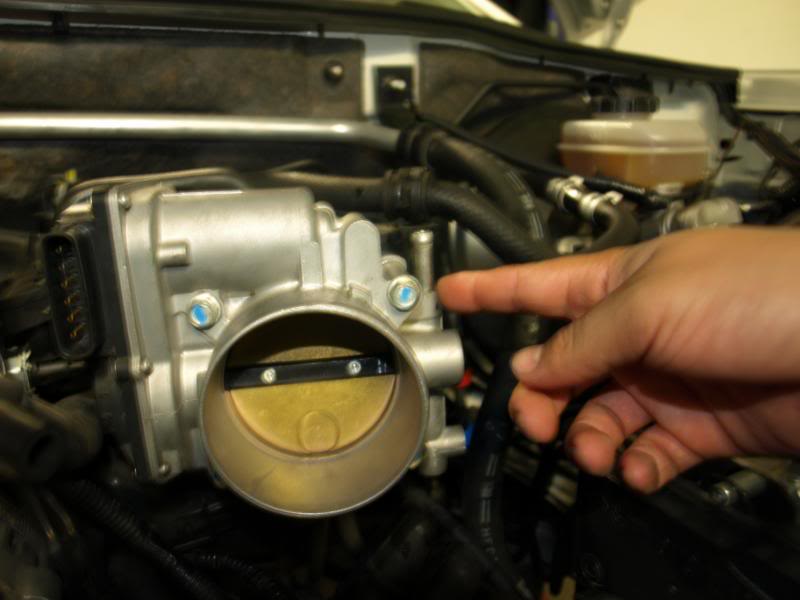

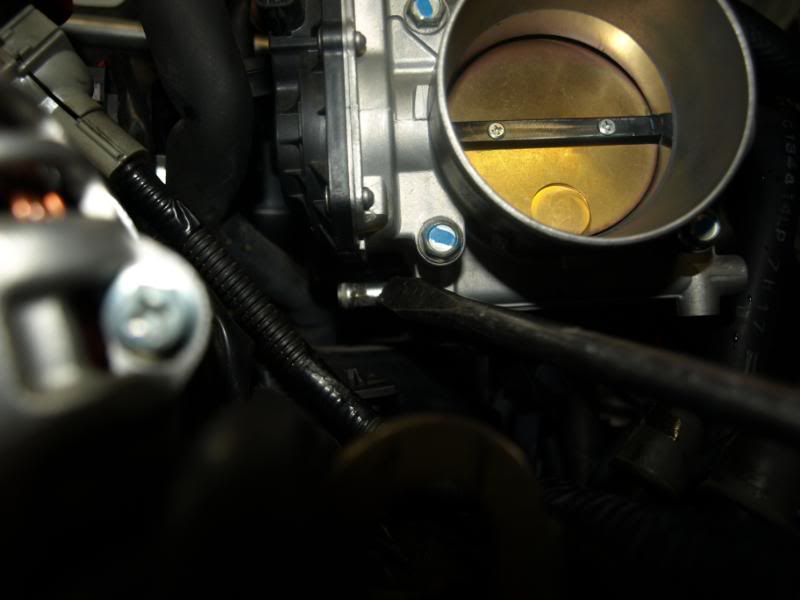

the lower coolant line to the throttle body is very short, i used a 3/8 barb fitting from home depot to enxtend the hose
the upper coolant line to the throttle body has plenty of line to reach the turbo

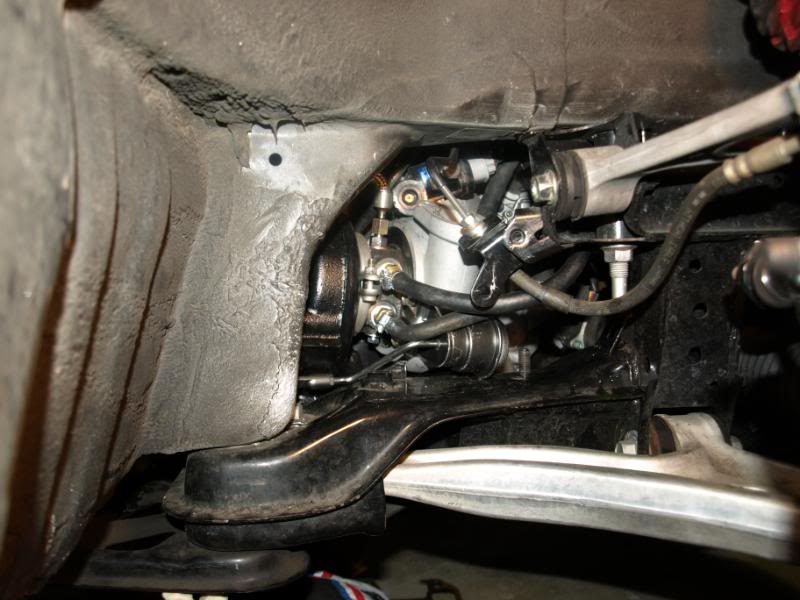

this is the best shot i could get of the turbo actually mounted
All that is left is to hook up my intercooler piping add oil and im ready for startup!
hope these pictures help!
the lower coolant line to the throttle body is very short, i used a 3/8 barb fitting from home depot to enxtend the hose
the upper coolant line to the throttle body has plenty of line to reach the turbo
this is the best shot i could get of the turbo actually mounted
All that is left is to hook up my intercooler piping add oil and im ready for startup!
hope these pictures help!
Last edited by gregs; 06-28-2009 at 04:05 AM.
#86
RX8club group buy vendor
iTrader: (5)
Greg I was thinking that lower coolant line can be wrapped with Kapton tape used for high temp electronics in my world. I'll ask if I can have a small bit, a little goes a long way. Another option would be installing a sleeve over that area, it shouldn't be heat that's a concern but like Konig mentioned it would probably wear over a long long long period of time. several layers of rubber and fibers. how long, depends on vibration.
I miss my turbo KA setup
I miss my turbo KA setup
#88
Bad Ass
iTrader: (1)
Join Date: May 2008
Location: Kyle, Tx
Posts: 450
Likes: 0
Received 0 Likes
on
0 Posts
You did the smart thing of putting the actuator on before you mounted the turbo. Im having a hell of a time getting the top bolt in, between the coolant lines. I need someone with small hands! I dont even know how Im going to tighten in up.....
#90
Turbocharger Guru
Just zip tie the 2 water lines together where they come off the fittings. That should keep the lower rubber line from resting on the actuator arm. Looks like a good fit to me! Also looks pretty easy to get to on the car as well.
I may put a 45 degree barb fitting there just to make it easily bolt up.
Bryan@BNR
I may put a 45 degree barb fitting there just to make it easily bolt up.
Bryan@BNR
#96

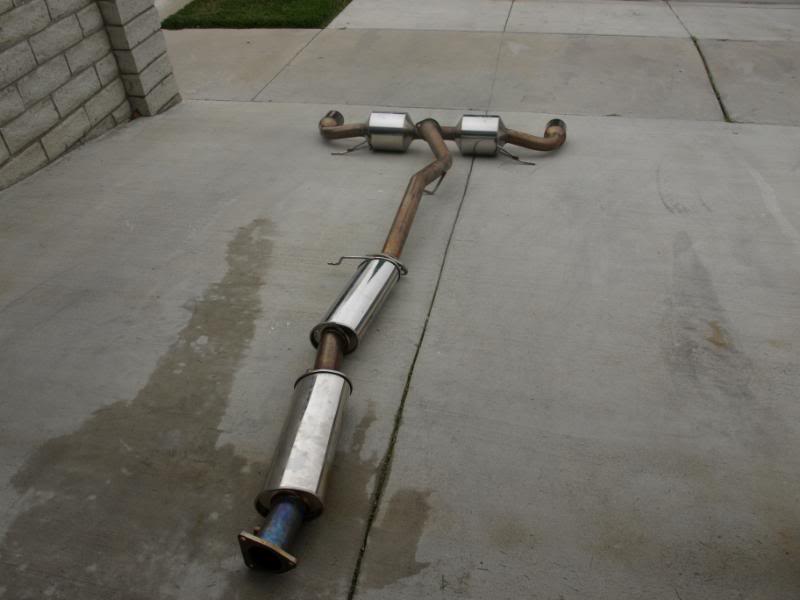

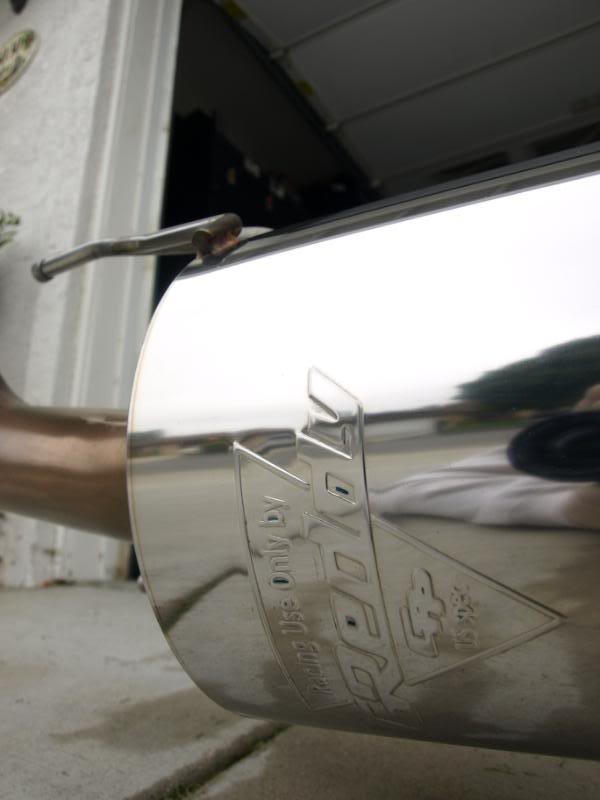

this morning i switched out my hks hi-power exhaust with a greddy evo tt exhaust..progress has been slow being that last week i cut my foot and had stitches hopefully tomorrow ill finish installing my intercooler piping and startup

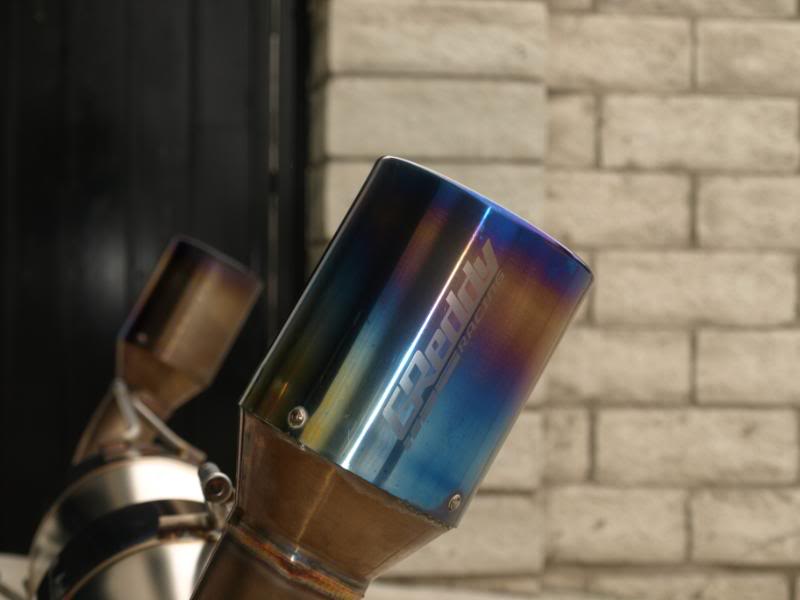

im suprised the greddy evo tt feels just as light as the hks high power if anything lighter than the hks hi-power

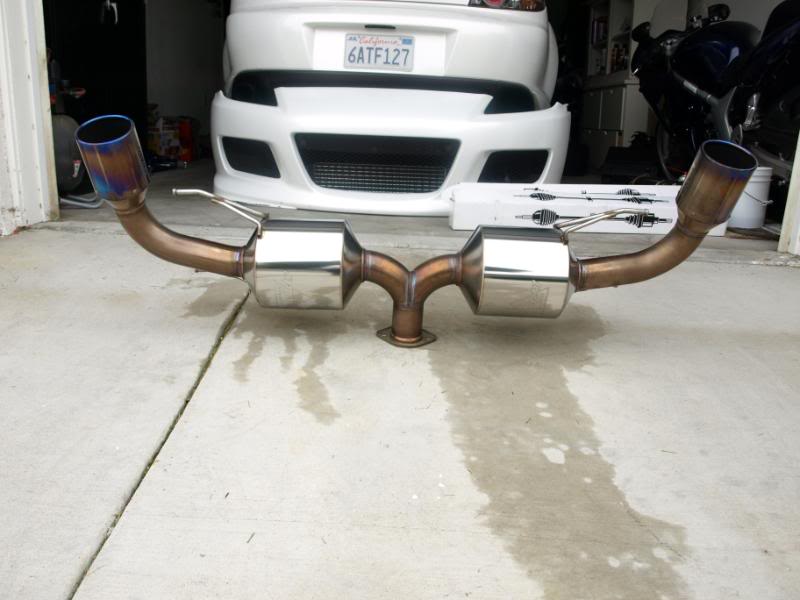

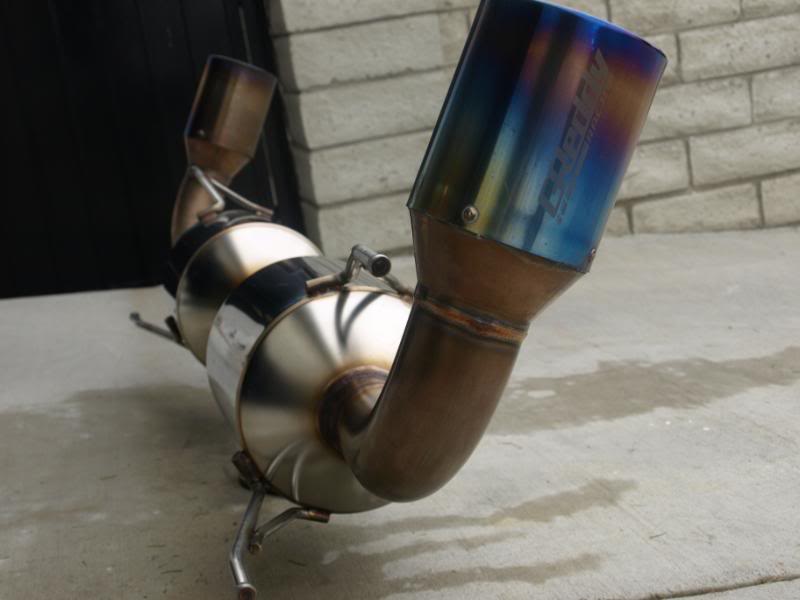

greddy evo tt with mazsport midpipe
