20b rx8

Old 12-25-2015, 07:45 PM
  #351
Registered
Thread Starter

Join Date: Jul 2011
Posts: 451
Likes: 0
Received 5 Likes on 2 Posts
Water lines
Oil lines
Intercooler lines
Turbo feed
Turbo drain
2stroke feed
EWP and intercooler ewp
DONE.

Removed the mechanical section of abs and used a block off plate to enclose the electrical section and relocated to the passenger floor.

Custom short plug leads with the ignition packs mounted just above and off to side of housings.

Redoing the entire brake system with braided Teflon and a wilwood pro portioning valve and the hel kit.

Gotta wire up extra gauges

The manifold and dump and turbo hot side are ceramic Coat and baked with titanium wrap. Should keep heat in fairly well.

It's very close, will put oil in soon. Coolant is in and flowing tho there's not much pressure in the heater lines which is a concern as I rely on heater lines for gas convertors.

Need the LPG lines and certification done. Most of wiring is complete
Attached Thumbnails 20b rx8-image-3506267818.jpg
SiNfidelity is offline
Old 12-25-2015, 08:33 PM
  #352
Registered

Join Date: May 2015
Location: Newark Delaware
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
I love your build. I can't wait till everything is done! Keep me updated for sure 👍
tomsrx8 is offline
Old 12-28-2015, 07:20 AM
  #353
Registered
Thread Starter

Join Date: Jul 2011
Posts: 451
Likes: 0
Received 5 Likes on 2 Posts

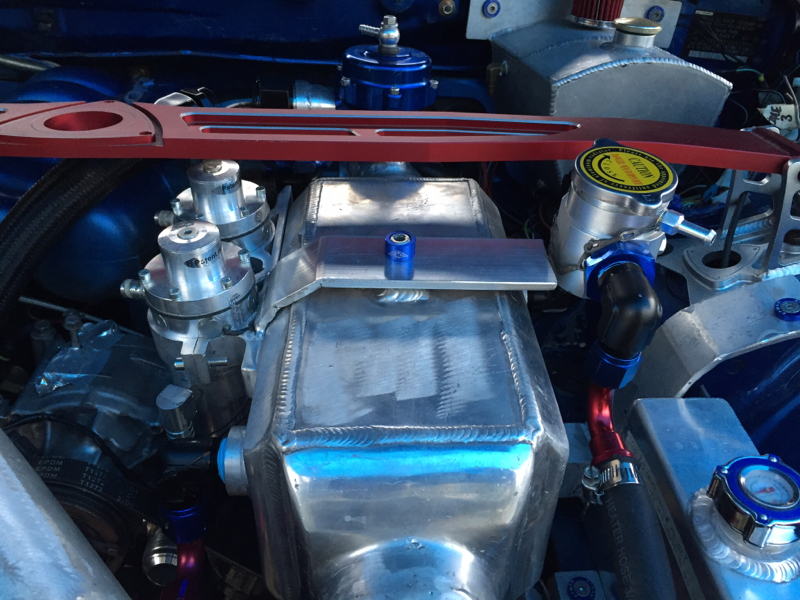

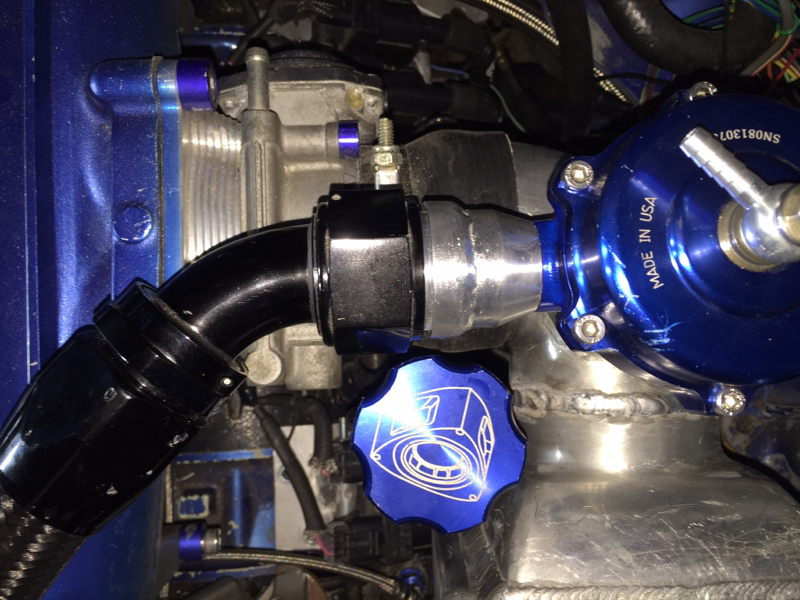

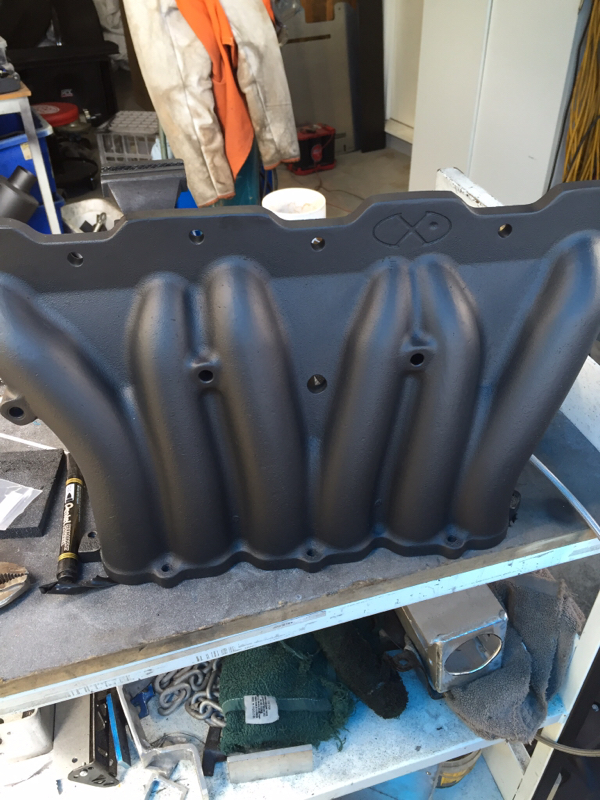

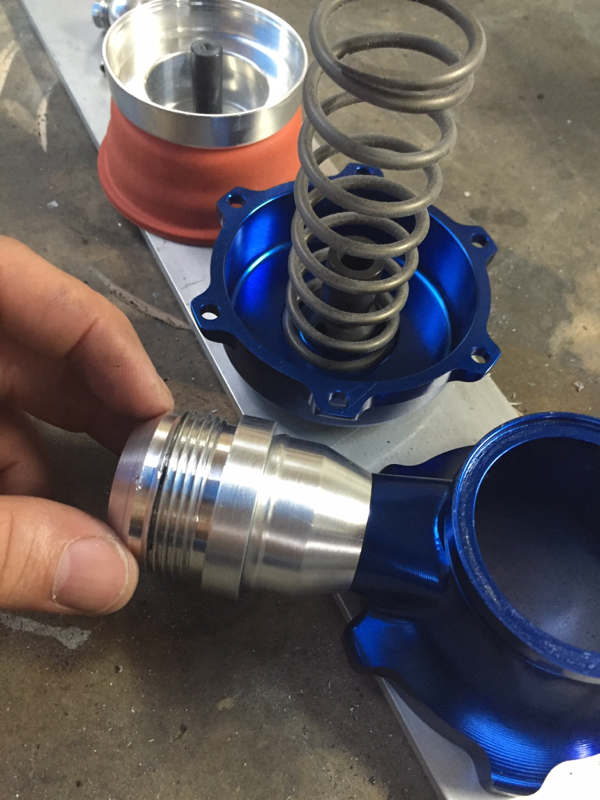

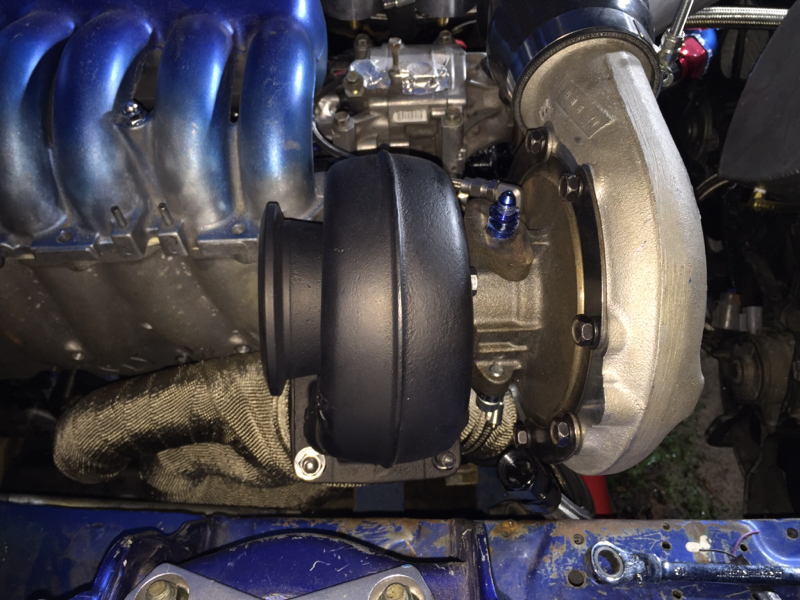

Won't say much, the pics show of the work I been doin..
Attached Thumbnails 20b rx8-image-2139405297.jpg   20b rx8-image-1807656473.jpg   20b rx8-image-4262988051.jpg   20b rx8-image-2220560442.jpg   20b rx8-image-37728674.jpg

20b rx8-image-2982056303.jpg   20b rx8-image-2536411362.jpg   20b rx8-image-860971547.jpg   20b rx8-image-2433552886.jpg   20b rx8-image-3387006542.jpg

20b rx8-image-3968543989.jpg   20b rx8-image-3466651585.jpg   20b rx8-image-3014949515.jpg   20b rx8-image-756849881.jpg   20b rx8-image-1598901374.jpg

20b rx8-image-3073156200.jpg   20b rx8-image-3153906256.jpg   20b rx8-image-2752459236.jpg   20b rx8-image-882502814.jpg   20b rx8-image-471482562.jpg

20b rx8-image-2836839419.jpg   20b rx8-image-2537809103.jpg
SiNfidelity is offline
Old 12-28-2015, 08:48 AM
  #354
Renesis out... REW in
iTrader: (3)

firecran's Avatar

Join Date: Jan 2007
Location: Melbourne, Fl
Posts: 1,526
Likes: 0
Received 0 Likes on 0 Posts
Thumbs up

^Nice work, glad to see your getting close.


.
firecran is offline
Old 02-16-2016, 08:21 AM
  #355
Registered
Thread Starter

Join Date: Jul 2011
Posts: 451
Likes: 0
Received 5 Likes on 2 Posts
Hey. Does anyone here know if the pin locations for the 3pin and 6pin plugs on a s5 omp and a 20b omp are in the same location regardless of the wiring colours? I've got the circuit diagram for wiring a s5 omp to my ECU but I have a 20b with 20b omp! The colours are different.

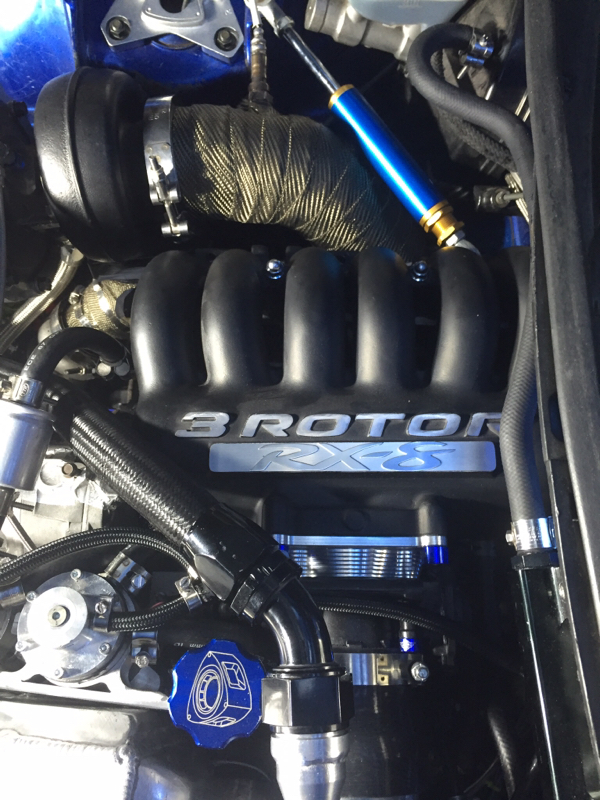

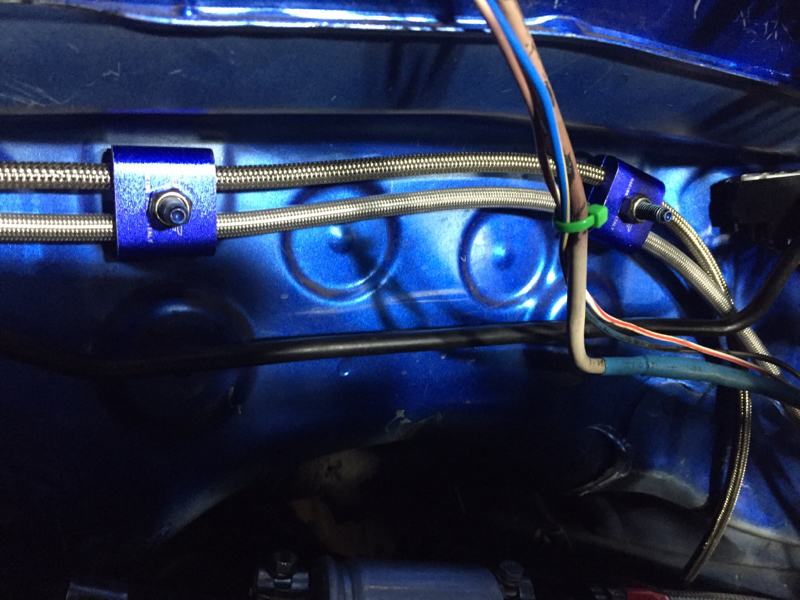

And some pic updates.
Attached Thumbnails 20b rx8-image-801920676.jpg   20b rx8-image-2394993247.jpg   20b rx8-image-2884746483.jpg   20b rx8-image-2087249262.jpg   20b rx8-image-3060533211.jpg

20b rx8-image-2432501258.jpg   20b rx8-image-1895047742.jpg   20b rx8-image-3876900323.jpg
SiNfidelity is offline
Old 06-22-2016, 10:56 PM
  #356
Unregistered User

stickmantijuana's Avatar

Join Date: Apr 2006
Posts: 824
Likes: 0
Received 0 Likes on 0 Posts
Looking great man. If you want to protect those gas lines at friction points, check these out: https://www.amazon.com/gp/product/B0...?ie=UTF8&psc=1
stickmantijuana is offline
Old 10-26-2016, 04:52 PM
  #357
Registered

Join Date: Sep 2016
Location: Central New Jersey
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
This is looking outstanding!
Felion is offline
Old 10-27-2016, 08:37 AM
  #358
Gold Wheels FTW
iTrader: (1)

reddozen's Avatar

Join Date: Nov 2007
Posts: 1,048
Received 15 Likes on 12 Posts
Dgrr 2017?
reddozen is offline
Old 10-28-2016, 04:16 AM
  #359
Registered

Join Date: Dec 2014
Posts: 70
Likes: 0
Received 0 Likes on 0 Posts
Just letting you know this car is in Australia.
Mazda Sports Corner is offline
Old 10-28-2016, 08:20 AM
  #360
Gold Wheels FTW
iTrader: (1)

reddozen's Avatar

Join Date: Nov 2007
Posts: 1,048
Received 15 Likes on 12 Posts
Originally Posted by Mazda Sports Corner View Post
Just letting you know this car is in Australia.
Sad times. Nice build either way.
reddozen is offline
Old 10-28-2016, 09:03 AM
  #361
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,740
Received 338 Likes on 273 Posts
TX

Originally Posted by Mazda Sports Corner View Post
Just letting you know this car is in Australia.

Thanks for the clarification, we never would have figured that out.
9krpmrx8 is offline
Old 10-29-2016, 05:01 AM
  #362
Registered

Join Date: Dec 2014
Posts: 70
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 9krpmrx8 View Post
Thanks for the clarification, we never would have figured that out.
Your welcome!
Mazda Sports Corner is offline
Old 11-01-2016, 09:27 AM
  #363
Registered
Thread Starter

Join Date: Jul 2011
Posts: 451
Likes: 0
Received 5 Likes on 2 Posts

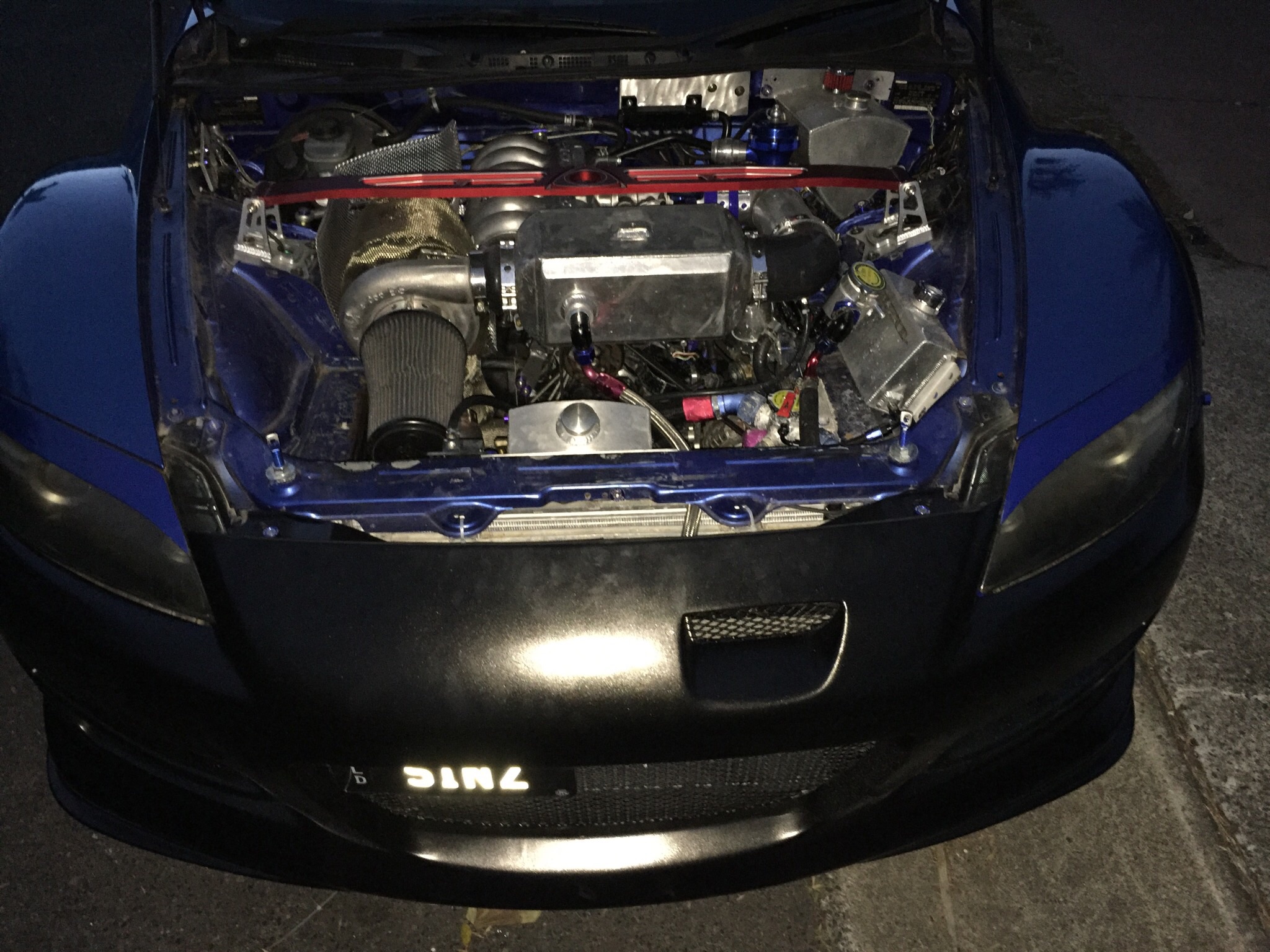

Complete, almost.... Lol


Oh man I have been a slack contributor. Soz guys, guess I've been just busting my ***** trying to get her right and finished, tho I'm starting to understand what those in the know refer to as "a build like this never is finished" lol

Happy to report I have taken her out a few times, and had her started about July I think. I'm still trying to fix and finish little niggly things and oh yeh I rewired the two ecu's and new fuse box etc. so painful,,,,, I'll post up a video soon, once I work out how to do that here. In the meantime some pics










Attached Thumbnails 20b rx8-image.jpg

Last edited by SiNfidelity; 11-01-2016 at 09:37 AM. Reason: More pics
SiNfidelity is offline
Old 11-01-2016, 11:02 AM
  #364
Renesis out... REW in
iTrader: (3)

firecran's Avatar

Join Date: Jan 2007
Location: Melbourne, Fl
Posts: 1,526
Likes: 0
Received 0 Likes on 0 Posts
Talking Another #norenesis RX-8

Nice heat protection!
You did lots of good work man. Glad to see she's up and running.

Welcome to the #norenesis club

.
firecran is offline
Old 11-01-2016, 12:06 PM
  #365
Registered

Join Date: Mar 2010
Location: Brap City
Posts: 101
Likes: 0
Received 2 Likes on 2 Posts
Nice!!!
RedDream is offline
Old 11-02-2016, 05:43 AM
  #366
Registered
Thread Starter

Join Date: Jul 2011
Posts: 451
Likes: 0
Received 5 Likes on 2 Posts
Originally Posted by firecran View Post
Nice heat protection!
You did lots of good work man. Glad to see she's up and running.

Welcome to the #norenesis club

.
Yeh still gotta finish the shielding, plus I have some hood vents to put in above the turbo.

I'm having massive issues at moment with bad idle, revs breaking up etc, it's been remotely tuned and was running great a few weeks back with as much as 24psi boost, 4th gear 189km/p/h (5sp). Then I started getting random backfiring and random stalls, etc. so I rewired everything and still I got the same issues. So pissed
SiNfidelity is offline
Old 11-02-2016, 07:20 AM
  #367
Renesis out... REW in
iTrader: (3)

firecran's Avatar

Join Date: Jan 2007
Location: Melbourne, Fl
Posts: 1,526
Likes: 0
Received 0 Likes on 0 Posts
Thumbs up

What's your ecu data logs showing?
Mostly likely something simple that's getting over looked.
Goodluck......You'll get it resolved
firecran is offline
Old 11-02-2016, 03:28 PM
  #368
n3rd

slash128's Avatar

Join Date: Aug 2009
Location: in my mind
Posts: 2,049
Received 16 Likes on 14 Posts
Nice work man!
slash128 is offline
Old 11-03-2016, 07:39 AM
  #369
Registered
Thread Starter

Join Date: Jul 2011
Posts: 451
Likes: 0
Received 5 Likes on 2 Posts
Originally Posted by firecran View Post
What's your ecu data logs showing?
Mostly likely something simple that's getting over looked.
Goodluck......You'll get it resolved
Yes indeed, simple it was, man I feel like an idiot.
The two 12v + terminals screwed to fuse box were only finger tight!
Grrrr
SiNfidelity is offline
Old 11-03-2016, 09:58 AM
  #370
Renesis out... REW in
iTrader: (3)

firecran's Avatar

Join Date: Jan 2007
Location: Melbourne, Fl
Posts: 1,526
Likes: 0
Received 0 Likes on 0 Posts
Thumbs up

Originally Posted by SiNfidelity View Post
Yes indeed, simple it was, man I feel like an idiot.
The two 12v + terminals screwed to fuse box were only finger tight!
Grrrr
Nice find!!! Glad to hear it was a easy fix.

Rotor on bro!

Last edited by firecran; 11-04-2016 at 01:53 PM.
firecran is offline
Old 11-12-2016, 07:35 AM
  #371
Registered
Thread Starter

Join Date: Jul 2011
Posts: 451
Likes: 0
Received 5 Likes on 2 Posts
Timing issue I think

Well it seems I may have my timing marks or just timing screwed a little.
Turbo manifold glowing after a very easy 50mins highway drive at 2am cool conditions with no boosting.

Better remove the bonnet/hood lining before it burns the car down lol. It was smouldering when I pulled up. I'm sure it's fireproof or something, but it was def on fire, ie smouldering red. And that's with small hood vents above turbo.
SiNfidelity is offline
Old 11-12-2016, 10:11 AM
  #372
Registered

Join Date: Mar 2010
Location: Brap City
Posts: 101
Likes: 0
Received 2 Likes on 2 Posts
Definitely something going on if it's doing that man, seems like the same problem Lee is having over at the 7 forum.
RedDream is offline
Old 08-04-2017, 04:14 AM
  #373
Registered

Join Date: Jul 2017
Posts: 45
Received 2 Likes on 2 Posts
Bro - you need a massive pat on the back! Great work, I'm impressed.

P.S. I love the manifold and I bet it looks gangsta as when it's red hot!
ogwazza is offline
Old 07-18-2018, 12:35 PM
  #374
Registered
Thread Starter

Join Date: Jul 2011
Posts: 451
Likes: 0
Received 5 Likes on 2 Posts
A very overdue UPDATE

WELL I got very busy with finishing the build, renovating the house, selling the house, moving to Thailand and trying to enjoy the beast before leaving!! That was 14months ago!!

ill post some pics here. Still got the car in AUS, but currently trying to sell her as I recently was scammed out of $200k + grrrr. Some People are just greedy fks

anyway.

I threw that turbo manifold in the bin and built a very interesring high flow straight pipe design. I'll try find the pics but it works a treat!!

I also upgraded that turbo to 475sx3. Rerouted the WG dump to the tarmac, SOUNDS AWESOME, when I open her up to blast someone wanting a run hehe.

I got experimental with intercooling and plumbed the Lpg via the barrel cooler before entering the converters which works an absolute treat. Ditched the intercooler ewp and reverted that beautiful Setrab radiator back to oil cooling duty. Ditched one of the corner coolers to leave one corner and the Setrab. Oil temps are just lovely now hehe
i had a lot of probs finding the right plugs and suitable heat range plus still had issues locking in the timing to the ecu correctly. Had some stupid glitches going on in software too, during tuning.
Still never made it to dyno tuning, mainly coz needed that money for the Thai move

fuel costs, WELL, if driven sedately, 100km was costing me EXACTLY the same as Rene did. Of course, who drives sedately with a 20b rx8!!! So yeh thirsty AF when stomping on her.

Ill add pics below. And vid links later on





SiNfidelity is offline
Old 07-18-2018, 12:41 PM
  #375
Registered
Thread Starter

Join Date: Jul 2011
Posts: 451
Likes: 0
Received 5 Likes on 2 Posts
Pics


Lpg plumbed into barrel, then out to gas converters




SiNfidelity is offline
The following 4 users liked this post by SiNfidelity:
200.mph (07-18-2018), Brettus (07-18-2018), StealthTL (07-18-2018), strokercharged95gt (07-18-2018)
