Havent watched this thread since install, so forgive me if this has been addressed. Goodbox installed for 2-3 weeks, Occasionally when I start the car abs and traction control lights stay on while driving. Is this a common occurrence? thanks
#253
What I do know is that when you disconnect the battery, the DSC OFF and traction control lights will stay on because you have to re-initialize the traction control system by turning the wheel lock-to-lock, then restarting the car. Maybe you caused a short somewhere while wiring? Make sure no wires are exposed.
Or maybe your battery is dying?
#255
No luck
Mine doesn't work.
Triple checked all connections, color by color, from harness to harness with multimeter, all good, but the LCD acts like there is nothing connected with stock look. Pressing SEL button on the GoodBox is suppose to turn it on, does nothing. The red LED inside blinks slowly. Disconnecting the GoodBox harness and LCD goes in "slot machine" effect.
BTW, the brown wire on the head unit harness is somehow confusing for me. There is 3 wires - one more like orange, one more like light brown (using this one) and one more like yellowish.
Looking to verify signal from the harness diagram on that one.
Pieter, waiting for your input.
Triple checked all connections, color by color, from harness to harness with multimeter, all good, but the LCD acts like there is nothing connected with stock look. Pressing SEL button on the GoodBox is suppose to turn it on, does nothing. The red LED inside blinks slowly. Disconnecting the GoodBox harness and LCD goes in "slot machine" effect.
BTW, the brown wire on the head unit harness is somehow confusing for me. There is 3 wires - one more like orange, one more like light brown (using this one) and one more like yellowish.
Looking to verify signal from the harness diagram on that one.
Pieter, waiting for your input.
#257
Mine doesn't work.
Triple checked all connections, color by color, from harness to harness with multimeter, all good, but the LCD acts like there is nothing connected with stock look. Pressing SEL button on the GoodBox is suppose to turn it on, does nothing. The red LED inside blinks slowly. Disconnecting the GoodBox harness and LCD goes in "slot machine" effect.
BTW, the brown wire on the head unit harness is somehow confusing for me. There is 3 wires - one more like orange, one more like light brown (using this one) and one more like yellowish.
Looking to verify signal from the harness diagram on that one.
Pieter, waiting for your input.
Triple checked all connections, color by color, from harness to harness with multimeter, all good, but the LCD acts like there is nothing connected with stock look. Pressing SEL button on the GoodBox is suppose to turn it on, does nothing. The red LED inside blinks slowly. Disconnecting the GoodBox harness and LCD goes in "slot machine" effect.
BTW, the brown wire on the head unit harness is somehow confusing for me. There is 3 wires - one more like orange, one more like light brown (using this one) and one more like yellowish.
Looking to verify signal from the harness diagram on that one.
Pieter, waiting for your input.
Sounds like you picked the right color, but if you send me a picture of your connections, I let you know for sure.
Last edited by pieter3d; 08-05-2010 at 11:21 AM.
#258
Registered
iTrader: (2)
Slot Machine Effect
I'm getting more convinced that this is coming from a low-voltage condition. Last night I was messing with the box for about 3 hours (on the phone with Pieter) exploring some firmware options. My car has an Odyssey 925MJT battery which, while not tiny, has about 1/2 the stock battery capacity. The car was not started, interior lights were on, and for about half that time, the ignition was on as well. About 2.5 hours into this, I started getting the slot machine on the head unit display. As I continued, this effect quickly got worse. A check of the battery voltage gave 11.79v. After 5 minutes of charging at 2A (I'd forgotten to switch the charger off its trickle charge mode), the problem went away.
Last edited by HiFlite999; 08-05-2010 at 12:12 PM.
#259
The red blinking light means that the GOODbox is not seeing the car's ECU. This will happen if you hooked up the blue/white or green/black wires near the TPMS module incorrectly.
Sounds like you picked the right color, but if you send me a picture of your connections, I let you know for sure.
Sounds like you picked the right color, but if you send me a picture of your connections, I let you know for sure.
Just a small glitch - now and then for a split of a second the GoodBox is like loosing the CAN signal (LCD goes to stock). It might be low battery like HiFlite999 suspects. Will keep an eye on it.
Thanks, Pieter.
#260
OK. That was helpful. Rechecked the CAN +/- connections and it's working now.
Just a small glitch - now and then for a split of a second the GoodBox is like loosing the CAN signal (LCD goes to stock). It might be low battery like HiFlite999 suspects. Will keep an eye on it.
Thanks, Pieter.
Just a small glitch - now and then for a split of a second the GoodBox is like loosing the CAN signal (LCD goes to stock). It might be low battery like HiFlite999 suspects. Will keep an eye on it.
Thanks, Pieter.
#262
I already experienced the famous "slot machine" effect. Reconnecting the GoodBox connector fixed it.

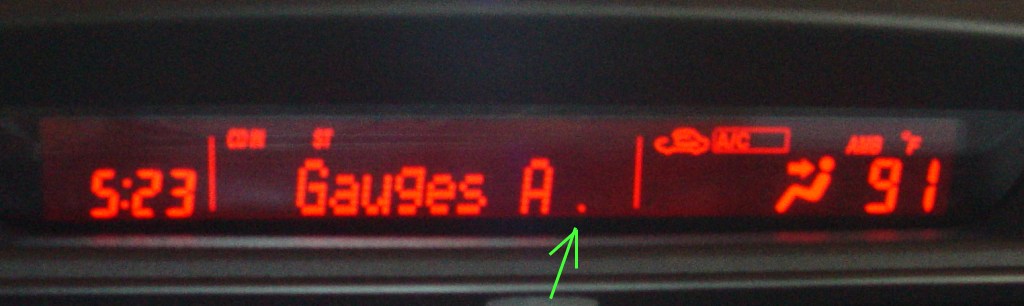

There is a single dot present on every single GB screen except the startup one with the custom text. It's out of place, even can be mistaken for a decimal point on some gauges, ie IAT107 looks like IAT10.7
I think it is not suppose to be there:
#263
Actually after some driving this glitch is gone. All good.
I already experienced the "slot machine" effect. Reconnecting the GoodBox connector fixed it.
There is a single dot present on every single GB screen except the startup one with the custom text. It's out of place, even can be mistaken for a decimal point on some gauges, ie IAT107 looks like IAT10.7
I think it is not suppose to be there:
I already experienced the "slot machine" effect. Reconnecting the GoodBox connector fixed it.
There is a single dot present on every single GB screen except the startup one with the custom text. It's out of place, even can be mistaken for a decimal point on some gauges, ie IAT107 looks like IAT10.7
I think it is not suppose to be there:
#265
If you do that, be sure to use a small piece of wire to short the light and dark green wires in the harness connector to make the display behave like stock.
I'll have to experiment on my car to find out what number the display uses to address that particular segment, the dot. It already turns off the minute and second quotes if you are playing a cd.
Last edited by pieter3d; 08-05-2010 at 05:09 PM.
#266
OK. Let me know when you fix it.
BTW I have this programmer:
http://www.mcumall.com/comersus/stor...idProduct=4282
If it supports GB flashing I'll enjoy playing whit it.
BTW I have this programmer:
http://www.mcumall.com/comersus/stor...idProduct=4282
If it supports GB flashing I'll enjoy playing whit it.
#267
OK. Let me know when you fix it.
BTW I have this programmer:
http://www.mcumall.com/comersus/stor...idProduct=4282
If it supports GB flashing I'll enjoy playing whit it.
BTW I have this programmer:
http://www.mcumall.com/comersus/stor...idProduct=4282
If it supports GB flashing I'll enjoy playing whit it.
I should be able to fix this tonight.
#270
100% baller (finally!)
iTrader: (7)
I'm getting more convinced that this is coming from a low-voltage condition. Last night I was messing with the box for about 3 hours (on the phone with Pieter) exploring some firmware options. My car has an Odyssey 925MJT battery which, while not tiny, has about 1/2 the stock battery capacity. The car was not started, interior lights were on, and for about half that time, the ignition was on as well. About 2.5 hours into this, I started getting the slot machine on the head unit display. As I continued, this effect quickly got worse. A check of the battery voltage gave 11.79v. After 5 minutes of charging at 2A (I'd forgotten to switch the charger off its trickle charge mode), the problem went away.
#271
Registered
iTrader: (2)
http://www.radioshack.com/product/in...ductId=2062600
#272
100% baller (finally!)
iTrader: (7)
I'll try one of these to hold the input voltage to the gbox at +12v when I get some time:
http://www.radioshack.com/product/in...ductId=2062600
http://www.radioshack.com/product/in...ductId=2062600
