Possible New Renesis Engine Failure Theory?
06-29-2011, 07:04 PM
#528
Anyways ... I was just talking to Brettus the other day about the vacuum hook ups on my turbo and the yellow marked vacuum hose is the one that is the jets not the omp.
Just say'n
06-29-2011, 07:08 PM
#529
I am not doubting the seafom making it through the injectors, I am doubting it doing anything and fixing a stuck injector. Also as 9k mentioned the liquid would take the path of least resistance.
The only solution is to buy new ones or used ones that aren't failed. You can attempt to clean them but that will require soaking them in parts cleaner for an hour or so then spraying them with carb cleaner.
The only solution is to buy new ones or used ones that aren't failed. You can attempt to clean them but that will require soaking them in parts cleaner for an hour or so then spraying them with carb cleaner.
06-29-2011, 07:36 PM
#530
SARX Legend
Thread Starter
iTrader: (46)
The color is wrong on his but I think he has the right line. I will comment more once I can get these damn videos to upload from my phone, it's pissing me off. I have some confirmation. Some 1.3 will like, some he may not.
06-29-2011, 08:36 PM
#531
SARX Legend
Thread Starter
iTrader: (46)

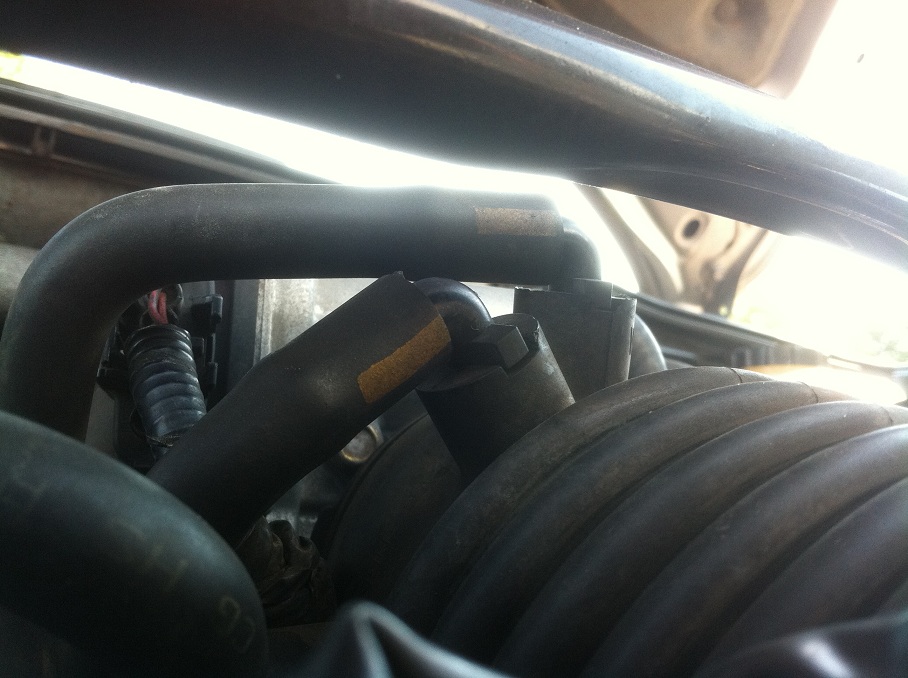

Okay, the marking on my OMP hose is white. The jet line is yellow and I followed it to assure it was the jet line and I didn't mix them up since it has been apart a few times.
Anyway, despite what I said previously, have read, etc. There is Vacuum at the OMP line
So you guys are right about that.
Sorry for the shitty video but I tried
Pay no attention to the knocking noise from my loose SSV actuator
http://www.youtube.com/watch?v=3UoidZWuNH4
Also, I had an old oil injector that I tested bad and my buddy (Mazda dealer tech and RX8 owner) tested bad. I put some gas in reservoir and hooked up a vacuum line and it ran right thru the injector, out the bottom and out of the pin holes in the sides that the oil feeds into from the OMP lines. Now if this injector is bad then I am not sure if that means 1.3 has bad injectors or not. Possibly one or two are bad and the seafoam is flowing thru those into the engine?
http://www.youtube.com/watch?v=665tB2dr3dg
Anyway, despite what I said previously, have read, etc. There is Vacuum at the OMP line
So you guys are right about that.Sorry for the shitty video but I tried
Pay no attention to the knocking noise from my loose SSV actuator http://www.youtube.com/watch?v=3UoidZWuNH4
Also, I had an old oil injector that I tested bad and my buddy (Mazda dealer tech and RX8 owner) tested bad. I put some gas in reservoir and hooked up a vacuum line and it ran right thru the injector, out the bottom and out of the pin holes in the sides that the oil feeds into from the OMP lines. Now if this injector is bad then I am not sure if that means 1.3 has bad injectors or not. Possibly one or two are bad and the seafoam is flowing thru those into the engine?
http://www.youtube.com/watch?v=665tB2dr3dg
Last edited by 9krpmrx8; 06-29-2011 at 08:39 PM.
06-29-2011, 09:38 PM
#532
I'll check mine out tomorrow and see if I can trace them.
I have poured seafoam in the other line once. I had actually posted about it weeks ago in the "right thread" so I still think it did something regardless of which one I videoed.. I think.. I'll try to get a video of the other line tomorrow.
I'm going to have to see if I can find a way to test the oil injectors while still in the car.
-Shawn
I have poured seafoam in the other line once. I had actually posted about it weeks ago in the "right thread" so I still think it did something regardless of which one I videoed.. I think.. I'll try to get a video of the other line tomorrow.
I'm going to have to see if I can find a way to test the oil injectors while still in the car.
-Shawn
06-29-2011, 09:57 PM
#533
SARX Legend
Thread Starter
iTrader: (46)
It will be hard to get a vacuum line on each injector with the UIM on. Also, when I checked mine, they would test okay one second and not the next so you have to test them several times (see pics early on in this thread).
06-30-2011, 08:18 AM
#534
9k seafoam is suppose to flow trough the nozzle if introduced trough port #1..there is nothing stopping it..the check valve#2 that is there is one way but in the opposite direction. it is designed to let the air in and prevent the oil coming out.. why is this so hard to understand? why would mazda attach the air hose to port #1 and not let anything to go trough it?
I do have one question: how does vacuum on OMP line changes as revs go up vs idle?
shadycrew31
if you want to soak the nozzle in the seafoam let the car suck in half of the can and shut it of..leave it for couple of hours or overnight and it will dissolve deposits..run some more when the car is started and it will accomplish same thing
I do have one question: how does vacuum on OMP line changes as revs go up vs idle?
shadycrew31
if you want to soak the nozzle in the seafoam let the car suck in half of the can and shut it of..leave it for couple of hours or overnight and it will dissolve deposits..run some more when the car is started and it will accomplish same thing
06-30-2011, 09:05 AM
#535
the way I understand it it
oil injector nozzle tip is under engine vacuum
Intake tube line is there to balance that vaccum at the tip of the OI so the OMP doesnt have to work with an unbalanced pressure difference.
If the intake line was not there then the constant engine vacuum at the tip of the oi would pull oil in instead of the pump pushing it in. This could cause air bubbles to form in the lines since the oil supply is volumne regulated by the omp. It would really mess up the omp regulation .
But this is good news as now you can just take the individual OI lines off and put a small amount of Seafoam or whatever in to clean the suckers?
Also, I picked up that this could be a NEW source for a possible vacuum leak. I may end up zip tying the OI lines.
Good info all.
9K yall crack me up!
oil injector nozzle tip is under engine vacuum
Intake tube line is there to balance that vaccum at the tip of the OI so the OMP doesnt have to work with an unbalanced pressure difference.
If the intake line was not there then the constant engine vacuum at the tip of the oi would pull oil in instead of the pump pushing it in. This could cause air bubbles to form in the lines since the oil supply is volumne regulated by the omp. It would really mess up the omp regulation .
But this is good news as now you can just take the individual OI lines off and put a small amount of Seafoam or whatever in to clean the suckers?
Also, I picked up that this could be a NEW source for a possible vacuum leak. I may end up zip tying the OI lines.
Good info all.
9K yall crack me up!
Last edited by olddragger; 06-30-2011 at 09:07 AM.
06-30-2011, 09:51 AM
#536
SARX Legend
Thread Starter
iTrader: (46)
9k seafoam is suppose to flow trough the nozzle if introduced trough port #1..there is nothing stopping it..the check valve#2 that is there is one way but in the opposite direction. it is designed to let the air in and prevent the oil coming out.. why is this so hard to understand? why would mazda attach the air hose to port #1 and not let anything to go trough it?
I do have one question: how does vacuum on OMP line changes as revs go up vs idle?
shadycrew31
if you want to soak the nozzle in the seafoam let the car suck in half of the can and shut it of..leave it for couple of hours or overnight and it will dissolve deposits..run some more when the car is started and it will accomplish same thing
I do have one question: how does vacuum on OMP line changes as revs go up vs idle?
shadycrew31
if you want to soak the nozzle in the seafoam let the car suck in half of the can and shut it of..leave it for couple of hours or overnight and it will dissolve deposits..run some more when the car is started and it will accomplish same thing
Also, if you sucked the seafoam in and shut it off, it would sit and soak in the injectors, with the engine off, whatever seafoam is in the injector would just leak down into the combustion chamber due to gravity.
While I think it has been proven there is vacuum at the injector, I still don't think it would be distributed to the injectors evenly or really clean them all that well if it is the check valve itself that is getting clogged. I wish I had all of my old oil injectors to test. The one I tested was bad but it was not one from the rear housing and those were gunked up really bad.
I am going to try and suck gas thru the injector, that would tell us if the check valve is bad right?
the way I understand it it
oil injector nozzle tip is under engine vacuum
Intake tube line is there to balance that vaccum at the tip of the OI so the OMP doesnt have to work with an unbalanced pressure difference.
If the intake line was not there then the constant engine vacuum at the tip of the oi would pull oil in instead of the pump pushing it in. This could cause air bubbles to form in the lines since the oil supply is volumne regulated by the omp. It would really mess up the omp regulation .
But this is good news as now you can just take the individual OI lines off and put a small amount of Seafoam or whatever in to clean the suckers?
Also, I picked up that this could be a NEW source for a possible vacuum leak. I may end up zip tying the OI lines.
Good info all.
9K yall crack me up!
oil injector nozzle tip is under engine vacuum
Intake tube line is there to balance that vaccum at the tip of the OI so the OMP doesnt have to work with an unbalanced pressure difference.
If the intake line was not there then the constant engine vacuum at the tip of the oi would pull oil in instead of the pump pushing it in. This could cause air bubbles to form in the lines since the oil supply is volumne regulated by the omp. It would really mess up the omp regulation .
But this is good news as now you can just take the individual OI lines off and put a small amount of Seafoam or whatever in to clean the suckers?
Also, I picked up that this could be a NEW source for a possible vacuum leak. I may end up zip tying the OI lines.
Good info all.
9K yall crack me up!
That makes sense OD. So the TSB issue is basically that, with no regulation, the injector just pulls oil thru resulting in excessive oil consumption.
06-30-2011, 04:56 PM
#540
Most likely, it's the 3rd engine according to Mazda. I also suspect new omp lines cause mine just look/feel to new. They don't feel like old brittle plastic(Like my FCs), they move very easily, and I can see perfectly clear into them.
Way of topic but... Fing Mazda put 3 motors into this car and kept the stupid weak starter in it.
Ok I feel better now.
Also funny, every time the car was sold it got a new engine. I matched it on the carfax report to the mileage Mazda told me.
-Shawn
Way of topic but... Fing Mazda put 3 motors into this car and kept the stupid weak starter in it.
Ok I feel better now.
Also funny, every time the car was sold it got a new engine. I matched it on the carfax report to the mileage Mazda told me.
-Shawn
06-30-2011, 05:08 PM
#541
SARX Legend
Thread Starter
iTrader: (46)
Most likely, it's the 3rd engine according to Mazda. I also suspect new omp lines cause mine just look/feel to new. They don't feel like old brittle plastic(Like my FCs), they move very easily, and I can see perfectly clear into them.
Way of topic but... Fing Mazda put 3 motors into this car and kept the stupid weak starter in it.
Ok I feel better now.
Also funny, every time the car was sold it got a new engine. I matched it on the carfax report to the mileage Mazda told me.
-Shawn
Way of topic but... Fing Mazda put 3 motors into this car and kept the stupid weak starter in it.
Ok I feel better now.
Also funny, every time the car was sold it got a new engine. I matched it on the carfax report to the mileage Mazda told me.
-Shawn
Yeah, I know quite a few who just dumped the 8 when the engine failed.
07-01-2011, 07:54 AM
#545
Yes you can use the old gaskets.
I would recommend you don't remove the intake however ...
It does not sound like you are mechanically inclined enough or have the skill sets to tackle a job like this.
07-01-2011, 01:56 PM
#546
Registered
Join Date: Jul 2010
Location: Great Britain
Posts: 81
Likes: 0
Received 0 Likes
on
0 Posts
Been trying to get my head around how the oil injectors work. I was wrong with the previous statement about if you can feel vacuum through them they have failed.
Am I on the right lines with:
Under light load air and a little oil is drawn in through the oil injectors.
Under heavy load a slight vacuum applied to the point on the oil injector closes the check valve and draws only oil in, no air - so increasing oil usage.
I checked mine today. On a 4 port if you have many wrists and knuckles you can reach and remove the vacuum lines from each injector without disassembling anything.
I put a hose on each and found I can blow through them - this does not force the oil back down the OMP lines (lines are transparent) so it must be passing into the engine.
If I apply vacuum to the points, the check valve closes and it holds a vacuum for quite a while.
Oddly, two of them whistle when you blow through them!
Am I on the right lines with:
Under light load air and a little oil is drawn in through the oil injectors.
Under heavy load a slight vacuum applied to the point on the oil injector closes the check valve and draws only oil in, no air - so increasing oil usage.
I checked mine today. On a 4 port if you have many wrists and knuckles you can reach and remove the vacuum lines from each injector without disassembling anything.
I put a hose on each and found I can blow through them - this does not force the oil back down the OMP lines (lines are transparent) so it must be passing into the engine.
If I apply vacuum to the points, the check valve closes and it holds a vacuum for quite a while.
Oddly, two of them whistle when you blow through them!
07-13-2011, 12:34 AM
#548
SARX Legend
Thread Starter
iTrader: (46)
Well, confirmed tonight via coolant system pressure test, coolant leak into #2 rotor housing. 30,000 miles on a Mazda reman. I'll know once it's apart but I'm chalking this one up to a bad rebuild and/or out of spec parts being reused during the rebuild process.
I'm actually excited to actually be able to tear this one apart since the rebuild will be on my dime.
I'm actually excited to actually be able to tear this one apart since the rebuild will be on my dime.
07-13-2011, 01:37 AM
#549
Super Moderator
Lets us know the results mate...start a new thread perhaps??
07-13-2011, 03:14 AM
#550
1) omp pure oil flow choosed by ecu
2) quite big vacuum applied by engine directly in the 4 oil injectors in order to suck air with oil (engine sucks like a bitch, air intake cannot suck more than engine)
3) little "counter-vacuum" applied by air intake based on throttle more or less opened, which limits the amount of air sucked by engine vacuum (and thus makes more oil flow when throttle opens)
Am I right?
