Possible MOP oil line cleaning method?

Notices
Series I Tech Garage The place to discuss anything technical about the RX-8 that doesn't fit into any of the categories below.

Possible MOP oil line cleaning method?

Old 11-10-2011, 12:23 PM
  #1
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
Possible MOP oil line cleaning method?

Hello everyone,
So for the past couple of months I've been trying to learn as much as I can on the 8's omp system. Specifically at 9k and Nadrealista's threads talking about the problems with it clogging.

I have thought about removing the UIM to clean (or replace) them properly. But I have also read about people having issues with breaking studs/bolts when removing the UIM. I'm not very interested in dealing with that situation, although I'm confidant enough in myself to deal with it if it came to that.

My warranty is over, so not worried about anything related. The car runs fine, though my home compression test suggest the life of my engine is coming to an end whether I like it or not.

So I have been trying some "out of the box" solutions to fix my low oil consumption. I have seen some sucess as my oil consumption has increased to a more healthy level. But I also noticed 1 of my oil lines does not seem to be flowing. 3 of the lines change colors (amber to brown) depending on the condition of my current oil. While one stays dark brown. I suspect this line is clogged.

So like I said before, not very interested in removing the UIM just yet. I wanted to swing this idea by everyone to see what they think...

I plan on Saturday to drive the car down to 1/4 fuel mark, add an additional 6oz of 2-stroke oil. Disable the omp system (unplug it) then remove the lower connections for the oil lines. Block off the omp vacuum line. I will then drop all the lines into a cup of cleaner (probably seafoam, though open to suggestions) then start the engine.

The idea is the vacuum from the engine will suck the cleaner through the lines/oil injectors and hopefully clean them out/unclog them.

Your thoughts?

-Shawn
1.3_LittersOfFurry is offline
Old 11-12-2011, 01:22 PM
  #2
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts

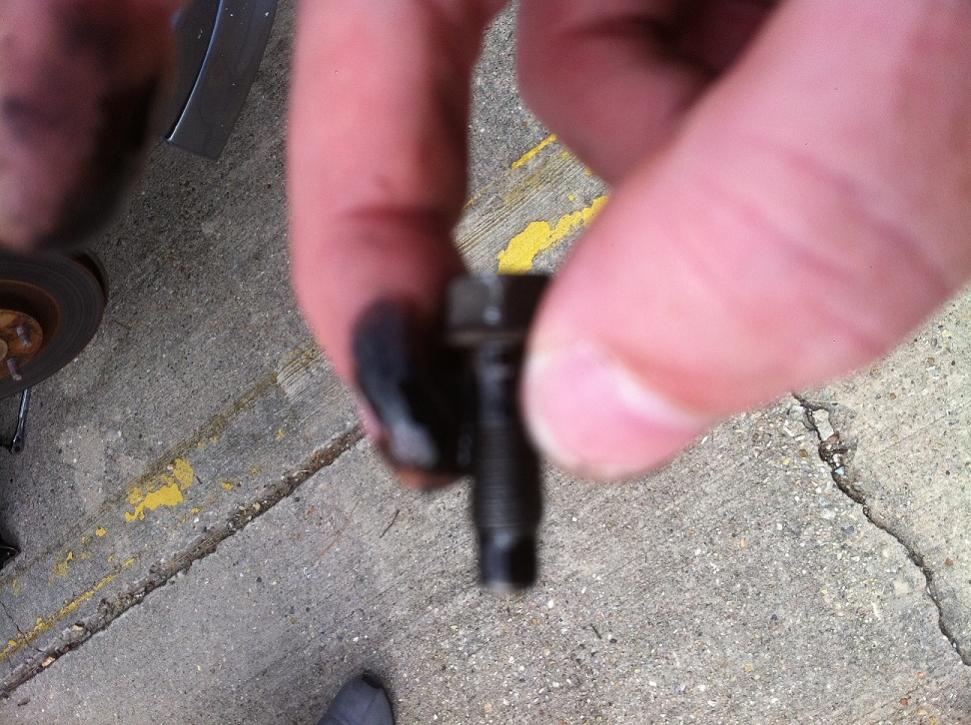

For anyone wondering, this was a success. I had to do it by removing the passenger tire. Turns out 3 of the lines looked clogged. One was defiantly clogged, and One seem to be just fine. Below is a pic of the really clogged lines bolt when I took it out. After that my hands were to dirty to be messing with a cam. After cleaning each line out I had a friend do 3k revs and watched the clean oil refill the lines from under the car, was pretty neat to see.


-Shawn
Attached Thumbnails Possible MOP oil line cleaning method?-img_1911.jpg
1.3_LittersOfFurry is offline
Old 11-12-2011, 01:25 PM
  #3
Registered
iTrader: (2)

Easy_E1's Avatar

Join Date: Sep 2005
Location: Bellevue WA
Posts: 7,675
Thanks: 0
Thanked 4 Times in 2 Posts
Should put this under routine maintenance. Nice work.
Easy_E1 is offline
Old 11-12-2011, 07:42 PM
  #4
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Thanks: 0
Thanked 5 Times in 5 Posts
Subscribed just to keep this handy.


You should do a more detailed DIY.

I got copies of the diagrams and oil nozzle pdf's if you need them.


Hell, maybe I'll do it and have someone else take the pics while I do it.

Last edited by Mazurfer; 11-12-2011 at 07:46 PM.
Mazurfer is offline
Old 11-12-2011, 08:04 PM
  #5
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
Well I plan to do it again Tuesday, mainly to make sure nothing re-clogs, I can see black stuff in the lines here and there, I assume its what was left in the pump coming out. Gonna try to give it a good hard drive tomorrow morning as well. I'll try my best to make DIY steps Tuesday.

Still open to suggestions on a different (stronger) cleaner other than seafoam. That black thick goop on my finger is suppose to be oil.
1.3_LittersOfFurry is offline
Old 11-12-2011, 11:25 PM
  #6
Rockie Mountain Newbie

Join Date: Mar 2011
Location: Denver, CO
Posts: 1,546
Thanks: 0
Thanked 9 Times in 9 Posts
Either Berryman's B-12 Chemtool or Chevron Techron Fuel System Cleaner should be better than Seafoam for what you want to do.

BC.
Bladecutter is offline
Old 11-12-2011, 11:47 PM
  #7
Registered
iTrader: (5)

Join Date: Dec 2010
Location: Nashville, TN
Posts: 165
Thanks: 0
Thanked 0 Times in 0 Posts
Subscribed! I need to do something like this...can you post pics when you do it Tuesday and also show what you used to block off the lines?
flametail is offline
Old 11-13-2011, 12:06 AM
  #8
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,659
Thanked 83 Times in 80 Posts
Best $350 would be an AP used and a map to up OMP and fan temps...worth every penny
dannobre is online now
Old 11-13-2011, 05:38 AM
  #9
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
^ Not necessarily, those are the only two functions I would want out of a AP.

I got the cooling fan mod for $120, and I have been increasing my omp oil flow rates by restricting the vacuum flow for the oil injectors, free. Much cheaper than buying a AP + tune.
1.3_LittersOfFurry is offline
Old 11-13-2011, 05:42 AM
  #10
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by flametail View Post
Subscribed! I need to do something like this...can you post pics when you do it Tuesday and also show what you used to block off the lines?
I'll try my best Tuesday, I have a really old digi cam that I don't mind getting dirty, just need to find it. You can block the vacuum line with just about anything really.
1.3_LittersOfFurry is offline
Old 11-13-2011, 09:18 AM
  #11
wcs
no agenda
iTrader: (2)

wcs's Avatar

Join Date: Feb 2005
Location: Ontario
Posts: 5,057
Thanked 9 Times in 8 Posts
sub'd
Nice work, very interesting.

Might have to add this to my Preventive Maintenance routine.

I'm guessing that if an injector or line was actually clogged you would still be stuck removing the UIM and the Injectors/line as there would be no vacuum to draw the seafoam?

Just throwing this out there, I've not but any thought in to it (and I'm hung over right now) ... could you pressurize the OMP line with a bicycle pump or air compressor (very low psi) to force a clogged injector to open and blow out the blockage?
Or even the reverse create a vacuum from the OMP side to draw out the blockage?

I've read somewhere on how this injectors work (9k's thread prolly) but can't remember ATM.

Last edited by wcs; 11-13-2011 at 09:21 AM.
wcs is offline
Old 11-13-2011, 09:50 AM
  #12
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
I used the vacuum of the engine, to suck the clogged line clean, by blocking the omp vacuum line and revving the engine to about 3k and letting it drop quickly back to idle. This is also how I sped up the refilling process of the lines. Sorry I'll explain better once I'm home due to people harassing me on my break at work....
1.3_LittersOfFurry is offline
Old 11-13-2011, 10:01 AM
  #13
wcs
no agenda
iTrader: (2)

wcs's Avatar

Join Date: Feb 2005
Location: Ontario
Posts: 5,057
Thanked 9 Times in 8 Posts
Mmmm Ya I understood that the engine was the vacuum source. ... err

I'm guess what I was trying to ponder was that if the vacuum of the engine was not enough to move the clog or the clog was significant enough to not allow the vacuum created by the motor to draw the seafoam from the container;
What might be other options besides removing the UIM and Injectors.

It's likely a bad idea anyway, if the vacuum from the motor isn't strong enough you should likely be taking it all apart and doing it correctly.
Not hooking up a air compressor and forcing 20 psi through the OMP lines lol ...

Haha not too mention the lean condition you would likely create if the motor was running.

Forget I said anything, (must stop posting when hungover)
wcs is offline
Old 11-13-2011, 11:41 AM
  #14
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
Yeah your right, if the engine vacuum isn't enough to suck the gunk out it might be best to replace the lines. I have thought about using a can of throttle body cleaner, try to put the little straw into the line and blast it out, luckily for me after about 30sec of revving the line began to flow.

I also though about leaving the engine off with one of the rotors chambers in the beginning of making compression (sealed off from the intake ports) and applying vacuum with a mightyvac to the omp line to try to suck it out. I doubt it would work though since the other rotor wouldn't be in the same position.
1.3_LittersOfFurry is offline
Old 11-13-2011, 01:35 PM
  #15
Registered

Join Date: Feb 2007
Posts: 58
Thanks: 0
Thanked 0 Times in 0 Posts
hmmm .... is it possible to use the zoom zoom cleaner instead of the seafoam ?
We here in austria has no seafoam available ....

br
EdFred
edfred is offline
Old 11-13-2011, 04:50 PM
  #16
wcs
no agenda
iTrader: (2)

wcs's Avatar

Join Date: Feb 2005
Location: Ontario
Posts: 5,057
Thanked 9 Times in 8 Posts
Originally Posted by edfred View Post
hmmm .... is it possible to use the zoom zoom cleaner instead of the seafoam ?
We here in austria has no seafoam available ....

br
EdFred
Yup should be no problem.

Actually I think its the exact same stuff

(I think)
wcs is offline
Old 11-14-2011, 04:38 PM
  #17
Registered

Nadrealista's Avatar

Join Date: Feb 2011
Location: Here
Posts: 475
Thanks: 0
Thanked 0 Times in 0 Posts
nice work. we need to make new thread that combines the two procedures..my method cleans the OMP nozzles and yours cleans the oil lines. I think step one is to clean the nozzles first to ensure you have good vacuum pull on the omp lines.

nozzles clog first and slow/no flow trough the omp lines gradually clogs the lines as well.

you might also want to consider using ATF fluid or MMO to clean the OMP lines out?

So if you disconnect the power to the omp pump it will not let any oil out with oil lines disconnected?
Nadrealista is offline
Old 11-14-2011, 05:48 PM
  #18
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,738
Thanked 328 Times in 267 Posts
Those bolts are sometimes very tight and the lines can be very brittle depending on the age of the car so if you guys are going to do this, be very careful because if you break one, you will be pulling your UIM anyway. I broke a bolt removing my UIM but I think it is a fluke due to over tightening by the dealer idiots. Removing the UIM should be not problem if you spray the bolts with penetrating liquid first.

Also, be careful which harsh cleaners you decide to use as they may damage the lines. But yeah, when I pulled my lines they were clogged and a couple of the injectors failed the vacuum test.
9krpmrx8 is offline
Old 11-14-2011, 11:22 PM
  #19
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by 9krpmrx8 View Post
Those bolts are sometimes very tight and the lines can be very brittle depending on the age of the car so if you guys are going to do this, be very careful because if you break one, you will be pulling your UIM anyway. I broke a bolt removing my UIM but I think it is a fluke due to over tightening by the dealer idiots. Removing the UIM should be not problem if you spray the bolts with penetrating liquid first.

Also, be careful which harsh cleaners you decide to use as they may damage the lines. But yeah, when I pulled my lines they were clogged and a couple of the injectors failed the vacuum test.

About time you chime in. lol. You are right about the lines, I broke one on my FC, I used a 1/4inch vacuum line to repair it. I was also about 17 at the time so I never replaced the line I traded in the car a few months later.



So anyway... I couldn't wait till tomorrow (rain) and got some friends over today to do this.


Here is a better explanation of how I did this...

Things needed:
1/4 ratchet
10mm socket (recommend 6-point)
Cleaner of you choice.
2-stroke oil of your choice
Jack stand
A buddy or two
Something to block the omp vacuum line. (I used something out of a mightyvac kit)


---------

The day before you do this, drive the car down to 1/4 mark, add some 2-stroke oil to your gas. I added 6oz, But I already pre-mix about 1/2oz per gallon. This will give you some protection while the car runs with the lines undone.

Allow the car to fully cool, you will be using flammables near the exhaust manifold. I waited till the next day.

Pop the hood, open the trunk, and begin taking off your passenger tire. Lift the car high enough that your upper body fits under it, secure with jack stand.

Block off the omp vacuum line.



Get under the car by the passenger wheel well, move the little rubber flap out the way. Get familiar with the locations of the lines, there will be many times you have to "feel" your way around because the frame will be in your line of sight.




You can now unplug the omp if you so chose. I didn't the second time and only a little oil dribbled out.
Choose a line and unbolt it. Make sure to get the washer.






I strongly recommend doing one line at a time. Unbolting all 4 at once will cause the back metal gasket to fall out, its kinda a pain in the *** to put back in, lesson learned first go round.





Ok now you have a line off, time to chose how to clean it.
First time I used a small 6-8oz water bottle filled with seafoam, I dropped one line at a time into the bottle and had a friend rev the engine to 3k back to idle repeatedly. (Doing this helps increase vacuum temporally) After about 30secs, the engine tone changed, and smoke started pouring out the exhaust. Line changed color. Some lines this happened in under 5-10secs.

The second time, I didn't realize I had forgot to buy more cleaner till everything was all set up. So I gave the throttle body cleaner a try. I put the straw into the "O-ring" opening and closed around it with my fingers. Started the car and gave few short little blasts while reving. After a couple of shots it went threw.

Sorry, I could not take pics of that part because I needed both hands. Space is very limited.


Get back on top and see if its working. (Middle line)




I also shot a little throttle body cleaner into the bolt holes on the omp...

Do the other 3 lines.








You may notice while doing the other lines that the ones you did are filling back up with oil. This should bring joy to you.


Change setting to 1080p, full screen, you have to pay close attention to see it happening.



Please note, depending on the lighting the lines can appear darker than they are. Best to have the light behind the lines looking at you.

After you are done I would leave the omp vacuum line blocked off for a day or two and premix heavily just to be safe. Make sure if you do this to block the intake line as well.


I think that's everything...

-Shawn

Last edited by 1.3_LittersOfFurry; 11-14-2011 at 11:25 PM.
1.3_LittersOfFurry is offline
Old 11-14-2011, 11:55 PM
  #20
Registered
iTrader: (5)

Join Date: Dec 2010
Location: Nashville, TN
Posts: 165
Thanks: 0
Thanked 0 Times in 0 Posts
If the weather is nice, i'm definitely gonna try this, my oil consumption is almost nil
flametail is offline
Old 11-15-2011, 02:35 AM
  #21
Banned
iTrader: (3)

Join Date: Oct 2003
Location: Under my car
Posts: 16,386
Thanks: 0
Thanked 3 Times in 3 Posts
The OMP lines are under pressure - significantly more pressure than can be created by engine vacuum.
The OMP is a positive-displacement pump, so it will continuously increase pressure as it tries to ram a pre-defined volume of oil through the lines.
If your banjo bolts are truly plugged (not likely), "sucking" them clean wont be any more effective that "blowing" them clean with pressurized oil.

What I always do on a new motor is turn the OMP up to its highest output (or step 60 or so) and watch the oil move through the lines.
There is no more definitive test than that.
MazdaManiac is offline
Old 11-15-2011, 06:57 AM
  #22
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by MazdaManiac View Post
The OMP lines are under pressure - significantly more pressure than can be created by engine vacuum.
The OMP is a positive-displacement pump, so it will continuously increase pressure as it tries to ram a pre-defined volume of oil through the lines.
If your banjo bolts are truly plugged (not likely), "sucking" them clean wont be any more effective that "blowing" them clean with pressurized oil.

What I always do on a new motor is turn the OMP up to its highest output (or step 60 or so) and watch the oil move through the lines.
There is no more definitive test than that.

Understood, but how much pressure can the omp create? I can't imagine those little lines being able to handle to much pressure. The connections on the lines don't seem that strong.

If my lines were not clogged, why was there sludge on 2 of my connection the first time? My oil hasn't looked like that since I bought the car. I change it every 2k miles, The 2nd time I removed them I found fresh clean oil on all of them.

Even if they were not clogged fully, I am happy with the results, now my car is burning oil and I can see clean oil running threw all the lines.

-Shawn
1.3_LittersOfFurry is offline
Old 11-15-2011, 08:31 AM
  #23
Registered

Nadrealista's Avatar

Join Date: Feb 2011
Location: Here
Posts: 475
Thanks: 0
Thanked 0 Times in 0 Posts
Question

Originally Posted by MazdaManiac View Post
The OMP lines are under pressure - significantly more pressure than can be created by engine vacuum.
The OMP is a positive-displacement pump, so it will continuously increase pressure as it tries to ram a pre-defined volume of oil through the lines.
If your banjo bolts are truly plugged (not likely), "sucking" them clean wont be any more effective that "blowing" them clean with pressurized oil.

What I always do on a new motor is turn the OMP up to its highest output (or step 60 or so) and watch the oil move through the lines.
There is no more definitive test than that.
I am confused now..He mentioned that this time he left OMP pluged in. if the oil lines are under the pressure shouldn't he have oil squirting out of the omp port for the removed line?

Shawn how much suction was there on the removed OMP line with engine running?

Last edited by Nadrealista; 03-25-2013 at 09:27 AM.
Nadrealista is offline
Old 11-15-2011, 08:53 AM
  #24
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
Yes Nadrealista, Only a very little amount of oil came out the omp with the line removed, but just because its slow flowing, doesn't mean it can not build pressure.

I would like to know this number though. Hopefully MM will know it.


Blocking off the omp vacuum line defiantly increases the oil rate. In the 200ish miles driven between doing this (with the line capped) I can see the oil level has dropped a very noticeable amount. I'm attempting today to add some type of valve to the omp vacuum line to kind of have some control over it...


-Shawn

-EDIT-

Originally Posted by Nadrealista View Post

Shawn how much suction was there on the removed OMP line with engine running?

Sorry missed that question. It seemed like none at first. But once we started revving the engine we got enough to suck the seamfoam in. I never tested it, but I would say almost none, the lines are very small.

Last edited by 1.3_LittersOfFurry; 11-20-2011 at 09:26 PM.
1.3_LittersOfFurry is offline
Old 11-15-2011, 10:21 AM
  #25
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,738
Thanked 328 Times in 267 Posts
Also remember you are doing this at idle so not much is being pumped at that point. Try unplugging it a 9,000RPM and see what happens,
9krpmrx8 is offline

Thread Tools
Search this Thread
Rate This Thread
Rate This Thread:
You have already rated this thread Rating: Thread Rating: 0 votes,  average.

Quick Reply: Possible MOP oil line cleaning method?


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
