Dyno Results Compilation
09-20-2006, 06:42 AM
#126
Smooth Criminal
His car was still NA, says so right at the top of the post.
Originally Posted by KJ238
OOh... realised i havent posted my dyno sheet...This was way back in the day when my car was still N/A...
09-21-2006, 12:58 PM
#129
Registered
Originally Posted by Brettus

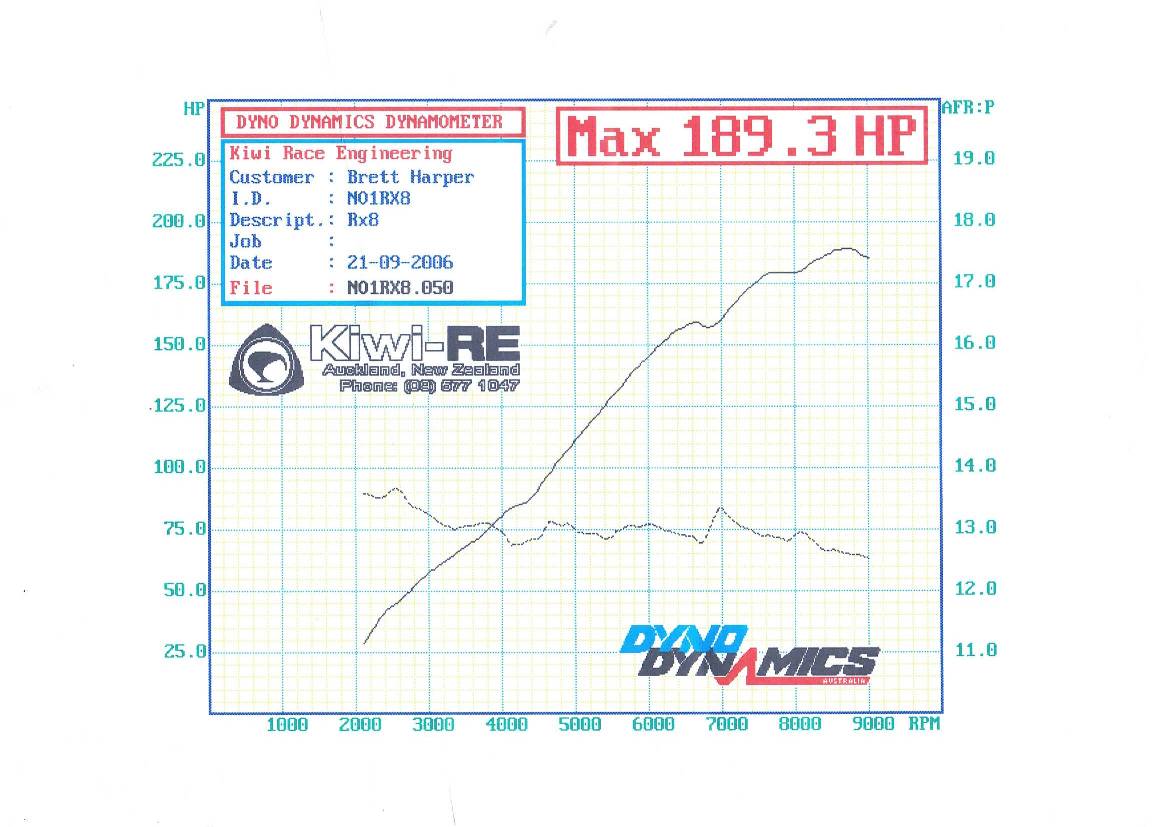

Latest result after todays dynotune -
this was a third gear pull as speed limiter cuts in before redline in 4th.
Think this is Equivalent to over 200 whp on dynojet as used in US so i'm pretty happy with this .
Stock whp was approx. 170
this was a third gear pull as speed limiter cuts in before redline in 4th.
Think this is Equivalent to over 200 whp on dynojet as used in US so i'm pretty happy with this .
Stock whp was approx. 170
Last edited by SilverEIGHT; 09-21-2006 at 01:00 PM.
09-21-2006, 01:09 PM
#130
Listen to Zoom44
Join Date: Aug 2003
Location: Overland Park
Posts: 1,330
Likes: 0
Received 0 Likes
on
0 Posts
05 RX8: 28,22x miles. Shell 91, RP, Green Filter, Disconnected VFAD, Mod Airbox, Pre-recall flash, Updated plugs at 14,7xx miles.
Dynojet: 75.39dgF, 29.36 in-Hg, Humidity 27%, STD 1.03, 4th gear pull
Results: 180.99whp, 137lb-wtq
Notes: Engine is scheduled to be replaced due to failed recall test. 14,7xx miles on engine are unknown of previous owner driving habits.
Video- http://media.putfile.com/Rx8-Dyno
Dynojet: 75.39dgF, 29.36 in-Hg, Humidity 27%, STD 1.03, 4th gear pull
Results: 180.99whp, 137lb-wtq
Notes: Engine is scheduled to be replaced due to failed recall test. 14,7xx miles on engine are unknown of previous owner driving habits.
Video- http://media.putfile.com/Rx8-Dyno
09-21-2006, 04:15 PM
#131
Originally Posted by SilverEIGHT
I'm interested... why a 3rd gear pull? We always shift around 3K till we get into 5th then WOT to rev limiter. Does it have to do with the type of Dyno?
09-21-2006, 04:19 PM
#132
Originally Posted by Hymee
Well done Brettus. Did monitoring the AFR's with the scan tool help much? It looks like you got it pretty consistent.
Cheers,
Hymee.
Cheers,
Hymee.
Once we found where the timing gave most power we dialled in the afrs again and got the gains.
BTW : We tested the readings from scan tool against wide band o2 on the dyno & found it was spot on
09-21-2006, 04:25 PM
#133
Originally Posted by Brettus
BTW : We tested the readings from scan tool against wide band o2 on the dyno & found it was spot on
Like I said all along... Not to mention the "arguments" I had with some people...
Regards timing and fuel - yep, they need to be changed together. If you change the timing, then you need to go back and do the AFR's again.
I'm glad someone else has independently used sCANalyser as one of the tools to get the most out of their motor
Cheers,
Hymee.
09-22-2006, 12:07 AM
#134
Lasse wankel
Join Date: Aug 2006
Location: Stockholm,Sweden
Posts: 164
Likes: 0
Received 0 Likes
on
0 Posts
Hello! Lasse from Sweden here. I now have my own hub dyno a Rototest which can handle about 700 rwhp. I dyno my RX-8 yesterday wih the following mods: Ferrita 2.5" hi flow cat and 2.5@ front silencer stock rear silencer and stock front "header". I use Shell V-power 99 octane unleaded and 0.5 mm pills in actuator hoses. The car made 141 kw or 191.8 din rwhp@8600 rpm. I have only use the Rototest a few days so i am in a learning mode. Note oil temperature went from 110*C to 142*C in the test but i have Motul 300 V oil so im not scared lol.
/Lasse
/Lasse
11-14-2006, 07:10 PM
#135
Originally Posted by TeamRX8
ok, RB flash brought me up to 209 HP
some additional tweaks then produced 213 HP and 142 TQ at the wheels. Increase is mostly at the top, but with the tweaks the gain started from a very low 2250 rpm
This is NA with custom intake, full custom exhaust with cat converter, AC delete, and race pulley set, engine is otherwise OE, car in full STU configuration from the SCCA National Championship event.
11-15-2006, 01:40 PM
#138
Yes, I ran 0.5 oz/gal premix on all runs, I haven't really analyzed the difference between RB and OE yet other than peak HP increase
the gain from the tweaks started at 2250 and increased all the way, largest gain was approx 8 hp at 7300 rpm (there was a small dip in the pre-tweaks curve that smoothed off), peak HP is at 8460 rpm. The entire curve from 2250 up is higher which adds up for area under the curve, but the gains between 2250 and 5400 are small.
the gain from the tweaks started at 2250 and increased all the way, largest gain was approx 8 hp at 7300 rpm (there was a small dip in the pre-tweaks curve that smoothed off), peak HP is at 8460 rpm. The entire curve from 2250 up is higher which adds up for area under the curve, but the gains between 2250 and 5400 are small.
Last edited by TeamRX8; 11-15-2006 at 03:05 PM.
11-15-2006, 01:52 PM
#140
I never ran a pure OE baseline so I don't have any data on the individual parts differences. I made all the mods and then ran the 1st dyno. 2nd dyno was mods + RB flash. 3rd dyno is #2 + tweaks. I'm only commenting about the difference between #2 & #3
11-15-2006, 04:17 PM
#145
Registered
Join Date: Nov 2004
Location: Dallas, GA
Posts: 290
Likes: 0
Received 0 Likes
on
0 Posts
are you not at liberty to speak about the tweaks because of an agreement with a company such as Racing Beat or are you not at liberty to speak because you don't want to give away any secrets because of autocross purposes?
11-15-2006, 07:09 PM
#146
I'm not at liberty to speak, period
Looks like I already shot off my mouth too soon. I was not present for the dyno tests and just assumed they were run on a Dynojet the same as the first test. Just found out they were run on a Mustang dyno ....
Looks like I already shot off my mouth too soon. I was not present for the dyno tests and just assumed they were run on a Dynojet the same as the first test. Just found out they were run on a Mustang dyno ....
Last edited by TeamRX8; 11-15-2006 at 08:34 PM.
11-16-2006, 02:09 PM
#149
Registered User
Join Date: Jun 2002
Location: Misinformation Director - Evolv Chicago
Posts: 3,086
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by TeamRX8
I'm not at liberty to speak, period
Looks like I already shot off my mouth too soon. I was not present for the dyno tests and just assumed they were run on a Dynojet the same as the first test. Just found out they were run on a Mustang dyno ....
Looks like I already shot off my mouth too soon. I was not present for the dyno tests and just assumed they were run on a Dynojet the same as the first test. Just found out they were run on a Mustang dyno ....
