Dyno Results Compilation

Old 11-21-2005, 12:27 PM
  #1
THREAD KILLER
Thread Starter

Xyntax's Avatar

Join Date: Sep 2003
Location: San Jose, California
Posts: 1,342
Thanks: 0
Thanked 0 Times in 0 Posts
Post Dyno Results Compilation

I'm starting one since everyone keeps asking for it and nobody's stepping up to create a dyno thread. So since I'm starting this, here are the rules: <edited per dmp's suggestion>

1. Post as much detail as possible about the dyno session (i.e. Dyno machine used, Ambient temp, Altitude/location, etc.)
2. Post your results in HP/TQ format (SAE corrected if possible)
3. Post your charts if you have them.
4. Post your car's modifications.
5. If your reply does not include any of the four, please do not post. This thread is for dyno results only. No questions or comments allowed.

================================================== ========

Here's my dyno results:


Session: Mustang Dyno, taken on February 2005, Bay Area California.
Results:
145 HP 112 TQ - stock
156 HP 116.3 TQ - CZ Stage 1.1


Link to charts: https://www.rx8club.com/showpost.php...2&postcount=35

Session: Mustang Dyno, taken on August 2005, Bay Area California.
Result:
188 HP 125 TQ - REVi intake/CAI, Hot leading spark plugs, Custom CZ map


Link to charts: https://www.rx8club.com/showpost.php...74&postcount=1

================================================== ========

Last edited by Xyntax; 11-21-2005 at 04:40 PM.
Xyntax is offline
Old 11-21-2005, 12:51 PM
  #2
dmp
Michigan Roads = FTL

dmp's Avatar

Join Date: Nov 2004
Location: Kaiserslautern
Posts: 4,652
Thanked 5 Times in 3 Posts
How about providing context by listing the modifications (if any) to the cars?


1. Dynojet Dyno, Feb 2006. About 50 degrees, Altitude about 250 feet, CarbConnection, Kirkland WA. RacingBeat Exhaust, REVi + Cold air duct



in-car vid
http://www.d-mphotos.com/images/rx8/...thgeardyno.wmv

Last edited by dmp; 02-07-2006 at 05:26 PM.
dmp is offline
Old 11-21-2005, 05:48 PM
  #3
Zoom-Freakin'-Zoom
iTrader: (5)

swoope's Avatar

Join Date: Jan 2004
Location: orlando, fl
Posts: 14,583
Thanked 22 Times in 19 Posts
sticky

beers
swoope is offline
Old 11-22-2005, 09:50 AM
  #4
Registered User

Brice-RX8's Avatar

Join Date: Feb 2005
Location: Winston-Salem, NC
Posts: 882
Thanks: 0
Thanked 0 Times in 0 Posts
I know you said don't post any comments but I do have one and think is rather important. You are welcome to delete this after you read it.

You might want to have what gear the dyno was run in as well, as I would think anything less than 5th (1:1) ratio would make the results not as accurate.
Brice-RX8 is offline
Old 12-21-2005, 06:27 PM
  #5
Registered

Marietta 8's Avatar

Join Date: Sep 2003
Location: Marietta,Ga
Posts: 397
Thanks: 0
Thanked 0 Times in 0 Posts
good idea
Marietta 8 is offline
Old 12-24-2005, 06:37 PM
  #6
Banned

Beodude123's Avatar

Join Date: Oct 2005
Location: Ely, UK
Posts: 189
Thanks: 0
Thanked 0 Times in 0 Posts
You know what I have just noticed? (I haven't been on here too long, and haven't really looked at any dynos) At every single rpm cross over point (for intake ports and fuel injectors) there is a dip right before it. I don't know if CanZoomer or the Greddy can control it, but if so, people could program them to open the ports a little earlier to avoid three dead spots in your powerbands.
Beodude123 is offline
Old 01-12-2006, 07:37 PM
  #7
Registered

Join Date: Jan 2003
Posts: 58
Thanks: 0
Thanked 0 Times in 0 Posts
Stock except for drop in air filter (Green Filter) and straight pipe from factory cat/presilencer back. Motor was fresh mid season last year. Dyno from my new Dynapack 3000, oh yes, we will be doing some tuning this winter.

This was in fifth gear, but it's really not the gear that matters so much as the length of the "pull". This was a 12.5 second pull. The slower the pull the higher the horsepower since you aren't accelerating the drivetrain as fast. I can do basically a "brake" test, and was able to get 192 hp holding the car at 8200 rpm.



Steven
sburkett is offline
Old 01-13-2006, 10:23 AM
  #8
dmp
Michigan Roads = FTL

dmp's Avatar

Join Date: Nov 2004
Location: Kaiserslautern
Posts: 4,652
Thanked 5 Times in 3 Posts
Originally Posted by sburkett
This was a 12.5 second pull. The slower the pull the higher the horsepower since you aren't accelerating the drivetrain as fast. I can do basically a "brake" test, and was able to get 192 hp holding the car at 8200 rpm.

can you explain that further? Are you slowly rolling onto the gas? Backing off and holding the tach at 8200?

Thanks.
dmp is offline
Old 01-13-2006, 12:39 PM
  #9
Registered

Join Date: Jan 2003
Posts: 58
Thanks: 0
Thanked 0 Times in 0 Posts
Neither, the Dynapack is capabable of holding the car at a set speed. I put it in "speed" mode, set the target to 8200, go to wide open throttle, and the dyno pushes back as hard as it needs to to hold at 8200. So there's no spinning up of the drivetrain to suck horsepower. It's a nice feature of the dyno designed for tuning in "real time" at a specific rpm.

Steven
sburkett is offline
Old 01-16-2006, 12:11 PM
  #10
Registered User

Join Date: Aug 2005
Posts: 29
Thanks: 0
Thanked 0 Times in 0 Posts
Stock dyno done yesterday. Thin air so altitude correction made it +1000ft.

Made 179.45 hp
128.21 ft/lbs.
Mazdastrib is offline
Old 01-28-2006, 10:27 PM
  #11
Race Steward
iTrader: (1)

Hymee's Avatar

Join Date: Aug 2003
Location: Brisbane, Australia
Posts: 5,430
Thanks: 0
Thanked 1 Time in 1 Post
Here is an independant "before and after" done yesterday on an RX-8 in Sydney, Australia.

Before = Stock
After = Hymee Catback :D



FYI:

123 kW = 165 HP
135 kW = 181 HP

Dyno runs here are typically done in a gear not to exceed 200 km/h, so we generally use 3rd gear on RX-8's.

For full discussion, please see https://www.rx8club.com.au/forum/viewtopic.php?t=881

Cheers,
Hymee.
Hymee is offline
Old 01-29-2006, 10:50 AM
  #12
Registered User

Join Date: Aug 2003
Location: Morristown Tennessee
Posts: 140
Thanks: 0
Thanked 0 Times in 0 Posts
Ok, I hate to ask this here- but I was just looking at the Wikipedia RX-8 page.

http://en.wikipedia.org/wiki/RX-8

And there it says:

"Mazda seems to be aware of this issue and may be tinkering with the engine's software management behind the scenes. Mazda has released several PCM flash upgrades since the initial release of the model. Currently, some US owners have dynoed at over 190 and 200 wheel horsepower (140 and 150 kW), an improvement over the initial figures."


Ok, where are these people making that much power at the wheels with a stock RX-8? I want to know. And I want to know what engine flash they have.
BRealistic is offline
Old 01-29-2006, 11:34 AM
  #13
Bigus Rotus
iTrader: (3)

Nemesis8's Avatar

Join Date: Jun 2004
Location: Banks of The Muddy Wishkah
Posts: 8,573
Thanks: 0
Thanked 0 Times in 0 Posts

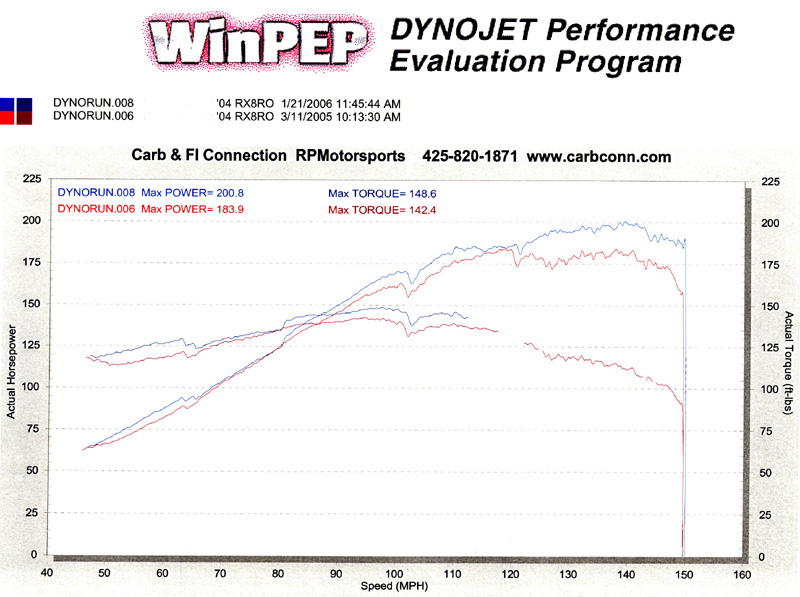

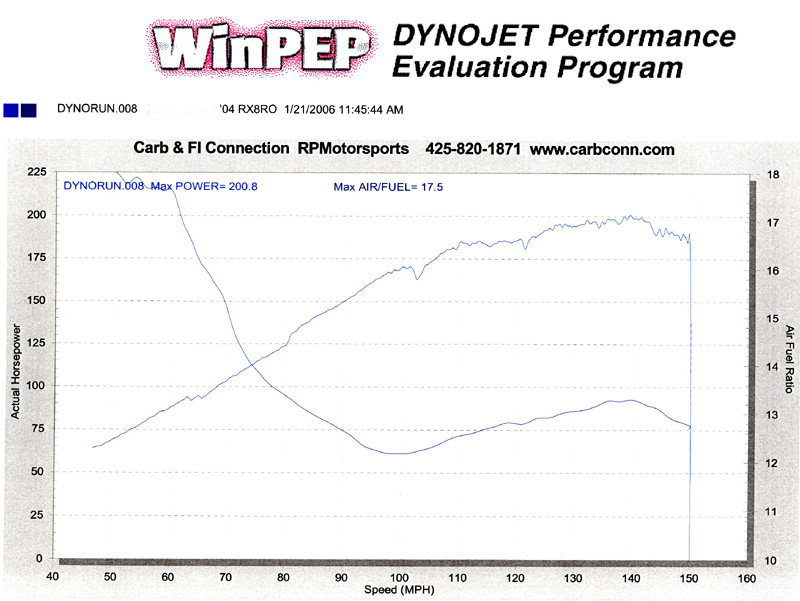

Nemesis8 Results

1. Dynojet 1-21-06. 63 Degrees, 47% Humidity, Altitude 250 feet, Seattle
2. 200.8 RWHP / 148.6 FT-LBS (SAE Corrected to 196.77 / 142.75)
3. Below
4. REVi, Ultra Plug Wires, Lineage Grounded, UR Pulleys, MS Flywheel, RP Supercat Midpipe, RB REV8 Dual Catback, CZ with Slight Fuel Mods Only

More Info Here
Attached Thumbnails Dyno Results Compilation-rwhp_torque_web.jpg   Dyno Results Compilation-rwhp_afr_web.jpg
Nemesis8 is offline
Old 01-29-2006, 01:03 PM
  #14
Momentum Keeps Me Going

Spin9k's Avatar

Join Date: Sep 2002
Location: Colorado
Posts: 5,035
Thanks: 0
Thanked 0 Times in 0 Posts
spin9k, DynoJet, NH 2005 - All conditions for run are shown in the graphs. Shows comparison of a 3rd vs. 5th gear pull done minutes apart. Tires were 235/40/18 therefore ~2.2% smaller than stock, only other mod was CorkSport Exhaust.
Attached Thumbnails Dyno Results Compilation-run2.jpg
Spin9k is offline
Old 02-07-2006, 05:10 PM
  #15
Registered

Join Date: Nov 2004
Location: Dallas, GA
Posts: 290
Thanks: 0
Thanked 0 Times in 0 Posts

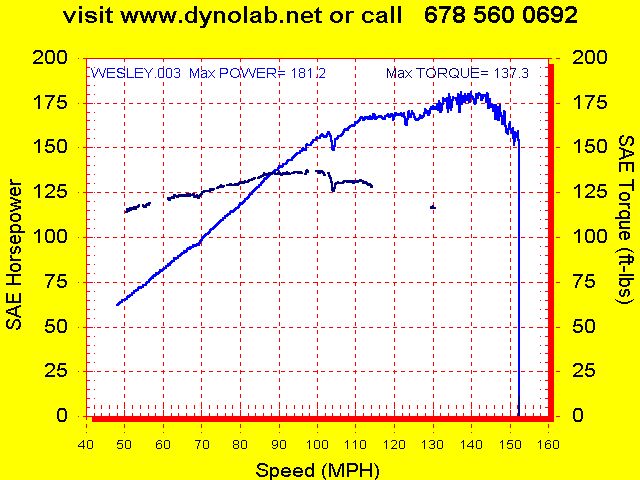

181.2 rwhp on a stock car (33k miles) with the exceptions of a grounding wire kit and revi, and duct intake. Looks like I could use some new plugs.
Attached Thumbnails Dyno Results Compilation-rx8020406dyno.jpg
whenson417 is offline
Old 02-07-2006, 05:35 PM
  #16
Smooth Criminal

L8APEX's Avatar

Join Date: Dec 2004
Location: Atlanta, Georgia
Posts: 3,467
Thanks: 0
Thanked 0 Times in 0 Posts
my chart shows two pulls, they wre the best two pulls, from two sessions.

the first was in May '05, on a Dynojet, ambient temp was around 75, in Atlanta. Mods included: Revi Intake, and a custom exhaust, with stock wheels and tires. At the time of this dyno, I was on the "M" flash, and had 30k miles on the car, on the original plugs.

the second was from last weekend, same Dynojet, ambient temp was about 45, mods added :RB Duct, new plugs, new coils, new battery, and 245/40/18 tires, so about 1% smaller than stock. Now the car has 40k miles on it, and is on the current "R" flash.


Last edited by L8APEX; 02-07-2006 at 06:47 PM. Reason: Forgot information pertinent to dyno runs.
L8APEX is offline
Old 02-07-2006, 07:51 PM
  #17
GARX8Club.com

SilverEIGHT's Avatar

Join Date: Nov 2004
Location: Buford, GA USA
Posts: 4,865
Thanks: 0
Thanked 0 Times in 0 Posts
CONSTANTS:
- 2005, 6MT, GT
- Mods (performance): RB Exhaust, ACT Prolite Flywheel, RED LINE Synthetic Oils
- Dynojet (Dynolab Inc. Marietta, GA)
- Same dyno operator
- 5th gear pull

SESSION #1: RED, 01/21/06
Milage: Approx. 18,000
Ambient Temp: Low to mid 60's
Session pull recorded: #3
Results: Very erratic and defined loss of power after final port opening

SESSION #2: BLUE, 02/04/06
Milage: Approx. 19,000
Ambient Temp: Mid 40's
Session pull recorded: #3
Additional Mods: New spark plugs (due to flooding issue) and Green Air Filter
Results: Smooth with increased power
Note: Same session as "whenson417" and "L8APEX".

Maximum HP difference: 11.8 over first session

ASSUMPTION:
Approximately 28 HP gain at the peak due to new plugs.

- - -


Last edited by SilverEIGHT; 02-07-2006 at 08:07 PM. Reason: Clerification
SilverEIGHT is offline
Old 02-18-2006, 12:13 PM
  #18
Bigus Rotus
iTrader: (3)

Nemesis8's Avatar

Join Date: Jun 2004
Location: Banks of The Muddy Wishkah
Posts: 8,573
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Sapphonica
Did you dyno +20 HP before/after with the 'R' flash?

Also, in what RPMs do you get the HP gains?

As we all know, this car is gutless down low...the 'torqueless wonder' as someone on the group said. This lack-o-torque negatively affects drivability under part throttle conditions.

Do your NA mods do anything noticeable for torque?
After the "R" flash and gains were up high and yes I have more torque from 134 to 142 ft/lbs.

Look at post 13 above

Attached Thumbnails Dyno Results Compilation-capture1.jpg

Last edited by Nemesis8; 02-18-2006 at 12:15 PM.
Nemesis8 is offline
Old 02-18-2006, 01:22 PM
  #19
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,551
Thanks: 0
Thanked 280 Times in 230 Posts
based on your 6200+ rpm curve being lower I suspect you have ignition issues (or had them at that time)
TeamRX8 is offline
Old 02-18-2006, 01:46 PM
  #20
Bigus Rotus
iTrader: (3)

Nemesis8's Avatar

Join Date: Jun 2004
Location: Banks of The Muddy Wishkah
Posts: 8,573
Thanks: 0
Thanked 0 Times in 0 Posts
I think the whole ignition issue is going to haunt us all one day.
Nemesis8 is offline
Old 02-20-2006, 07:39 AM
  #21
Registered User

Join Date: Oct 2005
Location: wiesbaden, germany
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
Is there anyway to get some serious power out of the 8, say 300 WHP or more?
jacksonjw81 is offline
Old 02-20-2006, 07:42 AM
  #22
Smooth Criminal

L8APEX's Avatar

Join Date: Dec 2004
Location: Atlanta, Georgia
Posts: 3,467
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by jacksonjw81
Is there anyway to get some serious power out of the 8, say 300 WHP or more?
without blowing the engine? try the major horsepower upgrade section, los of discussion about it there.
L8APEX is offline
Old 02-20-2006, 07:50 AM
  #23
GARX8Club.com

SilverEIGHT's Avatar

Join Date: Nov 2004
Location: Buford, GA USA
Posts: 4,865
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Nemesis8
I think the whole ignition issue is going to haunt us all one day.
Hummmm, hope not. Wonder what the high milage guys are dealing with when it comes to these issues? Wish some of them would chime in here.
SilverEIGHT is offline
Old 03-11-2006, 07:56 PM
  #24
GARX8Club.com

SilverEIGHT's Avatar

Join Date: Nov 2004
Location: Buford, GA USA
Posts: 4,865
Thanks: 0
Thanked 0 Times in 0 Posts

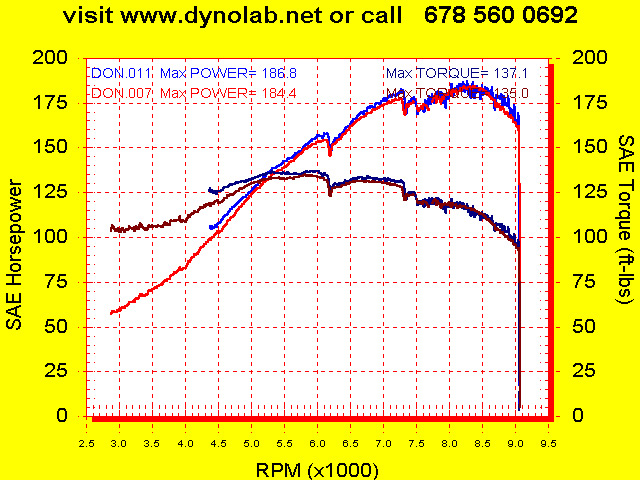

Dyno date: 03/11/06

Changes from previous run (see post #17)

Session #3:Blue
Milage: Approx. 20,500
Session pull recorded: #4
Ambiant temp: approx. 70 F
- New OEM plug wires
- RB Revi intake with Cold Air Duct
Attached Thumbnails Dyno Results Compilation-dy-07-11.jpg
SilverEIGHT is offline
Old 03-11-2006, 08:21 PM
  #25
Registered
iTrader: (3)

Join Date: Apr 2004
Location: macon, georgia
Posts: 10,768
Thanks: 0
Thanked 7 Times in 7 Posts
so silver you got a little more hp going on now-- diferrant days--differant results sometimes but you are on the right track.
your coils ok?
olddragger
6 more days !!!!!
olddragger is offline
