And thanks MM for the pics... Will try to find that diode..



Where's the gate signal on that SCR?



Not an SCR. Just a regular silicon rectifier diode. No control needed.



Finally some pictures....
Exterior

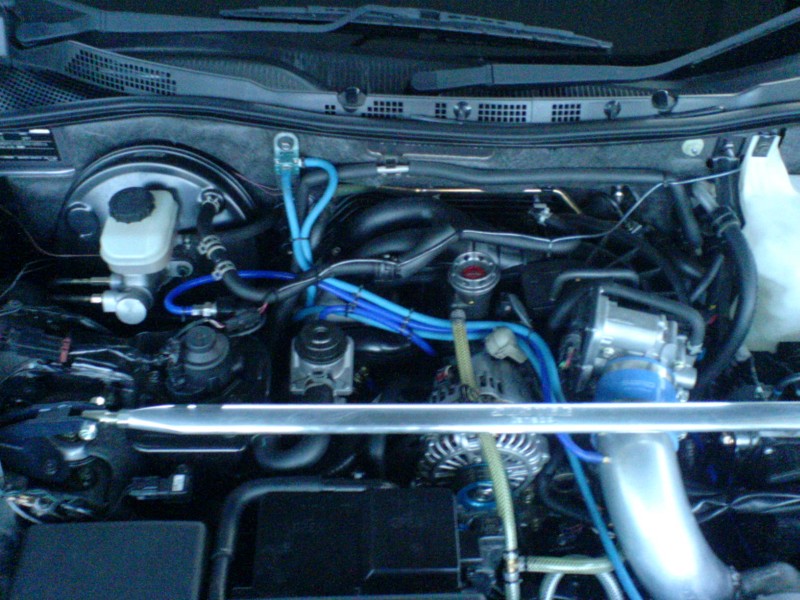

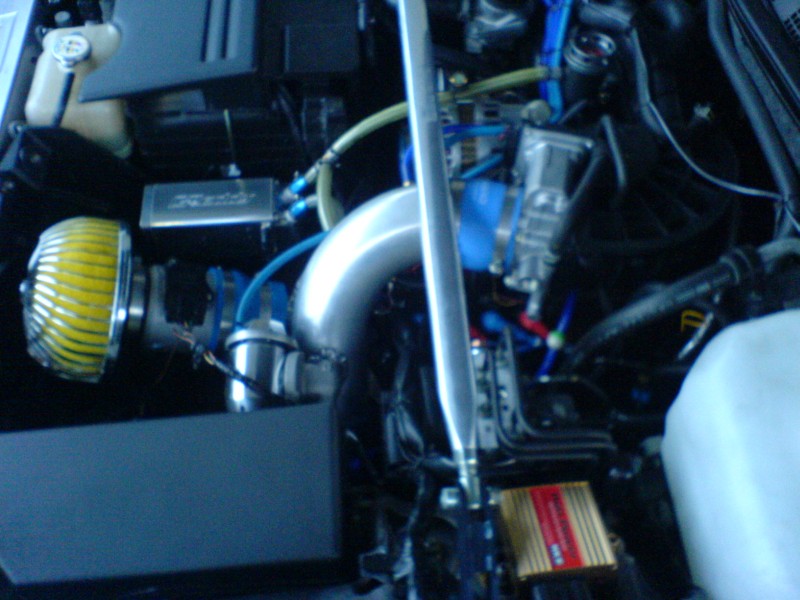

Engine Bay

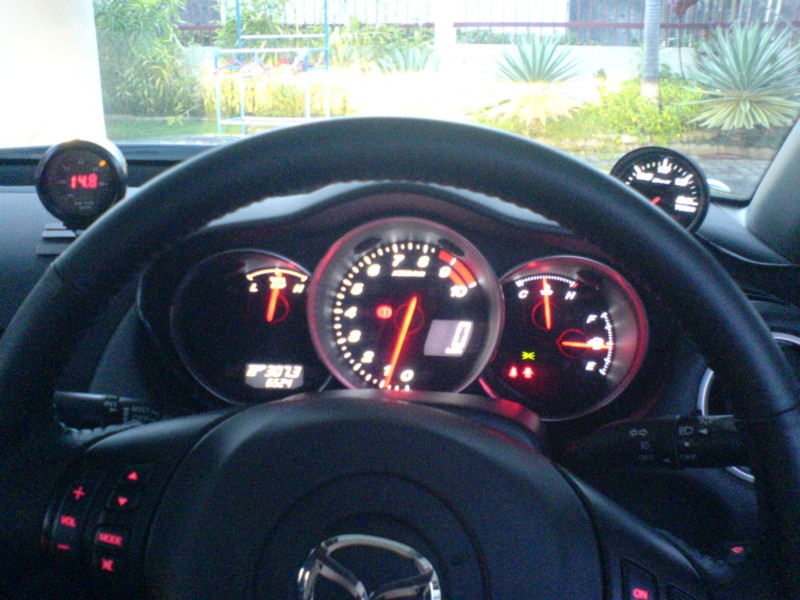

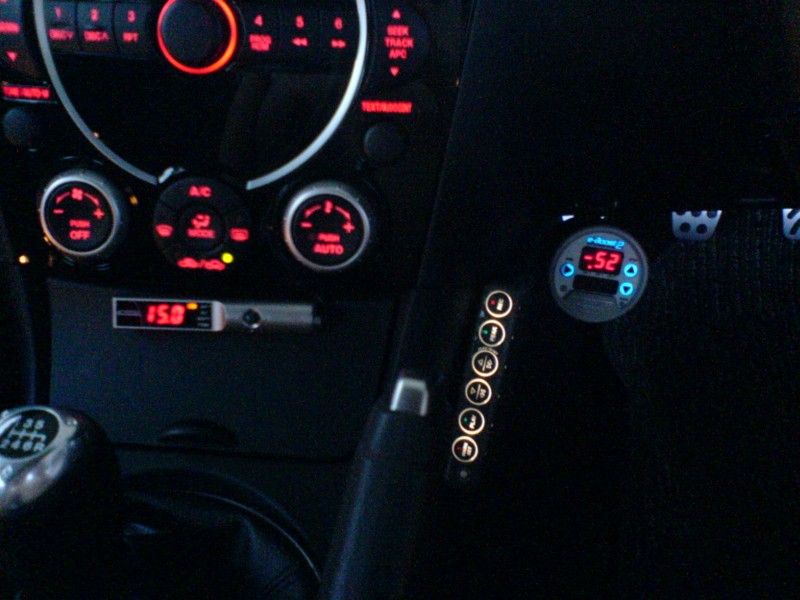

Interior



Where are you from?



A very obscure part of the world in a country caclled Brunei



I am the Sultan of Brunei!

Really cool song by Kevin Gilbert.



Havent heard that one lol....

Still trying to find that diode....

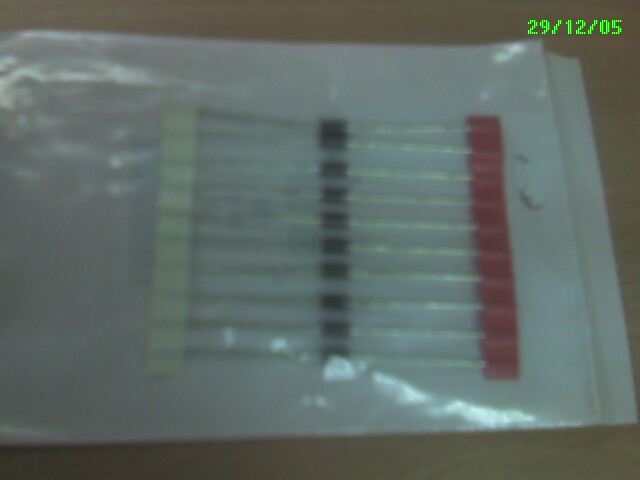

After searching and searching, I think i've found a diode that might work.. Here is a pic...

on the back of the packages it gives the code 261-160... and on the diode + back i found the number 1N4003... A quick search on google gave me a few hits, but i am not electrically inclined.

Please tell me this will work... lol



http://www.ee.ryerson.ca/~jkoch/ele4...s/1N4001-D.pdf

These are the specs...... 1N4003 is the one i bought



Those are in the same family as the 1N4007 that I use so it should work well since they have the same drop.



WOOOTTTTT.. really happy to hear that.... I will get right on it



so i add these in between the connection to the ecu wires?

U know the colour coding?
damm mechanics cant speak english well so i end up having to explain what to do



You hook them up to the outputs of the E-Manage going to the coils.
For the front rotor it is a green wire and for the rear it is yellow with a green stripe.
The thin silver or white stripe on the diode indicates the "output" wire on the diode. That should be wired towards the coil and the other wire to the E-Manage ingition output.
