halimsteven, that picture is misleading, that kit is actually a old mazsport top mount turbo kit, they made the connecting flange a T4 for the Up pipe, that pipe happens to be in the picture too on the ground,

however they did have a low mount kit, they just had the up pipe added to go bigger turbo, that kit pictured is for the top mount kit, a smaller turbo would have to be fitted to be down low

well lets see the graph Brett, or email it to me :P



first I agree with brettus that there is no need for us to fit in a big turbo in the renesis..
FazdaRX, that is my car, it was started with low mount with that turbo, and I ran it for 1 year, then I got bored. I decided to move it to the top mount. I got another set up fromt eh member here, a long time ago, I only got the manifold, extension and the downpipe. after we fitted it in, it looked different, so decided to get out own down pipe from the turbo, so the down pipe is the combination between type1 and type 3 which we had to did some modifications.
I just wanna share it that it was my turbo when I had low mount, so that's the biggest turbo that can fit, so just to give you an idea the biggest size of the turbo that you guys can use..that's all..it was T67, I pust 340whp around 9-10 psi..but it was in 2009..i had all the supports, and now I use RX7 seals (from Australia, I forgot the name), ported engine, and T40E..the old one got seized..lack of oil..
hope this help..i never post about my modification, I just like to read..and I respect all of your inputs and ideas..thank you all
steven



then you get my congrats, I am so surprised that fit down there!!



I know, that's why I read a lot, and people try to find out what the biggest size of low mount turbo. I think it fit down there because I used a different motor mount, the solid one..that's why, but if you use the regular mount, I don't think it would fit..but I might be wrong..at this time, I get everything smaller..ahhahaha..cahsing speed is expensive, but chasing little fun is little cheaper..
steven



Wow that is a large turbo to fit down there.........i do not think it will fit on a RHD....with the steering column in the way....but who knows?



Weapon R tube



and?



Nothing ......... Just put it there cuz someone wanted pic of it .

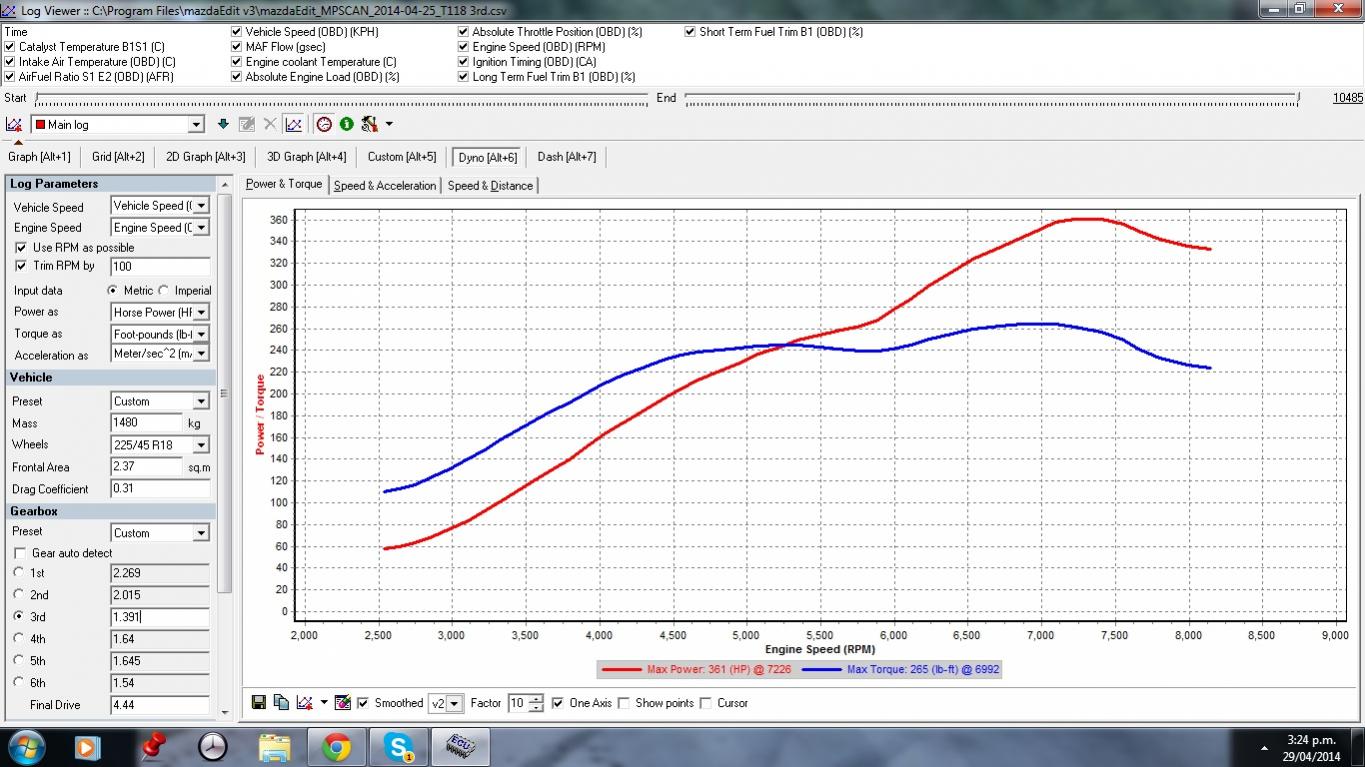

Here is a pre dyno log i did a few days back just for a comparison of VD vs actual dyno .........



Where's the actual dyno?!? Did I miss it?

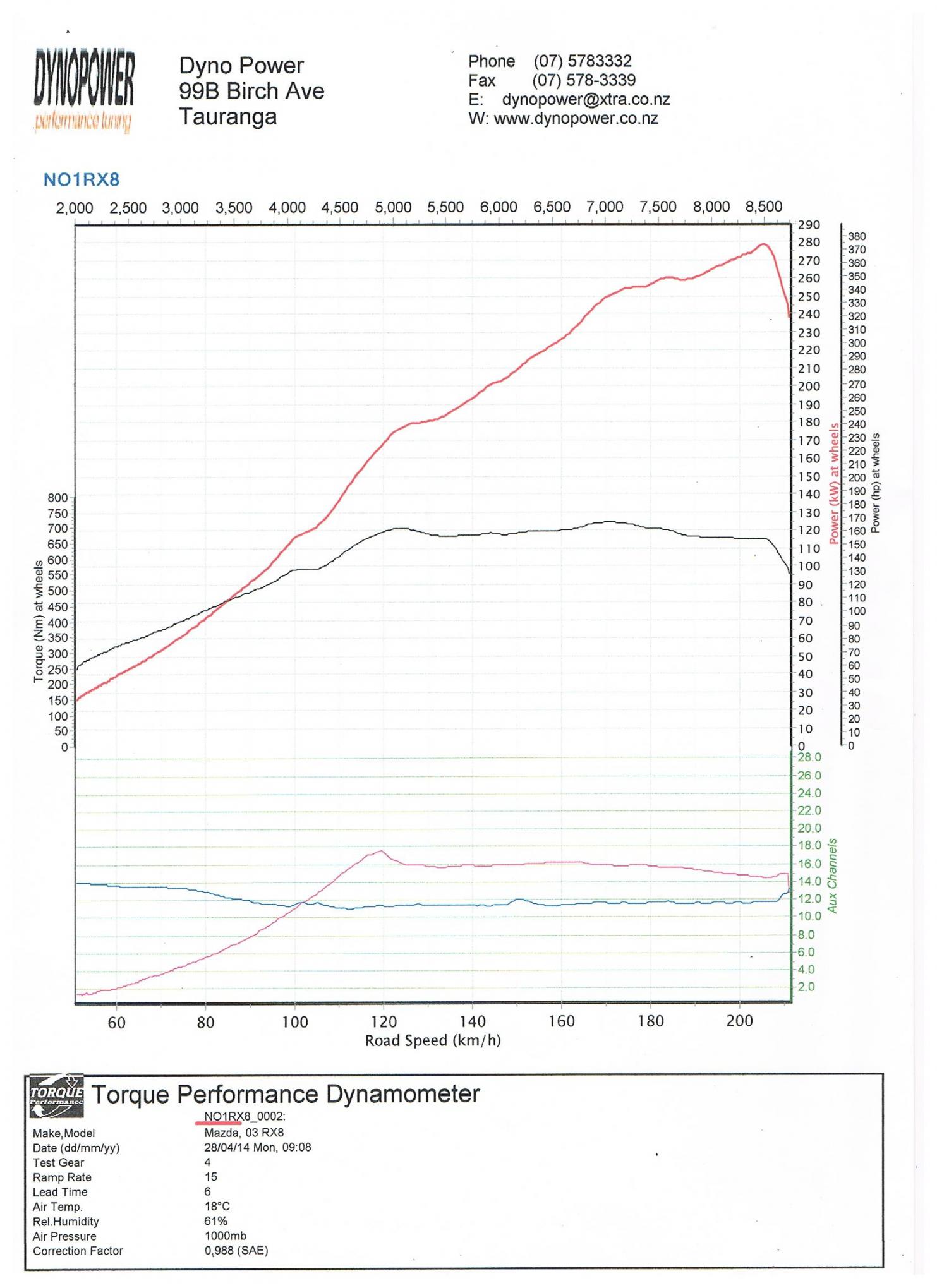

Boost is red line at bottom .... showing 16 psi tapering down to 15 at 8500



AWESOME, Congrats man, that's great!



So boost spiked almost to 18 at 5K? Is bottom blue line AFR? Looks a little lean?



Cheers Slash ... your turn now !

Was a tad lean yes ................. but his sensor does read leaner when attached to exhaust outlet . Dyno was 11.5ish but showing soilid 11.0-11.2 on my wideband and below 11 on stock sensor.



Ahhhhh yes my turn I know I know! Ok I'm on a mission now. I'll see what I can do. So does this give any credence in your mind to the accuracy of VD/LV?



Well , VD can be manipulated ........... a LOT . But if you do consistent logs on flat roads with no external influences and put the right numbers in the software ............ I think it's pretty darn accurate.



I always put my feet out the bottom like Fred Flintstone when I log What does your VD log from post 909 above look like in LV?



lv ?



logViewer. It's the one that comes with ME. I bought it as a standalone for $25.

http://www.epifansoft.com/logViewer-...ns-prices.html



Only have the one i posted .......



Oh duh, I'm an idiot, that was LV. I just saw where you said VD. What does that log look like in the actual Virtual Dyno app? I am just trying to see how the two programs compare for your log.



Not sure what you are asking . I don't have any other software other than what i posted ....

Just realised the one i have is actually called log viewer (never noticed that before ) I have always referred to it as VD .



Post 909 is a screen cap of Log Viewer, it says in the upper left. This is the Virtual Dyno app:

http://www.virtualdyno.net



No worries, I was just curious to see a comparison between the to programs. I notice with my logs sometimes VD reports higher than LV sometimes it reports lower.

I'll stop pestering about it Really excited about your results, well done!



Congrats!
