Old 01-24-2013, 08:17 PM
  #201
weeeeeeeeee
iTrader: (12)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,200
Received 229 Likes on 153 Posts
Originally Posted by auzoom
Yes, its a very important point...that's been brought up umpteen times in multiple places. He is no longer making a point though, he is **** canning a product because he got burnt by someone else. That is called a vendetta and a misplaced one at that. He is also treating us like we're idiots and cant see these things if he doesn't point it out every second page.

How about instead of the constant negativity, you contribute something to help us get a viable tuning solution...ohh that's right he has one... forget the rest of us that don't...he couldn't give a crap about that.
Too bad we don't have a like button.
Old 01-24-2013, 09:46 PM
  #202
Boosted Kiwi
Thread Starter
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 20,523
Received 1,491 Likes on 839 Posts
Anyhoo - the logging functions are pretty cool .........

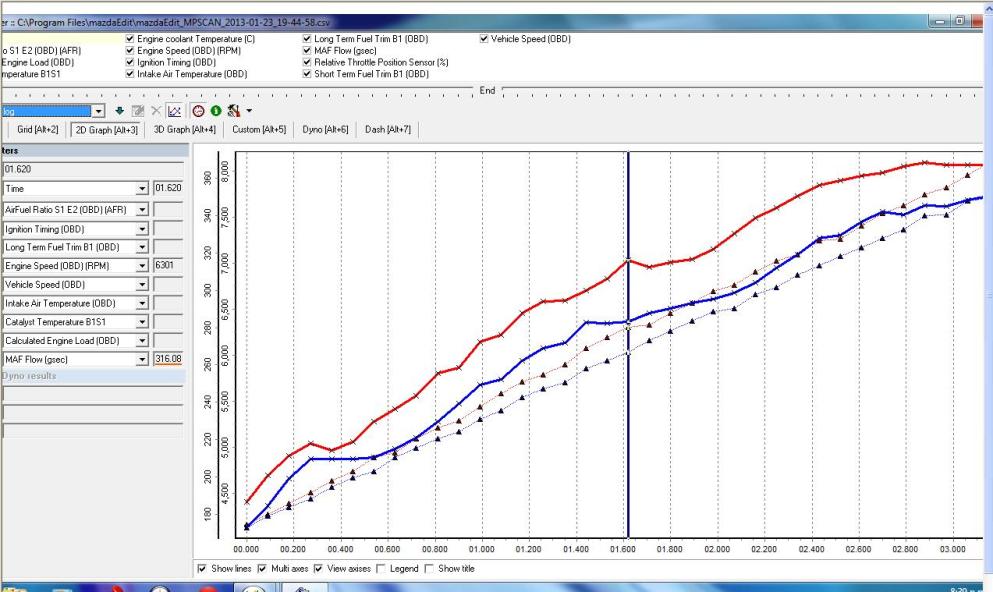

Borrowing this from my turbo thread . It was quite easy to do once i spent ages w2orking out how to do it .

So maf comparison charts will be a breeze from here on out . And can compare any other parameter i want at the click of a button.


Last edited by Brettus; 01-24-2013 at 10:02 PM.
Old 01-25-2013, 10:45 AM
  #203
Registered
iTrader: (2)

REtali8's Avatar

Join Date: Jan 2008
Location: Dallas, Tx
Posts: 174
Likes: 0
Received 0 Likes on 0 Posts
Have been watching this software with interest and have been emailing back and forth with creator. Was just advised that the personal version does not support the RX8. So anyone wanting to do this would have to pony up to the professional version.
Old 01-25-2013, 11:42 AM
  #204
SARX Legend
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,784
Received 452 Likes on 366 Posts
That is cool, being able to see data more easily is a big plus. I really want to be able to log boost along with all the other gauges and OBDII data.
Old 01-30-2013, 08:58 AM
  #205
Registered

thewird's Avatar

Join Date: Jun 2009
Location: Toronto, Canada
Posts: 491
Likes: 0
Received 2 Likes on 2 Posts
Epifan reports the 100 flash limit has been fixed.

thewird
Old 01-30-2013, 09:58 AM
  #206
R34ME

Unoriginalusername's Avatar

Join Date: Oct 2012
Location: Toronto, ON
Posts: 219
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by thewird
Epifan reports the 100 flash limit has been fixed.

thewird
fingers crossed that there is hope for my r3 yet by the time it rolls out of storage in two months
Old 01-30-2013, 11:47 AM
  #207
Boosted Kiwi
Thread Starter
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 20,523
Received 1,491 Likes on 839 Posts
Originally Posted by thewird
Epifan reports the 100 flash limit has been fixed.

thewird
Yep , just got the good news as well . Unfortunately it's too late for my ECU
Old 01-30-2013, 11:49 AM
  #208
Registered
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,560
Received 25 Likes on 23 Posts
Brett work faster so i can use this on my S2
Old 01-30-2013, 12:23 PM
  #209
No respecter of malarkey
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 26,720
Received 2,007 Likes on 1,636 Posts
Originally Posted by thewird
Epifan reports the 100 flash limit has been fixed.

thewird
good news, thanks for letting us know
Old 01-30-2013, 12:27 PM
  #210
No respecter of malarkey
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 26,720
Received 2,007 Likes on 1,636 Posts
Originally Posted by Brettus
So maf comparison charts will be a breeze from here on out . And can compare any other parameter i want at the click of a button.
the big question is "what's it going to take to get you to post MAF vs. RPM rather than vs. Time with RPM on the same MAF axis?"

Old 01-30-2013, 12:34 PM
  #211
Boosted Kiwi
Thread Starter
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 20,523
Received 1,491 Likes on 839 Posts
Originally Posted by TeamRX8
the big question is "what's it going to take to get you to post MAF vs. RPM rather than vs. Time with RPM on the same MAF axis?"

All it would take is for you to ask
The following users liked this post:
ogwazza (02-10-2023)
Old 01-30-2013, 12:40 PM
  #212
No respecter of malarkey
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 26,720
Received 2,007 Likes on 1,636 Posts
ok, may I please have a serving of common sense
Old 01-30-2013, 03:07 PM
  #213
Hmmmmmm.........

auzoom's Avatar

Join Date: Mar 2005
Location: Melbourne, Australia
Posts: 3,564
Likes: 0
Received 6 Likes on 4 Posts
Brett, Have a chat with Rhys at Flash Torque. *+61 7 5578 3181. He MAY be able to help.
Old 01-30-2013, 03:35 PM
  #214
Registered
iTrader: (1)

FazdaRX_8's Avatar

Join Date: Jun 2009
Posts: 2,019
Likes: 0
Received 5 Likes on 5 Posts
I would like to see this graph too
Old 01-31-2013, 03:59 AM
  #215
Boosted Kiwi
Thread Starter
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 20,523
Received 1,491 Likes on 839 Posts

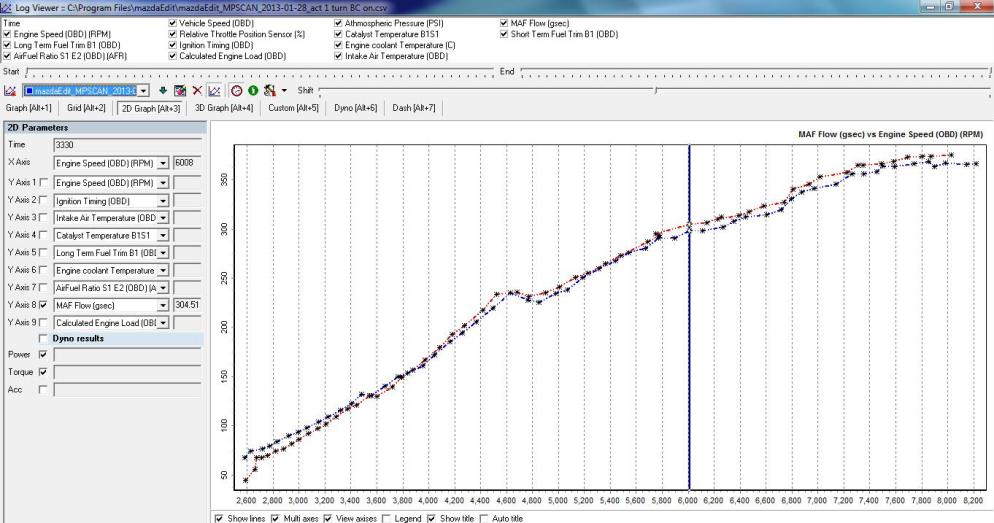

Here ya go .

This is two logs combined - red one from a few days ago and blue one from tonight after a small boost leak was fixed .


Attached Thumbnails Mazdaedit-log-combined.jpg
Old 01-31-2013, 01:54 PM
  #216
No respecter of malarkey
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 26,720
Received 2,007 Likes on 1,636 Posts
What were the other condition differences between the two runs?
Old 01-31-2013, 02:15 PM
  #217
Boosted Kiwi
Thread Starter
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 20,523
Received 1,491 Likes on 839 Posts
Originally Posted by TeamRX8
What were the other condition differences between the two runs?
Red -Blue

IAT : 31-29
Coolant:89-92
Atmos. press: 14.94-14.79

Red 2-3% richer AFR

Blue also showing approx. 10 more whp at peak on virtual dyno (305whp)

Last edited by Brettus; 01-31-2013 at 02:20 PM.
Old 01-31-2013, 02:23 PM
  #218
No respecter of malarkey
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 26,720
Received 2,007 Likes on 1,636 Posts
Where are you measuring IAT; pre-turbo or post-IC?
Old 01-31-2013, 02:33 PM
  #219
Boosted Kiwi
Thread Starter
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 20,523
Received 1,491 Likes on 839 Posts
Originally Posted by TeamRX8
Where are you measuring IAT; pre-turbo or post-IC?
post IC just before throttle body
Old 01-31-2013, 03:15 PM
  #220
Registered
iTrader: (1)

FazdaRX_8's Avatar

Join Date: Jun 2009
Posts: 2,019
Likes: 0
Received 5 Likes on 5 Posts
what are your VD settings?
Old 01-31-2013, 03:17 PM
  #221
Boosted Kiwi
Thread Starter
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 20,523
Received 1,491 Likes on 839 Posts

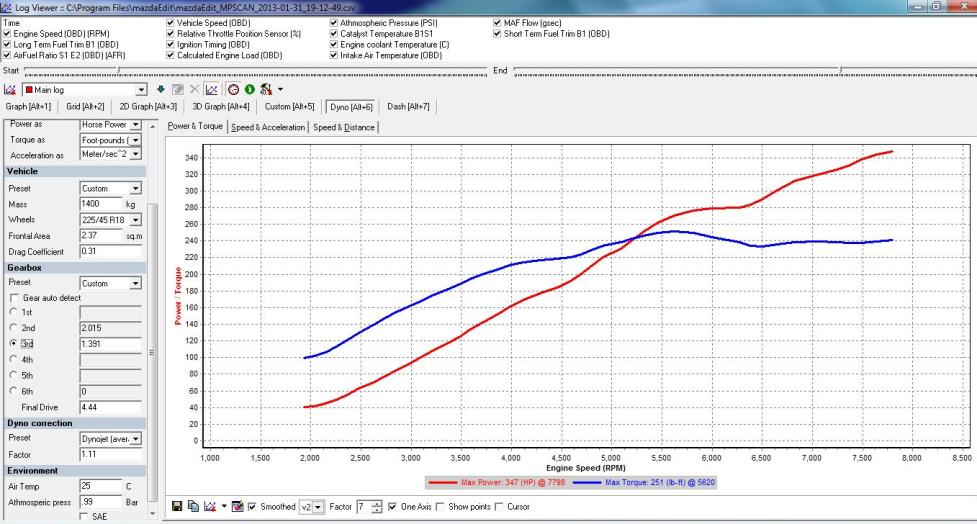

3rd gear virtual dyno

Originally Posted by FazdaRX_8
what are your VD settings?

Here they are - chose dynojet correction for this plot just to annoy Team lol

Before you ask - I have a 5 speed JDM gearbox

Not 100% sure on the mass - 1400kg should be about right with 80kg driver ?

Attached Thumbnails Mazdaedit-dyno-3rd.jpg

Last edited by Brettus; 01-31-2013 at 03:31 PM.
Old 01-31-2013, 08:16 PM
  #222
No respecter of malarkey
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 26,720
Received 2,007 Likes on 1,636 Posts
I'm not annoyed, just trying to figure out if you actually have a real gain or only appear to have one because all of the influencing factors aren't being considered

some of us actually think first and ZOMG later when appropriate ...
Old 01-31-2013, 08:46 PM
  #223
Boosted Kiwi
Thread Starter
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 20,523
Received 1,491 Likes on 839 Posts
Originally Posted by TeamRX8
I'm not annoyed, just trying to figure out if you actually have a real gain or only appear to have one because all of the influencing factors aren't being considered

some of us actually think first and ZOMG later when appropriate ...

This is the Mazdaedit thread BTW - so just trying to show what the program will do in this thread
Old 01-31-2013, 09:02 PM
  #224
No respecter of malarkey
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 26,720
Received 2,007 Likes on 1,636 Posts
point taken, I'll save those drive-bys for the II thread
Old 02-01-2013, 03:55 PM
  #225
Boosted Kiwi
Thread Starter
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 20,523
Received 1,491 Likes on 839 Posts

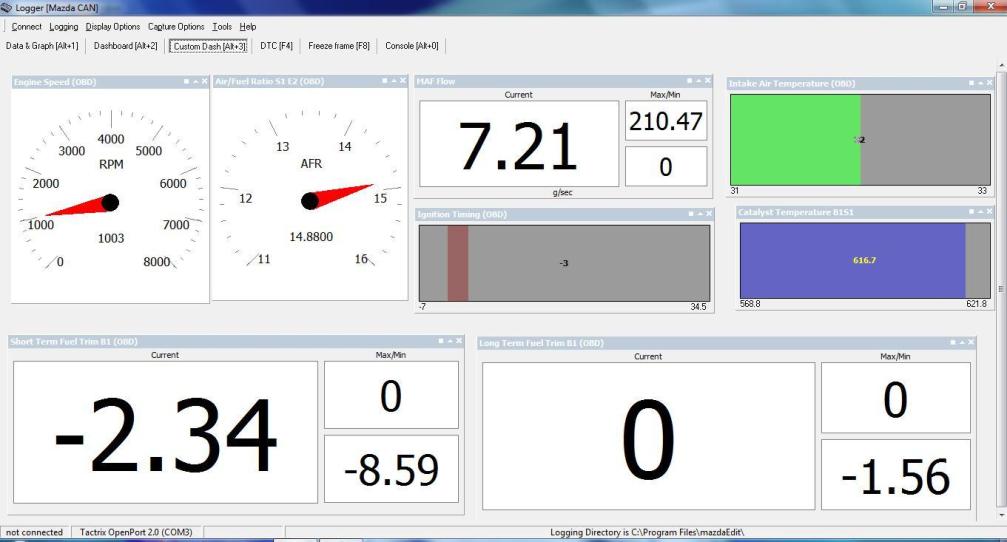

Custom Dash is very cool !







On the negative side : Turning off the ignition while connected is a PIA . Sometimes the program freezes others it just wont reconnect without rebooting or pulling cables etc.
Attached Thumbnails Mazdaedit-custom-dash.jpg

Last edited by Brettus; 02-01-2013 at 05:17 PM.
