ShellDude

iTrader: (12)

Ah... I'm used to seeing the cell value being representative of the actual VE value.... ie: 80% VE delivers less fuel than 90%.

I never dabbled in the fueling maps in ATR... The Select has clearly spoiled me. Now is probably a good time for me to reach out to my source to get hard copies of the MM sessions I attended a couple years ago.

TeamRX8

iTrader: (25)

That is the OE map. It's all relative. You have to actually understand what you're doing with any type of software rather than assuming you know what you're doing.

FazdaRX_8

iTrader: (1)

time will tell, I like my cobb.

ShellDude

iTrader: (12)

Please tell me in what possible way this is either constructive or helpful? The planet is round therefore we spin, WTF?

So it's the OE map... well yeah... you know captain fxxxx obvious I started with a base post msp16 map so it better be OE.

If I knew WTF I was doing I wouldn't be asking about the scaling for the gawd damned fuel maps. That is one assumption we can also safely make.

TeamRX8

iTrader: (25)

Well I didn't mean it that way, and why is it that people always respond in exactly the same way that they are complaining about?

thewird

The VE map is a correction map, not a VE map in the traditional sense, simple. You can pretty much tune and ignore it.

Just ignore Team, he likes to make constant useless posts that lead nowhere.

thewird

TeamRX8

iTrader: (25)

there is no VE map in the traditional sense. It's a tuning function, not the actual engine VE as some people mistakenly believe

ShellDude

iTrader: (12)

It was once and as I recall it was due to you being your typical ....

Thanks Dan and thewird for pointing me in the right direction. I do have some documentation on these tables and will have to read up on them.

Brettus

iTrader: (2)

Shelldude . Why are you swapping to this from Adaptronics ?

ShellDude

iTrader: (12)

I'm not swapping... Fueling is 1000 times easier with the Adaptronic.

I yanked my AP though and moved all prior tweaks, plus a few extras I couldn't get to in ATR, over.

And decided I'd give MAF based tuning another once over... Hence my questions about those two tables.

And I also spoke with a local tuner (Speed1 / KDR) giving him a thumbs up on it. Dave will likely be offering mep based tuning as a result in the coming months.

And if between the two of us we can come to terms with the OE maps then perhaps I may sell my Adaptronic some day in the future. Until then it is still my preference for ease of use.

ShellDude

iTrader: (12)

I figured out what the "DTC Disp?" table does today, somewhat.

If you do not update the corresponding row in it, then any CELs you suppress via table #1 and #2 will still show up as Pending, but will never be stored.

Here's what I've learned:

FazdaRX_8

iTrader: (1)

any word on if mazdaedit will crack the series 2 ecu

Brettus

iTrader: (2)

Done .

Also : Definitions have been updated and now there are as many maps defined as the Cobb has .

Brettus

iTrader: (2)

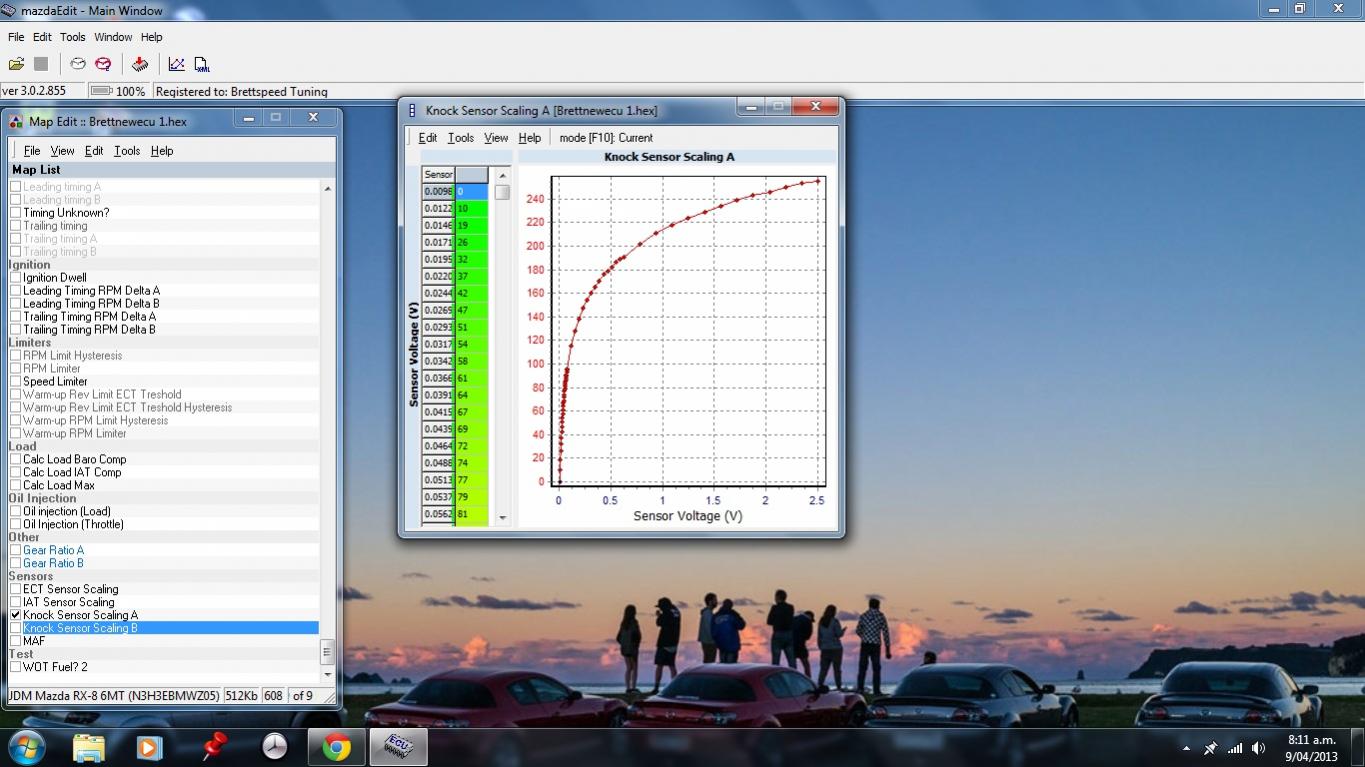

Looks like there are a few extra maps in ME that aren't in AP

EG Knock sensor calibration .....

ShellDude

iTrader: (12)

how's the new ECU working out for ya?

Brettus

iTrader: (2)

Taking to a friendly dealer to get mated with car in a couple of hrs . Fingers crossed.

nycgps

iTrader: (1)

I'm very interested in getting this now ... I'm thinking I might get a JDM 6sp S1 Rx-8, if I do I might get the pro version and start learning

no, I'm not getting Cobb, we all know why

Brettus

iTrader: (2)

Excellent - can't wait to bash the noob !

Slidin8

Why?

Brettus

iTrader: (2)

jdm YO !!!!!!!

Karack

i figured everyone had this fool on their ignore list by now.

except i still have to skim over all the blank posts.

FazdaRX_8

iTrader: (1)

Great news brettus!!!
can't wait to see your logs/power and video's

on the knock sensor, does mazdaedit acually record if the car knocks?
(cobb, will log knock but it will never report knock, just pull timing)

Harlan

iTrader: (3)

Yeah, having the knock sensor scaling is nice, although I have my doubts on the units, but what we really need is a way to read the ignition tables in ram that are modified by knock. With those, tuning the engine should become a breeze.

FazdaRX_8

iTrader: (1)

retard your entire ignition map by the ignition retard max value. and that will be your results.

Harlan

iTrader: (3)

No, I mean the tables in ram that are modified as you drive. If you are maxing out retard in some cells then your timing is too advanced, if you have no retard in other cells then it's a good idea to add timing. Without knowing those values the knock control strategy is useless, you can easily max it out and remove knock control completely without even realizing it. It's like using LTFT and STFT to tune your maf, except there is no CEL when you max the values.
