How could you have done logging with it but require a guide still and don't know how to download the ecu data to your computer?
I've never used MazdaEdit, so maybe if I had this would be glaringly evident.
Just asking
Thread Starter
Boosted Kiwi
iTrader: (2)
Joined: Apr 2006
Posts: 20,844
Likes: 1,798
From: Y-cat-o NZ
Tactrix inserted into port and ignition on :
On the toolbar there is a symbol that looks like a computer chip with a red arrow pointing to it . Click that .
When the 'flash utility' window appears click on the icon that looks like a chip with green arrow pointing away from it (meaning upload ecu info).
Follow the instructions on screen
Sidenote : any time you are uploading from or downloading to the ECU - don't touch anything !!!!!! If there is the slightest interruption between laptop and ECU - you will wipe the ECUs brain and be in for some exciting and expensive times.
Last edited by Brettus; Mar 12, 2013 at 03:28 PM.
THANKS Brett!
Tactrix inserted into port and ignition on :
On the toolbar there is a symbol that looks like a computer chip with a red arrow pointing to it . Click that .
When the 'flash utility' window appears click on the icon that looks like a chip with green arrow pointing away from it (meaning upload ecu info).
Follow the instructions on screen
Sidenote : any time you are uploading from or downloading to the ECU - don't touch anything !!!!!! If there is the slightest interruption between laptop and ECU - you will wipe the ECUs brain and be in for some exciting and expensive times.
On the toolbar there is a symbol that looks like a computer chip with a red arrow pointing to it . Click that .
When the 'flash utility' window appears click on the icon that looks like a chip with green arrow pointing away from it (meaning upload ecu info).
Follow the instructions on screen
Sidenote : any time you are uploading from or downloading to the ECU - don't touch anything !!!!!! If there is the slightest interruption between laptop and ECU - you will wipe the ECUs brain and be in for some exciting and expensive times.
Thread Starter
Boosted Kiwi
iTrader: (2)
Joined: Apr 2006
Posts: 20,844
Likes: 1,798
From: Y-cat-o NZ
#50
Joined: Nov 2007
Posts: 7,521
Likes: 11
From: Caput Mundi
you should need approx 14v. to properly read\write the ECU.
My lightweight battery wasn't enough...
I resorted to a trickle charger after going through our national way of expressing concerns. The translation is "throwing saints" but you don't get the idea of how brutal the practice can be.
My lightweight battery wasn't enough...
I resorted to a trickle charger after going through our national way of expressing concerns. The translation is "throwing saints" but you don't get the idea of how brutal the practice can be.
Registered
Joined: Feb 2013
Posts: 15
Likes: 0
From: Melbourne, Australia
Thanks brettus, the logging icon is easy to find and use, I understand just how easy it is to brick the ecu, hence the reason I didnt try copy data back or forth until I knew what I was doing, well . . . . Ment to be doing
I remember opening the flash utility, lol and I thought to myself no point using this yet as I don't have a file to flas, then closed it off . . . . I'll go have a try later tonight
I remember opening the flash utility, lol and I thought to myself no point using this yet as I don't have a file to flas, then closed it off . . . . I'll go have a try later tonight
I went through the registration process... involves a couple email and file exchanges with epifan. Communication was prompt and concise.

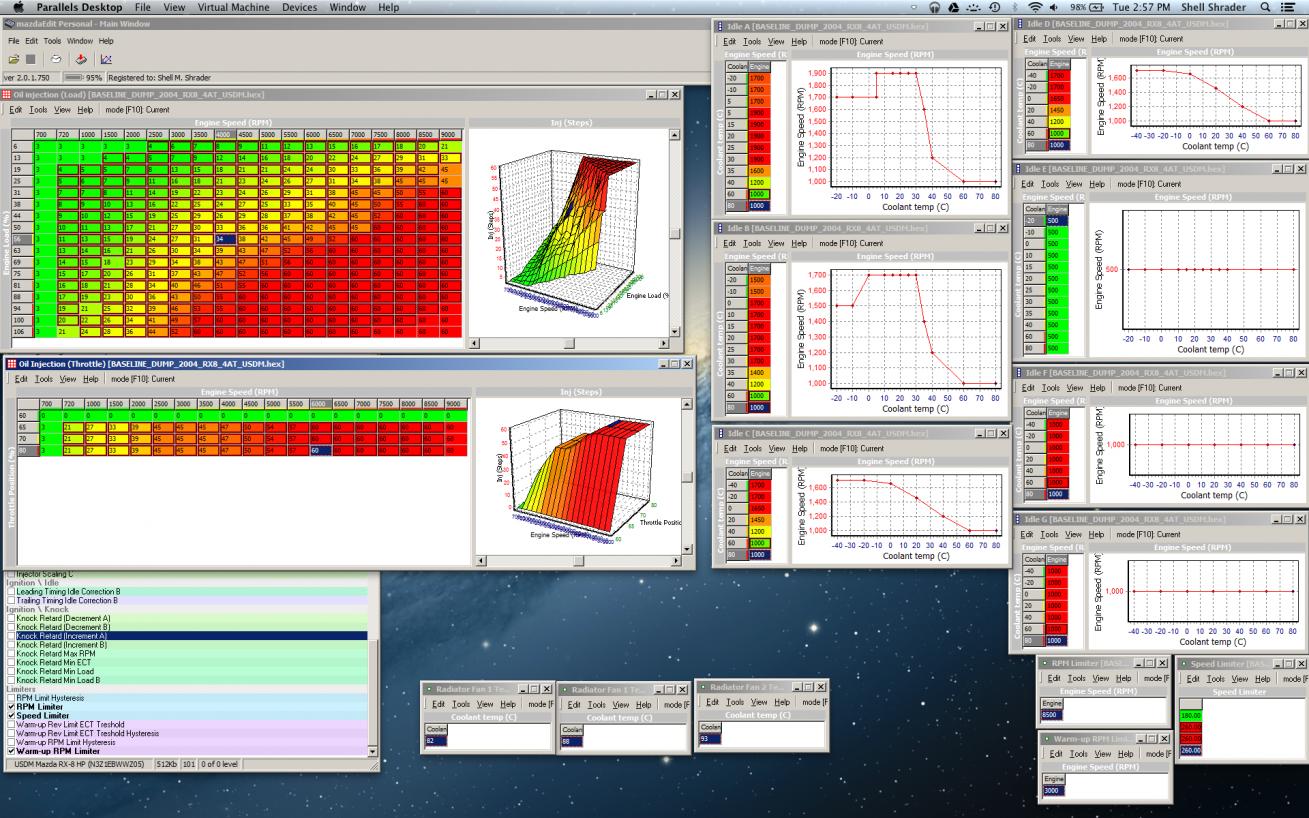

Got my base map about an hour ago and have just finished up making my first set of adjustments. I'm going to tackle CEL suppression next.
All the basics plus the extra idle and speed limiter tables for the 2004 4 port
Got my base map about an hour ago and have just finished up making my first set of adjustments. I'm going to tackle CEL suppression next.
All the basics plus the extra idle and speed limiter tables for the 2004 4 port
- Coolant fan temps A & B lowered
- Speed limiter set to 260 kph
- RPM limit (raised) to 8500
- Cold RPM limit lowered to 3000
- Warm idle set to 1000
- OMP table shifted and tweaked

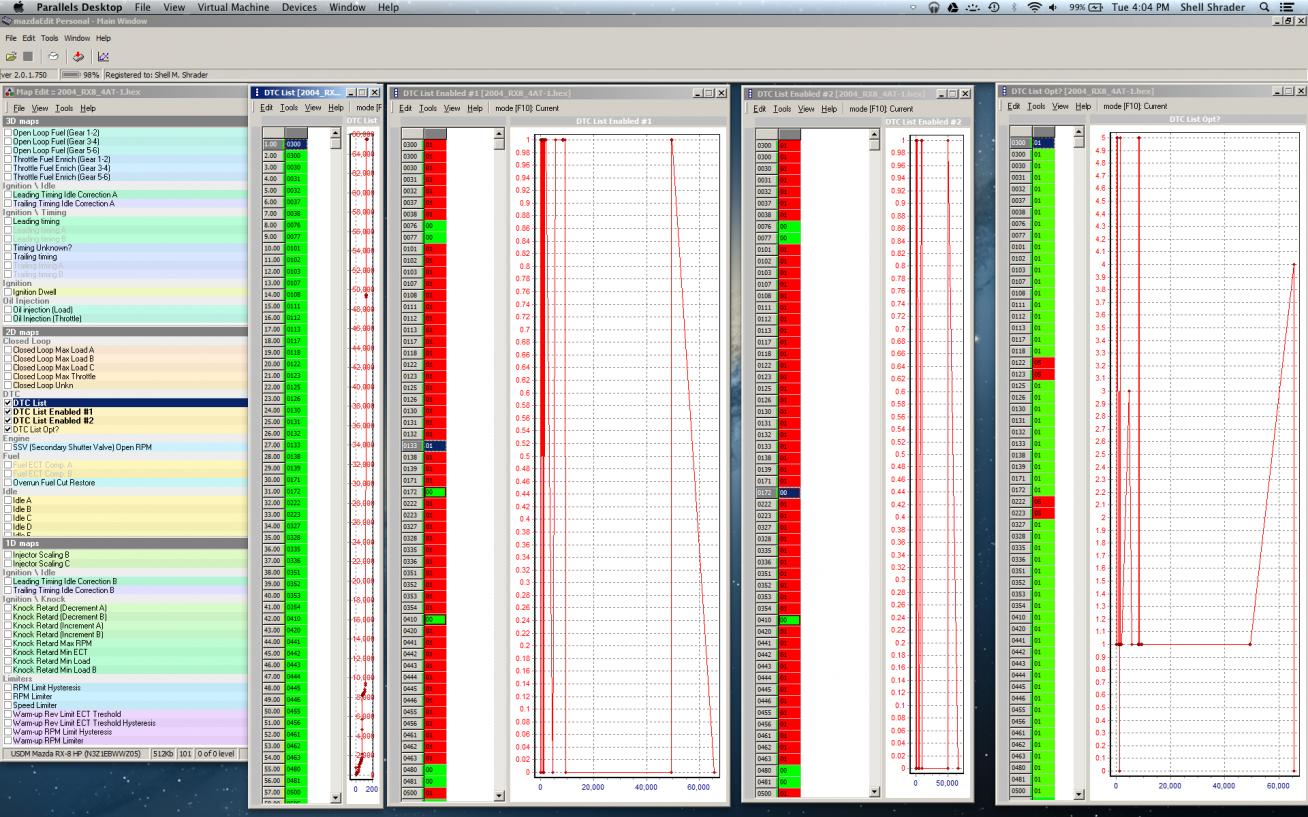

I'm looking over the DTCs now and am going to attempt to suppress P0410 (Air Pump) and P0172 (System Rich).
There are three DTC related tables. DTC List Enabled 1, DTC List Enabled 2, and DTC List Opt?.
I'm going to try setting the value of 0410 and 0172 in the 1 & 2 tables to 00 as they're currently 01.
Haven't been able to locate any documentation on it, beyond a couple simple videos epifan published.
There are three DTC related tables. DTC List Enabled 1, DTC List Enabled 2, and DTC List Opt?.
I'm going to try setting the value of 0410 and 0172 in the 1 & 2 tables to 00 as they're currently 01.
Haven't been able to locate any documentation on it, beyond a couple simple videos epifan published.
Last edited by ShellDude; Mar 19, 2013 at 03:05 PM.
Does mazdaedit store files in a proprietary format like the 2-10k Cobb files or exactly 512k for direct ecu flashes?
I'm getting ready to buy the personal version if I can find/edit every table on the ecu.
I'm getting ready to buy the personal version if I can find/edit every table on the ecu.
Thread Starter
Boosted Kiwi
iTrader: (2)
Joined: Apr 2006
Posts: 20,844
Likes: 1,798
From: Y-cat-o NZ
Thread Starter
Boosted Kiwi
iTrader: (2)
Joined: Apr 2006
Posts: 20,844
Likes: 1,798
From: Y-cat-o NZ
You wont be able to do that on the personal edition . You need the full version to do any editing.
Harlan you can download a dump of the ROM. With the Personal version you must send it to Epifan and he gives you a base map married to the umpteen registration checks he performs.

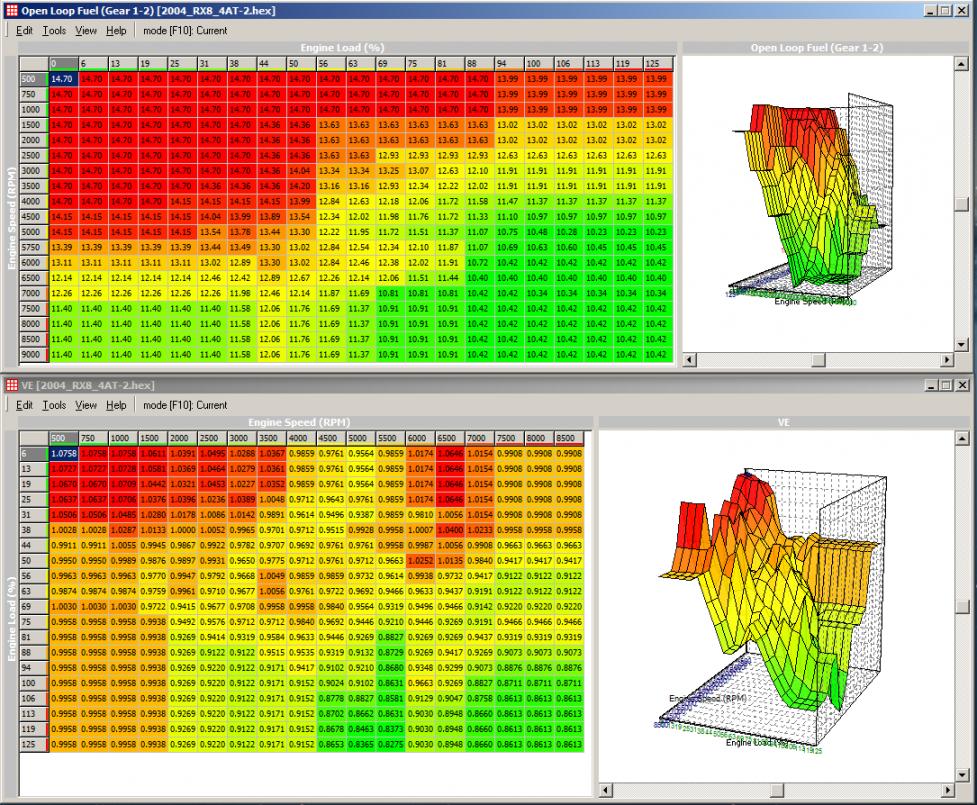

their values decrease with higher load and rpm. One is the open loop fuel table (gears 1-2) and the other is the VE table.
Last edited by ShellDude; Mar 19, 2013 at 11:09 PM.
