Need For Speed

Hi canzoomer

i m from Andorra and i steel wait your instructions to instal the canzoomer unit stage 2!

pleas cant you help me to make it work!

cant you show me to make work the e management?


thanks

RX3+5

Try:https://www.rx8club.com/showthread.php?t=45989

Vince

Need For Speed

thanks for the link
i have a problem i dont have the canscan , it important?

dannobre

iTrader: (3)

You either need a Canscan or a WBO2 sensor. Preferably a WBO2 that logs. You can set up a WB to log on the E-manage software if needed by using the Greddy Pressure sensor inputs.

Need For Speed

dannobre, thanks i don speed weel english, so i need athe canscan and the the greddy pressur sensor, no??

i put the canzoomer unit on the car an i fell i big loos of power!!! i put it on OF until i now to use the e management.

Maurice, cant you sai to me if the unit you sent i may 2004 its ok o i have to modified it??

Need For Speed

were to bay the canscan and greddy presur sensor?? canzoomer or there is a beter place?

epitrochoid

you dont need a pressure sensor, just get the canscan and a windows laptop. you'll also need the datacable to upload the new maps to the CZ unit, if you dont have it already. then you should be good to go

Need For Speed

i have the b¡datacable already, so just the canscan!
thanks
wat is the windows laptop? it the canscan program?

thank for all.

Need For Speed

do i have to modifuied the cz unit?

Omicron

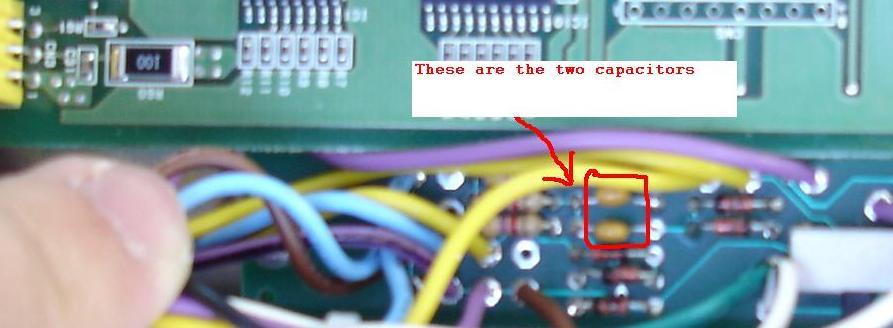

You should not have to do the capacitor mod (shown in your picture, above) if you bought the unit recently.

Need For Speed

i recivit for a client it un may, jun 2004, but maurice dont explein to make it work!! and the client ave problems an the cars stops!! so a piket bac and now im truing to make it work in mi car. and i loos power wi the CZ unit!! mi car its tuned an wen i conect the CZ thye cars loss verymuch power!!

its more complicato to send with no information!!

i don understan all the words in english and for mi its dificult to now to tune the maps and make it work do sambody have maps to meke it work and plaes cant sambody explein me the wea to make all.

thanks

dannobre

iTrader: (3)

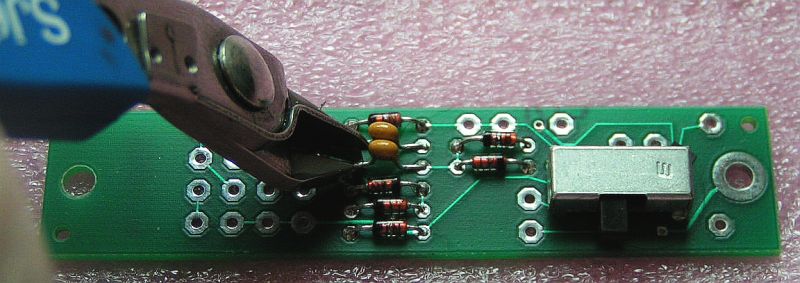

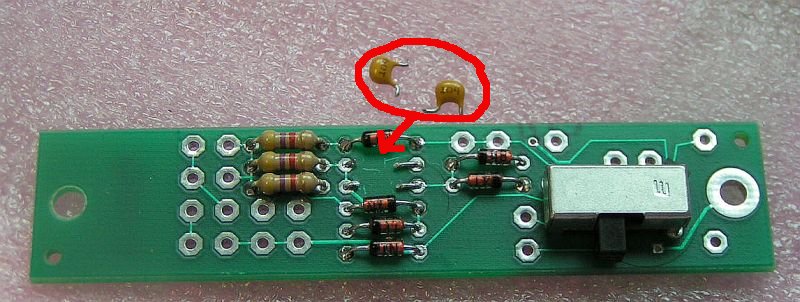

Take out the two caps....like the pictures below Make sure all of the diodes are as shown in picture

dannobre

iTrader: (3)

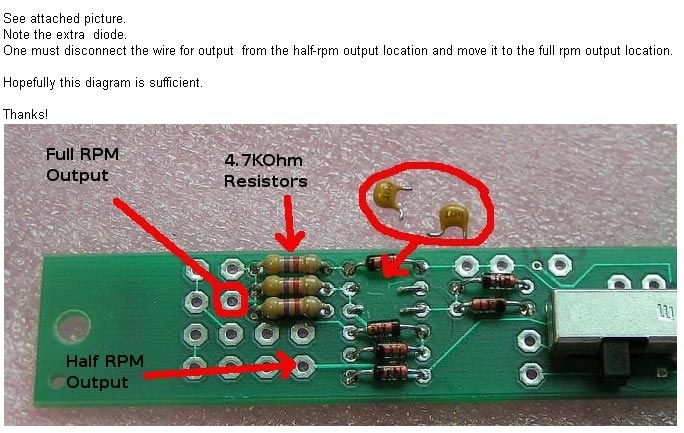

To convert to full RPM maps......move brown wire as in this picture

dannobre

iTrader: (3)

You can find some Full RPM maps in this thread

https://www.rx8club.com/series-i-engine-tuning-forum-63/share-your-cz-maps-41039/

Need For Speed

its the same!
sow i teke it off the otw diods!


wat is the full rpm maps?? its neceseri to do it?

i move the half rpm to the full. for wat irs this for?

thanks for the information, and pardon for mi ignorance!

Need For Speed

thanks

dannobre

iTrader: (3)

Take out the two Capacitors....and check that the diodes are the same as the picture

Full RPM maps use the 4400-8400RPM scale

Half RPM maps ( like your unit ) use maps that show 2200-4400RPM scale that you have to double to relate to true RPM on your car

PM me if you have any questions I'll be on for a while :D

dannobre

iTrader: (3)

[QUOTE=Need For Speed]dannobre, thanks i don speed weel english, so i need athe canscan and the the greddy pressur sensor, no??


You don't need a Greddy Pressure Sensor. You can use the input for it to attach a Wideband O2 sensor so you can log A/F on the e-manage software....and don't need a Canscan if you already have....or can borrow a WBO2 sensor

Need For Speed

[QUOTE=dannobre]so you tel me its beter to buy a wb02 sensor and do it all from the e management from the inside the car pasin a usb cabel from the czunit to the inside the car! no

were can i buy the wb02 sensor?
to maurice?

thanks for all

dannobre

iTrader: (3)

What I am saying is IF you have a WBO2 sensor you don't need a Canscan. The Canscan is nice though. I have one...and it works great.

epitrochoid

just use a canscan, it's cheaper in the end and it allows you to monitor all other engine vitals (knock, advance, various temperatures, etc)

Need For Speed

thanks for all

i wel orther the canscan.
