SSV ticking?

Old 03-20-2011, 12:59 PM
  #1
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
SSV ticking?

So got a little free time coming up and I want to use it to address some problems.

I seem to keep getting oil in my intake, it's not coming from the filler neck, so from what I read I might have a bad valve on one of my other lines going to the intake. It always happens after a hard drive, if that makes a difference. My oil is not over filled, it's right below the full mark. Should I be looking into a catch can for all 3 lines?

Also, I have a small ticking sound that comes and goes with no indication of what's causing it. I thought it was the SSV but it sounds like it's coming from the alt.

I got a small clip I'll try to put up, but my home network is down so I'm doing it off of my phone.

While watching the video keep in mind the mic is to the right of the screen.


Thanks
-Shawn

Last edited by 1.3_LittersOfFurry; 10-30-2012 at 07:37 PM.
1.3_LittersOfFurry is offline
Old 03-20-2011, 01:17 PM
  #2
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,662
Thanked 83 Times in 80 Posts
Take the alt belt off and see if it goes away...be careful that you don't run it for long...with no coolant circulation it will overheat...do it with the engine cool and you will have a bit of time to see if it goes away.

If it does it could be the alt or the water pump...if it doesn't then you can rule those out....try the A/C belt as well.....
dannobre is offline
Old 03-20-2011, 02:17 PM
  #3
Registered User

Join Date: Aug 2010
Location: Baltimore, MD
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
It sounds like the same problem i have with mine. Its the SSV fluttering. Mazda told me its gonna cost me anywhere from 900 to 2000 for parts and labor. The good news they told me was that it wont affect your car if you dont get it takin care of right away.



Its the gold/copper mushroom looking thing to the left of where you add your engine oil
asw225 is offline
Old 03-20-2011, 02:27 PM
  #4
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
I was thinking of trying that but with the engine "warm" cause im scared to flood it. I've only experienced a flooded rotary once when I was 18, my parents moved my vert to do yard work and flooded it. It took me hours to unflood it. I ended up having to remove the plugs and put oil in to get it going, total nightmare.... I now live alone far away from home, and will be doing this in my complexe's parking lot with limited tools.

My current plan of attack is to go drive the car till it's fully warmed, allow a 1 hour cool down then proceed with your steps. I only plan to run the engine 1 min tops with the belt removed. This should be ok? I should only need to run it long enough to verify if the noise has stopped right?

Also, if the alt/water pump is not the issue then I'm looking at the SSV correct?
I have a small theory: car is driven hard, oil gets in the intake, SSV becomes clogged, SSV begins tapping. Cause some times there is no noise, and sometimes I go a few days without driving it hard.

-Shawn
1.3_LittersOfFurry is offline
Old 03-20-2011, 02:35 PM
  #5
Registered
iTrader: (9)

Chrishoky's Avatar

Join Date: May 2010
Location: North Wales, PA
Posts: 1,025
Thanked 6 Times in 6 Posts
Originally Posted by asw225 View Post
It sounds like the same problem i have with mine. Its the SSV fluttering. Mazda told me its gonna cost me anywhere from 900 to 2000 for parts and labor. The good news they told me was that it wont affect your car if you dont get it takin care of right away.



Its the gold/copper mushroom looking thing to the left of where you add your engine oil
I have this problem as well.. could you shed some more light on this? I dont have the money to make a 2000 dollar repair.. if it doesnt need to be done "right" away as you say.. what would be the long term damage if you dont have it repaired? What does the ssv do?

I have had a tick for some time now and it doesnt seem to affect performance, just wondering what the long term affects would be of not repairing the ssv.
Chrishoky is offline
Old 03-20-2011, 02:37 PM
  #6
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,662
Thanked 83 Times in 80 Posts
If you disconnect the vac hose from the SSV and the noise stops then the actuator is screwed...but the SSV noise is usually slower and sounds different..yours is more of a tick...and the SSV will be more of a tap
dannobre is offline
Old 03-21-2011, 11:38 PM
  #7
Grasshopper
iTrader: (1)

Jon316G's Avatar

Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,778
Thanks: 0
Thanked 10 Times in 10 Posts
dannobre offered some good suggestions, but in the end, you'll need to help narrow it down by getting in there and figuring it out yourself.
Taking a screwdriver to various parts of the engine to feel the ticking helps (though an automotive stethoscope works better).
You can grab the SSV lever that connects the actuator to the valve and see if that makes the ticking stop.

If you still feel its the SSV and want to DIY further... here are some links to assist:
https://www.rx8club.com/series-i-do-yourself-forum-73/diy-test-solenoid-190364/
https://www.rx8club.com/series-i-do-yourself-forum-73/diy-troubleshoot-intake-valves-174009/
https://www.rx8club.com/series-i-do-yourself-forum-73/diy-remove-ssv-beta-teaser-video-184663/

Last edited by Jon316G; 03-21-2011 at 11:42 PM.
Jon316G is offline
Old 03-22-2011, 10:22 AM
  #8
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
Well I have not been able to find the issue yet.

1. The noise stopped again, although I was able to get a finger on the SSV and move it fairly easy.

2. Brad Pitt decided to make a film in my complex so I lost my work area for the next few days.

So much for taking time off to address the issue.....

-Shawn
1.3_LittersOfFurry is offline
Old 03-22-2011, 03:46 PM
  #9
Registered

Raptor75's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 1,364
Thanks: 0
Thanked 0 Times in 0 Posts
I use to also have oil in my intake system. It turned out that it was from pouring oil directly into the the neck. Cleaned it out and started using a ling spout funnel to get past the breather tub and the problem disappeared. You did say it was not a neck issue but thought I might as well mention it.
Raptor75 is offline
Old 03-24-2011, 07:01 PM
  #10
Registered
iTrader: (9)

Chrishoky's Avatar

Join Date: May 2010
Location: North Wales, PA
Posts: 1,025
Thanked 6 Times in 6 Posts
You can grab the SSV lever that connects the actuator to the valve and see if that makes the ticking stop.
Sorry for the lack of knowledge, but could you provide a picture to the lever that you speak of? I have a similar ticking problem as the OP. I have also tried poking around to see if the sound stops, but no luck so far. Any help would be great.
Chrishoky is offline
Old 03-29-2011, 07:46 PM
  #11
Registered User

Join Date: Feb 2009
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Knocking/tapping sound

My car just started making this knocking/tapping sound and just like OP describes it seems to come from the alternator or near. Could someone post a pic of this ssv lever. I have no loss in power so I dont think my engine is dying, well I hope not! Please help.

Thanks.
obituary is offline
Old 03-29-2011, 08:01 PM
  #12
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Chrishoky View Post
Sorry for the lack of knowledge, but could you provide a picture to the lever that you speak of? I have a similar ticking problem as the OP. I have also tried poking around to see if the sound stops, but no luck so far. Any help would be great.

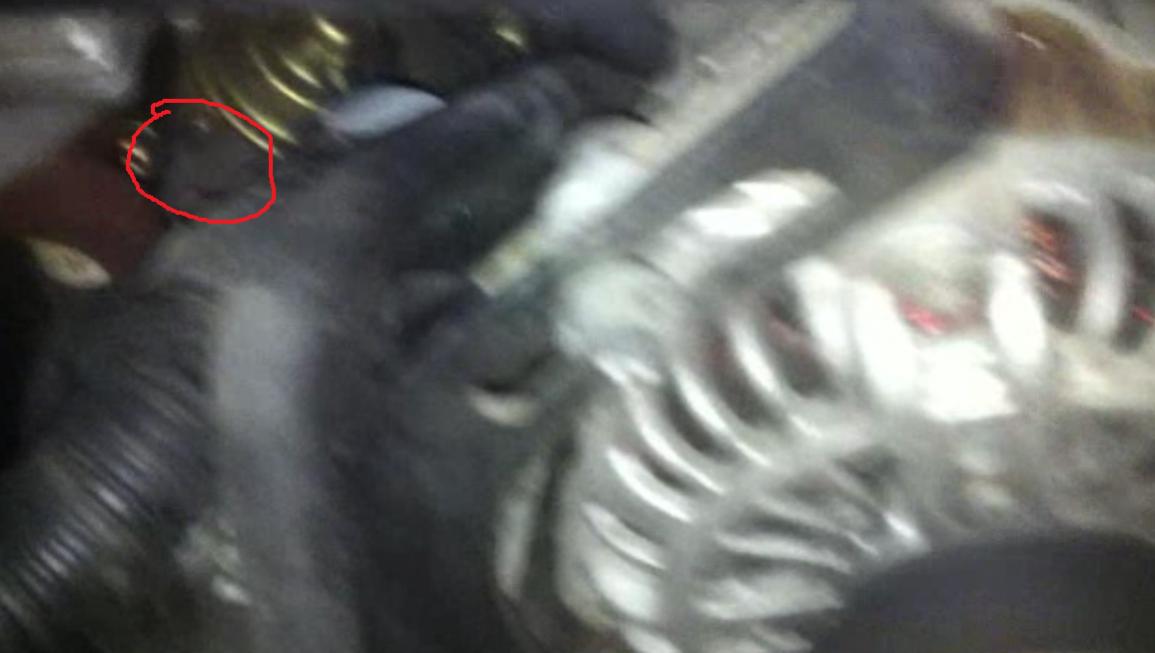

It's here...
Sorry quality sucks, grabbed it off the video



BTW, the sound still hasn't returned on mine yet. Although my coils are defiantly failing now.
-Shawn
Attached Thumbnails SSV ticking?-ssv.jpg
1.3_LittersOfFurry is offline
Old 03-29-2011, 08:06 PM
  #13
Grasshopper
iTrader: (1)

Jon316G's Avatar

Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,778
Thanks: 0
Thanked 10 Times in 10 Posts
Originally Posted by obituary View Post
Could someone post a pic of this ssv lever.
Just watch the video I provided in post #7 above (2nd link).
I'm moving the SSV by pushing down on the lever.
Jon316G is offline
Old 04-27-2011, 12:55 PM
  #14
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,738
Thanked 328 Times in 267 Posts
Okay I am having the ticking issue intermittently and when i put my hand on the lever it stops. So does that mean the actuator is bad?
9krpmrx8 is offline
Old 04-27-2011, 01:23 PM
  #15
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
I'm not sure, mine comes and goes. But it's definitely the SSV ticking in my case. Maybe it's clogged? Carb cleaner seems to make mine stop for about 1k miles r so. I use a vacuum pump to hold the valve open, have a friend keep the engine going, and drown it with carb cleaner through the brake line.
1.3_LittersOfFurry is offline
Old 04-27-2011, 02:15 PM
  #16
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,738
Thanked 328 Times in 267 Posts
TX

Originally Posted by 1.3_LittersOfFurry View Post
I'm not sure, mine comes and goes. But it's definitely the SSV ticking in my case. Maybe it's clogged? Carb cleaner seems to make mine stop for about 1k miles r so. I use a vacuum pump to hold the valve open, have a friend keep the engine going, and drown it with carb cleaner through the brake line.

I just replaced my oil injectors and lines not too long ago and while I had the manifold off I cleaned everything. If I put my finger on it while it's ticking it goes away.
9krpmrx8 is offline
Old 04-27-2011, 02:22 PM
  #17
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
Same for me. Finger on the lever and the noise stops. Drown intake with carb clean and it stops for awhile too.

It seems the linkage is loose but I'm really not sure. I havnt touched it since the noise stopped.
1.3_LittersOfFurry is offline
Old 04-27-2011, 05:49 PM
  #18
Out of NYC
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,863
Thanked 11 Times in 11 Posts
I never seen the ssv apart in person for the 8.

But I recently took my fc apart and all I can say is omfg of all the carbon everywhere.

My ssv has been working fine yay

Did u guys ever got the updated part with stinger spring and longer bolts? Just wondering. It supposed to help
nycgps is offline
Old 04-27-2011, 05:51 PM
  #19
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,738
Thanked 328 Times in 267 Posts
TX

Originally Posted by nycgps View Post
I never seen the ssv apart in person for the 8.

But I recently took my fc apart and all I can say is omfg of all the carbon everywhere.

My ssv has been working fine yay

Did u guys ever got the updated part with stinger spring and longer bolts? Just wondering. It supposed to help

updated part? Details please.
9krpmrx8 is offline
Old 04-27-2011, 05:54 PM
  #20
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by nycgps View Post

Did u guys ever got the updated part with stinger spring and longer bolts? Just wondering. It supposed to help
Well, I'm a nub for the 8 still, so I would have no idea.... Got a pic? Or is there anyway to tell if you have it? lol
1.3_LittersOfFurry is offline
Old 04-27-2011, 06:08 PM
  #21
Out of NYC
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,863
Thanked 11 Times in 11 Posts
Originally Posted by 9krpmrx8 View Post
updated part? Details please.
Originally Posted by 1.3_LittersOfFurry View Post
Well, I'm a nub for the 8 still, so I would have no idea.... Got a pic? Or is there anyway to tell if you have it? lol
Wow 9k where have u been u stupid noob!

There was an tsb about ssv sticking(I hate iPad's auto correct) and Mazda update the part with a beefier spring and slightly longer bolt to prevent it from sticking again.

Just search for it.
nycgps is offline
Old 04-27-2011, 06:12 PM
  #22
Out of NYC
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,863
Thanked 11 Times in 11 Posts
Originally Posted by 1.3_LittersOfFurry View Post
Well, I'm a nub for the 8 still, so I would have no idea.... Got a pic? Or is there anyway to tell if you have it? lol
If yours is not sticking I don't see the point of messing with it.

I never had issue cuz I drive it like it's supposed to be oh yea. So I never had any problem.

But if one day cel shows up ... Then I think about it.

I forgot what year they changed it but chances are if ur model is 2004 or 2005, most likely u don't have it
nycgps is offline
Old 04-27-2011, 06:28 PM
  #23
Out of NYC
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,863
Thanked 11 Times in 11 Posts
I did the hard work for noobs again... I let 1.3 go but 9k ... No respect for u noooooooob

https://www.rx8club.com/attachment.p...8&d=1254560785

It effects 2004 to some 2007 model. If u buy the updated set urself it's pretty expensive I think, I forgot the price, last I check the kit was like 100 or 200 bux, includes all gaskets and parts u need. I told myself hell no and moved on ...
nycgps is offline
Old 04-27-2011, 06:35 PM
  #24
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,738
Thanked 328 Times in 267 Posts
TX

Originally Posted by nycgps View Post
I did the hard work for noobs again... I let 1.3 go but 9k ... No respect for u noooooooob

https://www.rx8club.com/attachment.p...8&d=1254560785

It effects 2004 to some 2007 model. If u buy the updated set urself it's pretty expensive I think, I forgot the price, last I check the kit was like 100 or 200 bux, includes all gaskets and parts u need. I told myself hell no and moved on ...

Thanks. I have never had a real SSV issue in all these years. Mine is not sticking but I am wondering if i should just replace the actuator. i wanna make sure everything is in order before I boost.
9krpmrx8 is offline
Old 04-27-2011, 07:52 PM
  #25
Flame On!
Thread Starter
iTrader: (4)

1.3_LittersOfFurry's Avatar

Join Date: Jan 2011
Location: New Orleans, La
Posts: 1,897
Thanks: 0
Thanked 0 Times in 0 Posts
1.6 hour job.... I think not!

Thanks for the info nycgps.

Saved it just in case.

But is the problem loose linkage, or carbon build up? (or something else?)
1.3_LittersOfFurry is offline

Thread Tools
Search this Thread
Rate This Thread
Rate This Thread:
You have already rated this thread Rating: Thread Rating: 0 votes,  average.

Quick Reply: SSV ticking?


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
