Strokercharged95GT 13b-REW Build

Old 09-15-2015, 08:45 AM
  #26
Registered
Thread Starter

Join Date: Sep 2005
Location: Tampa
Posts: 622
Thanked 45 Times in 42 Posts
FL

Looking to mount my 10 AN fitting for the turbo drain. Any reason why I wouldn't want to drain the turbo effluent into the front cover nearest the turbo (assuming it doesn't interfere with pulleys or belts). I'm worried that if place it near the front of the oil pan it may come close to interfering with the front sway bar during engine install/removal + would rather not have to go under the car to attach/remove.

Also, is there any reason I cant mount m oil pressure sending unit between the turbo and turbo feed line from the block... I have don't this on my mustang an the readings are fine.

Name:  IMG_1945_zpsusevhwye.jpg
Views: 839
Size:  300.7 KB
strokercharged95gt is offline
Old 09-15-2015, 11:54 AM
  #27
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,737
Thanked 328 Times in 267 Posts
You can drain to the front cover. It would also be fine to put the oil pressure sending unit on the turbo feed line but why would you want to do that?
9krpmrx8 is offline
Old 09-15-2015, 01:05 PM
  #28
Renesis out... REW in
iTrader: (3)

firecran's Avatar

Join Date: Jan 2007
Location: Melbourne, Fl
Posts: 1,526
Thanks: 0
Thanked 0 Times in 0 Posts
Exclamation

Tapping the front cover there for the turbo drain would not be advised.


.
firecran is offline
Old 09-15-2015, 03:50 PM
  #29
Registered
Thread Starter

Join Date: Sep 2005
Location: Tampa
Posts: 622
Thanked 45 Times in 42 Posts
Originally Posted by 9krpmrx8 View Post
You can drain to the front cover. It would also be fine to put the oil pressure sending unit on the turbo feed line but why would you want to do that?
I don't have a sandwich plate for the oil filter and running this $8 fitting is far easier.

Name:  IMG_1946_zps5240ezkc.jpg
Views: 832
Size:  261.8 KB

Due to the way the turbo mounts, the turbo drain is slightly cocked to the driver side approximately 10 degrees. Running a 10 AN line from the turbo over to the oil pan would take probably 24-30 inches of ss line and the angle would be pretty flat in some areas. I would think a shorter, steeper gravity drain would be better. Is there a better area on front cover? the REW front cover has a drain on the bottom for the stock TTs
strokercharged95gt is offline
Old 09-15-2015, 04:06 PM
  #30
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,615
Thanked 81 Times in 78 Posts
Put it in the stock front drain location..you can use a turbo drain flange with a -10 male with very slight mod...all you need to do is countersink the front cover bolt and use a hex head flush mount bolt. I'll see if I can find a picture around someplace...super easy
dannobre is offline
Old 09-15-2015, 04:18 PM
  #31
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,737
Thanked 328 Times in 267 Posts
TX

Originally Posted by strokercharged95gt View Post
I don't have a sandwich plate for the oil filter and running this $8 fitting is far easier.



Due to the way the turbo mounts, the turbo drain is slightly cocked to the driver side approximately 10 degrees. Running a 10 AN line from the turbo over to the oil pan would take probably 24-30 inches of ss line and the angle would be pretty flat in some areas. I would think a shorter, steeper gravity drain would be better. Is there a better area on front cover? the REW front cover has a drain on the bottom for the stock TTs
Ah okay, but what about the stock oilpressure sending unit location? Or are you talking about for an aftermarket gauge?

Originally Posted by dannobre View Post
Put it in the stock front drain location..you can use a turbo drain flange with a -10 male with very slight mod...all you need to do is countersink the front cover bolt and use a hex head flush mount bolt. I'll see if I can find a picture around someplace...super easy
On a Renesis front cover?
9krpmrx8 is offline
Old 09-15-2015, 04:32 PM
  #32
Registered
Thread Starter

Join Date: Sep 2005
Location: Tampa
Posts: 622
Thanked 45 Times in 42 Posts
Yes it will be for an aftermarket gauge, and ya that is most definitely a renny front cover.

I have a 10 AN bulkhead fitting and a aluminum weld on male fitting, I just wanna make sure I put the drain in the best location.
strokercharged95gt is offline
Old 09-15-2015, 04:37 PM
  #33
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,737
Thanked 328 Times in 267 Posts
TX

Originally Posted by strokercharged95gt View Post
Yes it will be for an aftermarket gauge, and ya that is most definitely a renny front cover.

I have a 10 AN bulkhead fitting and a aluminum weld on male fitting, I just wanna make sure I put the drain in the best location.

Ah okay, yeah that will be fine for an aftermarket oil pressure gauge.


I don't think the location you are pointing too on the front cover will work but all I have is memory to go off of, .

Last edited by 9krpmrx8; 09-15-2015 at 04:42 PM. Reason: spelling
9krpmrx8 is offline
Old 09-15-2015, 04:41 PM
  #34
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,737
Thanked 328 Times in 267 Posts
Maybe here if you can do it without compromising the front cover.



Last edited by 9krpmrx8; 09-15-2015 at 04:45 PM.
9krpmrx8 is offline
Old 09-15-2015, 04:51 PM
  #35
Renesis out... REW in
iTrader: (3)

firecran's Avatar

Join Date: Jan 2007
Location: Melbourne, Fl
Posts: 1,526
Thanks: 0
Thanked 0 Times in 0 Posts
Exclamation

You need to tap the renny front cover lower, I'll get you a pic of mine.

.
firecran is offline
Old 09-15-2015, 05:01 PM
  #36
Registered
Thread Starter

Join Date: Sep 2005
Location: Tampa
Posts: 622
Thanked 45 Times in 42 Posts
Originally Posted by 9krpmrx8 View Post
Maybe here if you can do it without compromising the front cover.


Yeah it looks like I can shoe horn it in there. I'll wait to see where fire has his and then go from there. Thanks for the help.
strokercharged95gt is offline
Old 09-15-2015, 06:26 PM
  #37
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,615
Thanked 81 Times in 78 Posts
LOL...thought you had an REW front cover 😊
dannobre is offline
Old 09-16-2015, 09:32 AM
  #38
Renesis out... REW in
iTrader: (3)

firecran's Avatar

Join Date: Jan 2007
Location: Melbourne, Fl
Posts: 1,526
Thanks: 0
Thanked 0 Times in 0 Posts
front cover tapped

Here's mine
Front then back.
Attached Thumbnails Strokercharged95GT 13b-REW Build-2015-09-16-09.24.04.jpg   Strokercharged95GT 13b-REW Build-2015-09-16-09.25.12.jpg
firecran is offline
Old 09-20-2015, 01:49 PM
  #39
Registered
Thread Starter

Join Date: Sep 2005
Location: Tampa
Posts: 622
Thanked 45 Times in 42 Posts

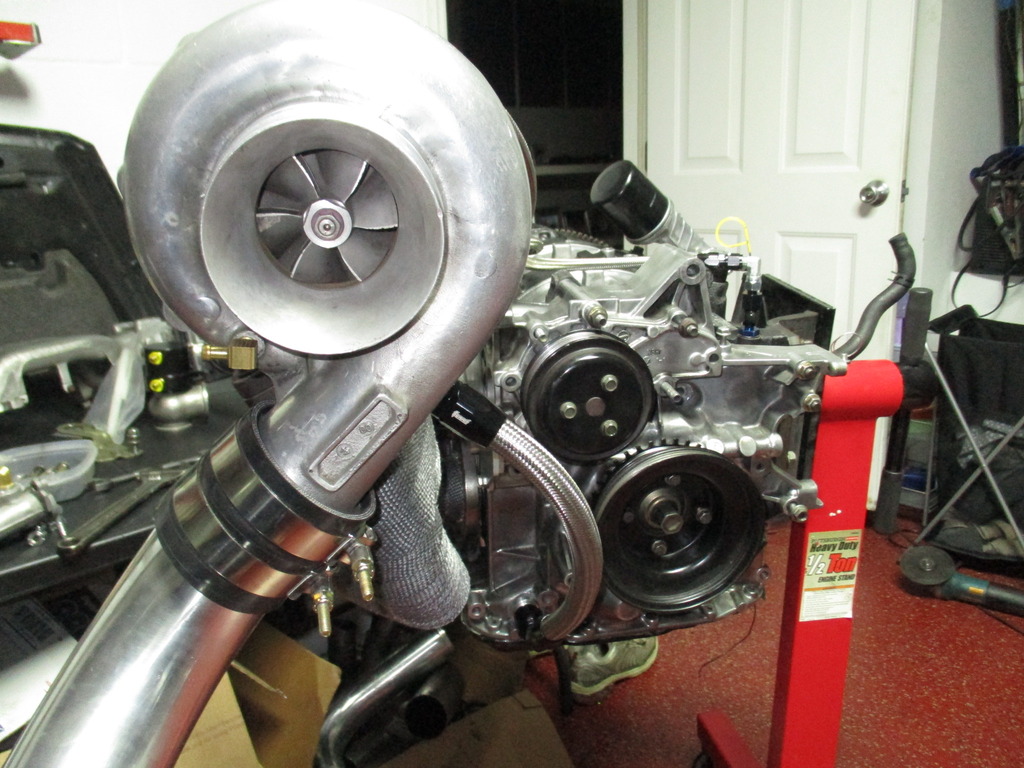

Got the drain completed, the 10 AN line is a straight shot to the front cover. With 45 degree swivel fittings on each end, the line is easily moved around to clear anything it needs to.

Name:  IMG_2096_zpsljcdtltn.jpg
Views: 748
Size:  260.9 KB

Name:  IMG_2097_zpsnf84ri0q.jpg
Views: 702
Size:  254.3 KB

Name:  IMG_2099_zpsvuyp1dzy.jpg
Views: 782
Size:  305.5 KB

Last edited by strokercharged95gt; 09-20-2015 at 01:54 PM.
strokercharged95gt is offline
Old 10-04-2015, 09:04 PM
  #40
Registered
Thread Starter

Join Date: Sep 2005
Location: Tampa
Posts: 622
Thanked 45 Times in 42 Posts
Question about the front cover o-ring. I have seen that rx7 people do not use the front cover o-ring when they use a rx8 front cover gasket. I have also seen people still use the front cover o-ring and the rx8 gasket. I am using the rx8 front cover a new rx8 front cover gasket. I am looking for a definitive answer if I should use the o-ring and front cover gasket or just the gasket. It appears that the front cover teflon oring is used in the 13brew because the front cover gasket does not include sealing in this area. Any help would be appreciated.
strokercharged95gt is offline
Old 10-28-2015, 07:32 PM
  #41
Registered
Thread Starter

Join Date: Sep 2005
Location: Tampa
Posts: 622
Thanked 45 Times in 42 Posts
I am installing my Adaptronics Select on my car. I have both narrowband's and a prosport wideband installed on the car. I didn't realize that the adaptronics used the upstream 02 for its calculations. I am planning on leaving everything in place and simply running the 0-5v output wire from the prosport wideband kit and tapping that into the narrowband harness.... I see that the front o2 sensor has 4 wires, 2 in and 2 out. It looks like the two output wires from the 02 sensor to the ECU are blue/orange and pink. Does anyone know which one of these wires I would connect my 0-5v wideband output into?????

Thanks

Update: Been in communication with Adaptronics staff, they have given me some pointers on how to use the RX8 PNP unit with the REW swap. They walked me though setting me up the wideband through the APV input. Began cranking the car yesterday to build some oil pressure, but blew the 100 amp inline fuse. Added an additional ground to the starter, but now im waiting for amazon to deliver me some additional fuses.

Last edited by strokercharged95gt; 11-08-2015 at 01:52 PM.
strokercharged95gt is offline
Old 11-10-2015, 11:09 PM
  #42
Fickert
iTrader: (6)

Fickert's Avatar

Join Date: Sep 2012
Location: Covington, Ohio
Posts: 230
Thanks: 0
Thanked 0 Times in 0 Posts
Subbed, Will be following closely.
Fickert is offline
Old 11-12-2015, 07:56 PM
  #43
Registered
iTrader: (3)

MaD666MaX's Avatar

Join Date: Jun 2008
Location: Montreal, Qc
Posts: 549
Thanks: 0
Thanked 3 Times in 3 Posts
Should not blow fuses, mine cranked right up after instal
MaD666MaX is offline
Old 11-13-2015, 03:14 PM
  #44
Registered
Thread Starter

Join Date: Sep 2005
Location: Tampa
Posts: 622
Thanked 45 Times in 42 Posts
Motor kicks over fine now, I originally tried cranking over the motor with a 13 year old red top that was low on charge. Also. only had one small ground to the motor. I added a 2awg wire from the Ac compressor to the shock tower. Been spinning the motor with the spark plugs out, oil is moving around the motor, but I am getting oil weeping out of the oil pedestal mount at the rear iron while oil pressure builds. Going to try and make my own gasket instead of modifying an rx8 gasket. Will try some hylomar and some torque on the bolts. My next option would be to buy a CXRacing pedestal mount and use an inline filter between the oil cooler and line into the motor. Will wait another week for a $5 part. Getting closer.

Name:  IMG_2728_zpsnv3ihlv8.jpg
Views: 748
Size:  260.6 KB
Name:  IMG_2735_zps94ysqqjc.jpg
Views: 706
Size:  274.0 KB

Last edited by strokercharged95gt; 11-13-2015 at 03:42 PM.
strokercharged95gt is offline
Old 11-14-2015, 07:47 PM
  #45
Jwn
New Member

Join Date: Nov 2015
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Hi guys. Im new here and gonna get my rx8 soon ! I have a questions, please help me. My friend offered me an oem 04 rx8 m/t and 04'rx8 with swapped engine. 13B rew fd3s. The oem one cost more expensive than the 13B rew one. Which one is better ? Which is have less problem. I'd like to have an turbo on my rx8, so , which is better? Rx8 engine with additional turbo. Or 13b rew twinturbo? Thanks guys.
Jwn is offline
Old 11-15-2015, 11:23 AM
  #46
Registered
Thread Starter

Join Date: Sep 2005
Location: Tampa
Posts: 622
Thanked 45 Times in 42 Posts
Originally Posted by Jwn View Post
Hi guys. Im new here and gonna get my rx8 soon ! I have a questions, please help me. My friend offered me an oem 04 rx8 m/t and 04'rx8 with swapped engine. 13B rew fd3s. The oem one cost more expensive than the 13B rew one. Which one is better ? Which is have less problem. I'd like to have an turbo on my rx8, so , which is better? Rx8 engine with additional turbo. Or 13b rew twinturbo? Thanks guys.
I think the consensus would be

REW = More Power, More Expensive, More Reliable, Harder to Install
MSP = Less Power, Less Expensive, Less Reliable, Easier to Install
strokercharged95gt is offline
Old 11-15-2015, 11:58 AM
  #47
Registered
iTrader: (3)

MaD666MaX's Avatar

Join Date: Jun 2008
Location: Montreal, Qc
Posts: 549
Thanks: 0
Thanked 3 Times in 3 Posts
Cx racing adaptor wont fit. Check with forcefed they make a really nice one for our application
MaD666MaX is offline
Old 11-16-2015, 10:43 AM
  #48
Registered
Thread Starter

Join Date: Sep 2005
Location: Tampa
Posts: 622
Thanked 45 Times in 42 Posts
Do you mind posting a link or contact info, there are a ton of Force-fed shops and I can't find anything about an oil pedestal mount. I want a backup plan in case I cant get this gasket to seal.

Thanks
strokercharged95gt is offline
Old 11-16-2015, 11:09 AM
  #49
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,615
Thanked 81 Times in 78 Posts
ForceFed 604 852-3755

#108 31120 Peardonville Road
Abbotsford BC V2T 6K7

Ask for Marko or Taylor
dannobre is offline
Old 11-17-2015, 06:38 AM
  #50
Jwn
New Member

Join Date: Nov 2015
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by strokercharged95gt View Post
I think the consensus would be

REW = More Power, More Expensive, More Reliable, Harder to Install
MSP = Less Power, Less Expensive, Less Reliable, Easier to Install

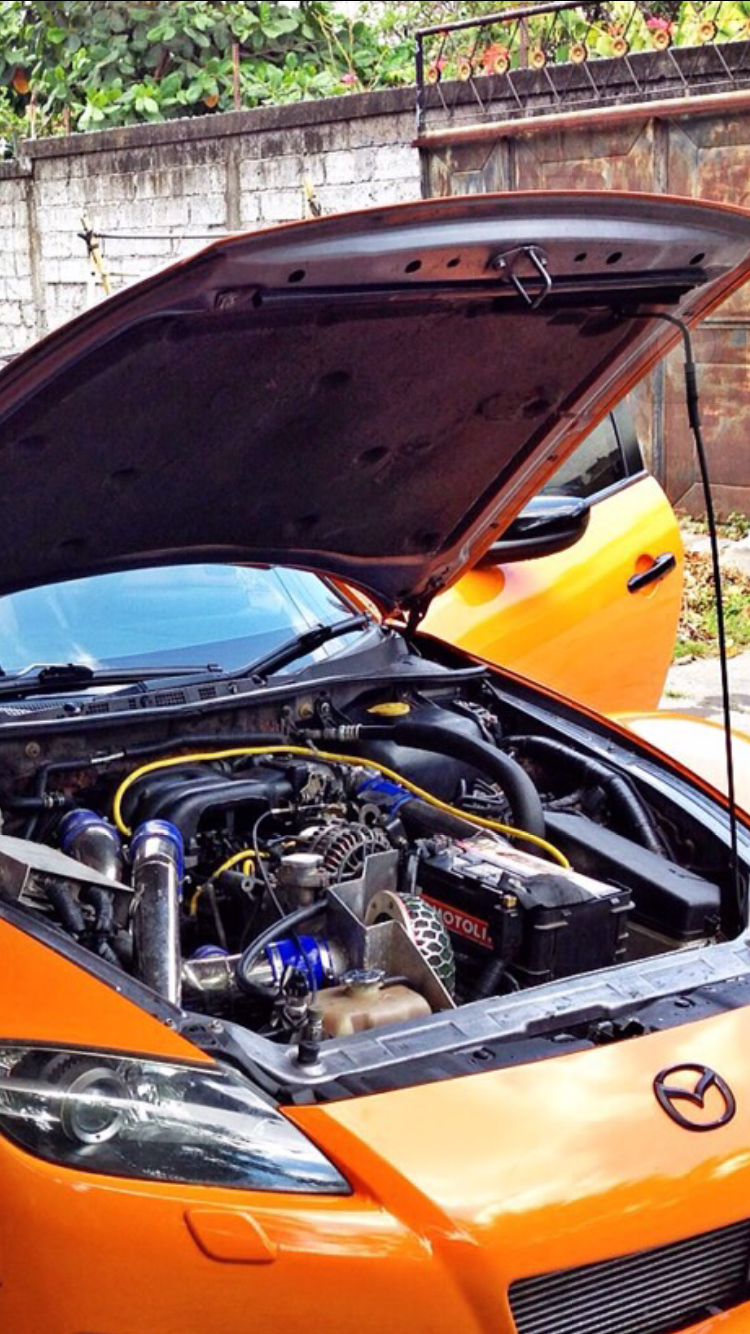

Here's the pict of rew engine. Is this good? Or better buy an msp one?
Attached Thumbnails Strokercharged95GT 13b-REW Build-image.png
Jwn is offline
