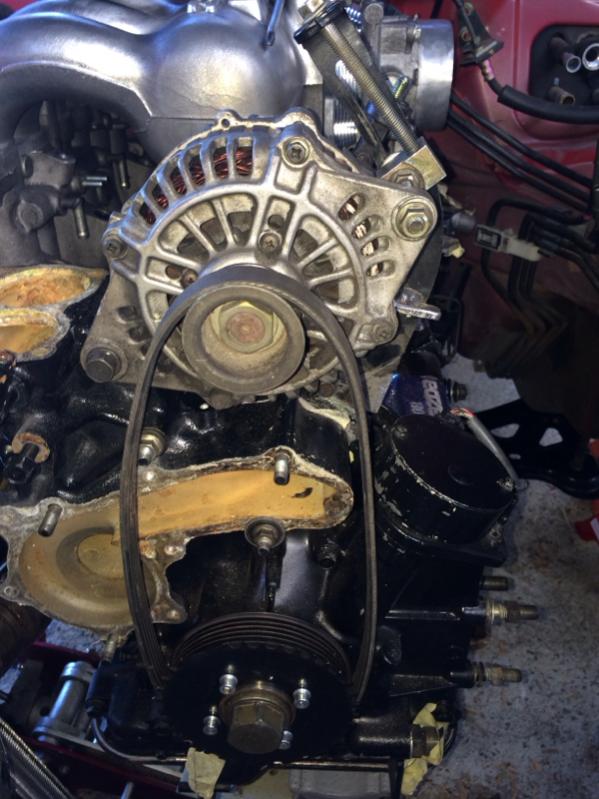

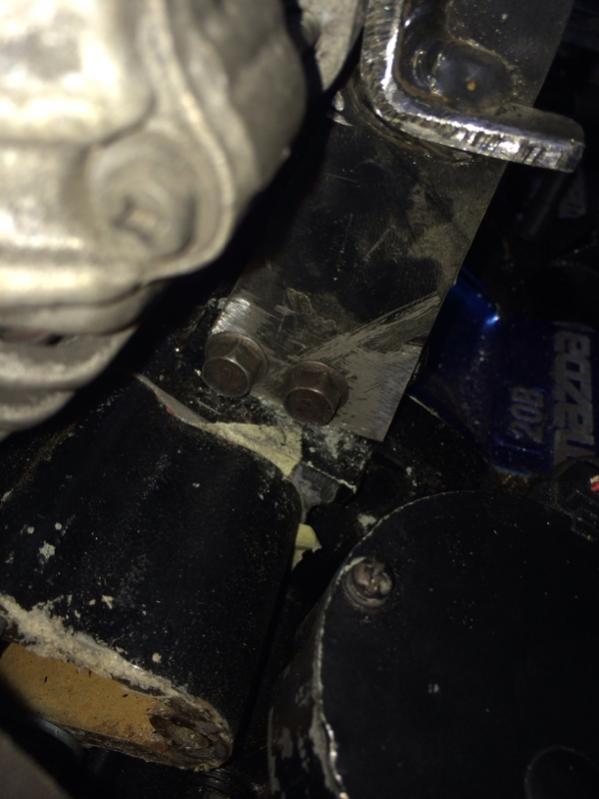

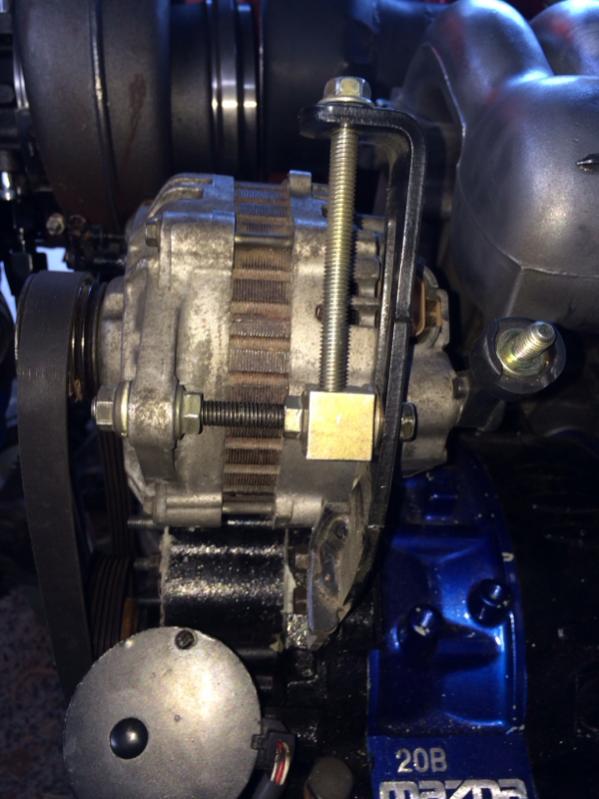

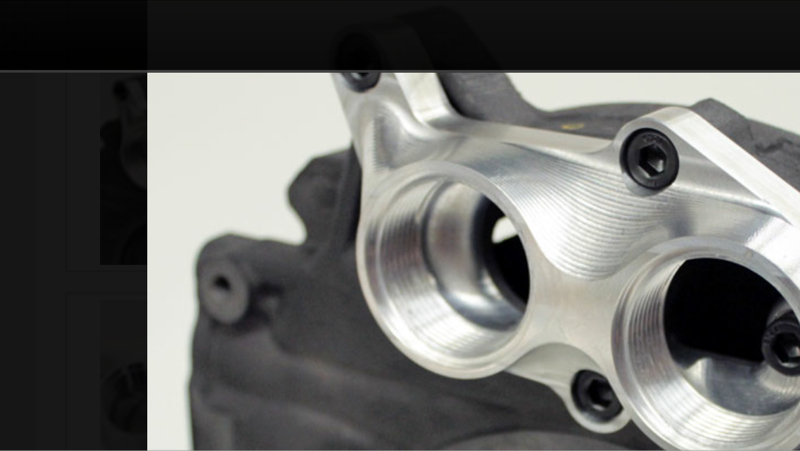

Well I decided to totally do away with the factory WP housing which required a change to the alternator bracket location.

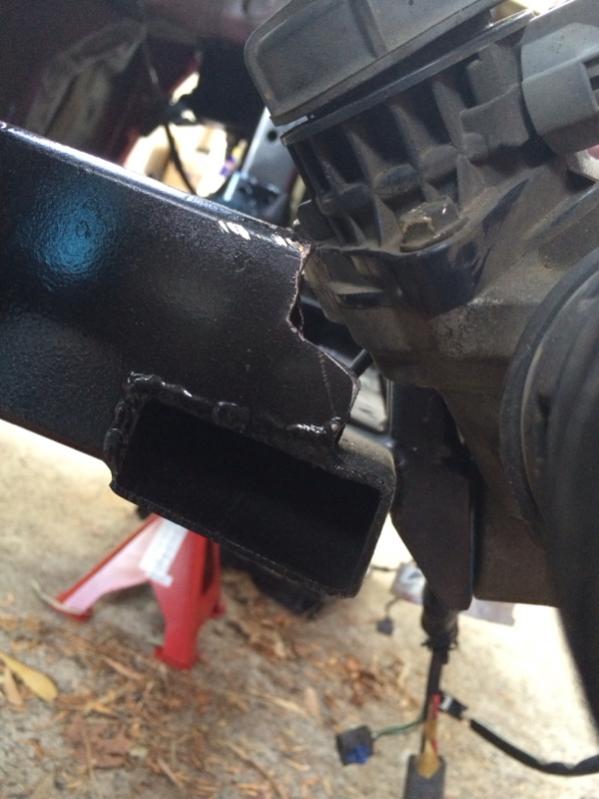

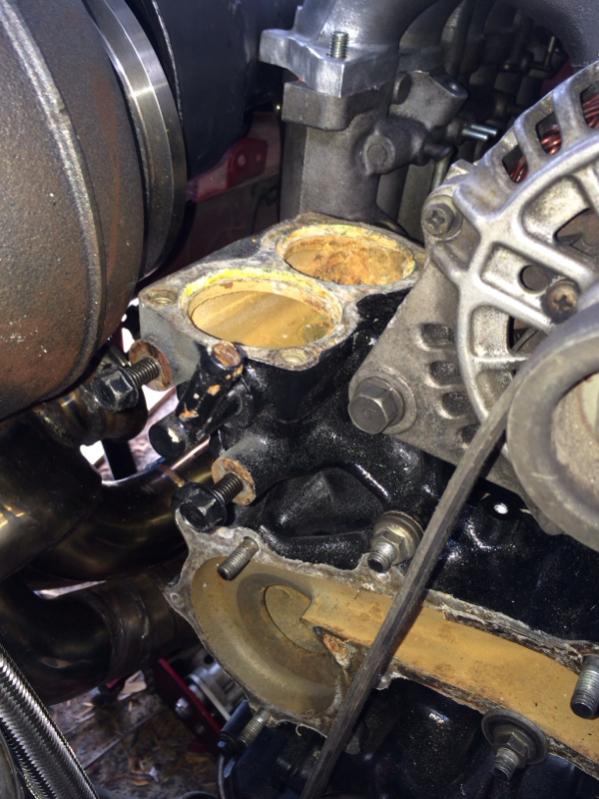

I will for the time being chop out 2/3s of the housing and leave just enough to mount the alt. I will also find a shorter belt to keep the alt as low as possible. At a later stage I will cut the bracket shorter n weld it together to get the alt even lower.

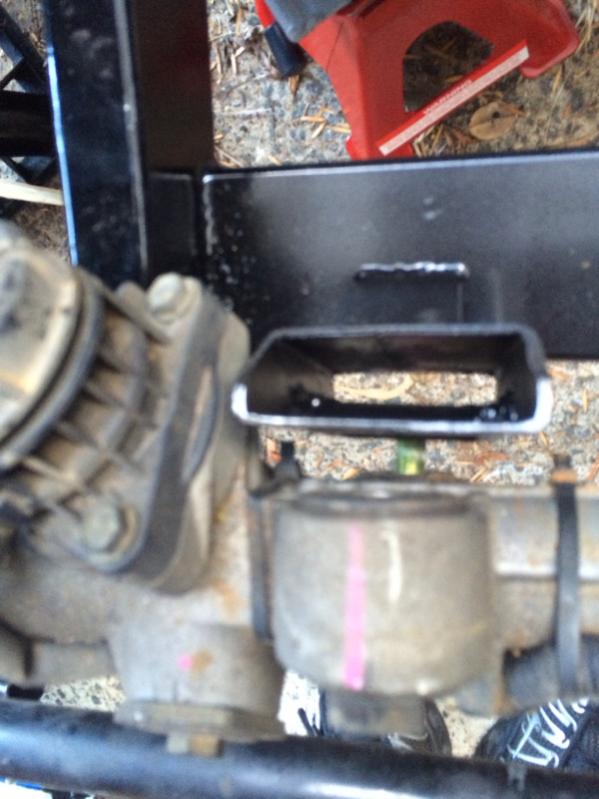

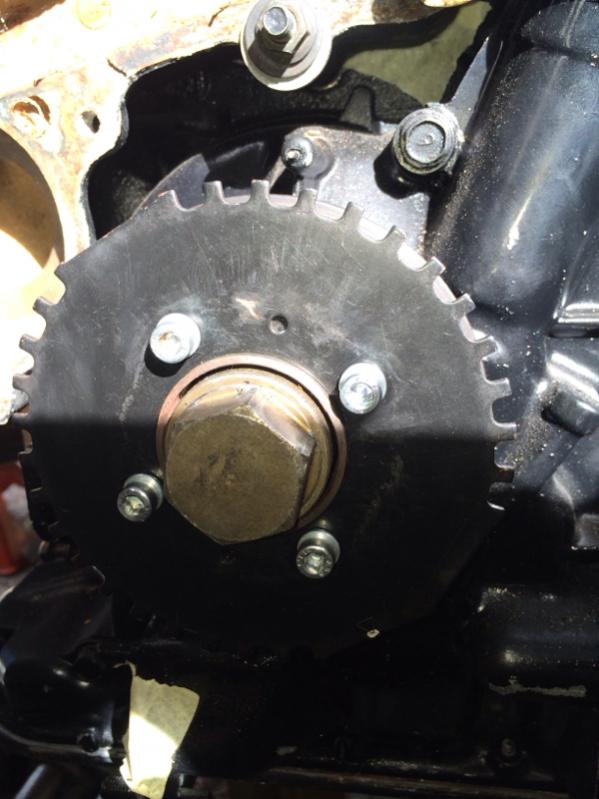

Turned the crank wheel to the correct position and re drilled one hole on the pulley for alt to make it line up seeing as it is the rx8 one and I reversed it.

Can anyone tell me- will the rx8 crank wheel be in the correct position on a 20b engine with all 4 holes lined up?
Attached Thumbnails 20b rx8-image-2893608508.jpg   20b rx8-image-3904728597.jpg   20b rx8-image-3399698388.jpg   20b rx8-image-883712503.jpg   20b rx8-image-937717888.jpg

20b rx8-image-2455011206.jpg   20b rx8-image-3223868304.jpg   20b rx8-image-2659355148.jpg
SiNfidelity is offline
Old 08-06-2014, 03:32 AM
  #52
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts
WooooHooooo

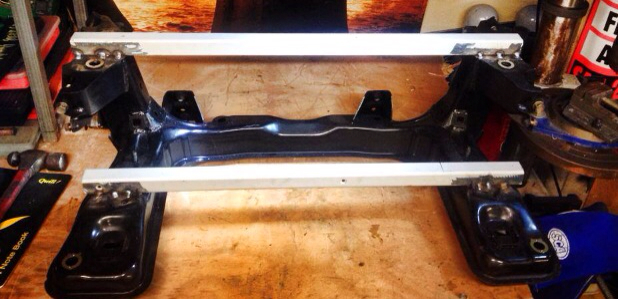

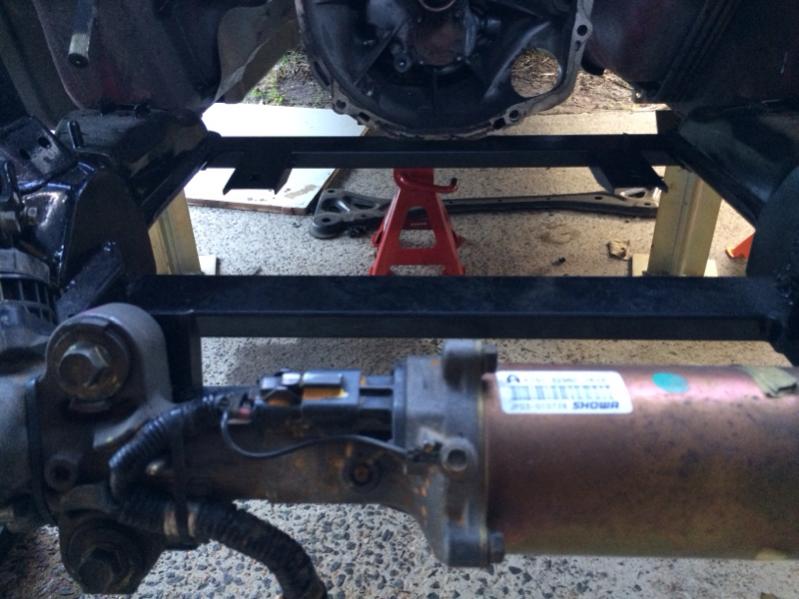

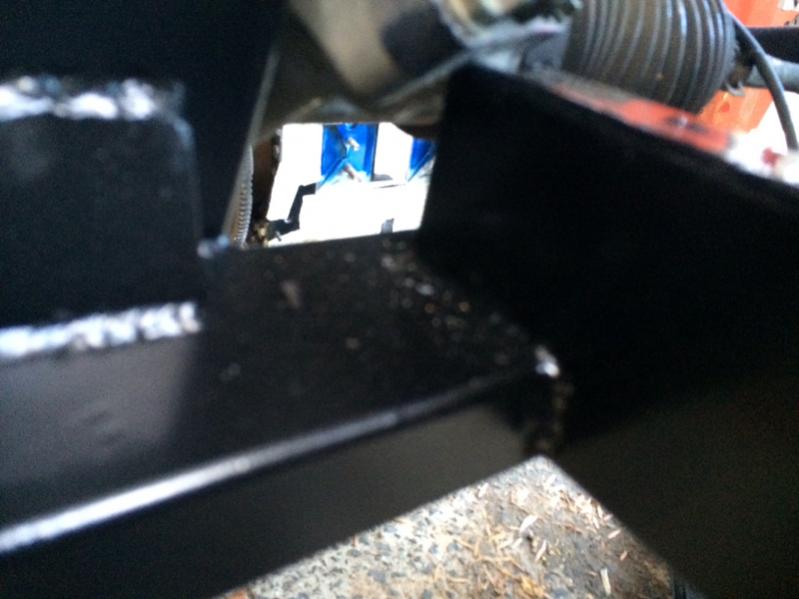

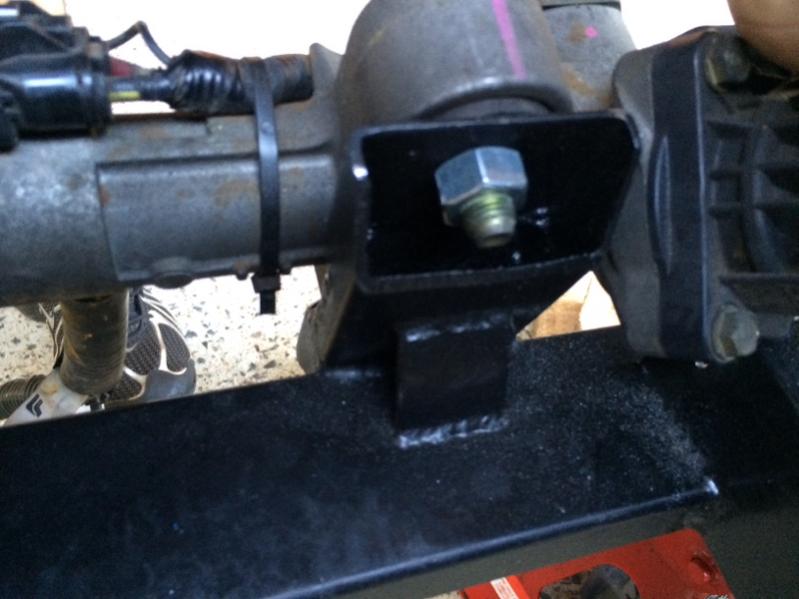

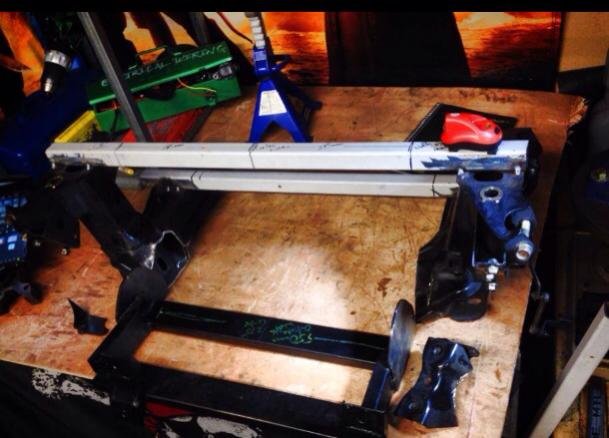

The sub frame cut n ready for the rack extension.
Attached Thumbnails 20b rx8-image-842289600.jpg   20b rx8-image-3100840077.jpg   20b rx8-image-4226412001.jpg   20b rx8-image-3093448730.jpg
SiNfidelity is offline
Old 08-13-2014, 10:51 AM
  #53
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts

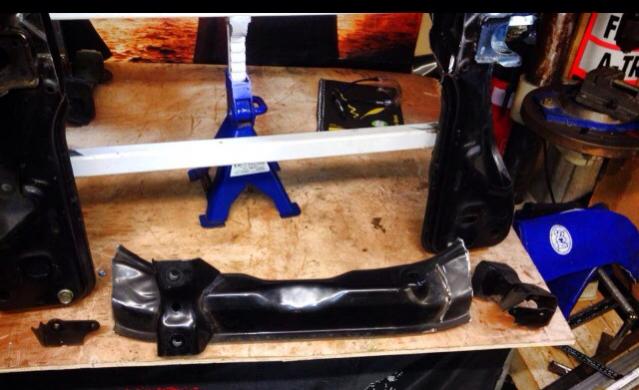

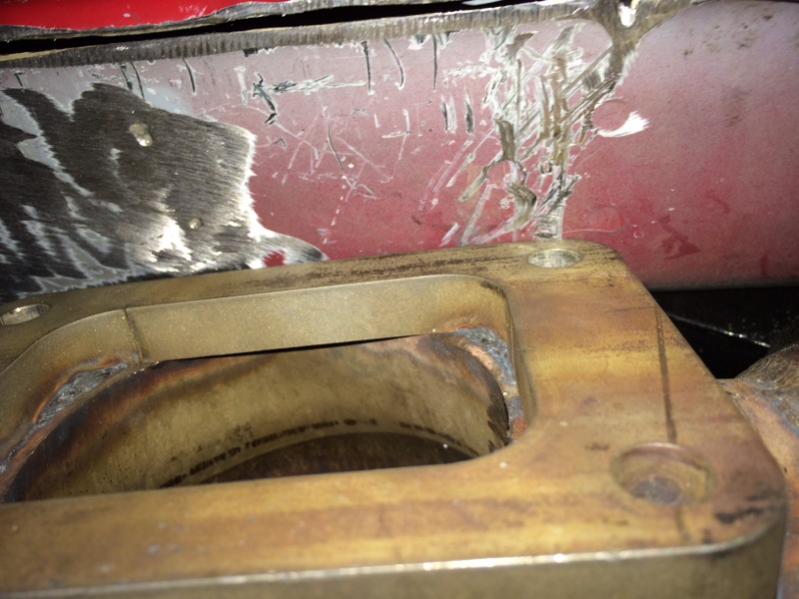

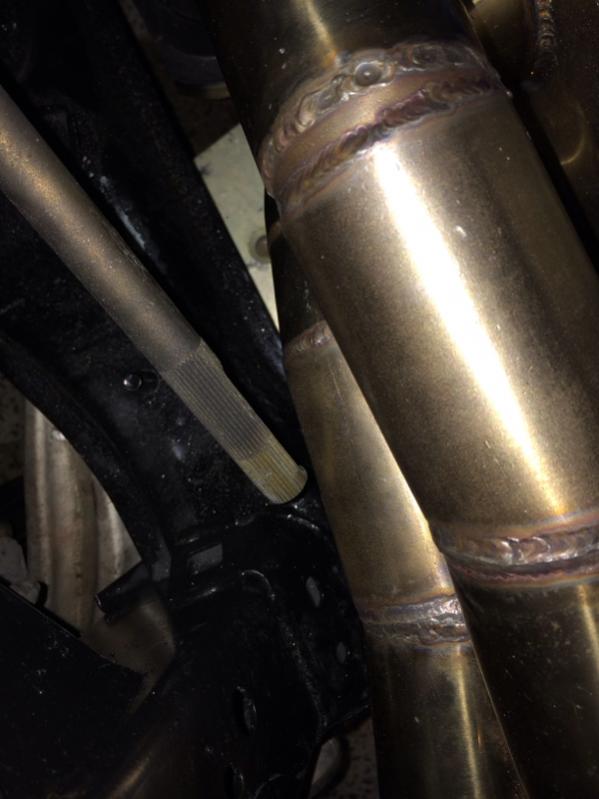

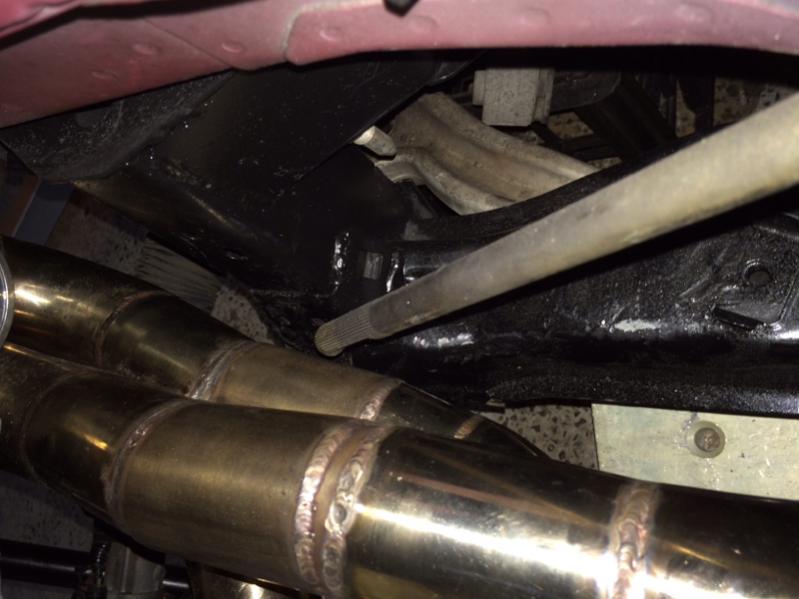

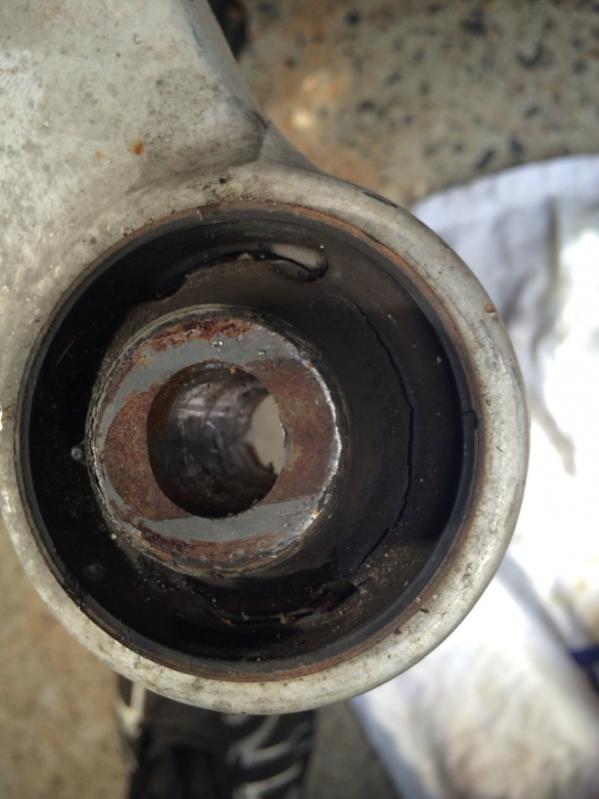

Guess i better replace all the bushes while I'm at it. Noticed one is damaged, possibly more. See pic. Decided to clean up a bit. Grinding the rest of that radiator support off and removing the abs n grinding off the protruding piece under. Tidied up my hack into the sill. Installed subframe n crossmember. Trial fit engine again. Oh yeh, couldn't bolt on the rack completely cos someone made a boo boo on their extension. Luckily it was an easy fix Discovered the 4th manifold clearance issue-steer rod clash. Grrr. I was gonna modify this manifold but I think it would be better to fab a newbie with the help of my welder friend in bris- acacia customs. (Thanks Andy for the subframe weld). Also lashed out n bought an xtreme rotaries ewp adaptor, these things are of amazing quality n design. I searched for the last 6months n couldn't find one better. It is expensive tho.
Attached Thumbnails 20b rx8-image-3963667935.jpg   20b rx8-image-3964623738.jpg   20b rx8-image-788786051.jpg   20b rx8-image-3903068073.jpg   20b rx8-image-3805478075.jpg

20b rx8-image-4189590354.jpg   20b rx8-image-3784533010.jpg   20b rx8-image-1406308176.jpg   20b rx8-image-595392122.jpg   20b rx8-image-4118047368.jpg

20b rx8-image-2597707403.jpg   20b rx8-image-46730024.jpg   20b rx8-image-2461268904.jpg

Last edited by SiNfidelity; 08-13-2014 at 10:53 AM.
SiNfidelity is offline
Old 08-15-2014, 05:41 AM
  #54
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts

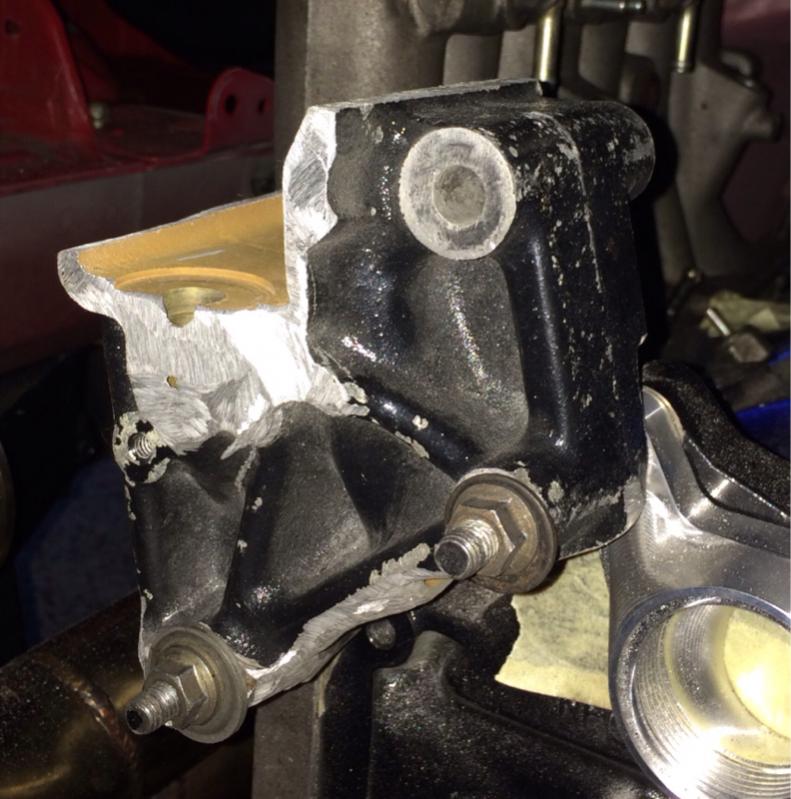

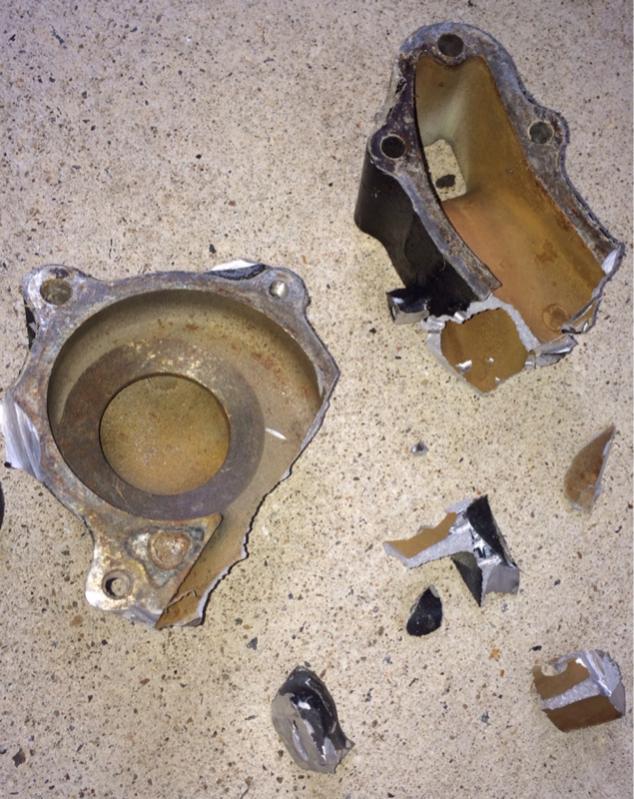

What I removed pic 1 What is left pic 2 So as to retain the original mounting points for alt. I have about 60mm between belt and ewp adaptor so I'm gonna need very low profile elbow connectors.
Attached Thumbnails 20b rx8-image-2226996611.jpg   20b rx8-image-1850820634.jpg   20b rx8-image-339643641.jpg   20b rx8-image-4210740840.jpg

Last edited by SiNfidelity; 08-15-2014 at 05:43 AM.
SiNfidelity is offline
Old 08-19-2014, 11:12 AM
  #55
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts

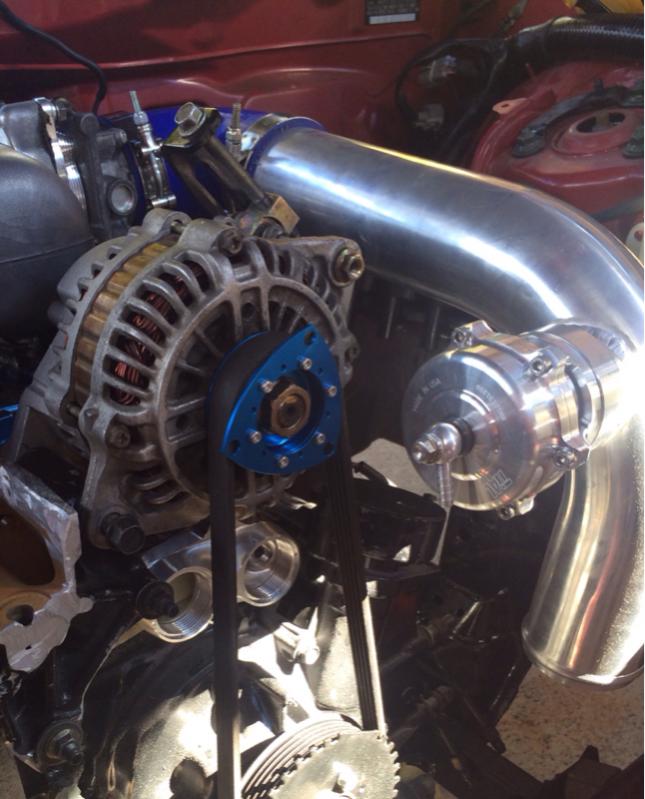

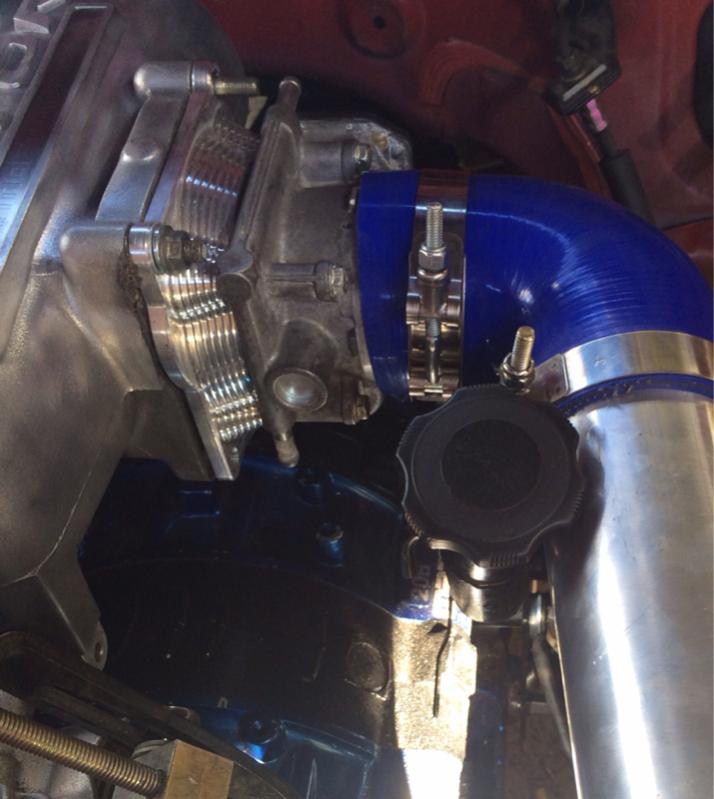

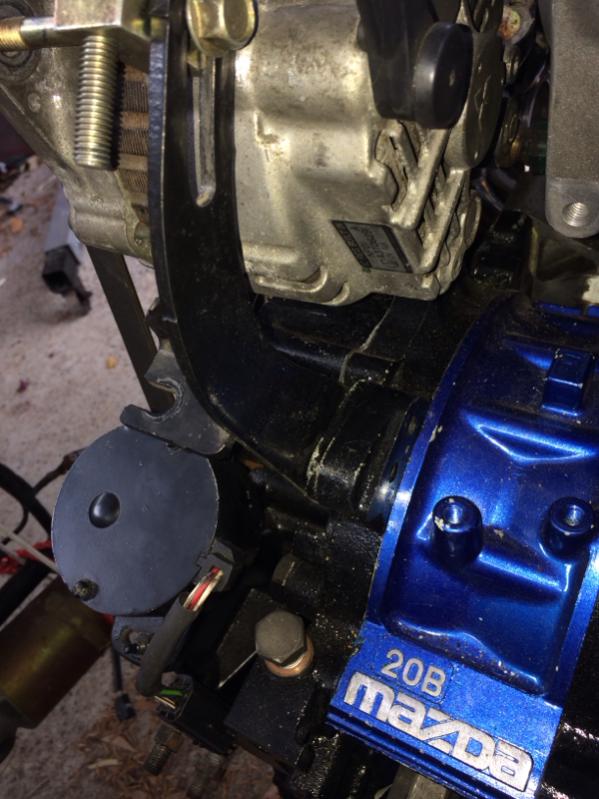

Rotor shaped Alternator pulley. I'll put this on my st car tho as I need a under drive pulley for belt clearance if the ewp adaptor

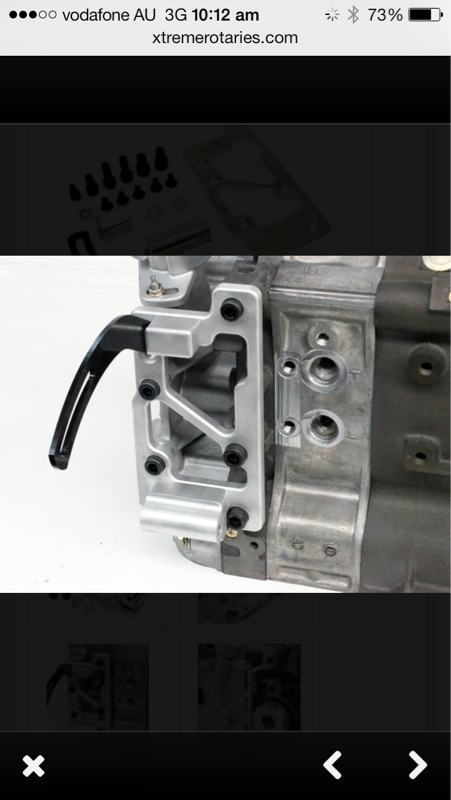

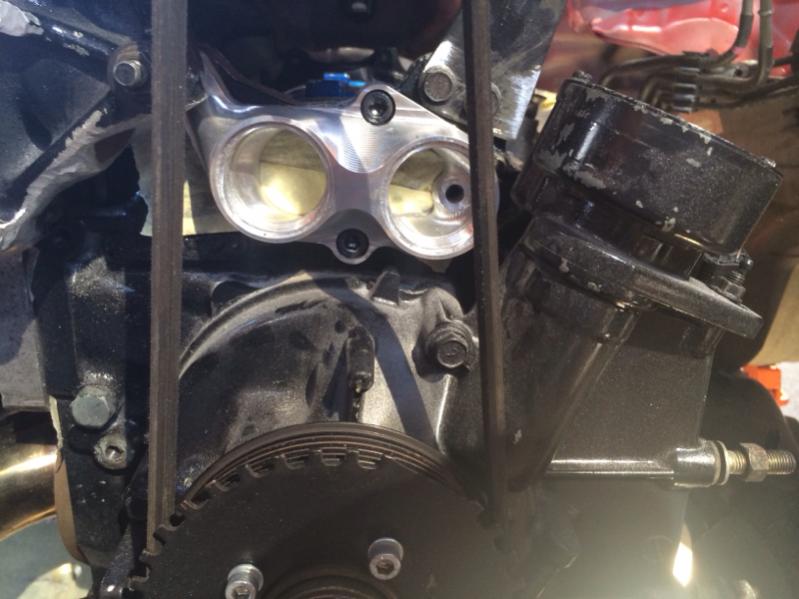

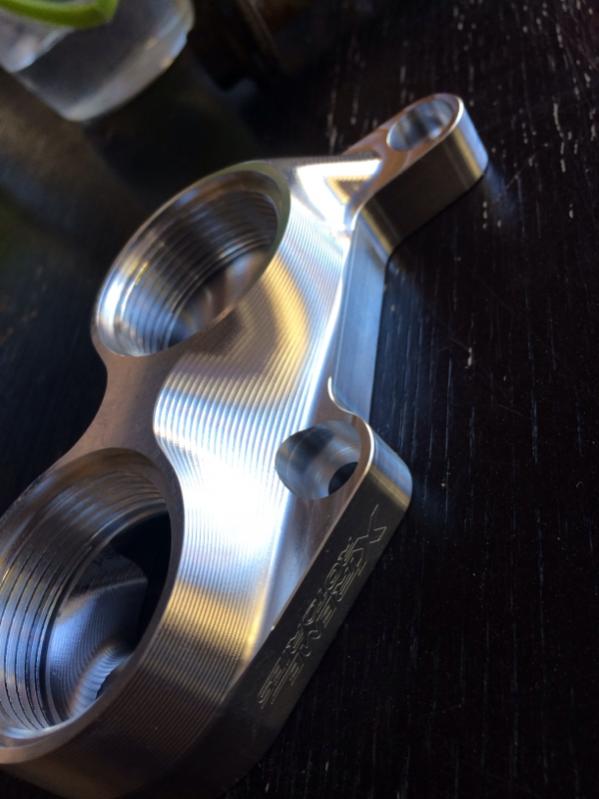

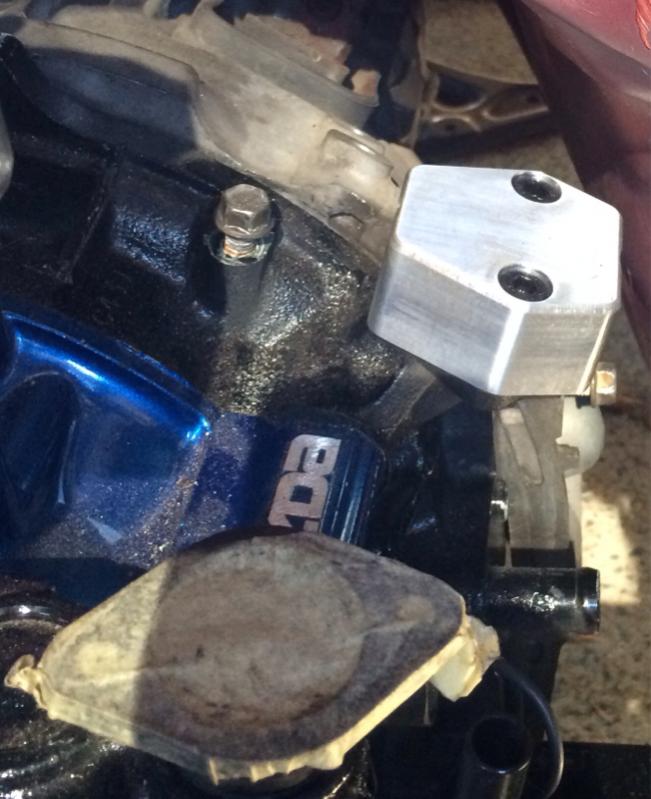

Xtreme rotaries oil bypass plate

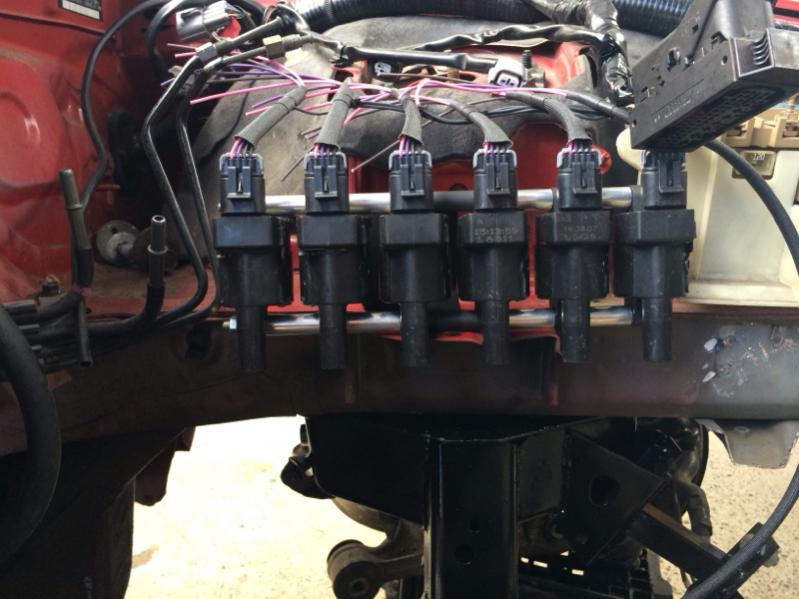

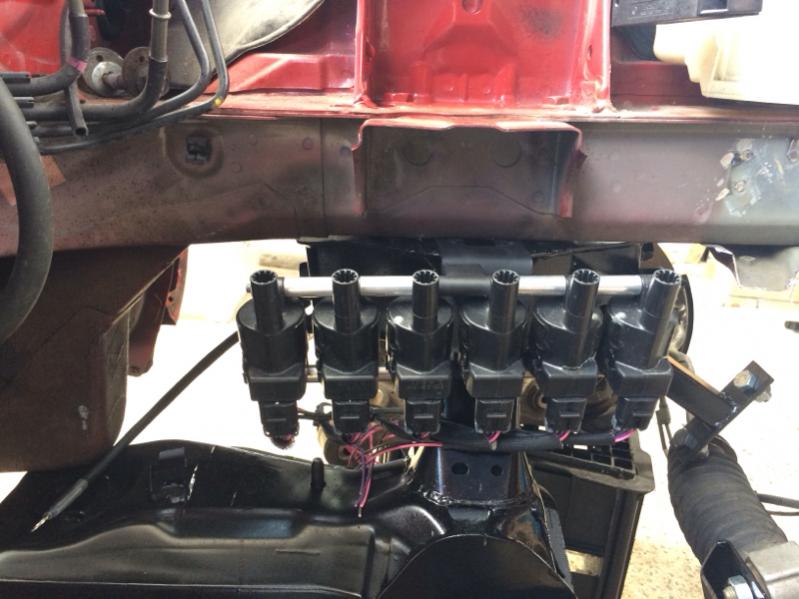

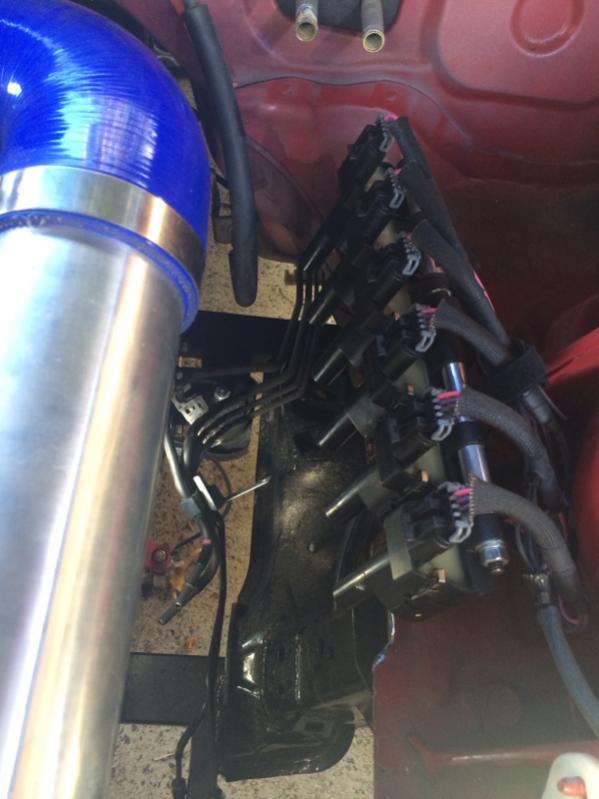

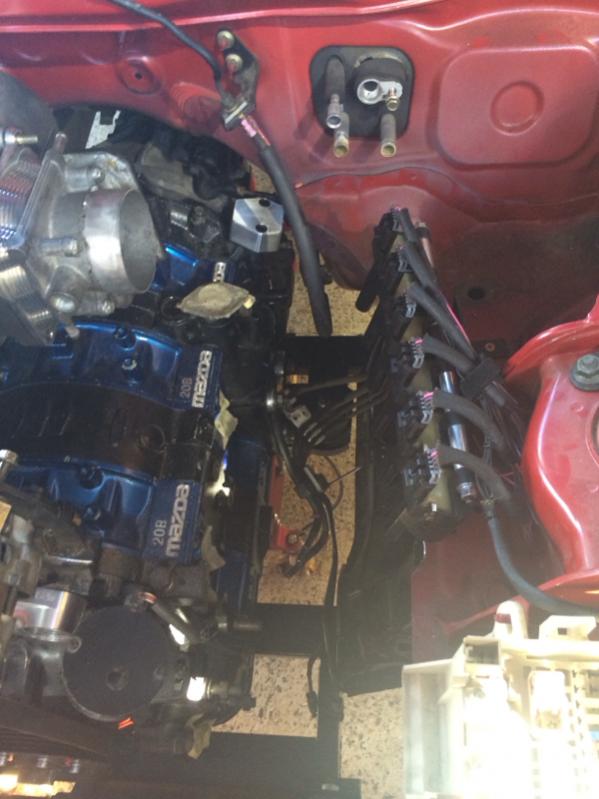

Coil packs mounted on what I think is the best position.

Oil filler will need a tiny mod for clearance.
Attached Thumbnails 20b rx8-image-2211371206.jpg   20b rx8-image-98459357.jpg   20b rx8-image-1420021007.jpg   20b rx8-image-1840283005.jpg   20b rx8-image-2313835915.jpg

20b rx8-image-1721360888.jpg   20b rx8-image-2048431174.jpg
SiNfidelity is offline
Old 08-20-2014, 09:42 AM
  #56
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts

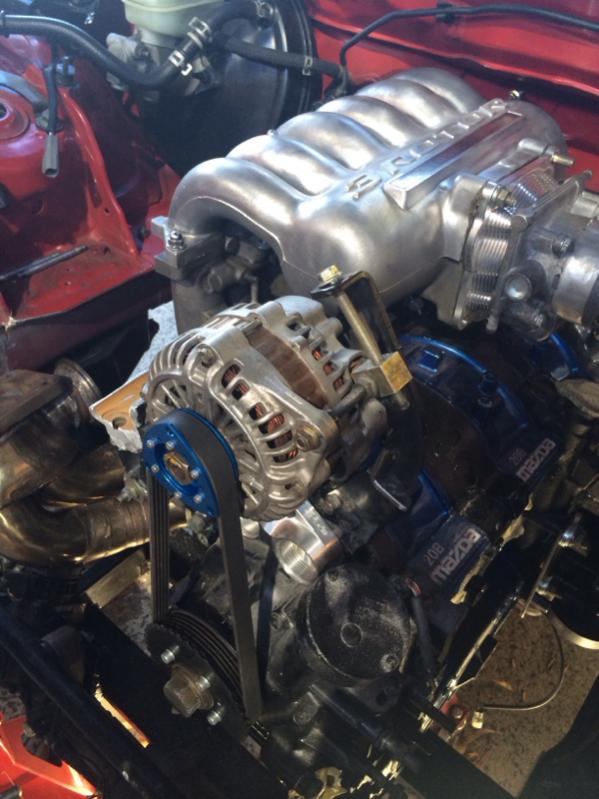

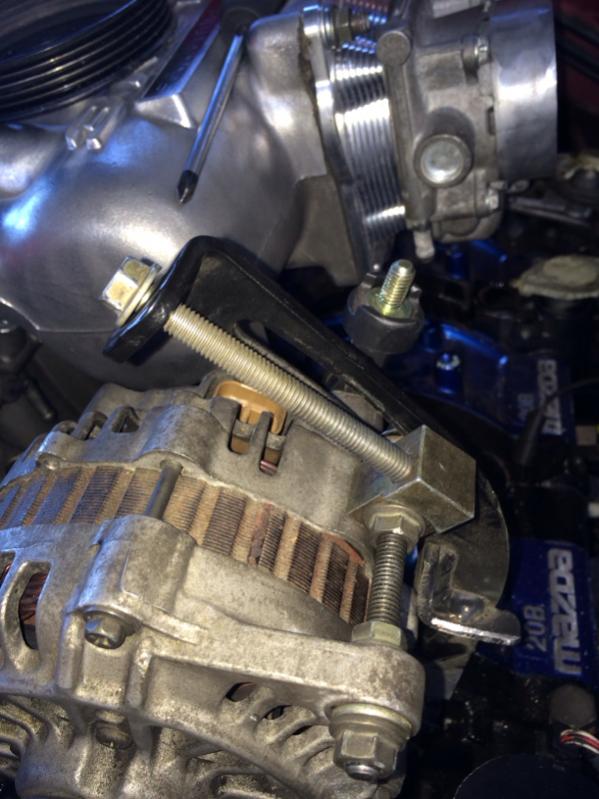

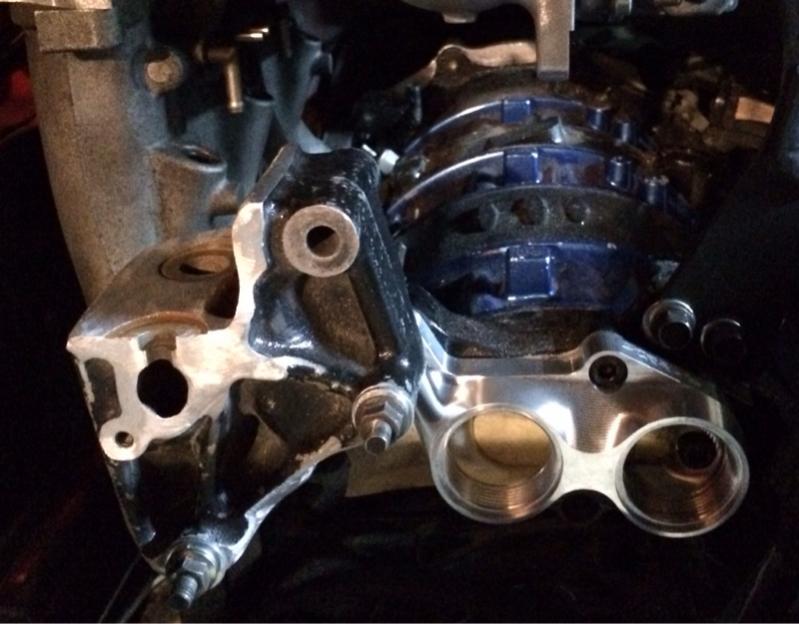

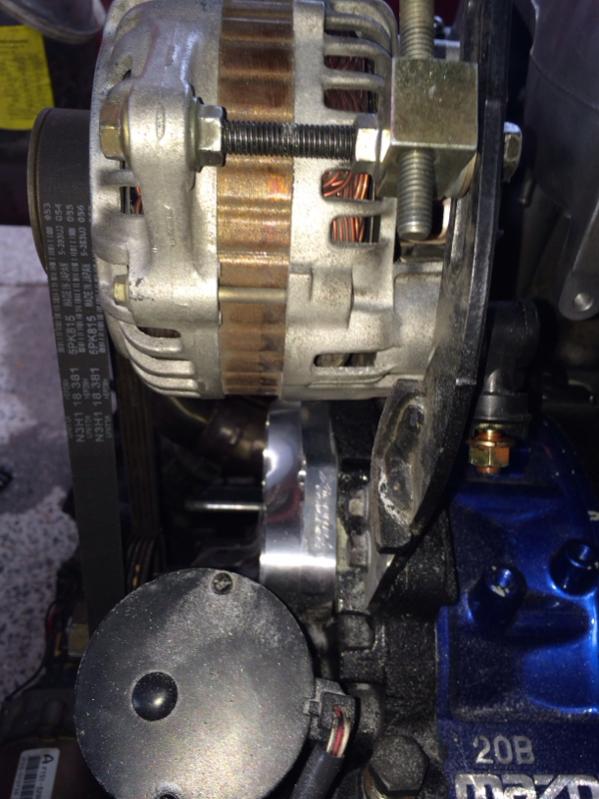

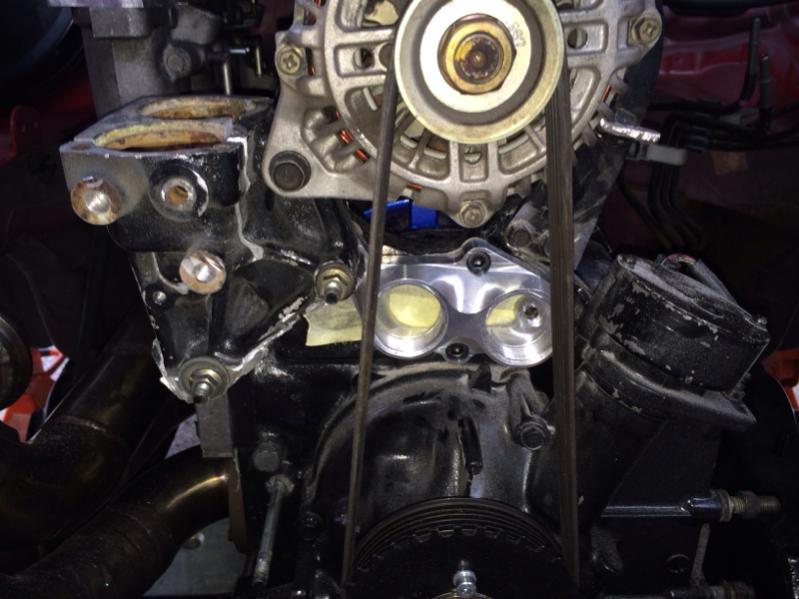

Trimmed the water pump some more. Trying to make it look interesting as well as lighter.
Trimmed n painted the alt bracket too.

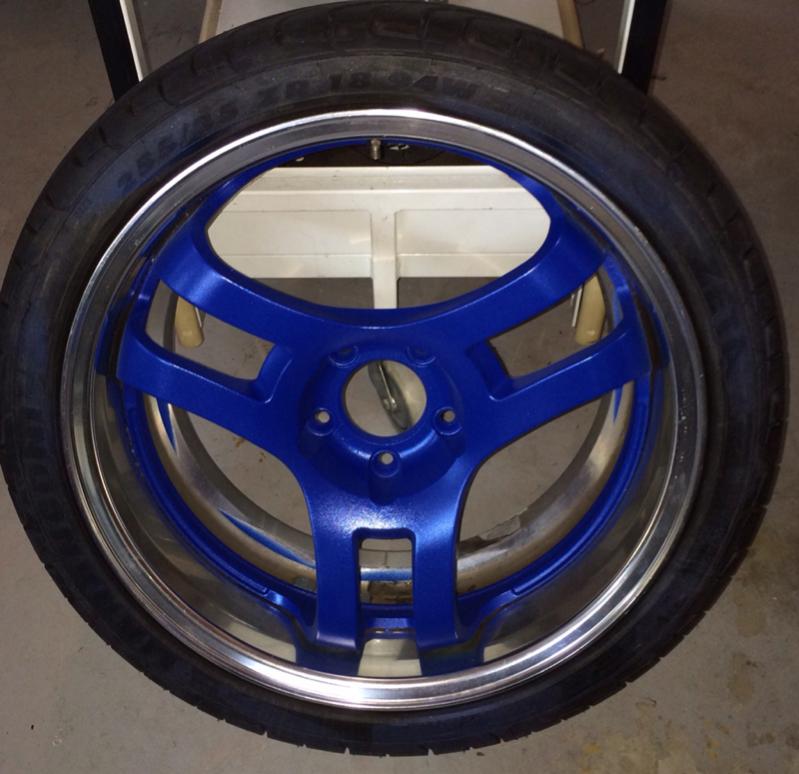

Trying out plastidip on my blue car. These rims had gold spoke before tonight. I'll take pics tomoz when I put em back on.
Attached Thumbnails 20b rx8-image-25067682.jpg   20b rx8-image-985479628.jpg   20b rx8-image-1800317670.jpg
SiNfidelity is offline
Old 08-22-2014, 07:48 AM
  #57
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts

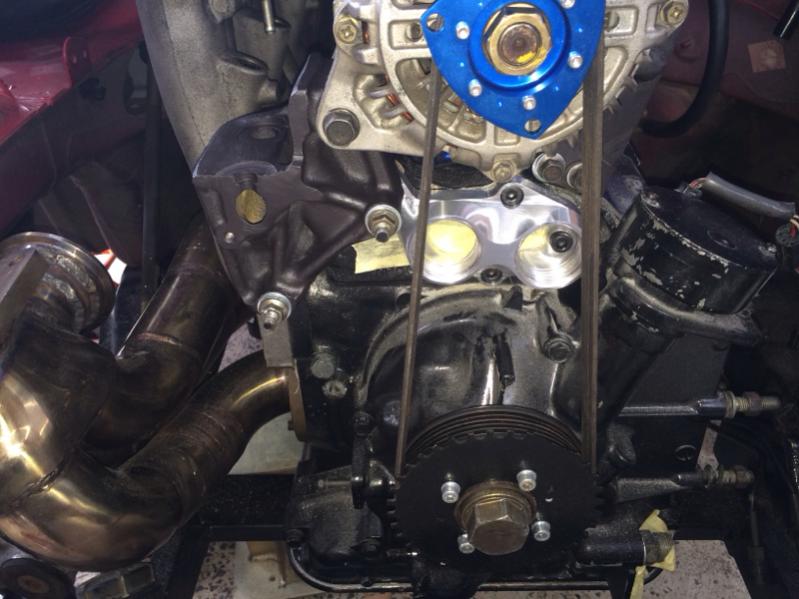

Finished off the alt bracket.
Attached Thumbnails 20b rx8-image-3075236487.jpg

Last edited by SiNfidelity; 08-22-2014 at 07:50 AM.
SiNfidelity is offline
Old 08-22-2014, 01:57 PM
  #58
El Jefe

yomomspimp06's Avatar

Join Date: Mar 2007
Posts: 1,796
Thanked 3 Times in 3 Posts
i really want those wheels. Put them on every rx7 I build in video games. ADVAN SA3R mmmmm
yomomspimp06 is offline
Old 08-22-2014, 09:21 PM
  #59
Registered

Join Date: Mar 2010
Location: Brap City
Posts: 100
Thanks: 0
Thanked 1 Time in 1 Post
Keep it up your progress is showing results ;-)
RedDream is offline
Old 08-23-2014, 12:30 PM
  #60
Registered
iTrader: (10)

GK1707's Avatar

Join Date: Jan 2012
Location: Queens, NY
Posts: 1,052
Thanks: 0
Thanked 2 Times in 2 Posts
Keep up the work! We need more 20B 8s lol.
GK1707 is offline
Old 08-27-2014, 09:12 AM
  #61
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts

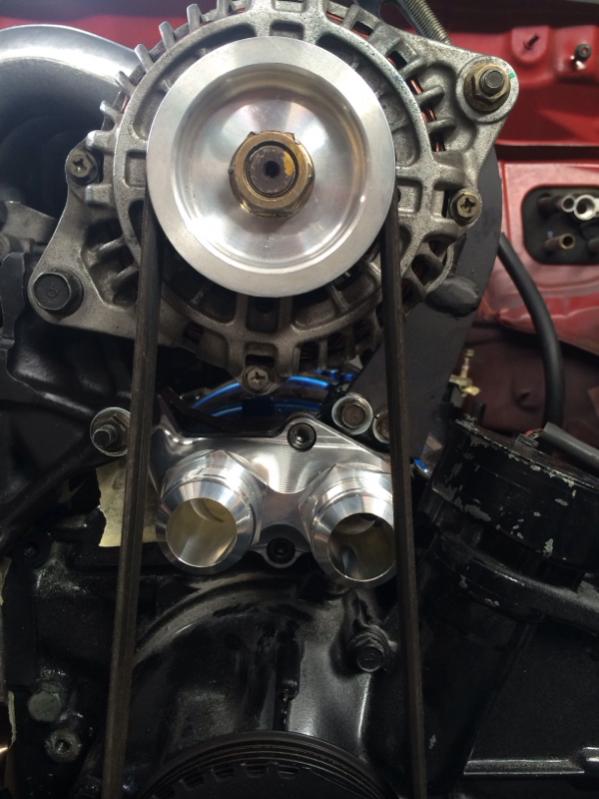

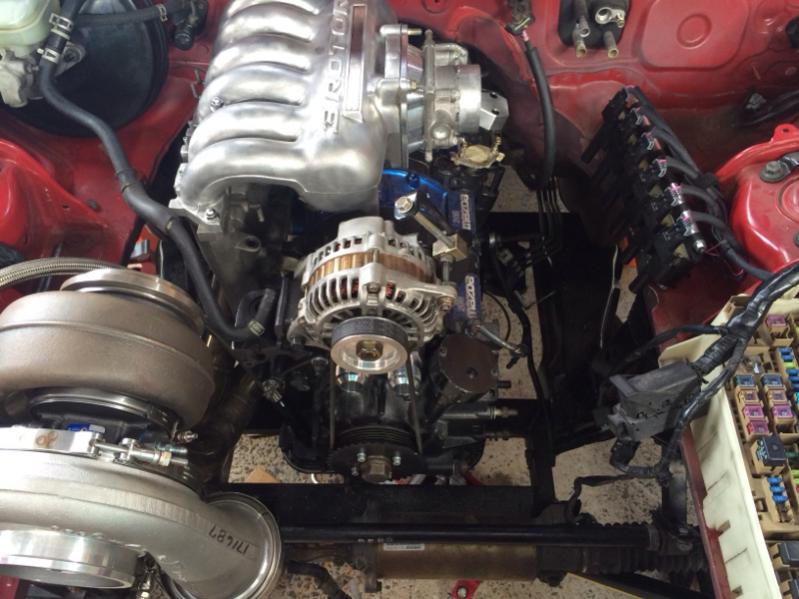

Received the larger pulley from xtreme. Certainly gained me some extra clearance for the ewp adaptor. Will see how it goes with the 45degree an20 fittings when they arrive. If it doesn't clear I may swap the an20s for an16 to gain some room.
I think the an20s are a waste anyway seeing as most ewp's are an16.
Attached Thumbnails 20b rx8-image-4116406577.jpg   20b rx8-image-2688489769.jpg
SiNfidelity is offline
Old 08-27-2014, 09:15 AM
  #62
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts
Does anyone know where to buy rear camber alignment bolts, preferably in Australia.
Except for mazda. I'd hate to think how much they cost from them.
SiNfidelity is offline
Old 08-27-2014, 02:09 PM
  #63
Renesis out... REW in
iTrader: (3)

firecran's Avatar

Join Date: Jan 2007
Location: Melbourne, Fl
Posts: 1,526
Thanks: 0
Thanked 0 Times in 0 Posts
Question

Originally Posted by SiNfidelity View Post
Received the larger pulley from xtreme. Certainly gained me some extra clearance for the ewp adaptor. Will see how it goes with the 45degree an20 fittings when they arrive. If it doesn't clear I may swap the an20s for an16 to gain some room.
I think the an20s are a waste anyway seeing as most ewp's are an16.

Not sure if its been discussed but why not relocate the alt to the ps or a/c compressor location.


.
firecran is offline
Old 08-28-2014, 04:02 AM
  #64
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts
Originally Posted by firecran View Post
Not sure if its been discussed but why not relocate the alt to the ps or a/c compressor location. .
Trying something different as I'm
Considering a 20b in my st car also, so I want to see if I can keep the AC etc, at least at the start. Once it's on the track ill remove the ac again.
SiNfidelity is offline
Old 08-28-2014, 04:09 AM
  #65
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts

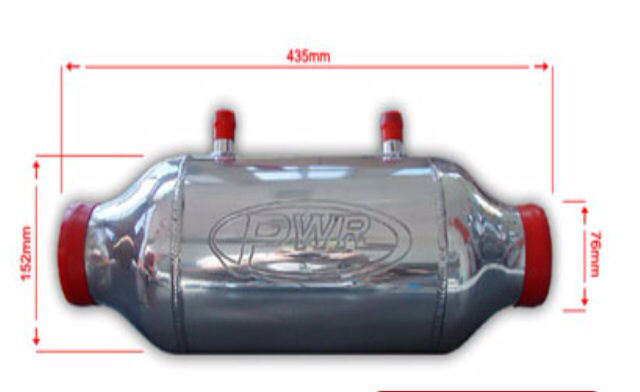

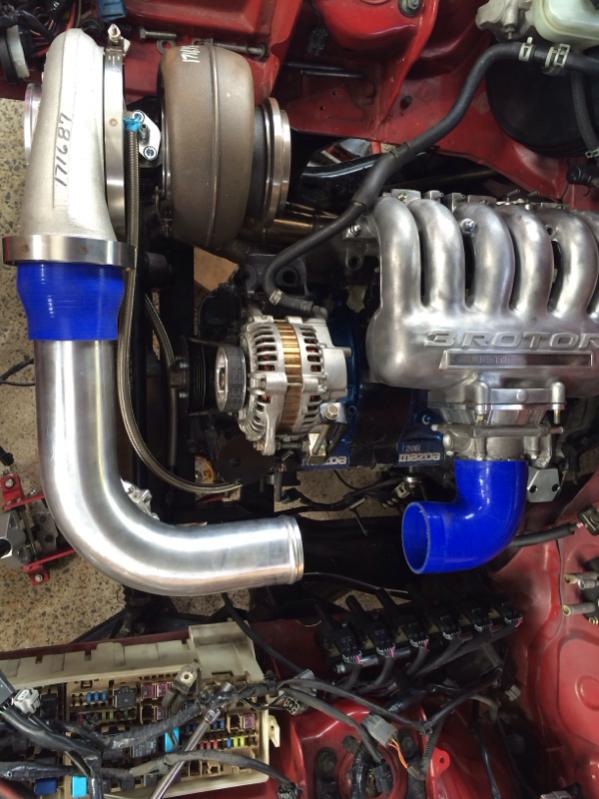

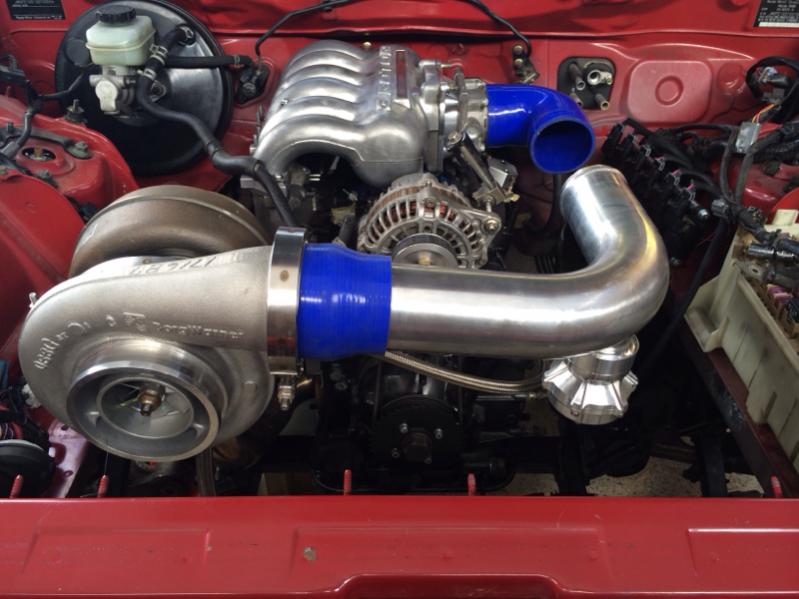

Gonna be using one of these bad boys now too.
Liquid to air- barrel intercooler. Will run along the side from the TB 90degree to the front 90degree.
Will save a lot of space and also produce less lag.
Yeehaww

Ouch their expensive tho.

Gotta squeeze in that BOV between TB n barrel too.
Attached Thumbnails 20b rx8-image-93953417.jpg   20b rx8-image-1034717566.jpg   20b rx8-image-933904844.jpg
SiNfidelity is offline
Old 09-02-2014, 10:27 AM
  #66
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts

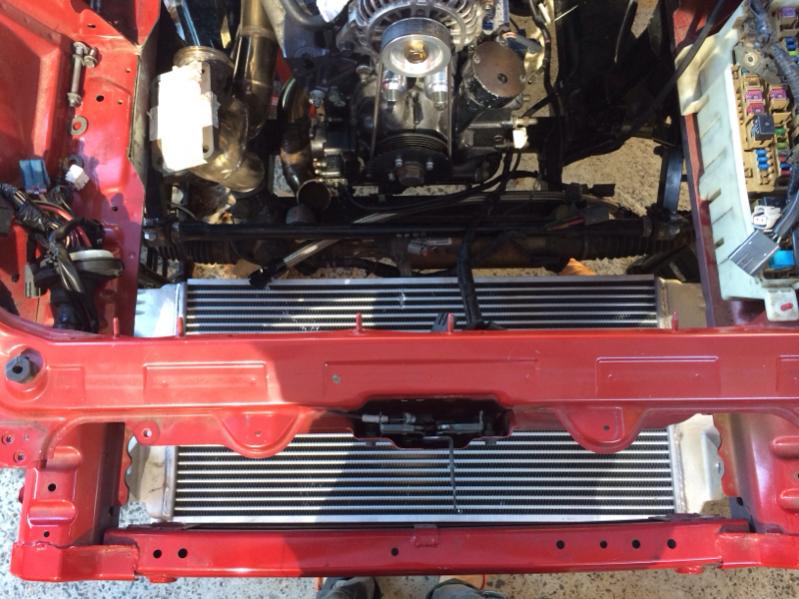

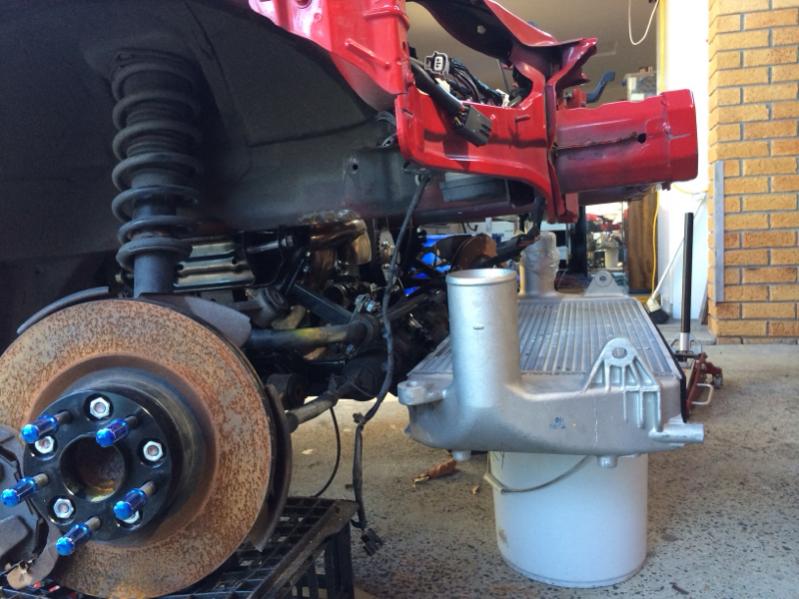

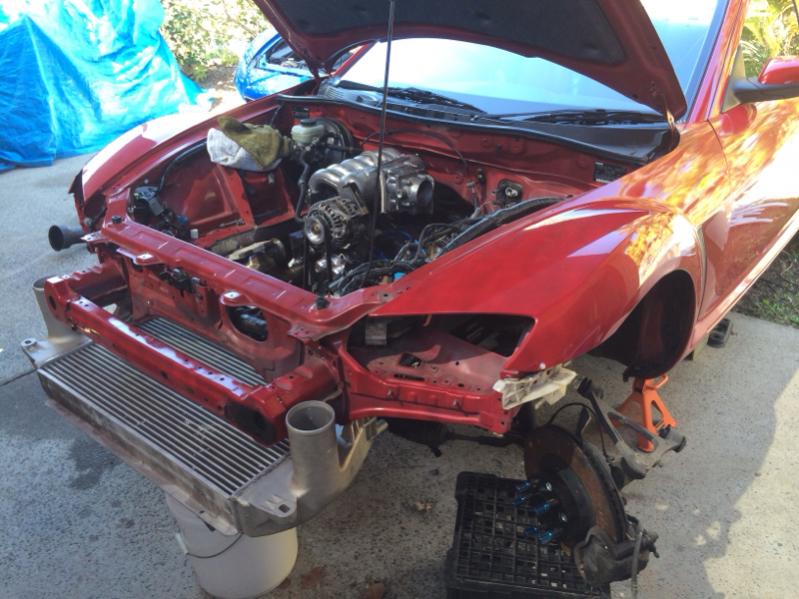

Umm, is this too big!??

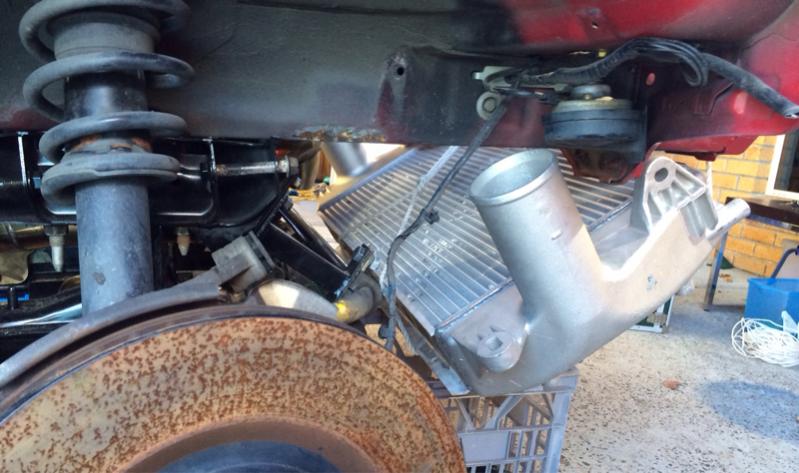

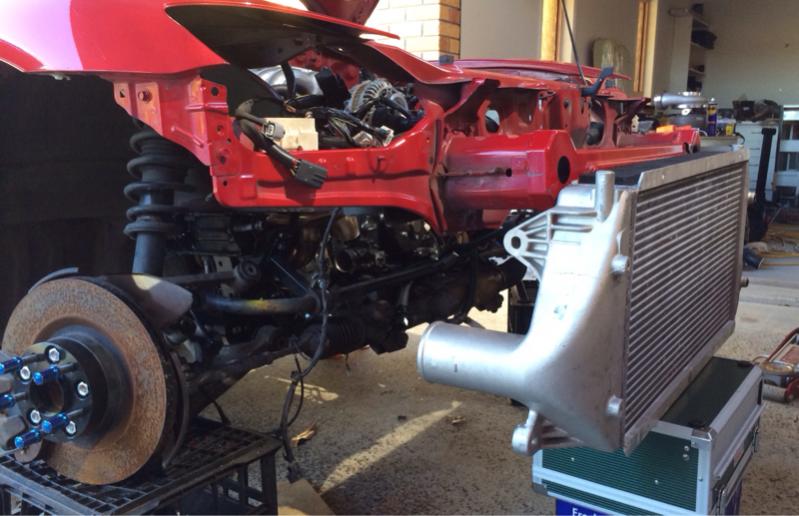

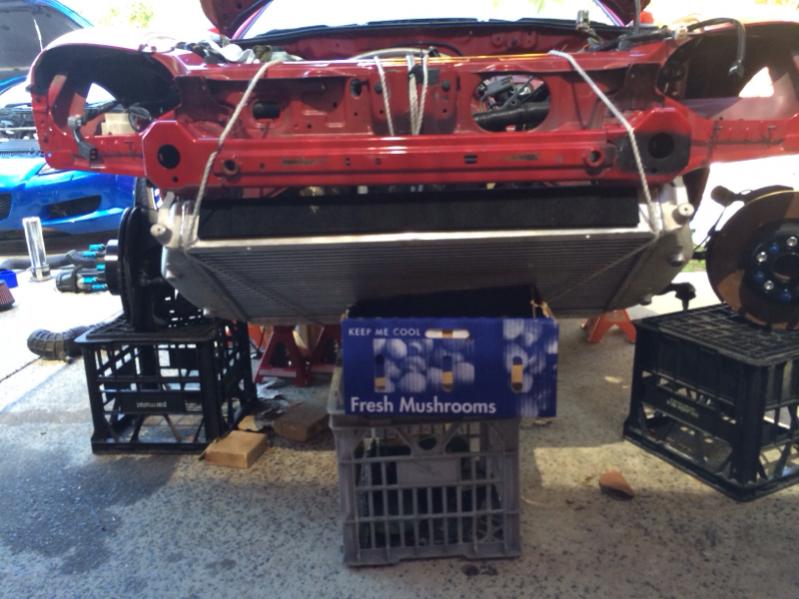

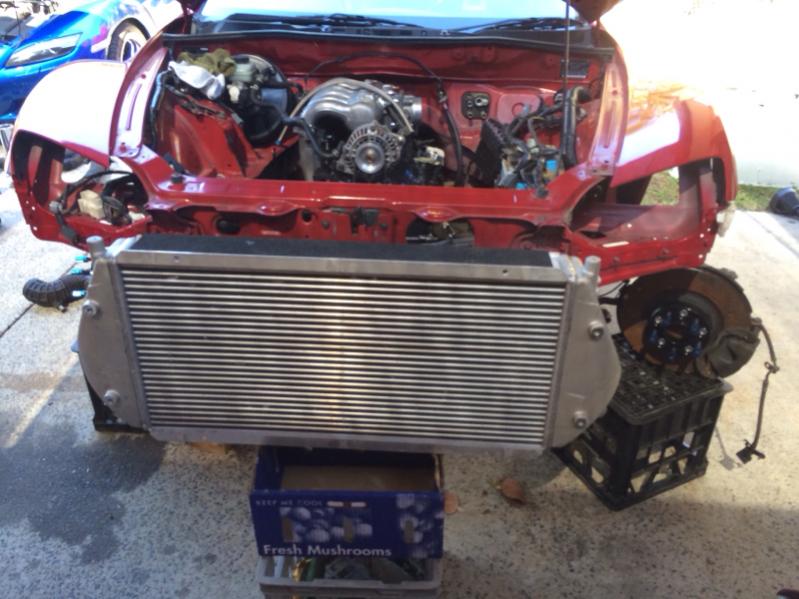

I got this brand new excavator intercooler very cheap. I probably won't use it, at least till I see how the barrel cooler handles the job, but it was fun working on how it may fit.
Attached Thumbnails 20b rx8-image-487285802.jpg   20b rx8-image-1564382679.jpg   20b rx8-image-4062355346.jpg   20b rx8-image-4103850963.jpg   20b rx8-image-1573688807.jpg

20b rx8-image-3118813240.jpg   20b rx8-image-1727214315.jpg
SiNfidelity is offline
Old 09-03-2014, 12:28 AM
  #67
skc
rev it up

skc's Avatar

Join Date: Feb 2004
Location: Brisbane Australia
Posts: 1,575
Thanked 10 Times in 10 Posts
From what I hear, the barrel intercoolers are great for short runs such as drags as they are water cooled and will eventually heat soak.

Air cooling is usually used on road cars and for track use. A vee mount will give you the best result.
skc is offline
Old 09-03-2014, 12:43 AM
  #68
BECAUSE RACECAR
iTrader: (10)

Arca_ex's Avatar

Join Date: May 2011
Location: Arizona
Posts: 1,412
Thanks: 0
Thanked 2 Times in 2 Posts
That excavator intercooler looks way too big to use. Ideally you'll want to do a V-mount setup.

Water to air intercoolers are really only good for drag cars or short use time attack cars and need an ice tank to work really good. The ones that just use another radiator for shedding its heat, I've never seen work that great. It's adding another complicated system that costs a decent amount of money to the car when you could just do a good air to air intercooler and be done with it.

I put a lot of thought into maybe using that same barrel one you're looking at, but after doing research and talking to people with first hand experience, I decided against it. You will not notice a response difference if you have a good v-mount with short piping runs.
Arca_ex is offline
Old 09-03-2014, 07:29 AM
  #69
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts
Cool, thanks for the input guys. I'll take it on board

We may actually cut that big cooler down yet.. Will use it for testing till we get it right..

Seeing as I already purchased the barrel style also then I'll be using it to trial and testing etc. I actually decided against the pwr unit for the sheer expense, tho I'm sure it does what it claims. I found a cheaper alternative which I'll post pics of once it arrives.

It's sometimes fun to try stuff for yourself.
SiNfidelity is offline
Old 09-08-2014, 09:40 AM
  #70
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts

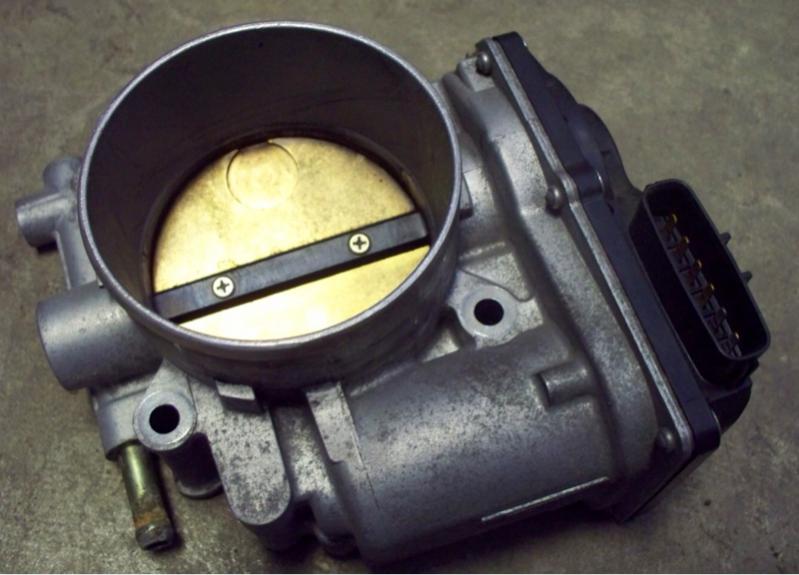

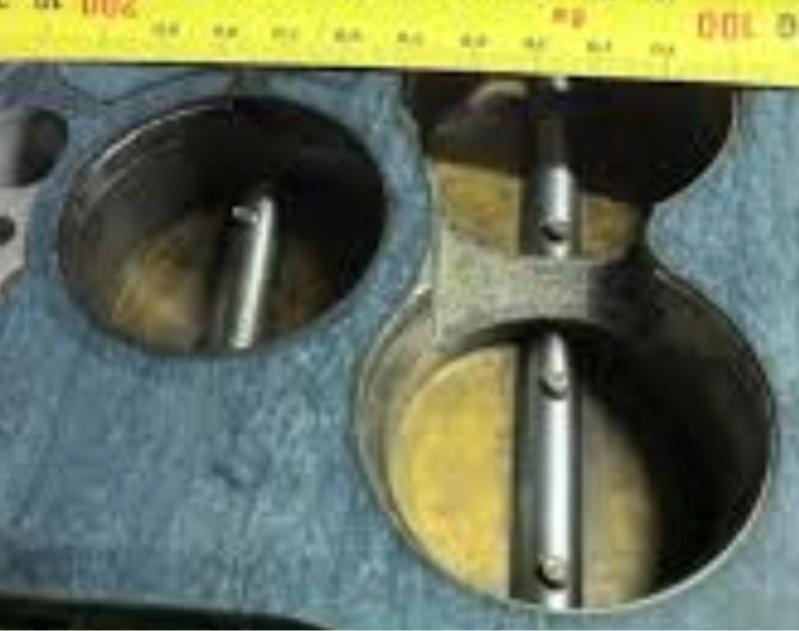

Interesting fact I discovered for myself today- calculated the surface area of the 20b TB butterflies VS the rx8 TB, the 20b is only 1/6 bigger!!

So for the work involved in switching to a cable system it hardly seems worth it, especially considering that I wanna keep the drive train stock for as long as possible.

Farther down the track I see me upgrading to an aftermarket TB anyway, but not till I'm ready to break shiz.

1/6th, crazy huh! It just looks way bigger cos it's outside dimensions, but in actual fact even the rx8 intake pipes have larger diameter too the the stock 20b.

Not a great deal to report at this moment, just waiting on parts to arrive.

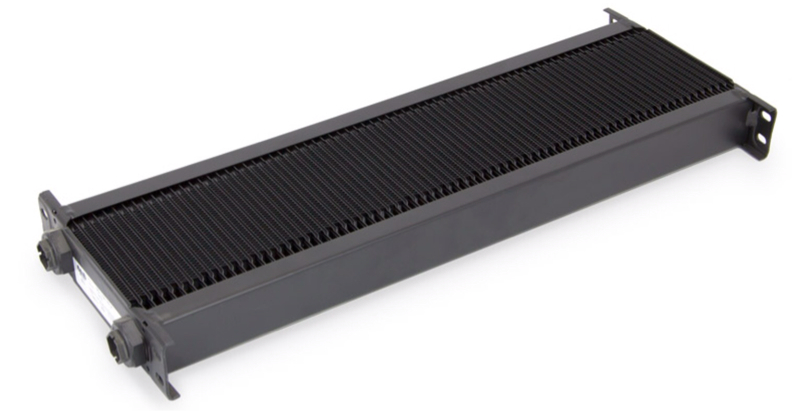

Setrab oil cooler std172. 72row shld be here this week.

gonna cut the massive intercooler down to a total core length of 640mm plus tanks, I think the height is 400mm and the thickness is 100mm.

Also the water air barrel style will come to. Will run some tests to see which cooling system is best whilst sideways for 5min at a time, monitoring air temp and boost lag etc between the two.

Still haven't decided on a radiator yet so if ya can all throw a suggestion or two my way?..? I'm thinking a rx7 s6-8 / 3core aluminium shld suffice, anyone wanna quote a reputable brand, maybe without the pwr price tag.. I'd love to use pwr for the whole kit- water, oil and intercooler but I am not that rich.
Attached Thumbnails 20b rx8-image-1736952320.jpg   20b rx8-image-3618684902.jpg   20b rx8-image-3972816650.jpg
SiNfidelity is offline
Old 09-10-2014, 08:59 AM
  #71
Registered

Join Date: Mar 2010
Location: Brap City
Posts: 100
Thanks: 0
Thanked 1 Time in 1 Post
Im not sure how much the pwr brand is but Meziere or Ron Davis are good options... Any updates on the beast? :-D
RedDream is offline
Old 09-11-2014, 10:20 AM
  #72
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts

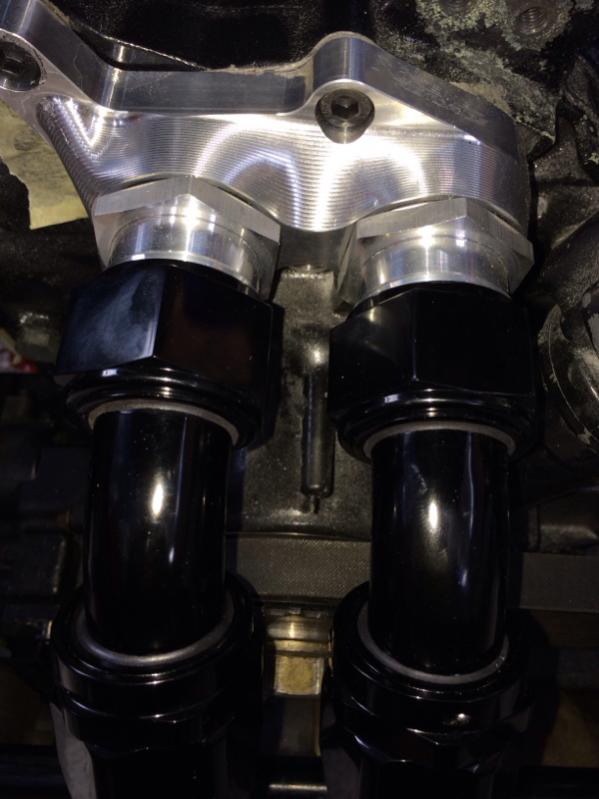

Still waiting on barrel cooler and oil cooler and a bunch oh dash an fittings.

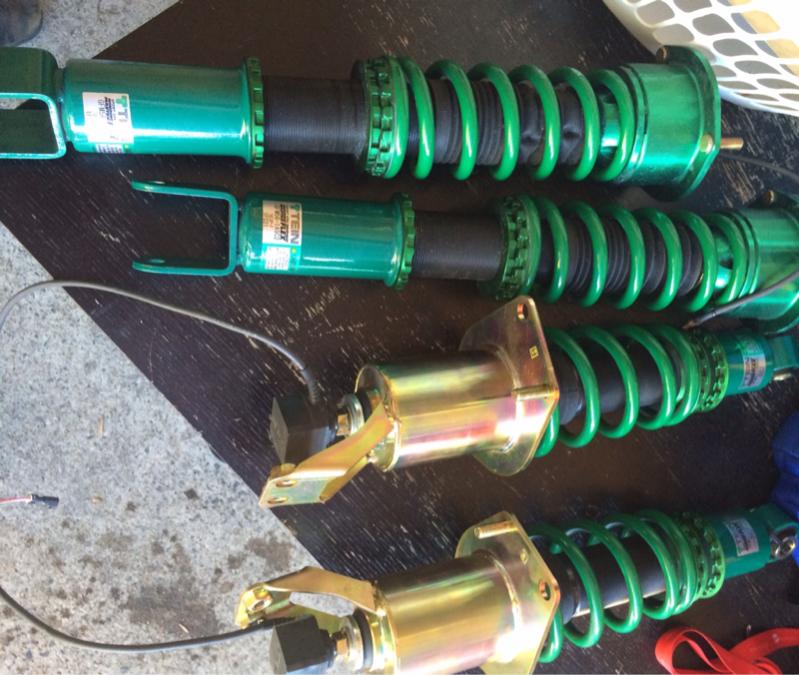

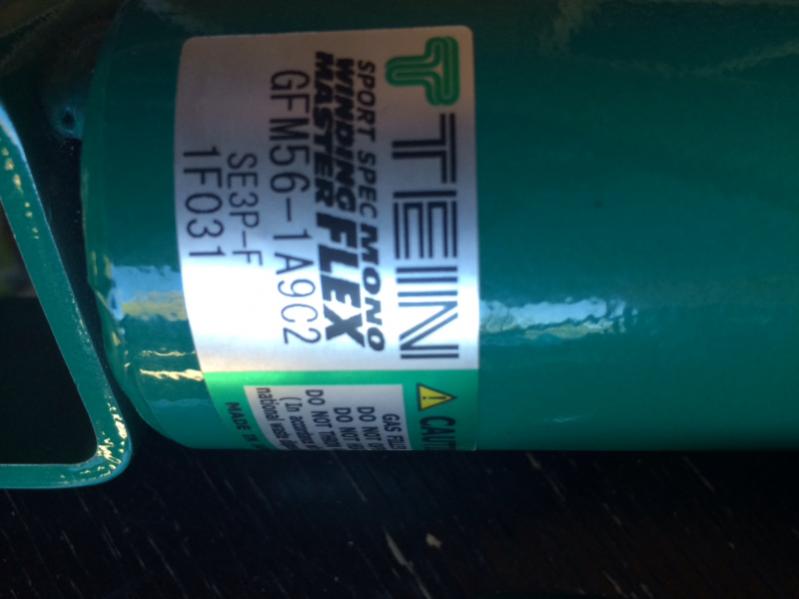

I did pick up these gems today tho

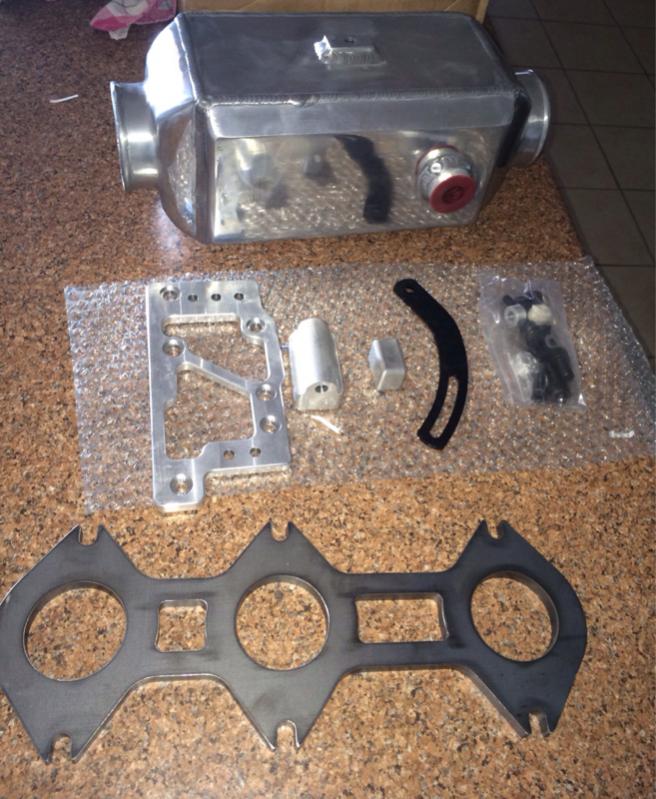

I also bought the xtreme rotaries alt relocation/ after all the work of chopping up the 20b WP to retain the factory alt position too lol!! It was more to see if it could be done- I proved it could but now I wanna free up the space above the front of motor. Uncluttered and keeping the weight lower.
Attached Thumbnails 20b rx8-image-148284653.jpg   20b rx8-image-3545188979.jpg   20b rx8-image-4092556632.jpg   20b rx8-image-3154371954.jpg
SiNfidelity is offline
Old 09-11-2014, 12:36 PM
  #73
Renesis out... REW in
iTrader: (3)

firecran's Avatar

Join Date: Jan 2007
Location: Melbourne, Fl
Posts: 1,526
Thanks: 0
Thanked 0 Times in 0 Posts
Thumbs up

Originally Posted by SiNfidelity View Post

I also bought the xtreme rotaries alt relocation/ after all the work of chopping up the 20b WP to retain the factory alt position too lol!! It was more to see if it could be done- I proved it could but now I wanna free up the space above the front of motor. Uncluttered and keeping the weight lower.


Nice man, they have some sweet products


.
firecran is offline
Old 09-12-2014, 04:10 AM
  #74
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts

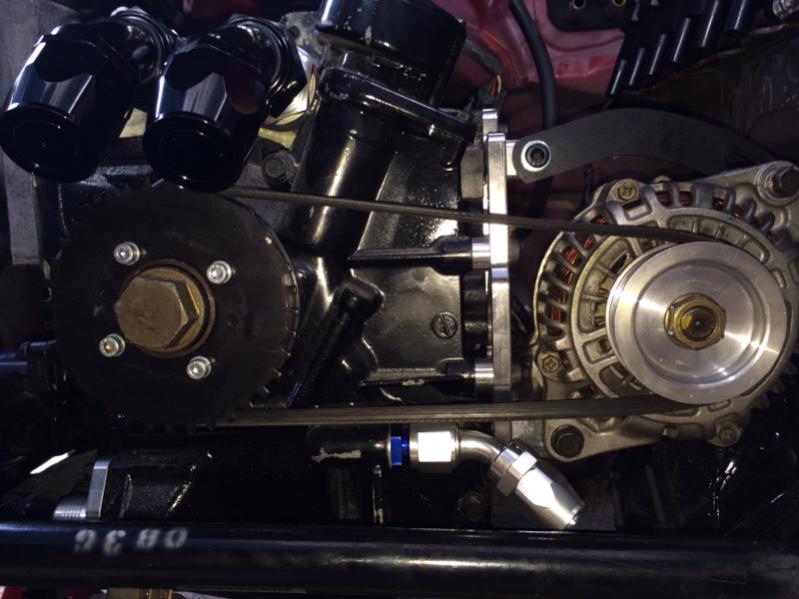

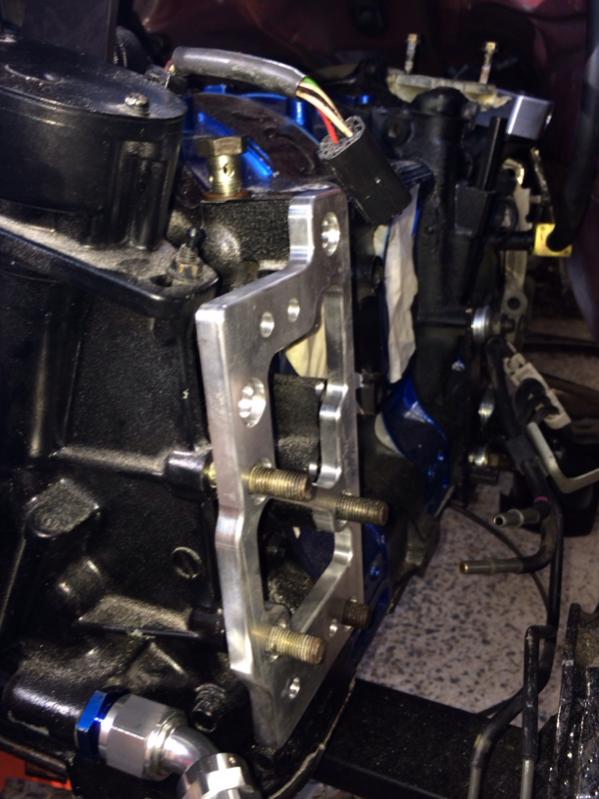

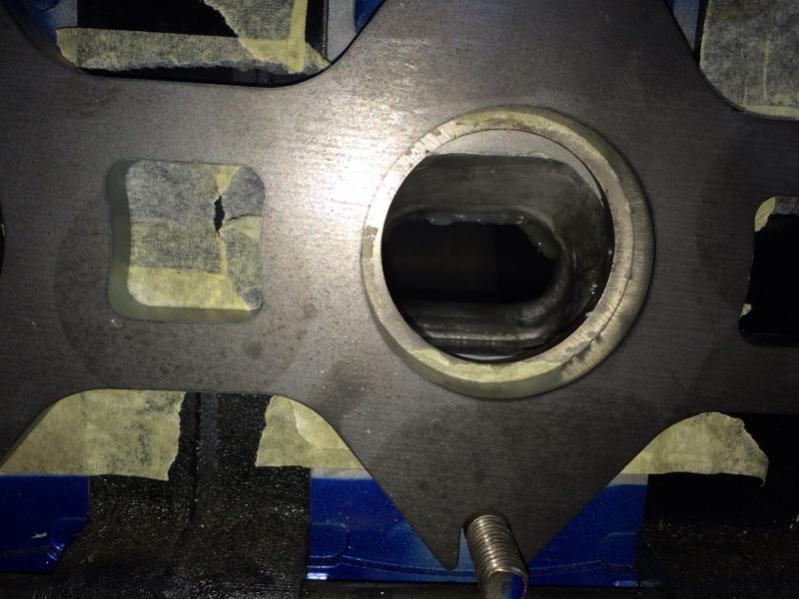

Didn't have much time today, but did a quick fit of the bracket. Very happy

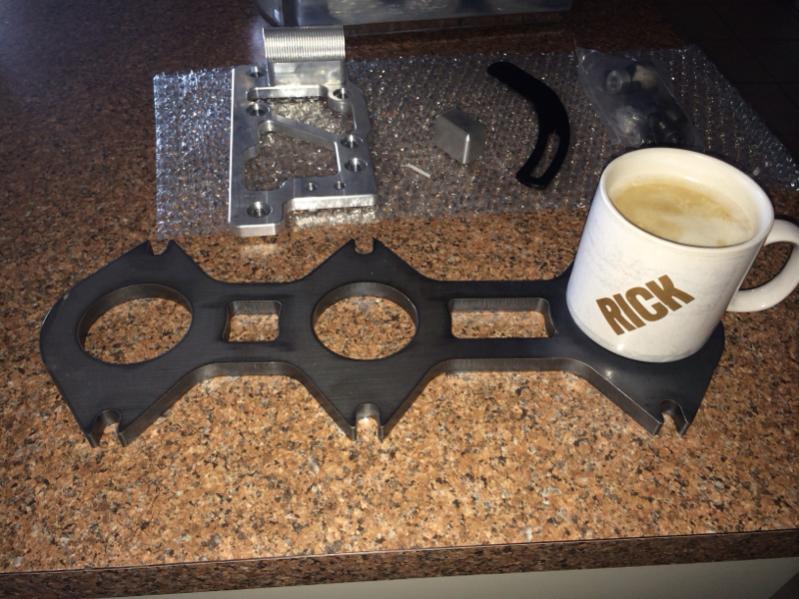

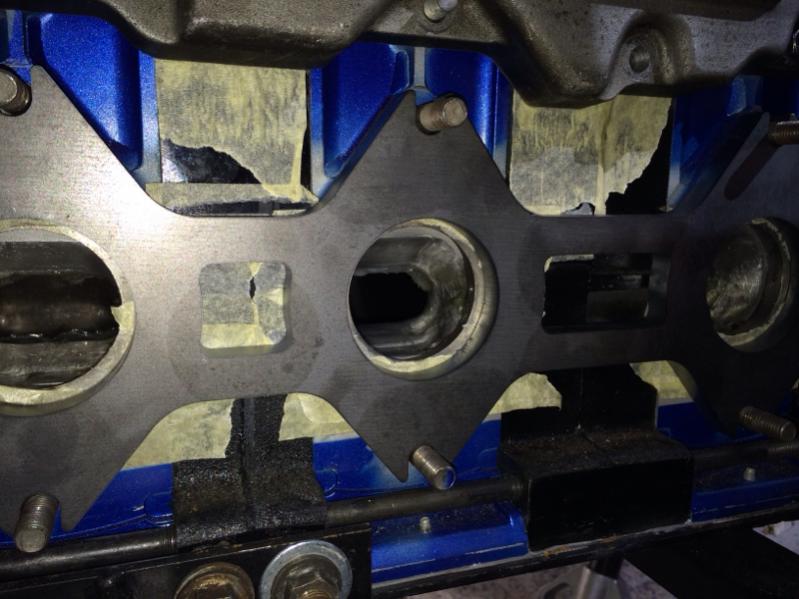

And my new coffee cup coaster. The beginnings of my new manifold. Bought a welder, gonna have a crack at making it.
Attached Thumbnails 20b rx8-image-345977384.jpg   20b rx8-image-2298103570.jpg   20b rx8-image-163628638.jpg   20b rx8-image-1615769268.jpg   20b rx8-image-1556509704.jpg

20b rx8-image-3003321744.jpg
SiNfidelity is offline
Old 09-12-2014, 04:16 AM
  #75
Registered
Thread Starter

Join Date: Jul 2011
Posts: 450
Thanks: 0
Thanked 5 Times in 2 Posts

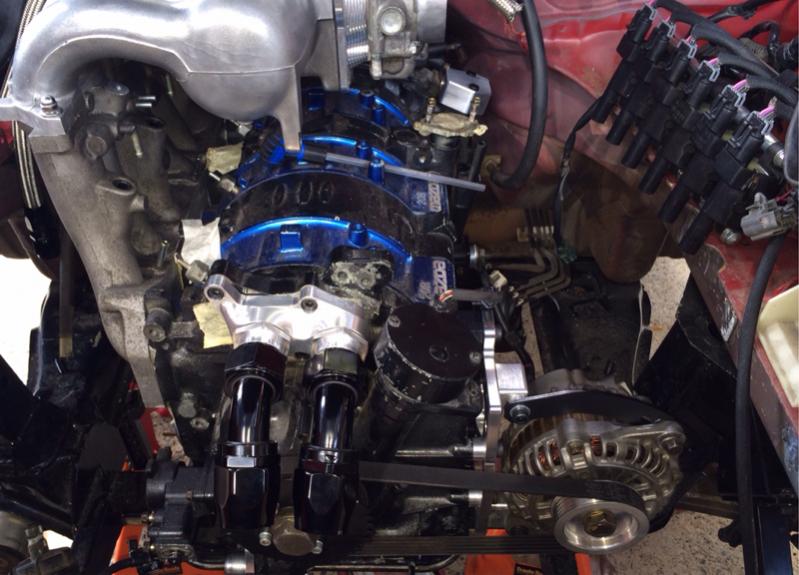

Zoom in to see the various bits so far. A bit hard to show it in one pic
