Renesis v2.0
12-26-2011, 01:06 PM
#902
Engine is strong
1-2 shift fork is weak
Front adjustable end-links are rusted
Rear fenders need a roll tuck
Gauges need a fix
Next is local dyno time at Carb-Conn to check a few items, then off to Cobb for the final. It will happen finally.
12-26-2011, 05:46 PM
#904
No, I just need to run some gears under load and do it legally
I need to monitor my fuel and oil pressure access ports, and to see if this tune can be pushed at Portland, if all checks out well. I have not load stressed this build fully yet, and the dyno is the place to do that.
I need to monitor my fuel and oil pressure access ports, and to see if this tune can be pushed at Portland, if all checks out well. I have not load stressed this build fully yet, and the dyno is the place to do that.
01-28-2012, 02:57 AM
#915
i hear he is a heterosexual
from fla, usa..
low key, likes to help.
but hates stupid and trolls..
but wonders why after 8 years, no simple FI solution.. really.
he thinks team is the stig. but in a generous way!!!!
really i am so trying to catch up. but really seems like it has not changed much.
you and denny and juan are just more dialed in!!
would be so funny to be banned after being gone for 6 months.
beers
from fla, usa..
low key, likes to help.
but hates stupid and trolls..
but wonders why after 8 years, no simple FI solution.. really.
he thinks team is the stig. but in a generous way!!!!
really i am so trying to catch up. but really seems like it has not changed much.
you and denny and juan are just more dialed in!!
would be so funny to be banned after being gone for 6 months.
beers
01-28-2012, 12:20 PM
#916
This is the truth - I fell like I am "stuck in time" ever since I purchased the RX8.... After nearly 100,000 miles, I basically have almost given up. The Rick Engman street ported build I have, with the Iannetti ceramic seals, is a beast for NA. I wish to boost it, but my money has been going to support the family lately... I need a lotto win! lmao
I will toast you tonight with some 25 year old Macallan.
07-12-2012, 08:35 PM
#917
Dyno Today
Up 10 HP from last year on the same dyno. Dyno had trouble picking up RPM as usual up high in the rev range, so I'm not sure if this number would be higher. I hit only 203.04 g/s at 7598 RPM on this 5th gear plotted dyno. I hit 213 g/s on the 4th gear pull that I did not chart. I hit 229 g/s at 8594 RPM in 5th gear in 2010. Where is my airflow? My calculated load is down. The airflow drops off where the VDI should open, and it goes rich on the AFR there also.
07/12/12 Max Power 190.29 Max Torque 137.50
01/29/11 Max Power 180.20 Max Torque 123.77
07/12/12 Max Power 190.29 Max Torque 137.50
01/29/11 Max Power 180.20 Max Torque 123.77
Last edited by Nemesis8; 07-15-2012 at 01:42 PM.
07-12-2012, 11:09 PM
#919

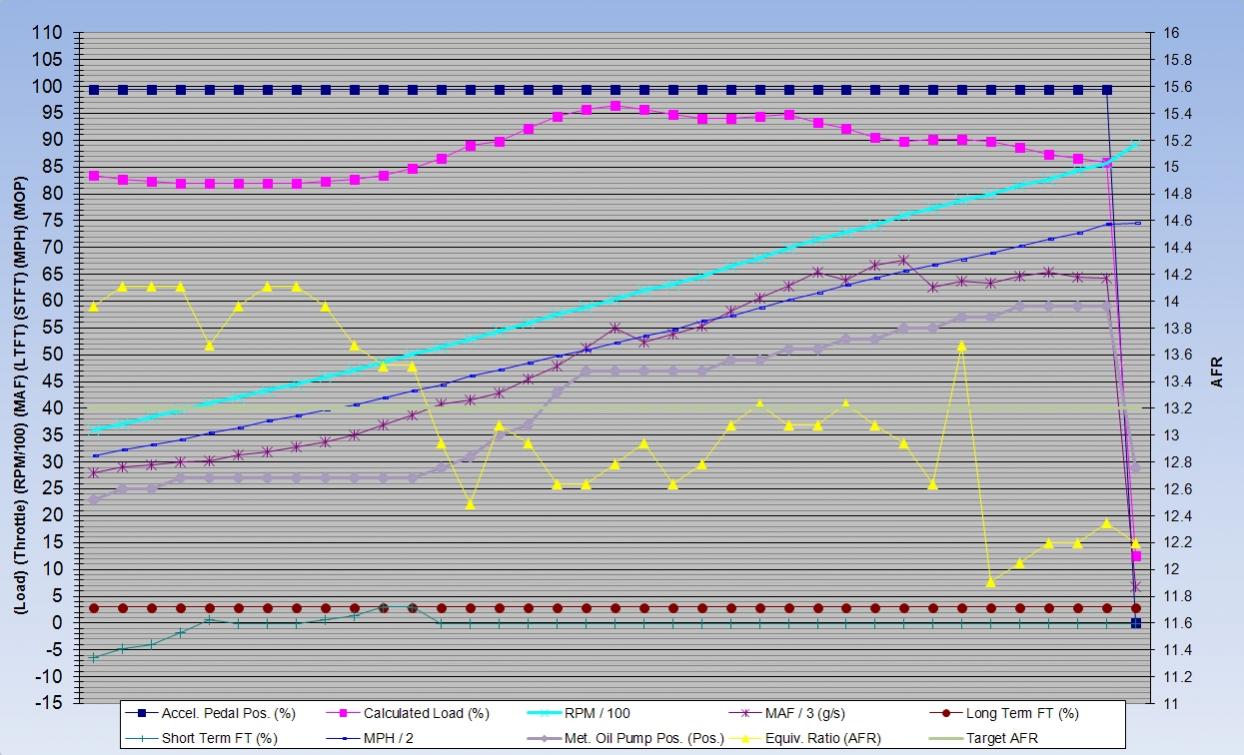

5th gear dyno log uploaded it as an excel file. Never mind the far right columns. Those are modified for my chart appearance.
I will go make another log this weekend. I made 190 HP down at Portland during the Cobb dyno day, and made 190 up here in Redmond today. I guess this build is just going to sit where it is at 190. You would think a Mazdamaniac dyno tuned street port would breath better. Something is amiss it seems. Car runs awesome, so go figure?
If that graph from the dyno would have made it farther due to properly picking up RPM, then maybe it would show better results?
I will go make another log this weekend. I made 190 HP down at Portland during the Cobb dyno day, and made 190 up here in Redmond today. I guess this build is just going to sit where it is at 190. You would think a Mazdamaniac dyno tuned street port would breath better. Something is amiss it seems. Car runs awesome, so go figure?
If that graph from the dyno would have made it farther due to properly picking up RPM, then maybe it would show better results?
Last edited by Nemesis8; 07-15-2012 at 12:11 PM.
07-15-2012, 12:10 PM
#920
I made 190 / 136 on 12-06-10 @ Cobb in Portland
I made 180 / 123 on 01-29-11 @ CarbConn in Kirkland
I made 190 / 137 on 07-12-12 @ CarbConn in Kirkland
I need to go back down to Cobb and see if my logic makes sense that I may be at 200 on the Cobb dyno?
Racing Beat dyno shows that I am missing something
TeamRX8's dyno on a Mustang at Cobb shows 220 is attainable NA
Eric Meyer's dyno on a Dynojet shows 223 is attainable in NA race trim

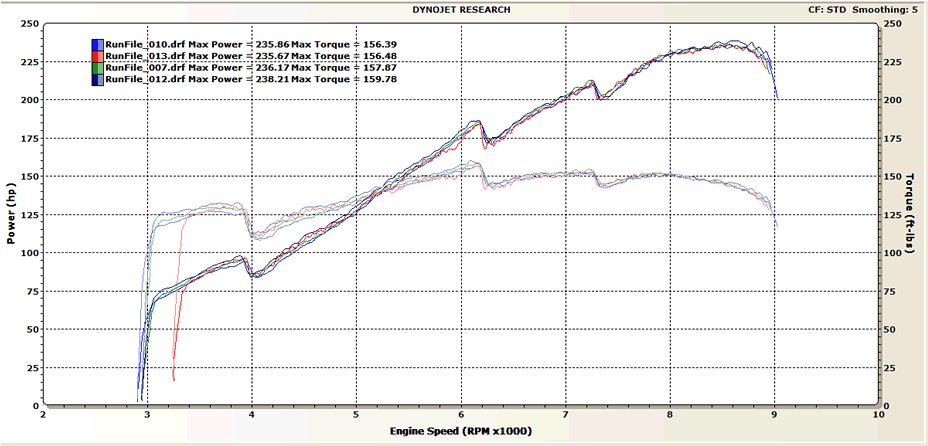

rx8performance.com street port on a Dynojet shows 238 NA, and the best that I have seen yet
I made 180 / 123 on 01-29-11 @ CarbConn in Kirkland
I made 190 / 137 on 07-12-12 @ CarbConn in Kirkland
I need to go back down to Cobb and see if my logic makes sense that I may be at 200 on the Cobb dyno?
Racing Beat dyno shows that I am missing something
TeamRX8's dyno on a Mustang at Cobb shows 220 is attainable NA
Eric Meyer's dyno on a Dynojet shows 223 is attainable in NA race trim
rx8performance.com street port on a Dynojet shows 238 NA, and the best that I have seen yet
Last edited by Nemesis8; 07-17-2012 at 09:25 AM.
