Adaptronic Select Rx-8 Standalone ECU

Old 08-13-2012, 12:00 PM
  #201
weeeeeeeeee
iTrader: (12)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,160
Received 20 Likes on 17 Posts
AP flashing while Adaptronic connected confirmed as operational.
ShellDude is offline
Old 08-14-2012, 08:01 PM
  #202
Illudium Q-36 Space Moderator
iTrader: (1)

Kane's Avatar

Join Date: Jan 2007
Location: PCB
Posts: 6,360
Received 28 Likes on 21 Posts
Are we still doing the September thing? I never got a confirmation email.
Kane is offline
Old 08-17-2012, 07:13 AM
  #203
Registered
iTrader: (1)

ssspeedfreak's Avatar

Join Date: Sep 2004
Location: Long Island NY
Posts: 373
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Kane View Post
Are we still doing the September thing? I never got a confirmation email.
There's a September thing with Kane! All ears on this one!
ssspeedfreak is offline
Old 08-17-2012, 07:16 AM
  #204
Illudium Q-36 Space Moderator
iTrader: (1)

Kane's Avatar

Join Date: Jan 2007
Location: PCB
Posts: 6,360
Received 28 Likes on 21 Posts
Originally Posted by ssspeedfreak View Post
There's a September thing with Kane! All ears on this one!
Sorry, in TX.

We can do a NY thing maybe later on.
Kane is offline
Old 08-17-2012, 07:20 AM
  #205
weeeeeeeeee
iTrader: (12)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,160
Received 20 Likes on 17 Posts
Kane, if you do a MD, PA, NJ, or NY thing, I'm definitely there! How's the online stuff coming?
ShellDude is offline
Old 08-17-2012, 07:21 AM
  #206
Illudium Q-36 Space Moderator
iTrader: (1)

Kane's Avatar

Join Date: Jan 2007
Location: PCB
Posts: 6,360
Received 28 Likes on 21 Posts
It's coming. In the middle of moving, so things have been hectic lately.
Kane is offline
Old 08-17-2012, 05:17 PM
  #207
Registered
iTrader: (1)

ssspeedfreak's Avatar

Join Date: Sep 2004
Location: Long Island NY
Posts: 373
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ShellDude View Post
Kane, if you do a MD, PA, NJ, or NY thing, I'm definitely there! How's the online stuff coming?
I second that! I don't know how many people would join in on a tuning section in the north east but it would be a great thing!
ssspeedfreak is offline
Old 08-19-2012, 12:53 PM
  #208
weeeeeeeeee
iTrader: (12)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,160
Received 20 Likes on 17 Posts
Another update:

So I (actually Dave did the bypass) bypassed SSV and VDI control by cutting the 1L and 1W leads going into the Adaptronic and factory ECU then wired them directly to the factory ECU using the factory harness and 2 lengths of wire.

See here: PCM INSPECTION for more details.

Also, in PA we have to pass all but one readiness test and both my EVAP and Secondary Air tests are failing. After some research I found that two leads in the 4th loom (4D and 4H) are the control signals for the EVAP pump. See here: DTC P2401 (it's google cache to the "secure" MNAO online DTC manual)

I then compared that to the Adaptronic RX-8 wiring diagram and noticed that both 4D and 4H are "NC" (not connected). After a brief email exchange with Andy he confirmed they are not connected and I'm in the process now of bridging the wires to see if I can get my EVAP test to pass.

Last edited by ShellDude; 08-19-2012 at 12:58 PM.
ShellDude is offline
Old 08-19-2012, 01:42 PM
  #209
weeeeeeeeee
iTrader: (12)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,160
Received 20 Likes on 17 Posts
So damn close... Secondary Air is now reporting a duration. Apparently the range is 1000ms to 4992ms and my damn pump ran for 5190ms throwing a pending a code.

Now I have to wait 6 hours for a full cooldown to run the stupid test again.

Prior to my wiring job the Secondary Air Monitoring PID wasn't reporting anything for duration so I'm definitely making progress.
ShellDude is offline
Old 08-20-2012, 06:03 PM
  #210
weeeeeeeeee
iTrader: (12)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,160
Received 20 Likes on 17 Posts
got EVAP and Secondary Air to pass with my little wire job! Finally can go get her inspected.

Also, will be opening an "Adaptronic Select Owners Thread" shortly. I have quite a bit I can contribute at this point.
ShellDude is offline
Old 08-20-2012, 09:13 PM
  #211
Original Turbo 'd Auto !!

09Factor's Avatar

Join Date: Mar 2004
Location: Surprise its Az!
Posts: 2,122
Likes: 0
Received 2 Likes on 2 Posts
09Factor is offline
Old 08-27-2012, 12:51 PM
  #212
Registered User

Join Date: Aug 2012
Location: Oakville
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
I want to use alternative fuels such as LP or CNG in my 04 RX Renesis 6speed. I just bought the car and have not used flash mapping or chips before to accomidate the needs of the perticular gas.
I know the Turbine style properties of the wankel will support basically any type of fuel.
I have heard of people using diesel as well. Has anybody done this and tuned it properly.
Thoughts and feedback are welcome please
Adam Busch is offline
Old 08-27-2012, 12:52 PM
  #213
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,744
Received 347 Likes on 279 Posts
TX

Originally Posted by Adam Busch View Post
I want to use alternative fuels such as LP or CNG in my 04 RX Renesis 6speed. I just bought the car and have not used flash mapping or chips before to accomidate the needs of the perticular gas.
I know the Turbine style properties of the wankel will support basically any type of fuel.
I have heard of people using diesel as well. Has anybody done this and tuned it properly.
Thoughts and feedback are welcome please

What does that have to do with this thread? Start your own damn thread or read the many other threads that discuss alternative fuels.
9krpmrx8 is offline
Old 08-27-2012, 08:22 PM
  #214
weeeeeeeeee
iTrader: (12)

ShellDude's Avatar

Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 4,160
Received 20 Likes on 17 Posts

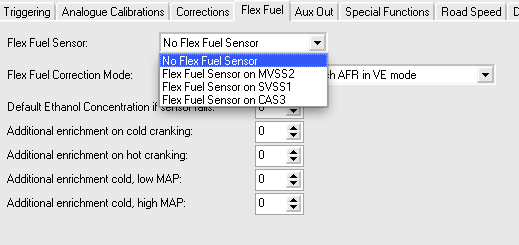

Actually 9k, the Adaptronic has a tab sheet devoted to flex fuel. No idea how any of that would translate to our car but it certainly has those options assuming you're willing to wire in the necessary sensors, etc.



Hell, I don't even know what a "Flex Fuel Sensor" is
Attached Thumbnails Adaptronic Select Rx-8 Standalone ECU-screen-shot-2012-08-27-9.20.29-pm.png
ShellDude is offline
Old 02-27-2013, 02:25 PM
  #215
Don't mind me...

Join Date: Feb 2013
Location: San Antonio, TX
Posts: 2
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ShellDude View Post
Actually 9k, the Adaptronic has a tab sheet devoted to flex fuel. No idea how any of that would translate to our car but it certainly has those options assuming you're willing to wire in the necessary sensors, etc.

Hell, I don't even know what a "Flex Fuel Sensor" is
Don't mean to necro an old thread, and I'm sorry I've only lurked for 3 years and never posted, but I believe I can contribute here, lol.

I'm quite certain the "flex fuel sensor" referred to here is actually a sensor you can purchase and place in your fuel tank or elsewhere along your fuel system which will detect the type/quality of gasoline (i.e. regular, premium, E85, etc.) and pass that information along to the ECU, allowing it to adjust parameters as neccesary.

Having not yet worked with the Adaptronic unit or software yet, I can't say for certain though.

Cheers!
iconchrono is offline
