BHR w/Cat installed - threw a CEL (otherwise stock R3)
04-03-2013, 06:35 AM
#27
R34ME
Thread Starter
Join Date: Oct 2012
Location: Toronto, ON
Posts: 219
Likes: 0
Received 0 Likes
on
0 Posts
Team has a point, so lets put this donut gasket junk behind us for now since you are only going by the shops word and some things might be lost in translation.
To further Team's comment, it would be very easy to check the manifold/midpipe gasket (not sure if you know what this looks like ... think of a large thin washer). Anyway, if you have a leak there, it is not too hard to check for ... it is literally behind the passenger side wheel. When the car is cold ... turn it on, and then lay on the ground by the passenger side wheel ... you should be able to see where the midpipe and the exhaust manifold meet (the flange looks like a triangle). Place your hand around there ... you would most certainly feel some air if there is a leak.
To further Team's comment, it would be very easy to check the manifold/midpipe gasket (not sure if you know what this looks like ... think of a large thin washer). Anyway, if you have a leak there, it is not too hard to check for ... it is literally behind the passenger side wheel. When the car is cold ... turn it on, and then lay on the ground by the passenger side wheel ... you should be able to see where the midpipe and the exhaust manifold meet (the flange looks like a triangle). Place your hand around there ... you would most certainly feel some air if there is a leak.
04-03-2013, 10:51 AM
#29
Yea that caught me too, maybe the shop is used to seeing the shim type gasket between the manifold and midpipe and instead is trying to use the ring gasket at the tail of the pipe? I dont know.
yup, no differences, obviously confirmed in the past through tons of users equipped with the midpipe, but just to reaffirm the curious, the BHR fits without issue using the supplied hardware on a S2 (as well as oem donut gasket if he didn't get the supplied one from previous owner)
yup, no differences, obviously confirmed in the past through tons of users equipped with the midpipe, but just to reaffirm the curious, the BHR fits without issue using the supplied hardware on a S2 (as well as oem donut gasket if he didn't get the supplied one from previous owner)
04-03-2013, 04:45 PM
#30
R34ME
Thread Starter
Join Date: Oct 2012
Location: Toronto, ON
Posts: 219
Likes: 0
Received 0 Likes
on
0 Posts
Everything on the car is stock, i haven't installed my AEM CAI yet. BHR pipe was my first mod so OEM catback dimensions
04-06-2013, 07:22 AM
#31
R34ME
Thread Starter
Join Date: Oct 2012
Location: Toronto, ON
Posts: 219
Likes: 0
Received 0 Likes
on
0 Posts

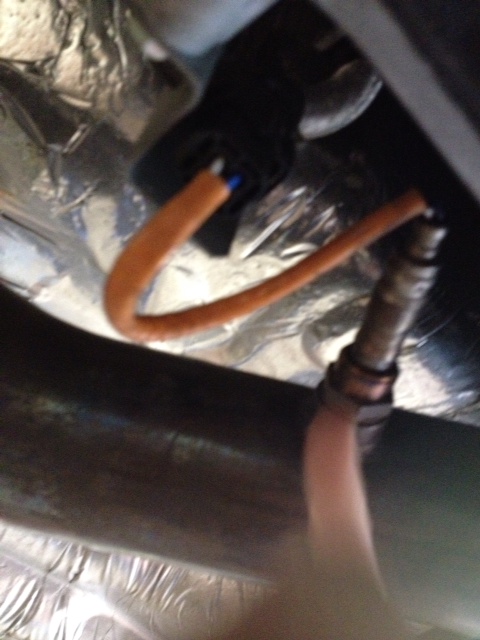

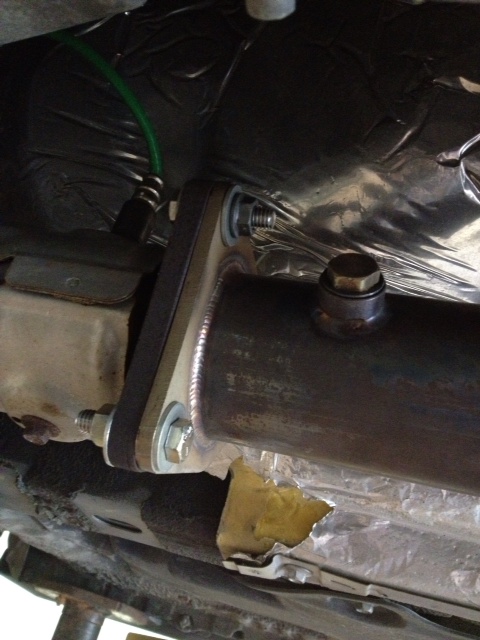

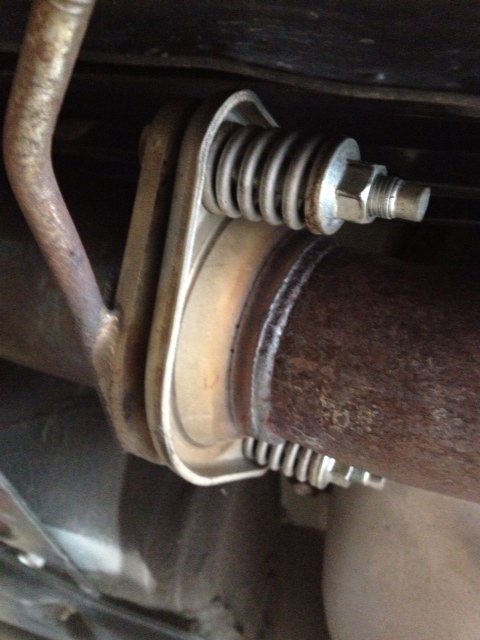

Back from my trip, went back to the shop. enclosed are pictures of the install they did. didn't get any leaks from the seals but the plug used popped out really easily so i think the pipe expanded when hot which caused a leak at the first O2 bung.
I haven't had a chance to drive on the HWY yet when the last two CEL's came on but so far so good.
UPDATE: light came back. Ugh
I haven't had a chance to drive on the HWY yet when the last two CEL's came on but so far so good.
UPDATE: light came back. Ugh
Last edited by Unoriginalusername; 04-06-2013 at 02:25 PM.
04-06-2013, 07:27 AM
#32
R34ME
Thread Starter
Join Date: Oct 2012
Location: Toronto, ON
Posts: 219
Likes: 0
Received 0 Likes
on
0 Posts

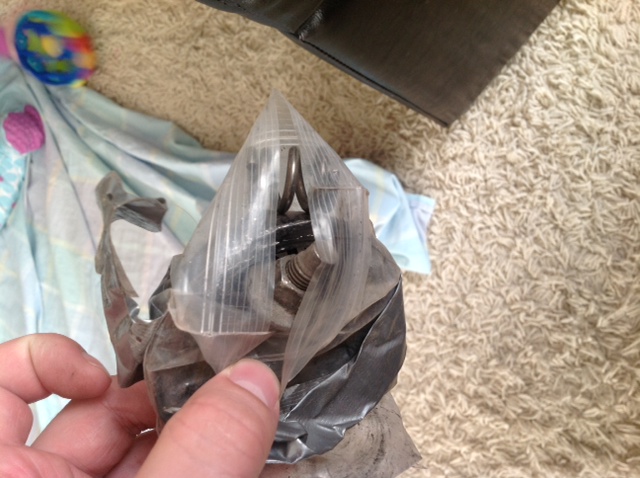

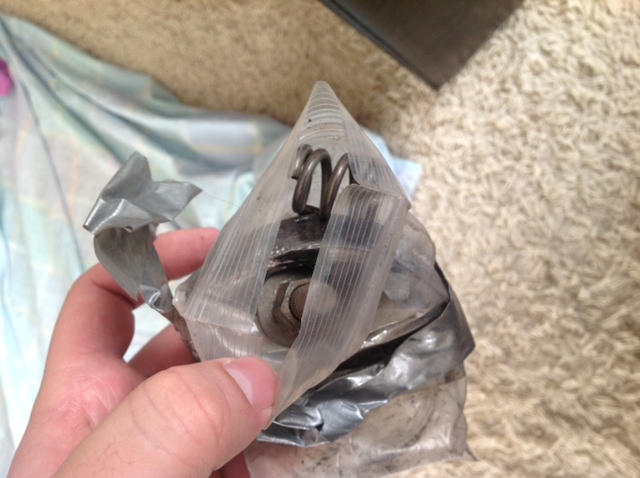

enclosed is a picture of the large donut gasket that i mentioned earlier that seems too small for the diameter of the pipe, OEM was used instead since it fit
04-06-2013, 10:02 AM
#34
R34ME
Thread Starter
Join Date: Oct 2012
Location: Toronto, ON
Posts: 219
Likes: 0
Received 0 Likes
on
0 Posts
went for a drive on the hwy to re-create the circumstance that was causing the light to come on the first few times.... bad news, its back on.
thoughts on next steps if there are no leaks? bad o2? bad cat? still not installed properly?
thoughts on next steps if there are no leaks? bad o2? bad cat? still not installed properly?
Last edited by Unoriginalusername; 04-07-2013 at 07:12 AM.
04-07-2013, 07:58 PM
#37
R34ME
Thread Starter
Join Date: Oct 2012
Location: Toronto, ON
Posts: 219
Likes: 0
Received 0 Likes
on
0 Posts
04-08-2013, 04:09 PM
#38
R34ME
Thread Starter
Join Date: Oct 2012
Location: Toronto, ON
Posts: 219
Likes: 0
Received 0 Likes
on
0 Posts
Light went out on my way to the shop. Cancelled my appt to give it some more miles to see what happens. Possible that after the leak was fixed that that battery reset that it didn't really clear th code which is why th light came back on? Now that I've driven a few miles perhaps its all good
04-09-2013, 09:00 AM
#39
R34ME
Thread Starter
Join Date: Oct 2012
Location: Toronto, ON
Posts: 219
Likes: 0
Received 0 Likes
on
0 Posts
UPDATE: I think the issue is solved, it was a leaky O2 bung cap. now that its sealed the light went away and didn't come back doing the same things that made it come on originally. thanks for the help everyone
