Old 01-03-2018, 04:14 PM   #11176
SPOOLN8
iTrader: (1)

RotaryMachineRx's Avatar

Join Date: Nov 2008
Location: Edmonton, Alberta, Canada
Posts: 1,717
Thanked 38 Times in 37 Posts
^ Means nothing without rim offset
RotaryMachineRx is offline   Reply With Quote
Old 01-03-2018, 05:25 PM   #11177
Registered

Join Date: Jun 2017
Location: Monroe, WI
Posts: 83
Thanked 7 Times in 7 Posts
Quote:
Originally Posted by RotaryMachineRx View Post
^ Means nothing without rim offset
It was more about the tires then the wheels. Since I have the same tires, but in 275/35. he was worried 275/35's would not be enough side wall, so I was showing him mine for reference...

offset is +30
blackmount is offline   Reply With Quote
Old 01-04-2018, 09:39 AM   #11178
Senior Member
iTrader: (9)

Xero Ryuu's Avatar

Join Date: Dec 2010
Location: Bakersfield, CA
Posts: 1,128
Thanked 14 Times in 13 Posts
I have searched and from what I have seen I shouldn't have any issue, however I still figured I would ask to be sure. I am lowered on Tein Basic coilovers (yes Basic and not Basis Z).


Wheels in question are:
TSW Nurburgring, 18x9.5+40 front and rear, tires are Federal 595's in 245/45 front and rear.
Xero Ryuu is offline   Reply With Quote
Old 01-06-2018, 12:04 PM   #11179
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,546
Thanks: 0
Thanked 264 Times in 218 Posts
With 245 it might be ok. I know Enkei 18x9.5” +45 with 255 tires clear, but the same with +38 offset require the rear fender lip to be flattened with one of those roller tools because it will otherwise rub the tire there. So worst case you might need to do that except the narrower 245 tire will likely clear it.
TeamRX8 is offline   Reply With Quote
Old 01-06-2018, 12:14 PM   #11180
Registered

Join Date: Jan 2017
Posts: 29
Thanks: 0
Thanked 0 Times in 0 Posts

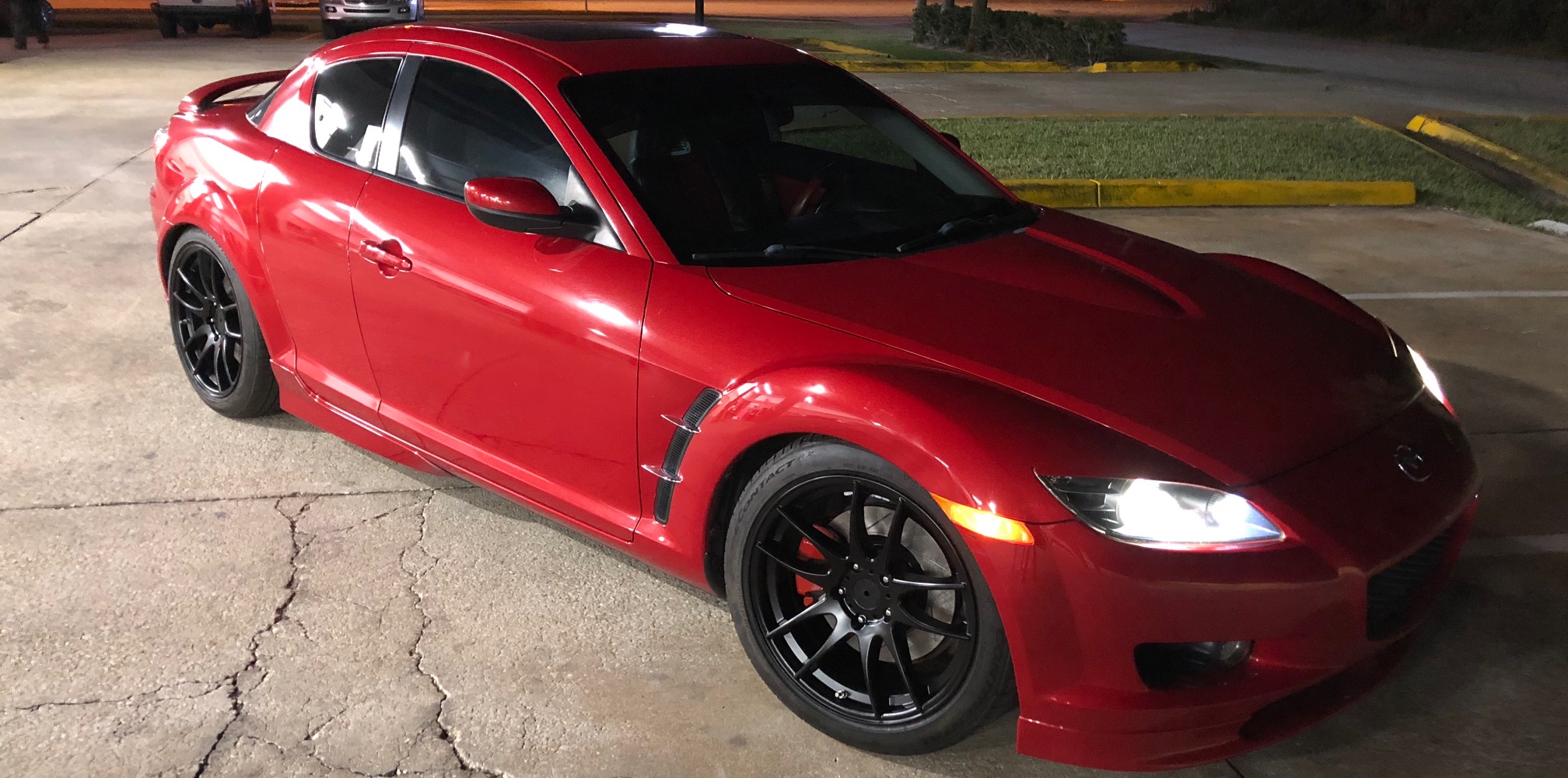

I wonder how everybody fits these huge rims and tires underneath. We now have 18x8.5, +35mm on 225's and the rear is darn close to the inner fender lip. Could roll it but worry about damage to the clear coat and start rusting in FL. Car is lowered on Tein.
Attached Thumbnails
Will It Fit Thread-1-05-18.jpg
tobeit is offline   Reply With Quote
Old 01-06-2018, 12:19 PM   #11181
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,546
Thanks: 0
Thanked 264 Times in 218 Posts
They have to roll the lip or more. Your issue is the wheel offset. You can fit a 10.5” wheel with +43 offset and 255 tire and it will clear the lip. Wider tire or less offset and then it hits. It can look close when static too, but when the suspension moves up it tilts the top of the tire in (camber gain) .

If you heat it while rolling the lip and take your time the paint on the lip won’t crack.
TeamRX8 is offline   Reply With Quote
Old 01-06-2018, 12:30 PM   #11182
Registered

OtherSyde's Avatar

Join Date: Sep 2013
Location: San Diego, CA
Posts: 214
Thanked 6 Times in 6 Posts
Quote:
Originally Posted by blackmount View Post
Maybe this will help you

These are the only two pictures I have but awhile ago I decided to test fit the wheels off one of my 3000GT's on my RX-8. I had 275/35 Federal 595RSRRs on them

The wheel is a 18x9.5


Thank you for the pics and info - I am really surprised at how relatively narrow the Federal 595's are in comparison to Sumitomos! I thought for sure that a 275 tire would overhang the edge of the wheel lip significantly since the Sumitomo 255's slightly did themselves - and an extra 20mm of tire width should have made a significant difference, but seeing your pics, I guess they are just built or measured a little different. Does anyone know if it's normal for 275's to barely seem wide on a 9.5" rim? Are the 275 Federals built narrow, or is it that the 255 Sumitomos are built wide?
OtherSyde is offline   Reply With Quote
Old 01-06-2018, 06:37 PM   #11183
Registered

Join Date: Jun 2017
Location: Monroe, WI
Posts: 83
Thanked 7 Times in 7 Posts
depending which Sumitomos they are, they the more aggressive ones have a wide tread footprint.

though Federal 595RSRR's tend to run wide as well in comparison to similar sized tires like Nitto NT05s
blackmount is offline   Reply With Quote
Old 01-07-2018, 10:16 AM   #11184
Registered

marcx987's Avatar

Join Date: Jun 2010
Posts: 77
Thanks: 0
Thanked 0 Times in 0 Posts
Might not be the place for this but need to know if any special offset to get for 17" rims.

Need to find a set(hopefully cheap) for a set of winter tires i have here r17/265/??. The snow doesnt like my summer tires.

Or does anyone have any suggestions for winter tires that fit stock rims and arent an arm and a leg. As i have my stock rims spare atm.
marcx987 is offline   Reply With Quote
Old 01-07-2018, 12:03 PM   #11185
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,531
Thanked 60 Times in 57 Posts
Quote:
Originally Posted by marcx987 View Post
Might not be the place for this but need to know if any special offset to get for 17" rims.

Need to find a set(hopefully cheap) for a set of winter tires i have here r17/265/??. The snow doesnt like my summer tires.

Or does anyone have any suggestions for winter tires that fit stock rims and arent an arm and a leg. As i have my stock rims spare atm.
stock wheels make good snow tire rims. You want narrowish tires in the snow anyway so stick with 225 stock tire size or even 215

looking for cheap 17"....Most around 40 to 50 at 8" wide will work easily. Just try one on the front to see if they clear the brakes
dannobre is offline   Reply With Quote
Old 01-07-2018, 07:17 PM   #11186
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 20,546
Thanks: 0
Thanked 264 Times in 218 Posts
good snow tires are awesome too, don't cheap out especially if you care about not crashing or avoiding someone else who is in the process of crashing
TeamRX8 is offline   Reply With Quote
Old 01-08-2018, 03:51 AM   #11187
Registered

marcx987's Avatar

Join Date: Jun 2010
Posts: 77
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by dannobre View Post
stock wheels make good snow tire rims. You want narrowish tires in the snow anyway so stick with 225 stock tire size or even 215

looking for cheap 17"....Most around 40 to 50 at 8" wide will work easily. Just try one on the front to see if they clear the brakes
any suggestions of good ones for stock rims? brand wise?
marcx987 is offline   Reply With Quote
Old 01-08-2018, 09:48 PM   #11188
Registered
iTrader: (9)

Chrishoky's Avatar

Join Date: May 2010
Location: Flourtown, PA
Posts: 985
Thanked 3 Times in 3 Posts
Quote:
Originally Posted by marcx987 View Post
any suggestions of good ones for stock rims? brand wise?
Ive had Blizzaks for a while now, very happy with them.
Chrishoky is offline   Reply With Quote
Old 01-10-2018, 07:38 AM   #11189
New Member

Join Date: Dec 2014
Posts: 1
Thanked 0 Times in 0 Posts
Kosei KR5 17x9 +45 fit?

05 RX8 6 speed track day car wanting to go -1 with the Kosei KR5 17x9 +45 with Falken Azenis RT615K+ 255/40 R17 any fit issues? experience with the wheels?
architect7779 is offline   Reply With Quote
Old 01-10-2018, 07:57 AM   #11190
^^^ Fluent in snark.

NotAPreppie's Avatar

Join Date: Mar 2006
Location: Chicago, IL, USA, North America, Earth, Sol System, Sector ZZ9 Plural Z Alpha, Milkyway, Universe
Posts: 2,573
Thanked 279 Times in 216 Posts
Tirerack thinks they will fit 2009+ in +48 so I doubt you'll have a problem.
NotAPreppie is offline   Reply With Quote
The Following User Says Thank You to NotAPreppie For This Useful Post:
architect7779 (01-10-2018)
Old 01-10-2018, 05:01 PM   #11191
Registered

marcx987's Avatar

Join Date: Jun 2010
Posts: 77
Thanks: 0
Thanked 0 Times in 0 Posts
wondering if 245/45/18s(maxima tires) fit fine on stock rims? or are they too wide? trying to get winter tires fast but lil tight on cash and can get this size pretty cheap if it fits.
marcx987 is offline   Reply With Quote
Old 01-22-2018, 03:32 AM   #11192
New Member

Join Date: Jan 2018
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
18x9.5 +30 245/40/18 would this fit?
i think rear should be ok ,but i am worried about the front
my car is lower but not sure how much

thanks
Eugene Soo is offline   Reply With Quote
Old 01-22-2018, 08:15 AM   #11193
Registered

Join Date: Jun 2017
Location: Monroe, WI
Posts: 83
Thanked 7 Times in 7 Posts
The tires won't for sure. 245's are too narrow for a 9.5. You want a 275 ideally.

The wheels should fit, but will have some poke. A functional amount of negative camber, and a fender roll should solve that.
blackmount is offline   Reply With Quote
Old 01-22-2018, 11:08 AM   #11194
SPOOLN8
iTrader: (1)

RotaryMachineRx's Avatar

Join Date: Nov 2008
Location: Edmonton, Alberta, Canada
Posts: 1,717
Thanked 38 Times in 37 Posts
Quote:
Originally Posted by Eugene Soo View Post
18x9.5 +30 245/40/18 would this fit?
i think rear should be ok ,but i am worried about the front
my car is lower but not sure how much

thanks
Quote:
Originally Posted by blackmount View Post
The tires won't for sure. 245's are too narrow for a 9.5. You want a 275 ideally.

The wheels should fit, but will have some poke. A functional amount of negative camber, and a fender roll should solve that.

275's will be way too fat in the front. I am lowered on S-Techs and Koni struts and have the exact rim specs you are asking about. I have 255/35's and a fender roll on all 4 corners. The fender roll may not have been necessary on the front and I am like a millimeter from rubbing on the fender liners at full turn. 265/35's will fit too but you will probably have some minor rubbing on the fender liners/turn signals at full turn. With 265's the fender roll in the rear is necessary, of course everything I have mentioned is if you plan to stay within stock camber specs.




Last edited by RotaryMachineRx; 01-22-2018 at 11:17 AM.
RotaryMachineRx is offline   Reply With Quote
Old 01-23-2018, 02:55 PM   #11195
Registered

OtherSyde's Avatar

Join Date: Sep 2013
Location: San Diego, CA
Posts: 214
Thanked 6 Times in 6 Posts
Quote:
Originally Posted by blackmount View Post
The tires won't for sure. 245's are too narrow for a 9.5. You want a 275 ideally.

The wheels should fit, but will have some poke.

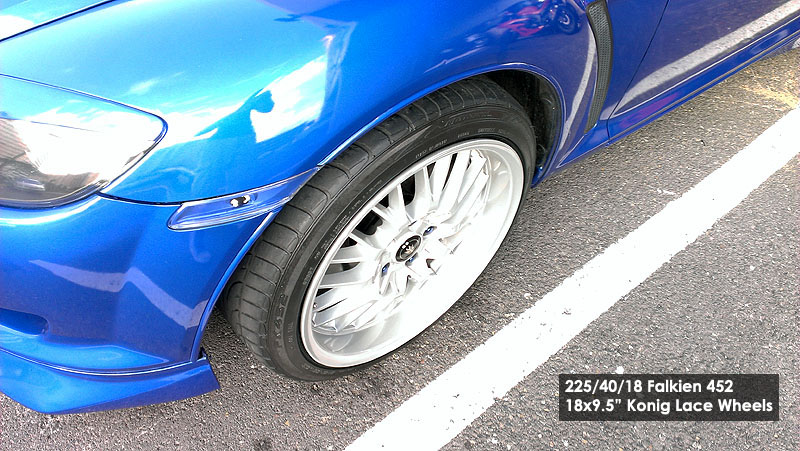

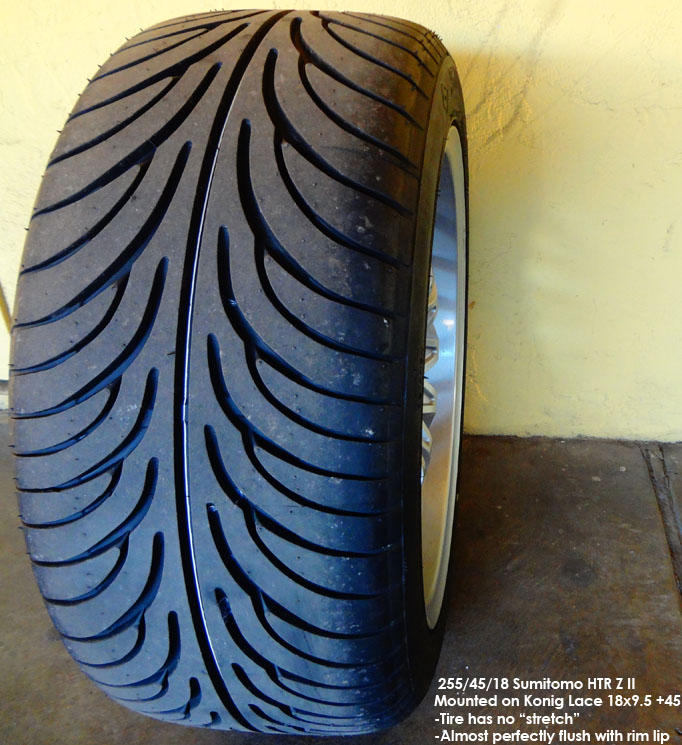

When I bought my RX8 back in 2013 it was running 18x9.5" Axis Halo wheels on all 4 corners with Falkien 235/40 in the rear and 225/40 in the front. They were very stretched and looked like utter **** IMO. I later got Konig Lace wheels, but they were the same size (18x9.5") and eventually put 245/40's on the rear and moved the 235/40's on the front. Then I put 255/45's all around for about 2 years because I wanted more sidewall. Now I have some 265/40's on the front, and soon to have 275/40's on the rear. Here are some pics of my various tires over the last 3-4 years so you can see how they look on 18x9.5" wheels.

Quote:
A functional amount of negative camber, and a fender roll should solve that.
How much camber could I do without affecting handling? The way everyone disses the stance community around these forums (which TBH is fine by me since I'll take function over form any day) I assumed it was zero, but would one or two degrees for the sake of fitting wider tires cause problems? Since the whole RX series of cars in general tends to focus on handling and cornering, should we just generally avoid camber? What are your thoughts on this?
Attached Thumbnails
Will It Fit Thread-225-40.jpg   Will It Fit Thread-235-245.jpg   Will It Fit Thread-255-45-comparison2.jpg   Will It Fit Thread-265-40_1.jpg
OtherSyde is offline   Reply With Quote
Old 01-24-2018, 07:58 AM   #11196
SPOOLN8
iTrader: (1)

RotaryMachineRx's Avatar

Join Date: Nov 2008
Location: Edmonton, Alberta, Canada
Posts: 1,717
Thanked 38 Times in 37 Posts
Quote:
Originally Posted by OtherSyde View Post
When I bought my RX8 back in 2013 it was running 18x9.5" Axis Halo wheels on all 4 corners with Falkien 235/40 in the rear and 225/40 in the front. They were very stretched and looked like utter **** IMO. I later got Konig Lace wheels, but they were the same size (18x9.5") and eventually put 245/40's on the rear and moved the 235/40's on the front. Then I put 255/45's all around for about 2 years because I wanted more sidewall. Now I have some 265/40's on the front, and soon to have 275/40's on the rear. Here are some pics of my various tires over the last 3-4 years so you can see how they look on 18x9.5" wheels.



How much camber could I do without affecting handling? The way everyone disses the stance community around these forums (which TBH is fine by me since I'll take function over form any day) I assumed it was zero, but would one or two degrees for the sake of fitting wider tires cause problems? Since the whole RX series of cars in general tends to focus on handling and cornering, should we just generally avoid camber? What are your thoughts on this?

Means nothing if we don't know the offset of the rim, what were the offsets of each of those? Also you don't look lowered in those photos?

Also a few degrees of negative camber in order to fit some fatter tires IMO is no big deal, especially for street driven applications.
RotaryMachineRx is offline   Reply With Quote
Old 01-24-2018, 09:55 AM   #11197
^^^ Fluent in snark.

NotAPreppie's Avatar

Join Date: Mar 2006
Location: Chicago, IL, USA, North America, Earth, Sol System, Sector ZZ9 Plural Z Alpha, Milkyway, Universe
Posts: 2,573
Thanked 279 Times in 216 Posts
Quote:
Originally Posted by OtherSyde View Post
How much camber could I do without affecting handling? The way everyone disses the stance community around these forums (which TBH is fine by me since I'll take function over form any day) I assumed it was zero, but would one or two degrees for the sake of fitting wider tires cause problems? Since the whole RX series of cars in general tends to focus on handling and cornering, should we just generally avoid camber? What are your thoughts on this?
I don't know where you got the idea that camber is bad for handling. I mean, I guess positive camber is but negative camber is a good thing. And extreme negative camber is bad but it's really hard to get detrimental amounts of camber without trying very, very hard.

Most of the people that race their RX-8's aim to max out front camber. I'm running close to -2.5 camber on each side in the front at 13.5" ride height.
NotAPreppie is offline   Reply With Quote
Old 01-24-2018, 02:05 PM   #11198
Registered

OtherSyde's Avatar

Join Date: Sep 2013
Location: San Diego, CA
Posts: 214
Thanked 6 Times in 6 Posts
Quote:
Originally Posted by RotaryMachineRx View Post
Means nothing if we don't know the offset of the rim, what were the offsets of each of those? Also you don't look lowered in those photos?

Also a few degrees of negative camber in order to fit some fatter tires IMO is no big deal, especially for street driven applications.
Interesting. I might do a couple of degrees of camber at some point then.

Also both sets of wheels I have had were +45 offset, and they are on all-stock suspension in the pics posted above.

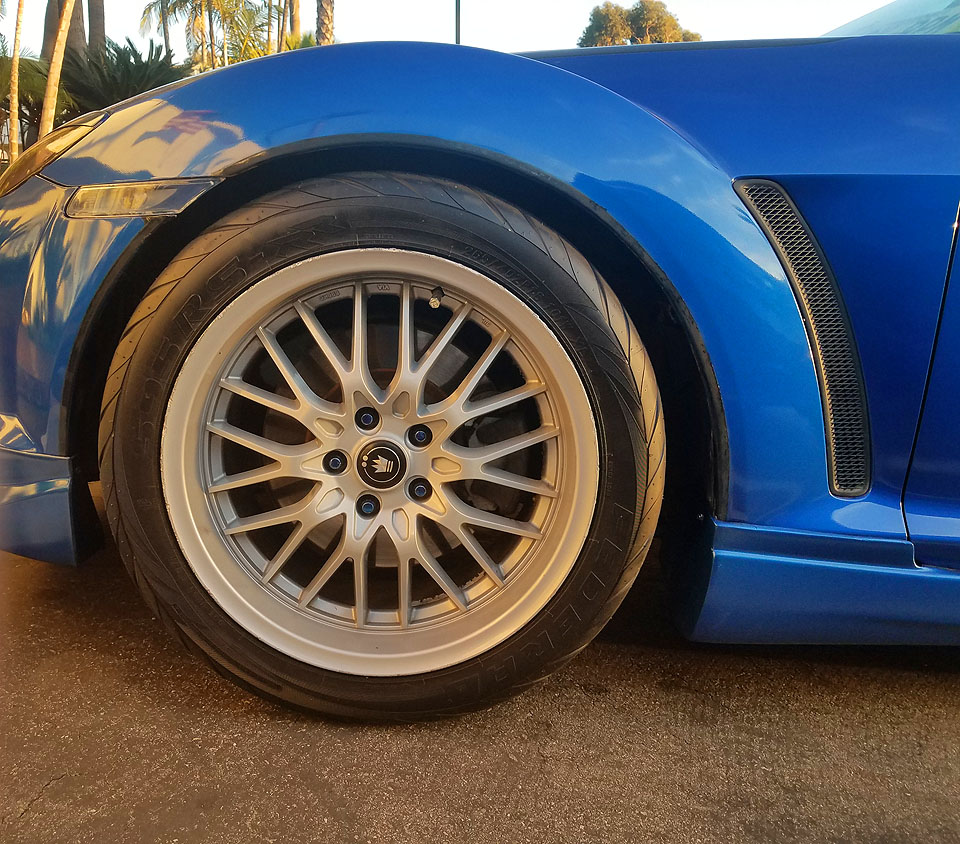

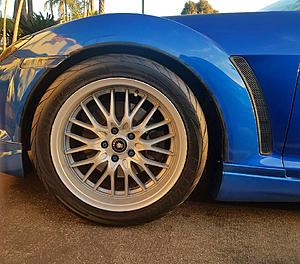

Currently I have 265/40's in front and the (soon-to-be-gone) 255/45's in the rear. 18x9.5" wheels, +45 offset but all 4 are running 20mm spacers so I guess it's technically more like a +25 offset, effectively. TEIN S.TECH springs and KONI Yellow struts. Rolled/gutted fenders. No rubbing or scrubbing whatsoever.
OtherSyde is offline   Reply With Quote
Old 01-24-2018, 05:36 PM   #11199
SPOOLN8
iTrader: (1)

RotaryMachineRx's Avatar

Join Date: Nov 2008
Location: Edmonton, Alberta, Canada
Posts: 1,717
Thanked 38 Times in 37 Posts
Quote:
Originally Posted by OtherSyde View Post
Rolled/gutted fenders. No rubbing or scrubbing whatsoever.

Gutted fenders meaning you took all of the fender liners out from up front? Just curious as I want to put 265/35's all around but I know I'd be rubbing (probably only slightly) on the fender liners in the front and you are running taller tires and 5mm more offset than I am.

Thanks

Last edited by RotaryMachineRx; 01-24-2018 at 05:40 PM.
RotaryMachineRx is offline   Reply With Quote
Old 01-24-2018, 07:43 PM   #11200
Registered

OtherSyde's Avatar

Join Date: Sep 2013
Location: San Diego, CA
Posts: 214
Thanked 6 Times in 6 Posts
Quote:
Originally Posted by RotaryMachineRx View Post
Gutted fenders meaning you took all of the fender liners out from up front? Just curious as I want to put 265/35's all around but I know I'd be rubbing (probably only slightly) on the fender liners in the front and you are running taller tires and 5mm more offset than I am.

Thanks

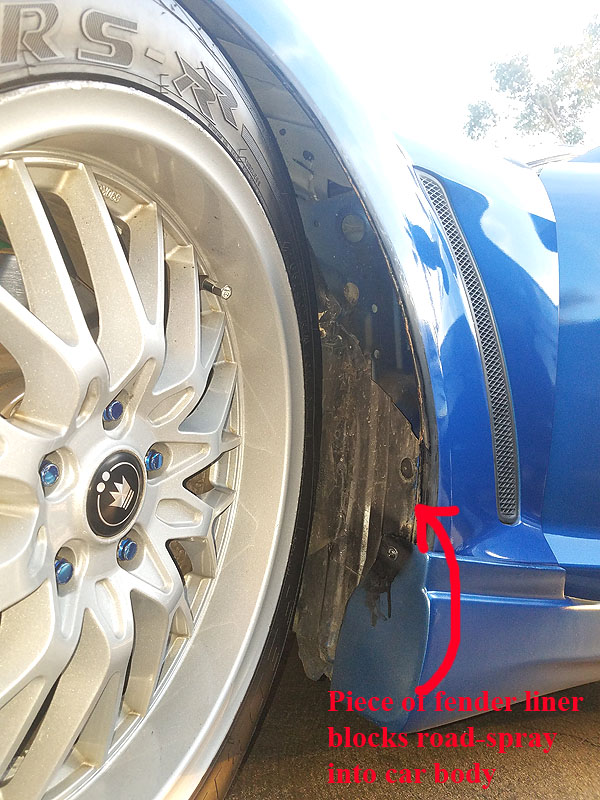

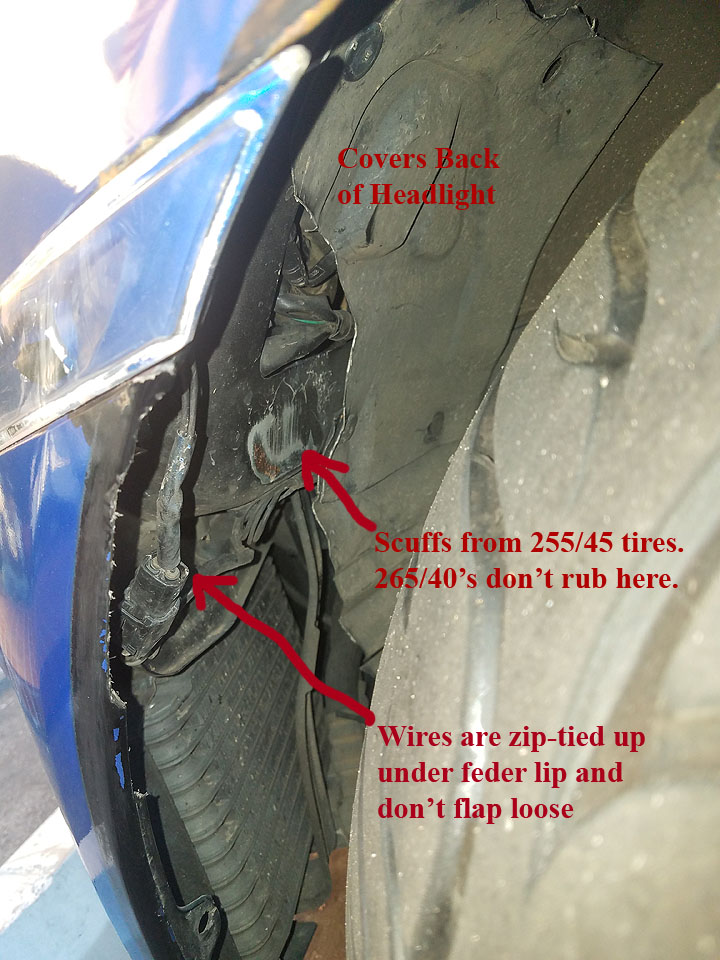

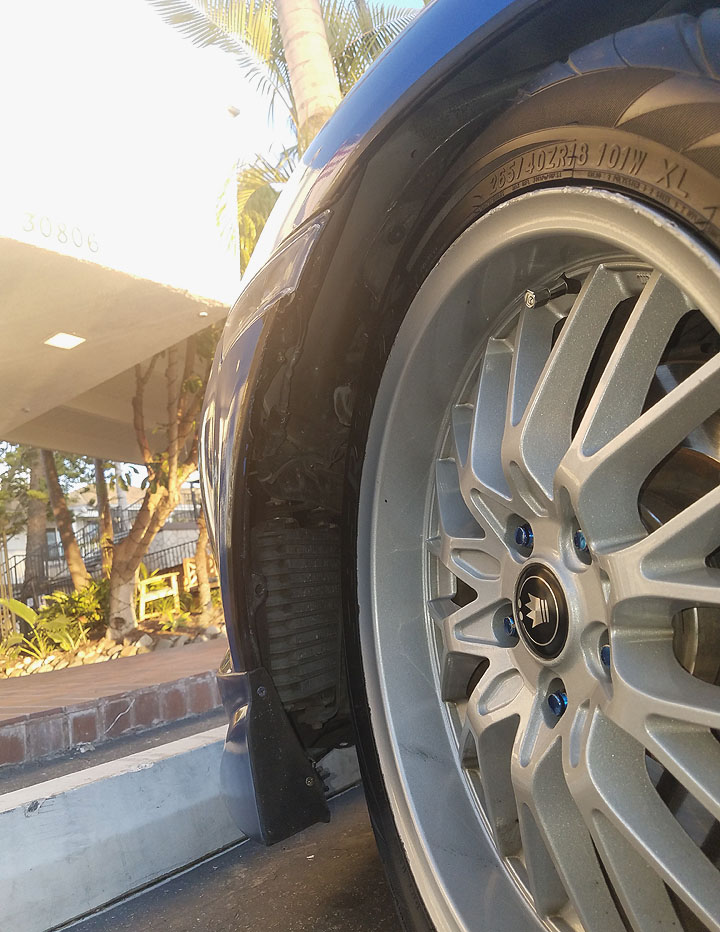

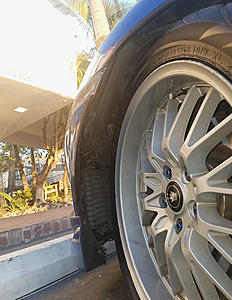

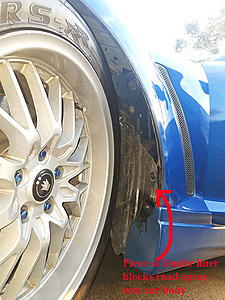

They're gutted and rolled with a hub-mountable roller-tool (pic attached), although I suspect that if I removed the 20mm spacers with my current setup (265/40's on 18x9.5" +45 offset) I would have very little rubbing issues if any, even without a lot of the fender flaring/gutting.

TBH honest I sort of gutted them - I cut the fender well interiors into smaller segments (centered around the mounting holes so I could still securely mount them) that still serve to cover the crucial access areas in order to prevent mud/water/etc. from being slung into the headlight areas, back into the side-skirt area, etc. - I mostly just gutted them up top. I don't personally notice significantly increased road noise from this, but I also have a growly GReddy cat-back combined with a BHR catless midpipe, so I probably wouldn't be able to hear it anyway.

It looks horrible on the inside, but can't really be seen from the outside and nothing rubs anymore (although it took a lot of experimentation to to get there).
Attached Thumbnails
Will It Fit Thread-interiorfender2.jpg   Will It Fit Thread-interiorfender1.jpg   Will It Fit Thread-interiorfender3.jpg   Will It Fit Thread-fender-flare-tool-small.jpg   Will It Fit Thread-265-40-side.jpg


Last edited by OtherSyde; 01-24-2018 at 08:15 PM.
OtherSyde is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Supercharged 3800 Swap Prescription 8 Non-Rotary Swaps 117 02-14-2018 12:07 PM
S2 leather seats in an S1 Olorin2 Series I Interior, Audio, and Electronics 20 03-13-2016 11:01 AM
{ FS } RX8 R3 stock wheels with tires for sale hppy4u Gulf For Sale/Wanted 9 12-03-2015 09:11 PM
Turning the trunk into a bandpass box? Rote8 Series I Interior, Audio, and Electronics 1 09-22-2015 03:43 PM


Tags
18, 188, 18x8537, 19x8, 235, 38smf, 40, 51143, 85, 95, fit, r74, raze, rims, rx8, staggered, thread

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -5. The time now is 11:04 PM.


All content Copyright 2017 by Internet Brands, Inc.
We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
