Unhappy Rear Wheel Banging Noise

Hi Guys,

Hoping someone here can help me..

I have a 2005 RX8 and the passenger side rear wheel seems to make a banging/clacking noise when I pull off or reverse..

At first i thought it was the exhaust hitting something but after having it on the ramp realised it was coming from the wheel itself..

Has anyone come across this problem or know what it may be?


Thanks,


A man in a panik...
Old 02-14-2011, 02:24 AM
  #2
Grasshopper
iTrader: (1)

Jon316G's Avatar

Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,779
Likes: 0
Received 44 Likes on 33 Posts

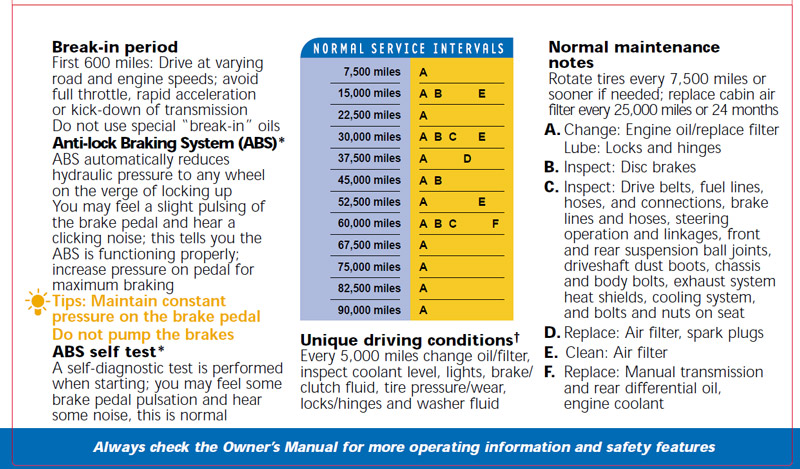

ABS Self Test.
Normal
Rear Wheel Banging Noise-abs-self-test.jpg

Last edited by Jon316G; 02-14-2011 at 02:39 AM.
Old 02-14-2011, 03:30 AM
  #3
Registered User
Thread Starter

Olgs1982's Avatar

Join Date: Feb 2011
Location: England, London
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Jon316G
ABS Self Test.
Normal
Attachment 168319
I don't think this is what's causing the noise, it actually sounds like I am driving over metal steel works. (2 metal poles clashing)

The garage I took it to said it could be the ABS sensor ring???

Does that make any sense to anyone?

Cheers
Old 02-14-2011, 03:39 AM
  #4
Grasshopper
iTrader: (1)

Jon316G's Avatar

Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,779
Likes: 0
Received 44 Likes on 33 Posts
OK.... so this sound occurs while you're driving, not just when you first start rolling?
Easiest thing to do, jack up the car and spin the wheel while you feel and hear for rubbing.

If the Speed Sensor was getting whacked by the sprocket, you would also see the ABS warning light illuminate on the dash.
Its just an induction sensor picking up the sprocket teeth as the wheel spins.
Old 02-14-2011, 04:15 AM
  #5
Registered User
Thread Starter

Olgs1982's Avatar

Join Date: Feb 2011
Location: England, London
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Jon316G
OK.... so this sound occurs while you're driving, not just when you first start rolling?
Easiest thing to do, jack up the car and spin the wheel while you feel and hear for rubbing.

If the Speed Sensor was getting whacked by the sprocket, you would also see the ABS warning light illuminate on the dash.
Its just an induction sensor picking up the sprocket teeth as the wheel spins.
It only does it when I first start rolling but it will keep doing it even after an hour of driving..

I have spinned the wheel while it was jacked up and no rubbing anywhere just that annoying noise!

So confused my head may explode!
Old 02-16-2011, 05:02 PM
  #6
Mu ha.. ha...

Razz1's Avatar

Join Date: Aug 2004
Location: Cali
Posts: 14,361
Likes: 0
Received 3 Likes on 3 Posts
Brake piston sticking?
Old 02-16-2011, 05:13 PM
  #7
Registered
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,560
Received 25 Likes on 23 Posts
Maybe loose Endlinks? Very common noise maker

When the car is jacked up, can you wiggle the wheel? Could be your wheel bearings

http://www.youtube.com/watch?v=JSsC-...eature=related
Old 02-17-2011, 06:11 AM
  #8
Registered
iTrader: (1)

RotaryTherapy's Avatar

Join Date: Jun 2009
Location: Paramaribo, Suriname ( South America )
Posts: 697
Likes: 0
Received 0 Likes on 0 Posts
TPMS sensor ....
Old 02-18-2011, 01:30 AM
  #9
Registered User
Thread Starter

Olgs1982's Avatar

Join Date: Feb 2011
Location: England, London
Posts: 22
Likes: 0
Received 0 Likes on 0 Posts
Got my baby back from the garage today..

Turns out had a stone wedged between the calliper and the disk..

how that happened is a mystery to me! lool..

thanks for all the posts though guys.
Old 06-07-2011, 06:26 PM
  #10
Always Revving :-D

kiker14's Avatar

Join Date: Jul 2005
Location: Northern New Jersey
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
I'm experiencing literally the exact same sound - sounds like a metal hitting metal sound, almost as if there are BB's rolling around inside the wheel. It doesn't do it all the time, and it seems to only be during low speeds. I also had to pull over today to help a buddy and it was awfully gravelly, I wonder if the same thing happened. I'll take the wheel off this weekend, and inspect - if necessary I'll take the brakes apart too but I would like to avoid that if possible!
