Removing Oil Filter --- major pain

Today is the 3rd time I tried to remove the oil filter myself and I have failed again. I can safely say that the oil filter of this car is the hardest to remove.

I even went out there to get myself a longer extension for the wrench. When I turn the wrench, the oil filter wrench-cap keeps popping out. It's simply not staying put when I crank the wrench.

Next, I tried removing it by hand, like was suggested in some older threads, and it was miserable as well. Not working either.

Needless to say, none of the regular oil filter wrench worked because there's simply no room for anything to turn in that vicinity.

Anyone out there succeeded in changing their oil filter?
Old 08-12-2007, 12:40 AM
  #2
Boosted Kiwi
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 20,525
Received 1,492 Likes on 840 Posts
just a few of us

There are some extreme ways of doing it (IE bash a screwdriver right through it ) but I have found it pretty easy to do by hand .
Remove the dip stick and go through the hole where it was so your right arm is almost level with the line of the bonnet . Your hand is facing backwards . You will find you can get very good torque on the filter with your hand from that angle . Just make sure the you wipe the filter so it is not slippery . A damp rag (not wet) can sometimes give you a better grip on it as well .
Old 08-12-2007, 08:11 AM
  #3
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes on 9 Posts
If you buy the CORRECT size oil filter wrench cap(the ones that fit over the entire top) that have a socket(square hole on top), you can then use either a standard socket wrench or even one with an extension. I would keep some downward pressure on top of the cap with one hand while turning the socket wrench. Do this just enough to loosen it and then do the rest by hand. Make sure when you install the new one that you don't use any wrench and make sure you put a light coat of oil on the gasket before you install the new one. BTW.........only put the new one on hand tight. Maybe 3/4 to 1 full turn after the gasket makes contact. I can't remember, but I always go just a little tighter.
Using the screwdriver technique for getting the old one may work(I've had to do it on other vehicles), but you are screwed if it doesn't come off and rips all the way through the filter. Brettus makes a good point about using a rag and making sure the old filter isn't slippery. 99% of the time you can get it off by hand, it just takes persistance with leverage being the most critical. Once you get it to budge, you're all set..................although your forearms will hurt!
May sound stupid, but make sure you are turning the right way!

Last edited by Mazurfer; 08-22-2007 at 07:50 PM.
Old 08-12-2007, 08:18 AM
  #4
⎝⏠⏝⏠⎠

mysql101's Avatar

Join Date: Apr 2004
Location: USA
Posts: 8,625
Received 5 Likes on 4 Posts
if it's your first oil change, have the dealer do it. After that it should be fine.
Old 08-12-2007, 09:30 AM
  #5
Metatron
iTrader: (1)

StealthTL's Avatar

Join Date: Mar 2003
Location: A Pacific Island.
Posts: 7,280
Received 173 Likes on 130 Posts
Sometimes a layer of SaranWrap or two will provide the extra grip and diameter the wrench needs!

....but if it is that infamous "first" filter (the one they get the Sumo to put on)
probably let the dealer fight it!

S
Old 08-12-2007, 10:14 AM
  #6
The Chief
iTrader: (7)

jskup1's Avatar

Join Date: Jun 2005
Location: Virginia Beach, VA
Posts: 827
Likes: 0
Received 0 Likes on 0 Posts

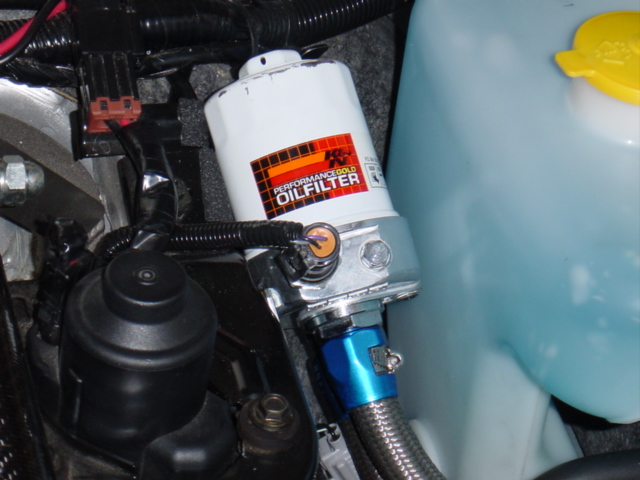

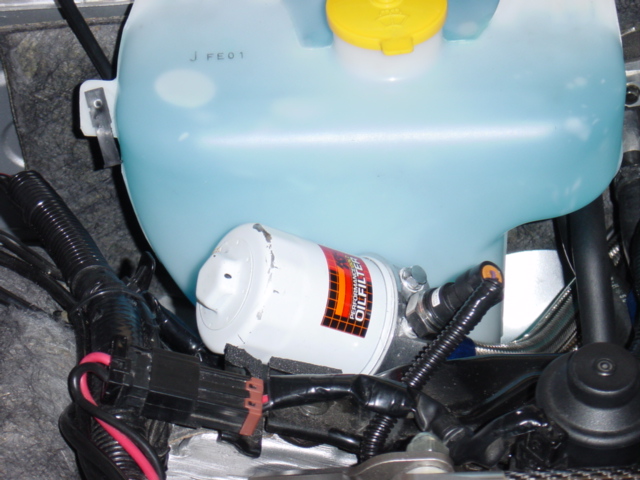

Or you could do this:
Attached Thumbnails Removing Oil Filter --- major pain-dsc04327.jpg   Removing Oil Filter --- major pain-dsc04328.jpg
Old 08-12-2007, 10:17 AM
  #7
Registered
iTrader: (7)

invasion08's Avatar

Join Date: Nov 2003
Location: New jersey
Posts: 2,079
Likes: 0
Received 2 Likes on 2 Posts
I have changed mine with no problems you just need the right tools
Old 08-12-2007, 10:19 AM
  #8
Registered

ken-x8's Avatar

Join Date: Aug 2006
Location: Northern Virginia
Posts: 5,027
Likes: 0
Received 5 Likes on 5 Posts
If the saran wrap trick does not work, try a strip of thin sandpaper.
Old 08-12-2007, 10:23 AM
  #9
The Chief
iTrader: (7)

jskup1's Avatar

Join Date: Jun 2005
Location: Virginia Beach, VA
Posts: 827
Likes: 0
Received 0 Likes on 0 Posts
The K&N filters also have a nut welded to the top of it so you can use a ratchet/socket to remove it.
Old 08-12-2007, 10:40 AM
  #10
He's as bad as Can

expo1's Avatar

Join Date: Feb 2004
Location: Manchester, NJ
Posts: 4,309
Likes: 0
Received 2 Likes on 2 Posts
A spring loaded tool like this also works well with two long extentions and a U-Joint
Attached Thumbnails Removing Oil Filter --- major pain-filtertool.jpg
Old 08-12-2007, 11:18 AM
  #11
Registered User

toxin440's Avatar

Join Date: Aug 2005
Location: Texas
Posts: 994
Likes: 0
Received 0 Likes on 0 Posts
good pic expo1,

I got the same tool from autozone - all you need is that, and an extension bar for a socket wrench and you are set. I think on the packaging it was called a "Japanese Import car spring loaded oil socket" something or other. :-)
Old 08-12-2007, 04:19 PM
  #12
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes on 9 Posts
Expo1...............exactly what I use, can get it at Autozone and then use an extension and rachet.
Old 08-13-2007, 08:53 AM
  #13
Registered User
Thread Starter

ArthurY's Avatar

Join Date: Jun 2006
Location: Washington state
Posts: 108
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by expo1
A spring loaded tool like this also works well with two long extentions and a U-Joint
OK, I may get this and give it a try.

Thanks, everyone.
Old 08-13-2007, 09:09 PM
  #14
RotoRocks Powered

rotorocks's Avatar

Join Date: May 2006
Location: Delray Beach, FL
Posts: 1,236
Likes: 0
Received 6 Likes on 6 Posts
Originally Posted by jskup1
Or you could do this:
Heh, but he would have to take the original one out first
Old 08-14-2007, 09:27 AM
  #15
Registered User
Thread Starter

ArthurY's Avatar

Join Date: Jun 2006
Location: Washington state
Posts: 108
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by rotorocks
Heh, but he would have to take the original one out first

Is there something special about the original oil filter?
Old 08-14-2007, 09:30 AM
  #16
Man Up!!!!

hough2696's Avatar

Join Date: May 2007
Location: Ft Bragg, NC
Posts: 637
Likes: 0
Received 0 Likes on 0 Posts
Yeah its torqued on by a professional armwrestler.

Sorry, I just used my lil hand to get mine off...easy peasy.
Old 08-14-2007, 06:12 PM
  #17
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes on 9 Posts
Originally Posted by hough2696
Yeah its torqued on by a professional armwrestler.

Sorry, I just used my lil hand to get mine off...easy peasy.
That's the way you want it, not too tight............but not to loose either! Yes, I'm keeping it clean, because I got a real good response to what you wrote above, just trying to behave!

Last edited by Mazurfer; 08-14-2007 at 06:15 PM.
Old 08-15-2007, 07:07 AM
  #18
Man Up!!!!

hough2696's Avatar

Join Date: May 2007
Location: Ft Bragg, NC
Posts: 637
Likes: 0
Received 0 Likes on 0 Posts
Oh yeah I just reread my post. Lil dirty, but kudos on holding back, I'm proud of you!
Old 08-15-2007, 03:50 PM
  #19
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes on 9 Posts
Old 08-19-2007, 02:08 PM
  #20
Vegas rx8!

ivory8's Avatar

Join Date: Mar 2007
Location: Las Vegas
Posts: 1,286
Likes: 0
Received 0 Likes on 0 Posts
i just did it a few days ago (cars first oil change) and the filter was a beast to get off. i had to do as 1 of the first repliers said, take out dip stick. thread your arm backward through all the tubes, being careful not to burn yourself. then grab the oil filter and crank...lefty loosey righty tighty
Old 08-19-2007, 08:11 PM
  #21
TKE Tails
iTrader: (1)

TKE Tails's Avatar

Join Date: Aug 2006
Location: STL
Posts: 38
Likes: 0
Received 0 Likes on 0 Posts
Do the sandpaper trick inside of your oil filter wrench that will connect to a rachet, but obviously you have to fold the sandpaper in half so that the rough side is making contact with the filter and the wrench at the same time. You don't have to put it all the way around either.

Try using the FRAM high flow "Tough" (I think that is the super duper one) and it will have a gritty top for easy grip to put the filter on and take it off next time.

If this doesn't work for you, just buy a new 8 with new oil in it.
Old 08-20-2007, 07:51 PM
  #22
I don't buy Kool-Aid

DOMINION's Avatar

Join Date: Apr 2004
Location: Vegas Baby!
Posts: 8,823
Likes: 0
Received 2 Likes on 2 Posts
Lightbulb

Originally Posted by jskup1
Or you could do this:
Where did you get this set up or is it custom? If I get the Pettit SC I'll have to jack the car up and go from under the car! This might just take car of that!
Old 08-22-2007, 08:22 AM
  #23
Lubricious

Nubo's Avatar

Join Date: Oct 2003
Location: SF Bay Area, California
Posts: 3,425
Likes: 0
Received 4 Likes on 4 Posts
I advise against "hand tightening". The Mazda filter says tighten 1 1/6 turns after it contacts the base. Do you think they picked that number out of thin air?
Old 08-22-2007, 08:36 AM
  #24
tjb

tjbourgoyne's Avatar

Join Date: Mar 2006
Location: Louisiana
Posts: 877
Likes: 0
Received 2 Likes on 1 Post
The rubber pad that opens jars. Been using them for years never had a problem.
Whatever you use the exterior of the filter has to be clean otherwise no grip.
I've seen people use timing belts, clothing belts, screw drivers...whatever, the jar pad is the best thing on the 8.

The mistake people make is screwing it on way too tight and not wiping it clean before removal.
Old 08-22-2007, 07:47 PM
  #25
Surf Hard, Drive Hard

Mazurfer's Avatar

Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 11 Likes on 9 Posts
Originally Posted by Nubo
I advise against "hand tightening". The Mazda filter says tighten 1 1/6 turns after it contacts the base. Do you think they picked that number out of thin air?
Hand tightening is fine unless you're a wimp! You also can check it when you check your oil ya know.

Last edited by Mazurfer; 08-22-2007 at 07:51 PM.
