power surge at 7000 RPM
Today I pulled out to pass a car and noticed that it felt flat on acceleration. When the revs got to about 7000 rpm it was like a turbo kicked in. I pulled over and stopped then pulled out and accelerated hard again. Same thing happened . 7000rpm it kicked in hard. Can someone explain to me what the heck is happening? Thanks.
01-07-2008, 05:00 PM
#2
Administrator
iTrader: (7)
final 2 ports opening up.
01-07-2008, 05:07 PM
#4

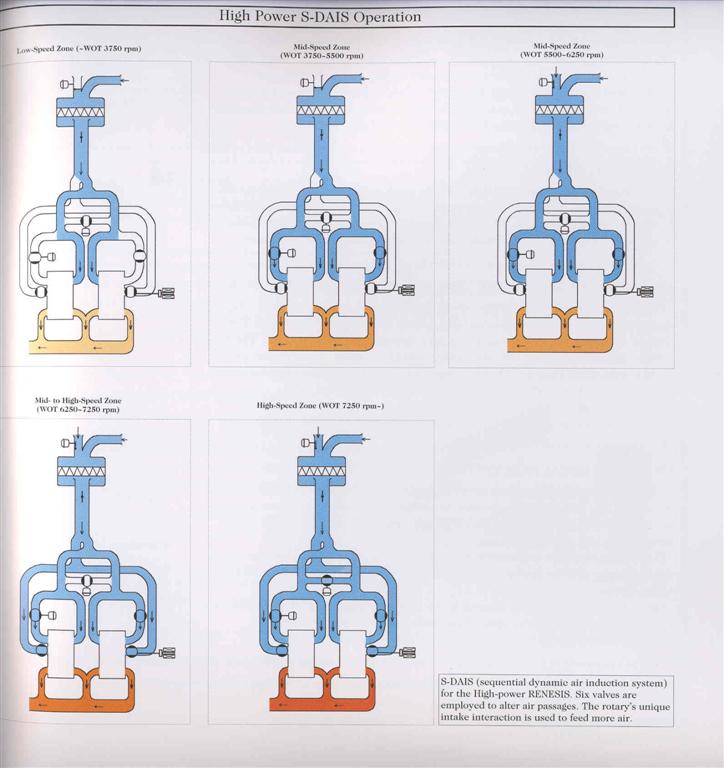

Actually, it goes like this:
3750 SDAIS Secondary intake ports open (SSV)
5500 SDAIS VFAD may open (Yamaguchi p 115)
6250 SDAIS Auxilary intake ports open (APV)
7250 SDAIS Primary intake ports interconnnect (adds a second shorter path) (VDI)
7250 SDAIS VFAD opens on WOT
3750 SDAIS Secondary intake ports open (SSV)
5500 SDAIS VFAD may open (Yamaguchi p 115)
6250 SDAIS Auxilary intake ports open (APV)
7250 SDAIS Primary intake ports interconnnect (adds a second shorter path) (VDI)
7250 SDAIS VFAD opens on WOT
Last edited by Nemesis8; 01-07-2008 at 05:10 PM.
01-07-2008, 06:09 PM
#5
Registered
iTrader: (1)
Join Date: Jun 2006
Location: Da Hills of Va
Posts: 662
Likes: 0
Received 0 Likes
on
0 Posts
I had the same thing happen atleast 50 times.....I like it so I'm not complaining. First time it happened I was like..."Hell ya"....reminded me of going into vtec in my old SC'd 02 civic Si.
01-07-2008, 06:20 PM
#6
is adjusting valve lash
Join Date: Sep 2007
Location: hollywooood!
Posts: 1,060
Likes: 0
Received 0 Likes
on
0 Posts
^^*sigh*
reminds me of the good times. at least the good times i've had with piston engines in my H22a. though the TL is also vtec, but not as aggressive like the vtec's we've got...and its auto. C series suck unless its one in the NSX.
*sigh* it was 8k rpm goodness when i had it... too bad cops were all over me when i had it. damn i'm not young anymore or in high school. so i sold it.
reminds me of the good times. at least the good times i've had with piston engines in my H22a. though the TL is also vtec, but not as aggressive like the vtec's we've got...and its auto. C series suck unless its one in the NSX.
*sigh* it was 8k rpm goodness when i had it... too bad cops were all over me when i had it. damn i'm not young anymore or in high school. so i sold it.
01-07-2008, 06:57 PM
#7
5Picker
Thread Starter
Join Date: Nov 2004
Location: Tennessee
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
Actually, it goes like this:
3750 SDAIS Secondary intake ports open (SSV)
5500 SDAIS VFAD may open (Yamaguchi p 115)
6250 SDAIS Auxilary intake ports open (APV)
7250 SDAIS Primary intake ports interconnnect (adds a second shorter path) (VDI)
7250 SDAIS VFAD opens on WOT
3750 SDAIS Secondary intake ports open (SSV)
5500 SDAIS VFAD may open (Yamaguchi p 115)
6250 SDAIS Auxilary intake ports open (APV)
7250 SDAIS Primary intake ports interconnnect (adds a second shorter path) (VDI)
7250 SDAIS VFAD opens on WOT
Last edited by rled; 01-07-2008 at 07:26 PM.
01-07-2008, 06:58 PM
#8
Administrator
iTrader: (7)
check the plugs and ignition coils.
plugs = brown is okay, black is not so good
ignition coils = white burn marks on the bottom can potentially be a sign of them failing. Here's a method for testing them: http://www.finishlineperformance.com...16-07-1793.pdf
plugs = brown is okay, black is not so good
ignition coils = white burn marks on the bottom can potentially be a sign of them failing. Here's a method for testing them: http://www.finishlineperformance.com...16-07-1793.pdf
01-07-2008, 10:08 PM
#11
Ok, I understand about the ports opening up , but this was different . It's like engine power is down from what I am used to . Always before , it has been a smoother transition .This time it was rather weak until it hit 7k, then it was boom kick in the ***. I read rotary gods post . Very informative. But I still don't understand why all of a sudden I feel such a large increase in power. Is it possible that some other port is not opening when it is supposed to? Sorry if this sounds rudimentary, but I am new to rotary engine technology having grown up with large V8's. Thanks
OR
someone slipped a turbo in there while you weren't looking ....
01-08-2008, 04:56 PM
#12
5Picker
Thread Starter
Join Date: Nov 2004
Location: Tennessee
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
Yeah I wish! The car is behaving differently. Like I said before ,power felt down until I hit the 7k rpm and then it was a real noticeable instant power surge.I don't have any misfiring or stalling, . It always pulled strong all the way up to 9k. Any one know where I can find an exploded view of the intake? I don't know what the different port abbreviations mean, or where they are located in the intake tract.It idles a little rough though. It makes my horn button on the steering wheel vibrate . Aggravates the crap outa me. Thanks
01-12-2008, 07:05 PM
#18
noob
Join Date: Nov 2007
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
somone told me that the old 7s had a similar set up... @ WOT or a specific RPM range, two more ports would open up not unlike the old school four barrel carbs. that those of us that grew up on old American motors are used to. He also mentioned that there was a way to make both or all four ports or whatever anyway.. all of them open all the time... would this be possible with the ren? Another question... should this mod be possible... would it actually help? Or would it just add to the already ... less that desirable fuel consumption?
Last edited by nordichunter; 01-12-2008 at 07:09 PM.
04-14-2016, 06:00 PM
#20
rled is probably long gone by now .
This symptom is usually related to a stuck ssv . When the APVs open the engine can suddenly breathe again so you feel a surge in power .
Have someone turn the engine off while you watch the ssv actuator . It does a check cycle a few seconds after the engine is shut down. Also: activate it by hand and make sure it moves freely ....
This symptom is usually related to a stuck ssv . When the APVs open the engine can suddenly breathe again so you feel a surge in power .
Have someone turn the engine off while you watch the ssv actuator . It does a check cycle a few seconds after the engine is shut down. Also: activate it by hand and make sure it moves freely ....
Last edited by Brettus; 04-14-2016 at 06:03 PM.
04-15-2016, 04:26 AM
#21
Registered
Join Date: Jul 2009
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
rled is probably long gone by now .
This symptom is usually related to a stuck ssv . When the APVs open the engine can suddenly breathe again so you feel a surge in power .
Have someone turn the engine off while you watch the ssv actuator . It does a check cycle a few seconds after the engine is shut down. Also: activate it by hand and make sure it moves freely ....
This symptom is usually related to a stuck ssv . When the APVs open the engine can suddenly breathe again so you feel a surge in power .
Have someone turn the engine off while you watch the ssv actuator . It does a check cycle a few seconds after the engine is shut down. Also: activate it by hand and make sure it moves freely ....
Silly question but how do I find the SSV actuator? I've looked on Youtube and here but can't find proper pictures...where do I put my hand?
Cheers,
Jon
