rx2kill

So I changed my suspesion out, in the process I apartantley did some damage, made the ABS light and stability control light go off, I tried all the little reset tricks, none of which worked, whilst my car was at mazda(yes I just used that word haha), they said it was the front abs harness, its a two foot section of wires I have seen, does anyone know where to buy this part other than from mazda??? I have tried mazmart, they never wrote me back, I called them they said theyd write me back. Its been a week, no reply. Also it seems like a easy fix given I get the part, any tricks to replacin the harness??? Thank you. ~RX

Jon316G

iTrader: (1)

If its just the wire harness that is damaged, just cut the wires next to the harness (removing the OEM harness) and splice/crimp bullet terminals.
This way you won't have to worry about crimping the same style pins into a new OEM harness.

Or you can purchase the whole sensor assembly which should include the sensor, wire, and harness.
OnlineMazdaParts.com has them for $62.91

rx2kill

wow thanx man, I really suck at electrical stuff so Id prolly opt to just get the whole part, I know crimping is easy but that over time can come loose, and if there was a special olympics for soldering, Id prolly place just above last, so thank you.

rx2kill

Jon, could you send me a link to where the harness is? I went to the site but dont know what categorys to follow

Jon316G

iTrader: (1)

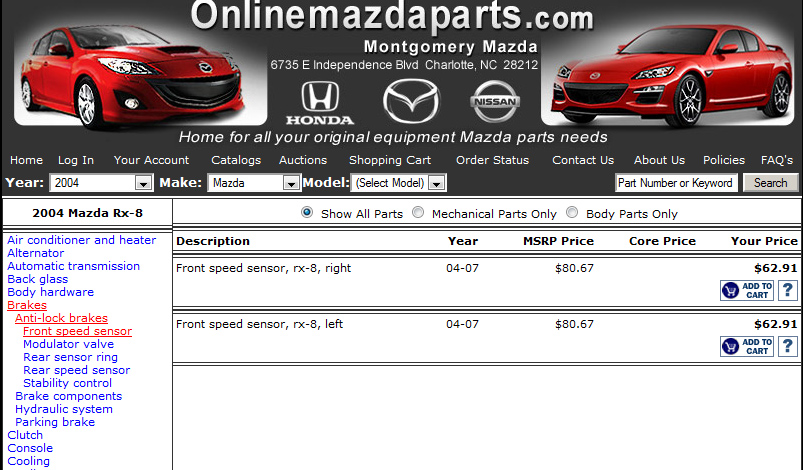

Look at the left task pane on the attached pic below and follow the "path" to get to that sensor.

rx2kill

The abs harness is considered the speed sensor?

Jon316G

iTrader: (1)

No.
The speed sensor is on one end of the wire and the harness is on the other.
When you purchase it, you get the whole setup so you don't have to worry about crimping new pins into a harness.

rx2kill

oh alright, think I remember how that would be than, speed sensor by the rotor than the bart under the bumper is the harness. U have any pix

Jon316G

iTrader: (1)

Sorry... no helpful pics.

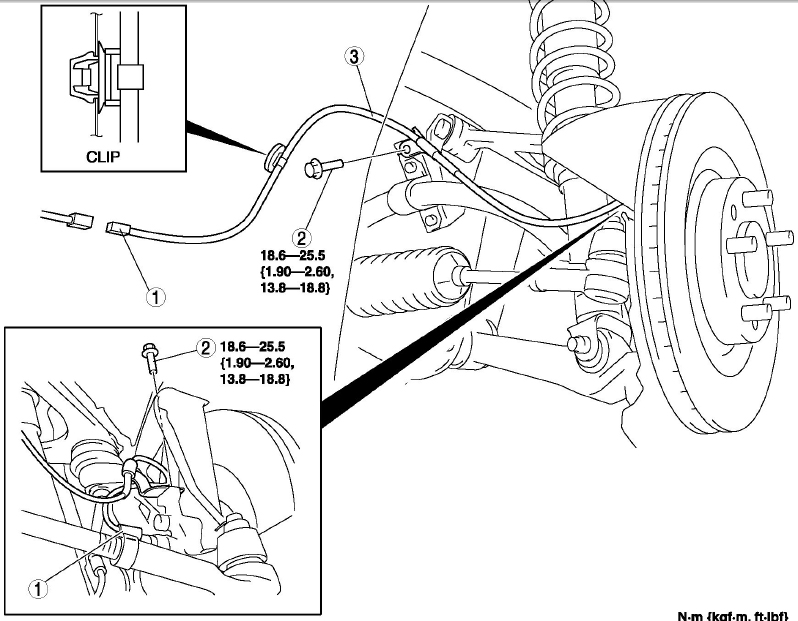

Only this pic from the service manual:

rx2kill

I ordered the harness and today I changed it out, My ABS light and that stability light are still on WTF!!!!!!!!!!
