Coolant leak, Throttle body?
#1
Grey Boy
Thread Starter
Coolant leak, Throttle body?
Hi.
I just had my 8 inspected and the tech told me it took a gallon of coolant. He stated it has a leak somewheres around the throttle body but he couldn't see where without opening things up. I can see the coolant on the engine by the throttle body but the schematics in the manual do not show much.
I searched throttle body coolant leak but didn't find anything. Has anyone had this problem?
I just had my 8 inspected and the tech told me it took a gallon of coolant. He stated it has a leak somewheres around the throttle body but he couldn't see where without opening things up. I can see the coolant on the engine by the throttle body but the schematics in the manual do not show much.
I searched throttle body coolant leak but didn't find anything. Has anyone had this problem?
Last edited by titaneum_grey; 04-04-2018 at 10:45 AM. Reason: spelling
#2
FULLY SEMI AUTOMATIC
iTrader: (9)
coolant passes through the tb. theres two hoses connected to it
The following users liked this post:
titaneum_grey (04-04-2018)
#3
Smoking turbo yay
^Yep. I believe it's there to prevent freezing.
Check the hoses going in and out of the throttle body.
Check the hoses going in and out of the throttle body.
#4
Registered
Yes there is one on the top corner of the tb and the other is on the bottom opposite corner
#5
Grey Boy
Thread Starter

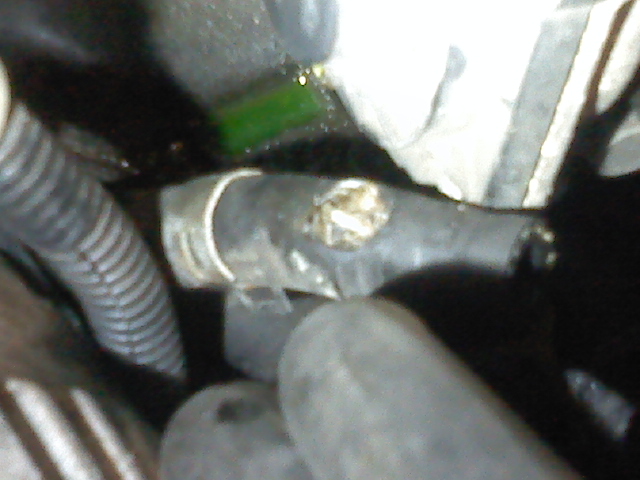

Found it, a worn spot on the back side of the bottom hose. I was able to cut it at the break and put it back on, till I get a replacement.
Thanks to all.
Thanks to all.
#6
FULLY SEMI AUTOMATIC
iTrader: (9)
#7
I found my coolant leak!
I had big misfires upon cold startup, white smoke and I was experiencing a slow coolant loss. Fearing the worst, I thought the coolant seals were dead. It turns out, the throttle body was leaking coolant in the following image, where all the grey crap is the stop leak that sealed the leak a few weeks ago.
You can see the grey stuff leaking from the hinge, and at WOT, the coolant would obviously spread across the outside of the butterfly and harden.
This saves an AUD$6000 rebuild!
You can see the grey stuff leaking from the hinge, and at WOT, the coolant would obviously spread across the outside of the butterfly and harden.
This saves an AUD$6000 rebuild!
The following users liked this post:
Meat Head (06-21-2023)
