As promised...

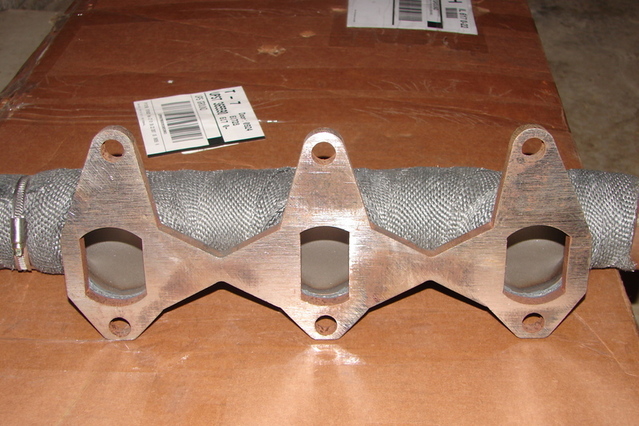

The first picture is of the PTP manifold. Notice that there are no holes directly above the exhaust ports. This is because the PTP manifold does not incorporate the SAIP.

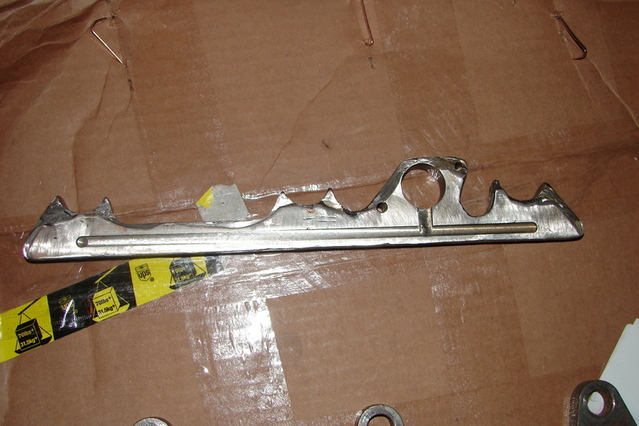

The second picture is of the backside of a SAIP flange cut from an OBX exhaust. Notice the channel for the air to travel through as it is pumped into the manifold and ultimately the exhaust ports.

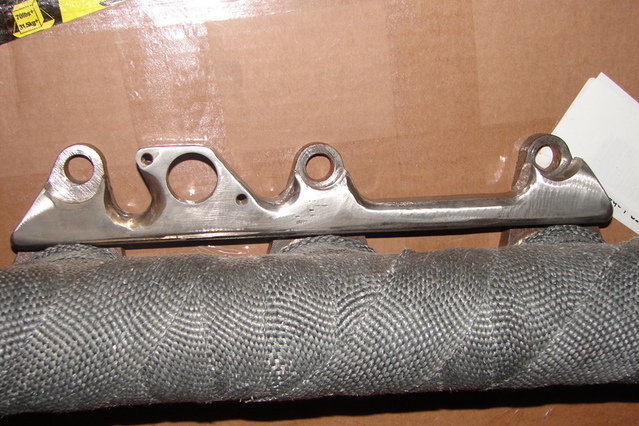

The third picture is basically what the SAIP flange would look like if it were incorporated into the PTP manifold.

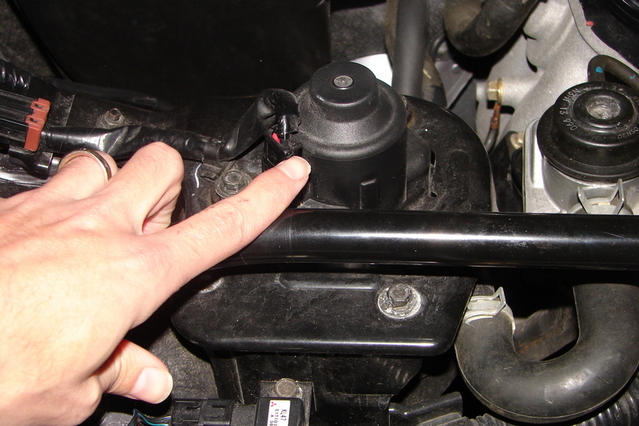

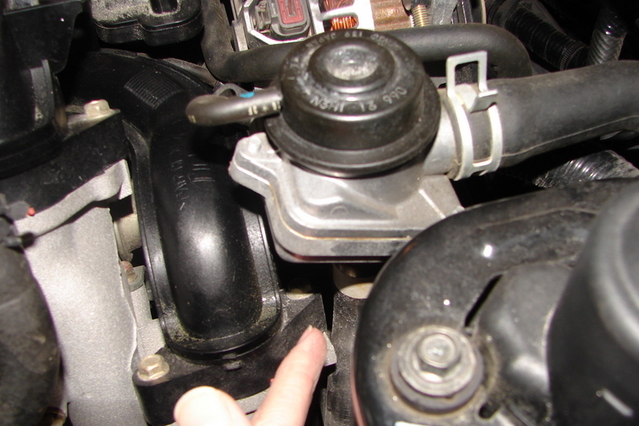

The 4th picture is of the Air Control Valve and the tube that connects the air control valve to the SAIP manifold flange.
The 5th picture is of the Air Pump...and my finger. Man, I need to cut my nails....
So in conclusion...if you go with a header/manifold that does not have the SAIP incorporated it should not cause you any problems because the holes in the exhaust ports are blocked by the manifold. However, if you don't use the emanage ultimate with the turbo upgrade harness you will probably get a CEL because the A/F ratio will be too rich at startup.
The first picture is of the PTP manifold. Notice that there are no holes directly above the exhaust ports. This is because the PTP manifold does not incorporate the SAIP.
The second picture is of the backside of a SAIP flange cut from an OBX exhaust. Notice the channel for the air to travel through as it is pumped into the manifold and ultimately the exhaust ports.
The third picture is basically what the SAIP flange would look like if it were incorporated into the PTP manifold.
The 4th picture is of the Air Control Valve and the tube that connects the air control valve to the SAIP manifold flange.
The 5th picture is of the Air Pump...and my finger. Man, I need to cut my nails....
So in conclusion...if you go with a header/manifold that does not have the SAIP incorporated it should not cause you any problems because the holes in the exhaust ports are blocked by the manifold. However, if you don't use the emanage ultimate with the turbo upgrade harness you will probably get a CEL because the A/F ratio will be too rich at startup.
