Old Nov 17, 2008 | 08:07 PM
  #3551
marsredr100's Avatar
Registered User
iTrader: (1)

Joined: Jun 2007
Posts: 1,112
Likes: 0
From: Houston, TX
Originally Posted by morkusyambo
What's the highest MAF reading you guys have logged? I did 346g/s @8500 rpm today.
322g/s @ 8600 rpm on 10-22-08
Reply
Old Nov 17, 2008 | 08:08 PM
  #3552
Rote8's Avatar
Registered

Joined: Oct 2007
Posts: 1,574
Likes: 2
From: Boosted...
Originally Posted by olddragger
ok i have a problem-----this morning started getting misfires--both rotors. car was running fine when i shut it down and the next morning this started.
anytime i put a load on the car -say more than 10% throttle-the misfires start.
codes po300-301,po456(have to tighten my cap!, and po113(iat). Would the iat cause this? Need new maf?
OD
It got cold up there?


Could you have an intake leak pre-blower?
To eliminate the wost possible problems;
Did you have antifreeze?
In the intercooler too?
Reply
Old Nov 17, 2008 | 08:09 PM
  #3553
marsredr100's Avatar
Registered User
iTrader: (1)

Joined: Jun 2007
Posts: 1,112
Likes: 0
From: Houston, TX
Originally Posted by shinka213
yeah swoope...thats what we call it....
pics or it didnt happen???

http://www.fjbruisers.org/forum/index.php?topic=2193.0

there are pics throughout...
my rig is the white one...
That's nice but can we get more pictures of your toes?
Reply
Old Nov 17, 2008 | 08:27 PM
  #3554
marsredr100's Avatar
Registered User
iTrader: (1)

Joined: Jun 2007
Posts: 1,112
Likes: 0
From: Houston, TX
Originally Posted by Bastage
That's a good point, but I would think that having no insulation would be worse considering how much heat the blower absorbs from that hot engine bay.

I think that Juan has reported consistently lower air temps since he insulated his blower.
The insulation will provide quicker drops in AIT once you start spraying meth, lower AIT while spraying and it will prolong AIT increase once you stop spraying. Also, your AIT will be @ 5 degrees lower (no meth) while sustain cruising on the highway. It will not help if you are on extended stop and go traffic.
Reply
Old Nov 17, 2008 | 08:40 PM
  #3555
olddragger's Avatar
Registered
iTrader: (3)

Joined: Apr 2004
Posts: 10,828
Likes: 40
From: macon, georgia
it got cold but just in the 40's and besides on the way home in the 60's--still there.
i do get intermediate a/f's in the 15's so it may be ignition --but to both rotors at the same time? time to break out the voltmeter--i guess.
no intake leak.
OD
Reply
Old Nov 17, 2008 | 08:44 PM
  #3556
marsredr100's Avatar
Registered User
iTrader: (1)

Joined: Jun 2007
Posts: 1,112
Likes: 0
From: Houston, TX
Originally Posted by olddragger
ok i have a problem-----this morning started getting misfires--both rotors. car was running fine when i shut it down and the next morning this started.
anytime i put a load on the car -say more than 10% throttle-the misfires start.
codes po300-301,po456(have to tighten my cap!, and po113(iat). Would the iat cause this? Need new maf?
OD
Start with making a nice doorstop out of your mazsport ignition solution. Then get yourself four yukon or msd coils followed by a pair of ngk 10.5 for the leading plugs and 11.5 for the trailings. I can crank my car (after it sits parked for a week) early in the morning, move it for less than half a minute, shut it off and crank it back up later with no issues whatsoever. Ever!
Reply
Old Nov 17, 2008 | 09:14 PM
  #3557
Rote8's Avatar
Registered

Joined: Oct 2007
Posts: 1,574
Likes: 2
From: Boosted...
Originally Posted by marsredr100
Start with making a nice doorstop out of your mazsport ignition solution.
The Mazsport ignition works fine; as a base to hold the Yukon/LS1/MSD coils.

Last edited by Rote8; Oct 16, 2009 at 05:12 PM.
Reply
Old Nov 17, 2008 | 09:30 PM
  #3558
morkusyambo's Avatar
Dongbag extrordinare

Joined: Nov 2004
Posts: 1,090
Likes: 0
From: Away from the fruits of my labor
OD. I would go ahead and replace the Mazsport igniton setup with something else. Its not like you're gonna be able to buy replacement parts for it anyways(sorry, couldn't help myself!). I was having misfires as well untill a few weeks ago. I was running trailing RX7 plugs due to the recommendation of Mazsport(heh, go figure). I then switched back to brand new OEM plugs, gapped to .030. Wala, no more misfires, running smooth as silk.

BTW, i've been running the MSD coils for a few thousand miles now with no problems.
Reply
Old Nov 17, 2008 | 10:12 PM
  #3559
shinka213's Avatar
Pettit fangurl <3

Joined: Mar 2005
Posts: 5,386
Likes: 0
From: Aston, PA
Originally Posted by marsredr100
That's nice but can we get more pictures of your toes?
how did you know they were mine???
they could have been moons....

Reply
Old Nov 18, 2008 | 02:44 AM
  #3560
california style's Avatar
Londons Yellow Peril

Joined: Apr 2005
Posts: 1,340
Likes: 2
From: North London

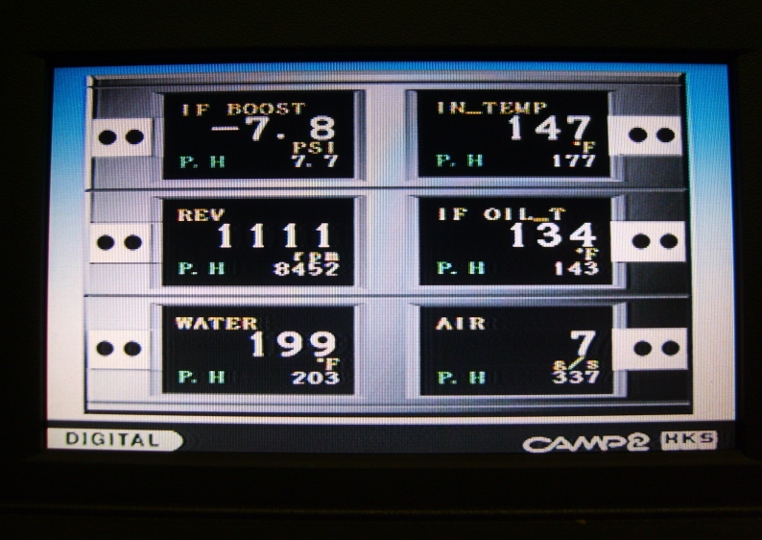

I think 337 g/s is my highest (recorded one anyway)

Attached Thumbnails Pettit Super Charger Owners-337-g-s.jpg
Reply
Old Nov 18, 2008 | 03:17 AM
  #3561
Rote8's Avatar
Registered

Joined: Oct 2007
Posts: 1,574
Likes: 2
From: Boosted...
Talking OK, here's a MAF reading for you....

This is only during a burst, but it will set your head against the seat.

Last edited by Rote8; Oct 16, 2009 at 05:12 PM.
Reply
Old Nov 18, 2008 | 06:21 AM
  #3562
marsredr100's Avatar
Registered User
iTrader: (1)

Joined: Jun 2007
Posts: 1,112
Likes: 0
From: Houston, TX
Originally Posted by shinka213
how did you know they were mine???
they could have been moons....

Are you kidding me? I can spot sexy toes from afar.

Besides, I bet you dollars to doughnuts that Moon’s toes are packed with plenty of toe jam.
Reply
Old Nov 18, 2008 | 08:03 AM
  #3563
morkusyambo's Avatar
Dongbag extrordinare

Joined: Nov 2004
Posts: 1,090
Likes: 0
From: Away from the fruits of my labor
Rote8, what was the #?
Reply
Old Nov 18, 2008 | 10:55 AM
  #3564
olddragger's Avatar
Registered
iTrader: (3)

Joined: Apr 2004
Posts: 10,828
Likes: 40
From: macon, georgia
yep i agree--worked with it some last night and I think i have boiled it down to ignition. Funny I have been running these since march?
Maybe its a wire--checking further.
new plugs gapped at 30 already.
only a po301 now and only with a little load. car is a little bit--not much--harder to crank maybe 4 turns versus 3 before.
i have a set of good oem coils, one thing good about the ms ign is I already have the connectors you need for the msd/yukon set up!! Already have the wires too!!
Summitt racing is 40 min away. The money is about 2 months away
I will just have to remove the ignitor box set up.

Ya'll call that offroading? COme on down to Ga and let me show you how it is done clay hills from caulk mining that are 200 meters high and at about 80% incline! All the mud and water you would ever want! I ran a cj5 with 36 inches and I had a loaf of bread floating in the floorboard!
Fun isnt it!
OD
Reply
Old Nov 18, 2008 | 11:31 AM
  #3565
Bastage's Avatar
DEVILMAN
iTrader: (1)

Joined: Dec 2003
Posts: 1,094
Likes: 2
From: Melbourne, FL
Originally Posted by olddragger
yep i agree--worked with it some last night and I think i have boiled it down to ignition. Funny I have been running these since march?
Maybe its a wire--checking further.
new plugs gapped at 30 already.
only a po301 now and only with a little load. car is a little bit--not much--harder to crank maybe 4 turns versus 3 before.
i have a set of good oem coils, one thing good about the ms ign is I already have the connectors you need for the msd/yukon set up!! Already have the wires too!!
Summitt racing is 40 min away. The money is about 2 months away
I will just have to remove the ignitor box set up.

OD
Not sure if you're aware, but you can get 4 yukon coils for about $90 shipped from these guys:

http://www.northeastcore.com/

That's where I got mine.
Reply
Old Nov 18, 2008 | 11:36 AM
  #3566
MazdaManiac's Avatar
Banned
iTrader: (3)

Joined: Oct 2003
Posts: 16,386
Likes: 28
From: Under my car
Originally Posted by Rote8
This is only during a burst, but it will set your head against the seat.
Originally Posted by california style
I think 337 g/s is my highest (recorded one anyway)
Don't forget that, at the torque peak (where your maximum MAF readings are occurring), the S/C is using 30 - 40 g/sec just to power itself, so you have to deduct that from your net power calculation.
Reply
Old Nov 18, 2008 | 12:29 PM
  #3567
Bastage's Avatar
DEVILMAN
iTrader: (1)

Joined: Dec 2003
Posts: 1,094
Likes: 2
From: Melbourne, FL
Originally Posted by morkusyambo
Rote8, what was the #?
looks like 361.04 g/s
Reply
Old Nov 18, 2008 | 01:34 PM
  #3568
Brettus's Avatar
Boosted Kiwi
iTrader: (2)

Joined: Apr 2006
Posts: 20,844
Likes: 1,798
From: Y-cat-o NZ
Originally Posted by olddragger
yep i agree--worked with it some last night and I think i have boiled it down to ignition. Funny I have been running these since march?

OD
Interested to see if the MS coils are your problem - they didn't last long if it is !!!
Reply
Old Nov 18, 2008 | 02:36 PM
  #3569
morkusyambo's Avatar
Dongbag extrordinare

Joined: Nov 2004
Posts: 1,090
Likes: 0
From: Away from the fruits of my labor
Originally Posted by MazdaManiac
Don't forget that, at the torque peak (where your maximum MAF readings are occurring), the S/C is using 30 - 40 g/sec just to power itself, so you have to deduct that from your net power calculation.
I'm not sure what you're talking about, but we are discussing the maximum g/s which usually occurs @8500 rpm.

Where did you read that the S/C uses 30-40g/sec to power itself?? Isn't that like 30-40crankhp??
Reply
Old Nov 18, 2008 | 08:02 PM
  #3570
olddragger's Avatar
Registered
iTrader: (3)

Joined: Apr 2004
Posts: 10,828
Likes: 40
From: macon, georgia
it was the coils--installed the oem set and she is purring.
Damn expensive lesson. coil wires metered out ok so i can use them
Thanks Bastage i did not know that --yhay helps one heck of a lot!!
just added a little anti freeze --getting down to 26 tonight--were the hell did this come from?
Too early to tell but i actually thing the car is running better with the oem coils.
damn expensive lesson.
oh well i got such a good deal on a transmission--low mileage--- that i guess it makes up for it.
Welcome back MM
OD
Reply
Old Nov 18, 2008 | 08:05 PM
  #3571
MazdaManiac's Avatar
Banned
iTrader: (3)

Joined: Oct 2003
Posts: 16,386
Likes: 28
From: Under my car
Originally Posted by morkusyambo
I'm not sure what you're talking about, but we are discussing the maximum g/s which usually occurs @8500 rpm.
That is pretty late, but that is also a characteristic of the S/C. It pushes more air on RPM, rather than engine demand. Compare the torque curves for a visual on that.


Originally Posted by morkusyambo
Where did you read that the S/C uses 30-40g/sec to power itself?? Isn't that like 30-40crankhp??
What do you mean "read"?
That is what it uses at peak load, minimum. It is probably closer to 50 in this application. It pulls nearly 1.5 HP at idle!

That is why you see roughly equivalent net power between the turbo and the S/C with such a wide airflow discrepancy.
The 6 - 10 HP the turbo takes out of the net power is already built into the metered airflow.

Last edited by MazdaManiac; Nov 18, 2008 at 08:10 PM.
Reply
Old Nov 18, 2008 | 08:38 PM
  #3572
Rote8's Avatar
Registered

Joined: Oct 2007
Posts: 1,574
Likes: 2
From: Boosted...
Originally Posted by olddragger
it was the coils--installed the oem set and she is purring.
Damn expensive lesson. coil wires metered out ok so i can use them
Thanks Bastage i did not know that --yhay helps one heck of a lot!!
just added a little anti freeze --getting down to 26 tonight--were the hell did this come from?
Too early to tell but i actually thing the car is running better with the oem coils.
damn expensive lesson.
oh well i got such a good deal on a transmission--low mileage--- that i guess it makes up for it.
Welcome back MM
OD
Remember, you can use the Mazsport coil bracket to mount LS1/MSD coils...
Reply
Old Nov 18, 2008 | 08:52 PM
  #3573
Rote8's Avatar
Registered

Joined: Oct 2007
Posts: 1,574
Likes: 2
From: Boosted...
Originally Posted by morkusyambo
Rote8, what was the #?
That one was 361, my best ever (so far) was 369
I wonder what the MAF tops out at?

I need to upgrade my coils and injectors soon....
Working on doing both by next month.

Last edited by Rote8; Nov 18, 2008 at 08:58 PM.
Reply
Old Nov 18, 2008 | 08:59 PM
  #3574
MazdaManiac's Avatar
Banned
iTrader: (3)

Joined: Oct 2003
Posts: 16,386
Likes: 28
From: Under my car
Originally Posted by Rote8

I wonder what the MAF tops out at?
Technically, it tops out at 365 g/sec on the OE scale.

However, your flash may extend that, depending on what your tuner did.
Reply
Old Nov 18, 2008 | 09:23 PM
  #3575
rx8thunder's Avatar
Being (new) single rocks!

Joined: Mar 2008
Posts: 1,485
Likes: 0
From: Toronto, Ontario, Canada
Asked this in a SC vs turbo thread bit didn't get a real answer. Hoping you guys can offer your perspective.

I've seen all of the charts and have read a fair amount about both SC and Turbo options but have not driven either (none avail in my area). Would like some perspective from those that have actually driven both. Looking for "driveability and feel" differences for a DD. I assume that the numbers only tell part of the story. Please tell me the rest. How is the Petit SC experience different than the turbo experience on the road and track? Thx
Reply
