Greddy Turbo Installed - Details Inside!!!!
Thread Starter
Rangers Lead The Way!
Joined: Mar 2004
Posts: 1,330
Likes: 2
From: Athens, Georgia
Originally Posted by ctupton
It says it needs some sort of molecular biology software to open a .GSC file
Originally Posted by ttt
it should be here today, Iam going to install it myself and with my uncle who is a mechanic
Originally Posted by philodox
You're a brave man if you're doing it youself without a lift.. ask Jeff (MazdaManiac) how much of a pain in the *** it was
Well, I just opened that E-MAnage file and there are a BUNCH of weirdnesses.
First, the file gives a strange "error" when it is opened. It reads: "The old format was replaced with new format. The Air Flow/Throttle Adjustment Setting was initialized." I don't know what that means.
Second, they have the VTEC function enabled. Why? I don't know why.
Third, they are using the Nissan Hot-Wire 2 AFM setting for the VG motors. This is rotary switch setting A01. Why they are doing this is strange because the E-Manage now has a setting for the RX-8 (SE3P) AFM.
Fourth, they have one of the A.A.V. values (2000 RPM) tweaked to 20%. This will REALLY screw up the maps.
Fifth, opening and then closing the Airflow Adjustment Map cause and "Input Error".
Sixth, at 9000 RPM and 3.6 PSI of boost, they have an additional injecton value that suddenly plunges to 4 from 43. That would be a real problem.
Seventh, the sub-injector map is only plotted out to 6500 RPM. What happens after that?. Not good.
In conclusion, I believe this map is a fake. It is, at least, completely unuseable.
I wonder why they gave this to you? It might have been made with the newer v. 1.20 of the Support Tool, but this is meant for the new E-Manage "Gold" (v. 1.42) which you do NOT have.
Even so, this would not explain the fact that this map appears to be set up for the 350Z and has dangerous holes in it.
Originally Posted by ttt
it should be here today, Iam going to install it myself and with my uncle who is a mechanic
You should have an "open house" installation so us PAC NWer's can come and watch/drool.
Attracts tree branches
Joined: Jun 2004
Posts: 5,940
Likes: 3
now I want to see a Greddy Turbo dynoed at the same time as the SFR/SSR turbo see the difference between the two...then I'll decide where my money goes (well after some durability tests of both units of course)
Thread Starter
Rangers Lead The Way!
Joined: Mar 2004
Posts: 1,330
Likes: 2
From: Athens, Georgia
Originally Posted by epitrochoid
oh, lol good wow
it was a strange feeling, as I don't think i'd ever been in a car that was that fast and that quiet, even with catless midpipe and sp2 exhaust.
it was a strange feeling, as I don't think i'd ever been in a car that was that fast and that quiet, even with catless midpipe and sp2 exhaust.
Ex- member.
Joined: Jan 2004
Posts: 1,694
Likes: 1
From: Austin, TX
He has a site with alot of install pictures. http://www.turborx8.net/

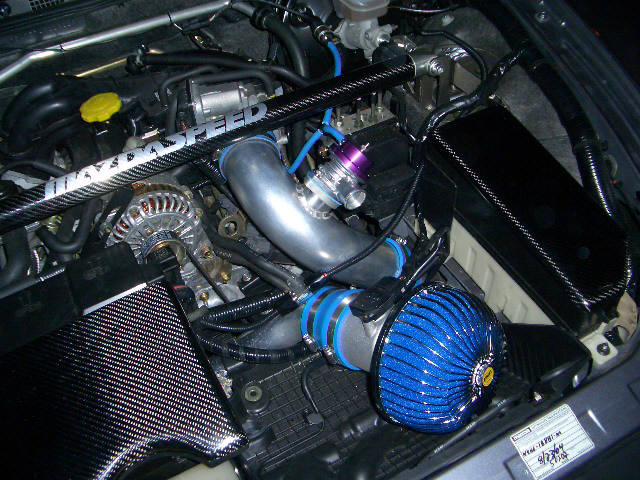

This picture is from there.
This picture is from there.
Two things I'll be doing to my own turbo kit will be to re-fab the Rotary Extreme intake box so I can use it with the GReddy and to re-circulate the BOV. I am also having a custom air filter mount made to use the Blitz SUS filter instead of the GReddy Airinx.
CRH
CRH
Originally Posted by Charles R. Hill
Two things I'll be doing to my own turbo kit will be to re-fab the Rotary Extreme intake box so I can use it with the GReddy and to re-circulate the BOV. I am also having a custom air filter mount made to use the Blitz SUS filter instead of the GReddy Airinx.
CRH
CRH
I wonder if Racing Beat will sell their cold air ram duct portion of their upcoming complete intake as a separate piece? JimL at RB said:
"..we have developed a Ram Air Duct that replaces the stock Variable Fresh Air Duct (VFAD) located under the front bumper. Testing has shown an increase in inlet air pressure and a reduction in air temperature that should add a few more horsepower at high speed."
Would this help your customized Rotary Extrem/Blitz setup?
