Esmeril Dyno - Out of the box.
08-27-2008, 10:24 PM
#1
Esmeril Dyno - Out of the box.
In lieu of recent happenings and the fact that we had promised a baseline dyno a long time ago we realized that we owed it to our current/future customers to do a baseline dyno and that the fact that we were very busy developing new products and manufacturing existing ones was no excuse for not having this. We made it a point to setup some dyno time with a local shop so we could give you some proof of what the kit is capable of instead of wasting time talking about the issue.
Here is the result:
366whp/265wtq

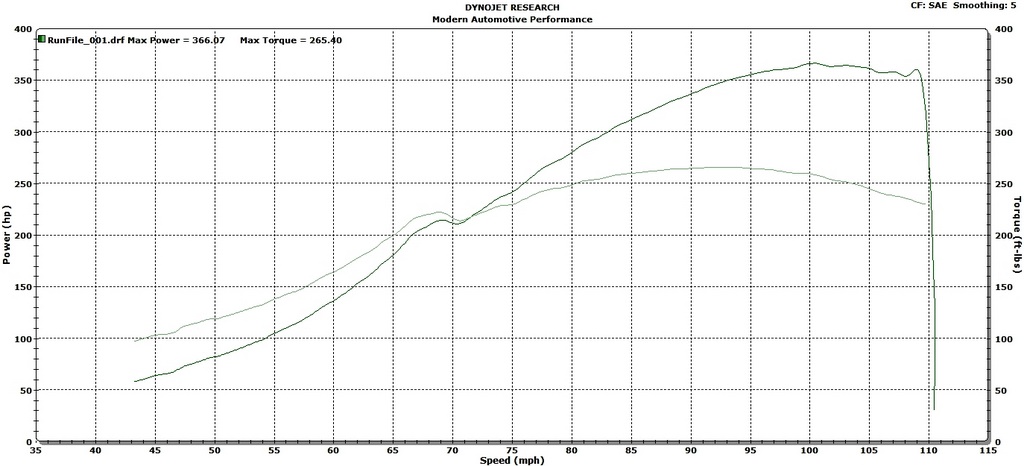

Here are the conditions for the run and below find the dyno graph:
- Completely out of the box kit with atmospheric dump.
- 13 psi.
- Esmeril Racing Ignition Upgrade Kit.
- ABS/DSC fuse pulled (all other methods failed).
- Between 40-50% humidity and 80deg.
- 91 Octane pump fuel with no additives.
Some clarifications before questions arise:

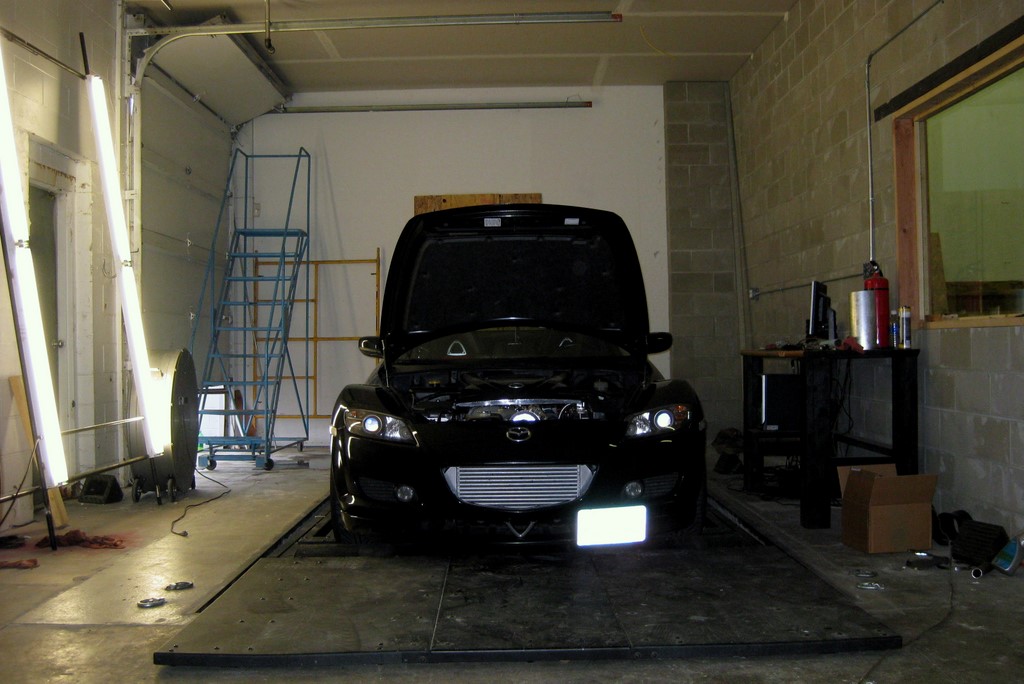

The dyno we used (the newest/nearest one to our location) was nearly brand new, just installed a few weeks ago and the dyno cell/enclosure hasn’t been finished. No extractor was set up for the exhaust gases and the rear door was unopened due to the opening mechanism not being in place yet. All these variables caused the air inside the Dyno cell to be saturated with low oxygen air(it was a cave with the exhaust facing towards the inside wall) evident by the fact that on the street the car runs at 11.5AFR with this exact setup/map/etc. and when in the dyno it dropped to 10.0-10.2AFR across the board, further dropping to a super low 9.4AFR in the 5200rpm region which was a little detrimental to the tq/hp curve (it would have been at peak from this point on but it suffered a dip in this region). Should our dyno have been well ventilated and the humidity lower (it was storming outside) we expect more can be coaxed from the set-up as it sits.
This current number, however, is more than we anticipated on this A/R turbo housing (our original promise was of 340whp at 13psi and you can see that at 8000rpm the A/R starts limiting peak power a little bit). We feel very confident that with a fully operating dyno (with some kind of airflow going through it ) the results would be even more favorable.
As a further commitment to the community we have set another date where we will go with the car to the dyno again when it is fully operational and do a full blasted run taking the Esmeril Turbo Kit to the max as it comes out of the box. We are expecting this to be within a month’s time and this time we will do whatever it takes to accomplish this.
A video of the run and a new video of the car on the street will follow soon as well.
Thanks,
Chris
Here is the result:
366whp/265wtq
Here are the conditions for the run and below find the dyno graph:
- Completely out of the box kit with atmospheric dump.
- 13 psi.
- Esmeril Racing Ignition Upgrade Kit.
- ABS/DSC fuse pulled (all other methods failed).
- Between 40-50% humidity and 80deg.
- 91 Octane pump fuel with no additives.
Some clarifications before questions arise:
The dyno we used (the newest/nearest one to our location) was nearly brand new, just installed a few weeks ago and the dyno cell/enclosure hasn’t been finished. No extractor was set up for the exhaust gases and the rear door was unopened due to the opening mechanism not being in place yet. All these variables caused the air inside the Dyno cell to be saturated with low oxygen air(it was a cave with the exhaust facing towards the inside wall) evident by the fact that on the street the car runs at 11.5AFR with this exact setup/map/etc. and when in the dyno it dropped to 10.0-10.2AFR across the board, further dropping to a super low 9.4AFR in the 5200rpm region which was a little detrimental to the tq/hp curve (it would have been at peak from this point on but it suffered a dip in this region). Should our dyno have been well ventilated and the humidity lower (it was storming outside) we expect more can be coaxed from the set-up as it sits.
This current number, however, is more than we anticipated on this A/R turbo housing (our original promise was of 340whp at 13psi and you can see that at 8000rpm the A/R starts limiting peak power a little bit). We feel very confident that with a fully operating dyno (with some kind of airflow going through it ) the results would be even more favorable.
As a further commitment to the community we have set another date where we will go with the car to the dyno again when it is fully operational and do a full blasted run taking the Esmeril Turbo Kit to the max as it comes out of the box. We are expecting this to be within a month’s time and this time we will do whatever it takes to accomplish this.
A video of the run and a new video of the car on the street will follow soon as well.
Thanks,
Chris
Last edited by ChrisRX8PR; 08-27-2008 at 11:30 PM.
08-27-2008, 11:54 PM
#14
Good work Chris, this will be an intersting car to pull up next to on the highway I bet.
Your getting close to race specs it seems... Compare your setup to the D962R Turbo which uses a Garrett G35 Turbo, Tial 44mm external wastegate, intercooler, and larger primary injectors. Their Renesis engine produces 435 bhp, and 235 lb-ft of torque at only 9 psi of boost.
Your getting close to race specs it seems... Compare your setup to the D962R Turbo which uses a Garrett G35 Turbo, Tial 44mm external wastegate, intercooler, and larger primary injectors. Their Renesis engine produces 435 bhp, and 235 lb-ft of torque at only 9 psi of boost.
08-28-2008, 12:04 AM
#15
Good work Chris, this will be an intersting car to pull up next to on the highway I bet.
Your getting close to race specs it seems... Compare your setup to the D962R Turbo which uses a Garrett G35 Turbo, Tial 44mm external wastegate, intercooler, and larger primary injectors. Their Renesis engine produces 435 bhp, and 235 lb-ft of torque at only 9 psi of boost.
Your getting close to race specs it seems... Compare your setup to the D962R Turbo which uses a Garrett G35 Turbo, Tial 44mm external wastegate, intercooler, and larger primary injectors. Their Renesis engine produces 435 bhp, and 235 lb-ft of torque at only 9 psi of boost.
. Very peculiar....The D962R revs the crap out of the engine that is why it produces soo much power with so little torque.....very impressive indeed!
Thanks,
Chris
08-28-2008, 01:00 AM
#20
Administrator
iTrader: (7)
holy crap! Nicely done guys!
08-28-2008, 01:05 AM
#21
Thanks,
Chris
08-28-2008, 08:33 AM
#23
Also, I would really like to see a chart of an RX-8 at higher than 366whp with a renesis if you have one available. It sounds awesome and might inspire some faith from the people in the forum
Thanks,
Chris
Last edited by ChrisRX8PR; 08-28-2008 at 09:43 AM.
08-28-2008, 09:36 AM
#24
Dyno update!

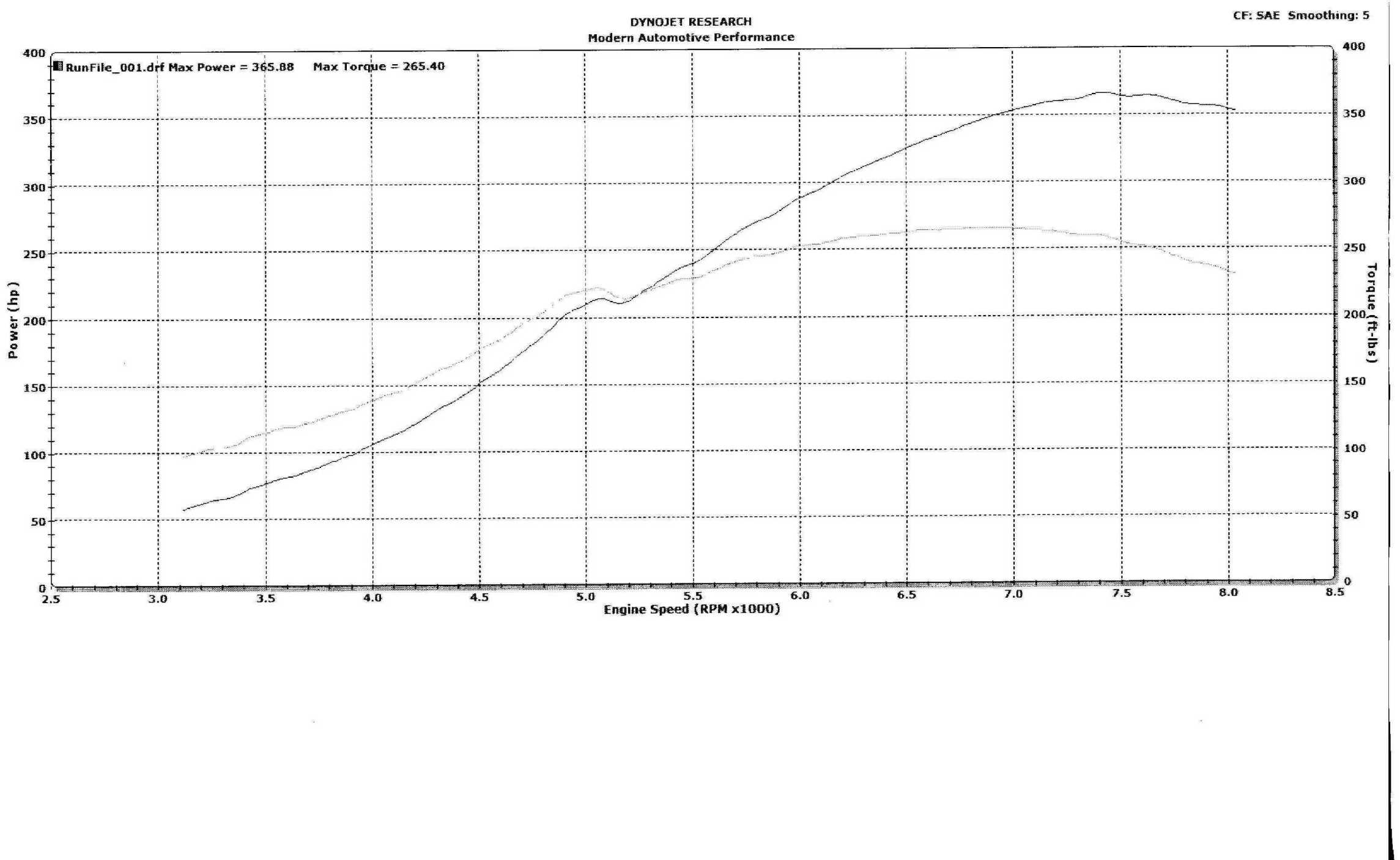

Here is one of the runs with the RPM in the X axis. This was scanned so excuse the quality
. We will update with a digital copy soon.
MM, Thanks for updating the dyno comparison thread.
It seems as if something is a little off though. On the TQ graph our curve is at all times above the mazsport kit yet on the WHP graph it never surpasses the mazsport graph(weird because we made 4whp more) and from 6000-7600 it even appears as though the mazsport was higher than ours when in that range our tq is higher which makes that impossible since higher tq at the same RPM = more hp. Our max tq should also be edited, it was 265+ not 262 as it says in the block next to the graphs.
Also, please edit our name to read Esmeril instead of Esmiril.
Thanks a million.
Chris
Here is one of the runs with the RPM in the X axis. This was scanned so excuse the quality
. We will update with a digital copy soon.MM, Thanks for updating the dyno comparison thread.
It seems as if something is a little off though. On the TQ graph our curve is at all times above the mazsport kit yet on the WHP graph it never surpasses the mazsport graph(weird because we made 4whp more) and from 6000-7600 it even appears as though the mazsport was higher than ours when in that range our tq is higher which makes that impossible since higher tq at the same RPM = more hp. Our max tq should also be edited, it was 265+ not 262 as it says in the block next to the graphs.
Also, please edit our name to read Esmeril instead of Esmiril.
Thanks a million.
Chris
Last edited by ChrisRX8PR; 08-28-2008 at 10:49 AM.
