boostdtalon

Should have some more info this week. Car is taking another run on the dyno.

pdxhak

iTrader: (2)

Nice Wish I could have joined you guys for the drive.

boostdtalon

Well I may have a few drives that you can make later this year. I really want to do a weekend drive down your way. Heard there are some great roads around the gourge and towards Astoria.

Easy_E1

iTrader: (2)

OK so update time I suppose.
Dondo's RX8, affectionately known as "Blurr". Is running fine and boosting to about 11psi peak and 9 psi constant. Now we do have some room to add more boost. We'd like to take it to 12 psi in the very near future.

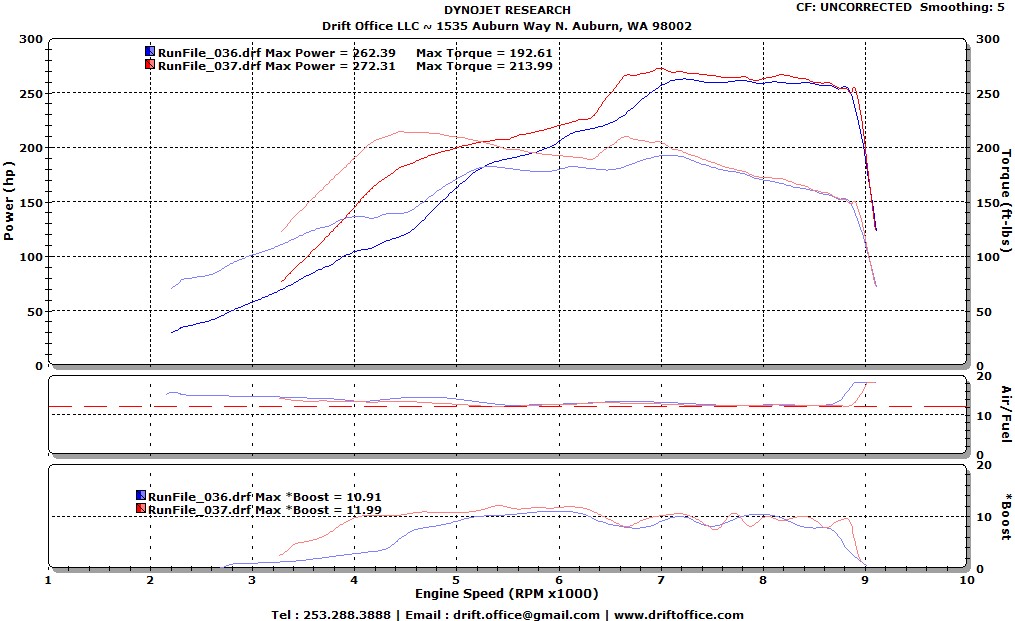

She did go on the dyno this morning to see what she was doing since the tuning by Kane, which I am very impressed with. I'll attach the dyno chart for "you people". haha
The engine is ported. Don't ask if it's a street port or any other style of port. It's ported as big as possible while being safe. Not going to get into the specifics. Sorry.
As you can see the boost flattens out above 6600 rpm. I think we have a little more power up there we can get a hold of.

Brettus

iTrader: (2)

To my eye .................. there looks to be an issue there robbing you of power .

A turbo 8 like this should take off when the APVs open . This one ..............looks like it is starting to , then falls flat.

Kane

iTrader: (1)

EBC isn't set up on it. That's going to be a big part of that issue.

This may turn into the dreaded "stupid wastegate won't stay closed" issue I'm afraid. Hopefully not, hopefully the EBC will be enough.

Brettus

iTrader: (2)

Good luck with that .... just from the way the boost is fluctuating past 6500, it looks like it will need something more than just an EBC.

pdxhak

iTrader: (2)

Stronger spring perhaps?

FazdaRX_8

iTrader: (1)

Thanks Eric for posting!! I am glad the build is progressing.
I too am happy with the apex seals we got. I hope to see you sometime during the summer months/ meets /shows!!

yomomspimp06

the vw and some mitsu guys are going to home depot and buying a spring to attach to the wastegate....looks like they are having a lot of luck from what I read. possible option to help?

<sent from my droid DNA while gettin jiggy with your mom...big ***** style>

9krpmrx8

iTrader: (46)

What size Tial is he running on this kit?

yomomspimp06

I forgot he was not running an internal gate...disregard previous talk about adding a spring....

<sent from my droid DNA while gettin jiggy with your mom...big ***** style>

FazdaRX_8

iTrader: (1)

He swapped turbos?
The post 1 pictures show a external wastegate

Easy_E1

iTrader: (2)

This is the SFR Turbo Kit. It has an External Wastegate. Recirculated. I'm in Vegas today working on Phil's 8. I'll get back to work on it when I get back to Seattle. Need to see what can be done with the EBC. I want 300whp.

Looking forward to seeing you too Fazda.

pdxhak

iTrader: (2)

These numbers are similar to mine. I need to look at my old graph to see how much our curves lineup.

pdxhak

iTrader: (2)

9krpmrx8

iTrader: (46)

So I'm assuming the Tial 46mm? Man I never noticed how funky the wastegate placement is on that kit. If I go top mount (thinking about it) I will use something like this.

yomomspimp06

reading comprehension....my bad

Brettus

iTrader: (2)

That's what SHE said .

Easy_E1

iTrader: (2)

I'll try and keep you all posted and updated on what's happening.

Brettus

iTrader: (2)

Cool , we in the FI fraternity have been feeling a little deprived of boost news lately
