maverick23sd

Same here. It took longer to remove the fuse panel than it did to do the whole operation.

billjoebob

I just used this link; Rewiring the RX8 fog lights

The link has picture of the wiring diagram as well.

Jdmmazda

for some reason my 2004 rx8 does not have the brown wire it has everything else there except that brown wire.... any ideas...?

JamesD31

Why hasn't anyone just split a wire from the running lights (positive) to the fog light (positive)?? O.o Seems the simplest approach to me.

Carbon8

iTrader: (4)

Because we like to do things the right way.

RotaryMachineRx

iTrader: (1)

Canadian version? if so search this thread for a link i posted a few years back about canadian rewire

JamesD31

I still do not understand how this is not the right way? If you want true running lights (when ignition is on) then run it from your ignition switch, just like you would any other running light.

I don't understand how tapping one wire for power is different then tapping another wire for power? Most cars split that up anyways. Just like how a front and back turn signal or running lights all come off of one switch anyways, which all ultimately come from power from the battery.

Carbon8

iTrader: (4)

Firstly, Fog lights are not running lights.

Secondly the proper re-wire only provides another power source to the relay, thus keeping the entire fog light wiring system the same. It still utilizes the fog light switch, relay, and fuses.

Taping the fog lights directly into the parking is adding extra current drain into that circuit so you will more than likely blow a fuse, then when you activate the fog light switch you are now introducing two separate circuits into each-other potentially causing un-isolated back feeding and could result in a fried PCM. But go ahead and try it if you don't see it as still being the wrong way.

Jdmmazda

Yup Canadian version I will take a look on the thread thanks for the help!

RotaryMachineRx

iTrader: (1)

You will also have to do a mod to your DRL (daytime running lights) module behind your glove box for this, it is very simple, i just dont remember details it was so long ago... the Canadian rewire thread is an easy read though and US cars dont require DRL's like Canadian vehicles do

Xcess

Hi. As you can see from my posts (this is the second) I'm new to the forum. But has been for years looking at it as a guest. After 5 years with my 8, finally decided to do some mods, including this one. I did it today and it works perfectly using the white/red acc cable. But, I use only electrical tape (a lot) to insulate the connections and the cutted brown cable. Could it be a problem? Thanks

paimon.soror

iTrader: (15)

Your mindset on the matter follows this pattern

RX8Soldier

iTrader: (24)

^I need one of those for work

This is also a mod that I need to do, once I decide if I'm going to keep fog lights or not.

Xcess

It is ok to use only electrical tape for the insulation of the connections?

RX what?

You know that tape around the crush tubing that gets brittle and breaks off after time?

Same thing will happen to your electrical tape. So for now it's fine, a couple years later when your fog lights don't act normal, you'll know why.

Being under the fuse box I would shrink tube it if i were you. Don't want any exposed wires (once the tape goes bad) jumping around now do we?

Xcess

Thanks. I'll take your advice and use shrinking tube asap.

J_Ro

Had i known this mod was this easy I would have done it a while back. So if I do this (tap into the ACC for the fog lights) will I be able to have my fogs on with out the running lights on?

All i want on is the fog lights.

Tim Prater

Great DIY... I love being able to run my fogs with just the parking lights or just the fogs...

jamarctatum

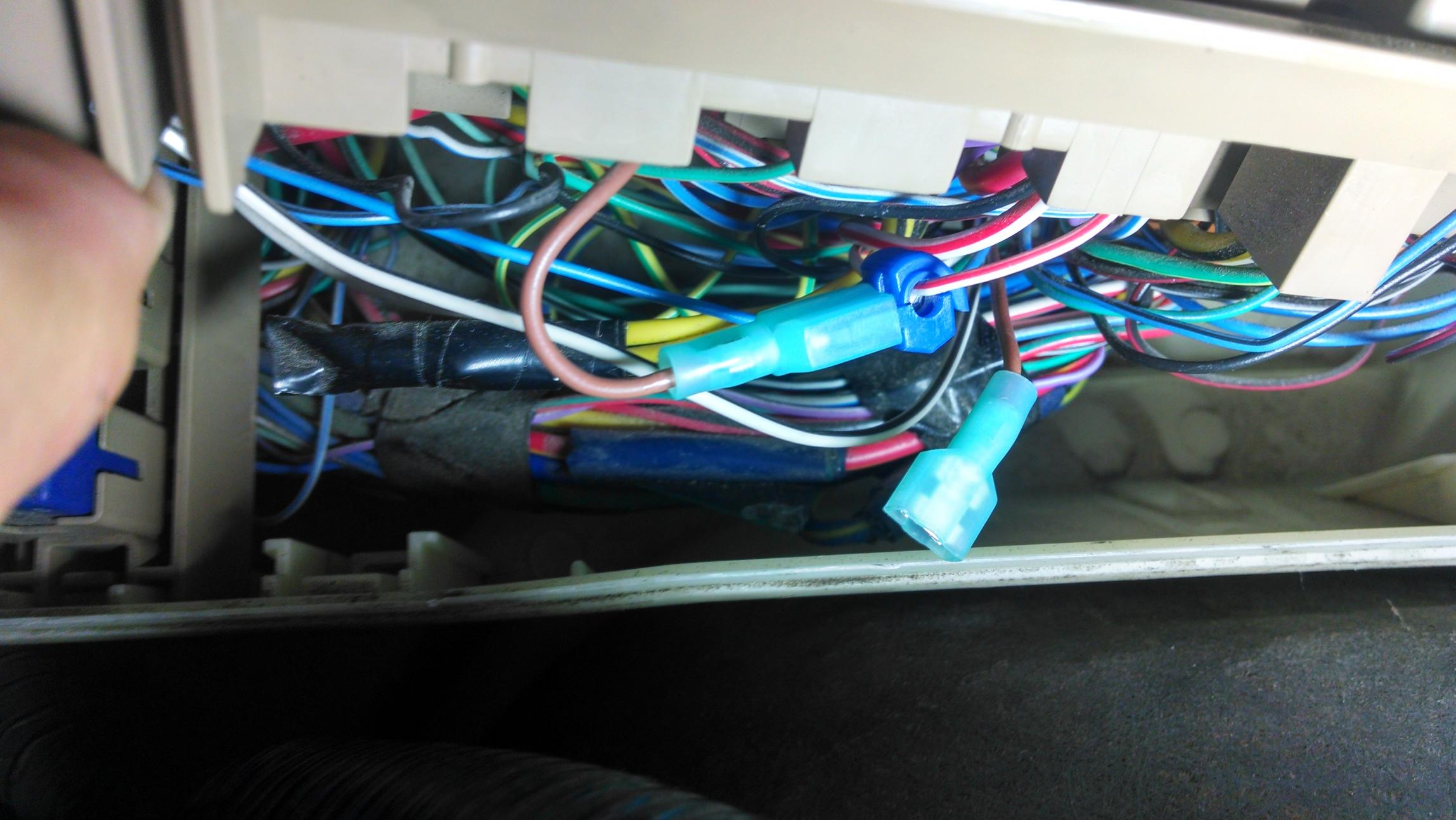

Sorry to revive an old thread, but i am new to this forum. I tried this tonight only to find the fog lights work the exact same (lights must be on to use fogs). I have an 09 rx8 and the only mods are megen lowering springs, bho ignition mod and goodridge ssbl. Anyone have a clue why it didn't work for me? See attached picture.


Edit: After many trials, and checking every relay and fuse, i switched methods and still no different than stock. See attached link. They now only work when ignition/accessory (dependent upon wire location) and headlights on where as before they worked in any position as long as headlights were on.

https://dl.dropboxusercontent.com/u/...449161_HDR.jpg

hedoboy

My 2010 with auto on headlights has same problem?? Please help!!

loulech@aol.com

fog lights as daylight driving lights..remove relay in fuse box power lights through fuse box contact.
use relay connected to ignition fuses inside,, top three,,,, a relay connected to parking lights to turn off when headlights are on... How about a better idea,,, and should the bulbs be changed to led?

edwinptown71

Love this mod easier than adding new relays to do the same thing

Pmm4177

Years and years ago I had a 1996 Mitsubishi Eclipse gs Spyder with factory fog lights, I hit a dog early one morning destroying the drive side fog light and when I bought a new one for some reason It popped the main fuse under the hood, and being young and dumb instead of having it fixed the right way I just wired the fog lamps directly to the park light power source so when I flipped my park lights on the fogs came on too and I thought it looked pretty cool too, had I been smart I'd have wired in a toggle switch under the dash to kill them when I didn't want thme on, it made sneaking back into the driveway in the middle of the night very difficult!
