DIY: Clean your OMP/MOP injectors

Old 11-09-2011, 11:11 AM
  #26
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,744
Received 347 Likes on 279 Posts
TX

Originally Posted by lta_ds_fs7 View Post
I thought they had a kit that replaces ALL of the lines :/
No mi amiga.
9krpmrx8 is offline
Old 11-09-2011, 12:39 PM
  #27
US Navy Rotary Enthusiast
Thread Starter
iTrader: (3)

Hesselrode's Avatar

Join Date: Aug 2007
Location: New Orleans, LA
Posts: 1,062
Likes: 0
Received 1 Like on 1 Post
Originally Posted by dannobre View Post
Did you do the vac test on them when you were done?

You have to be careful blowing compressed air into the valves...they tend to lock stuck open and won't hold vac properly. Make sure you blow the air into them in the closed position to re-set the ball
What do you mean by reseting the ball, I do have one stuck open, I was going to work on getting it unstuck tonight. By the way, I never blew compressed air into the valves.
Hesselrode is offline
Old 11-09-2011, 01:43 PM
  #28
Turbo Member
iTrader: (10)

Chris's Avatar

Join Date: May 2006
Location: Tampa, FL
Posts: 2,496
Likes: 0
Received 4 Likes on 4 Posts
in side there is a ball, kind of like speed bleeders on brake calipers. The ***** purpose is to allow one way flow. If it is dirty inside and get stuck then it can prevent the flow.
Chris is offline
Old 11-09-2011, 02:06 PM
  #29
US Navy Rotary Enthusiast
Thread Starter
iTrader: (3)

Hesselrode's Avatar

Join Date: Aug 2007
Location: New Orleans, LA
Posts: 1,062
Likes: 0
Received 1 Like on 1 Post
I know how it works, but how do you reset the ball?

Last edited by Hesselrode; 11-09-2011 at 02:15 PM.
Hesselrode is offline
Old 11-09-2011, 03:45 PM
  #30
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,833
Received 100 Likes on 97 Posts
Carefully blow some air in it the way you want the ball to go Use some high temp silicone spray to lubricate them...seemed to work well on mine

I cleaned mine in an ultrasonic cleaner and then lubed them. All 4 were stuck open before the cleaning..and they worked perfectly after I was done
dannobre is offline
Old 11-09-2011, 04:10 PM
  #31
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 21,042
Received 344 Likes on 280 Posts
ultrasonic FTW
TeamRX8 is offline
Old 11-09-2011, 04:59 PM
  #32
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 21,042
Received 344 Likes on 280 Posts
Originally Posted by shadycrew31 View Post
Someone somewhere was talking about getting a banjo fitting at the end of a braided line. I thought it was RB or mazdatrix.
That would not be hard to do. You could even use stainless steel tube lines, but that would be more work to form them. Flex hoses would be simpler all around. Could probably all be identical, just bolt them in and tire wrap them for a clean looking install.


.
TeamRX8 is offline
Old 11-09-2011, 05:10 PM
  #33
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,744
Received 347 Likes on 279 Posts
TX

Originally Posted by TeamRX8 View Post
That would not be hard to do. You could even use stainless steel tube lines, but that would be more work to form them. Flex hoses would be simpler all around. Could probably all be identical, just bolt them in and tire wrap them for a clean looking install.


.
Steel hard lines would work. Not sure how vibration, etc. would affect them though
9krpmrx8 is offline
Old 11-09-2011, 05:14 PM
  #34
WENTGERMAN
iTrader: (6)

shadycrew31's Avatar

Join Date: Apr 2008
Location: Burbs,PA
Posts: 5,805
Likes: 0
Received 15 Likes on 12 Posts
Originally Posted by TeamRX8 View Post
That would not be hard to do. You could even use stainless steel tube lines, but that would be more work to form them. Flex hoses would be simpler all around. Could probably all be identical, just bolt them in and tire wrap them for a clean looking install.


.
Hmmm question is would it be worth it considering the average lifespan of these lines. I suppose if you were running a top mount turbo that still allowed you to use the OMP it should be on the list.
shadycrew31 is offline
Old 11-09-2011, 06:42 PM
  #35
US Navy Rotary Enthusiast
Thread Starter
iTrader: (3)

Hesselrode's Avatar

Join Date: Aug 2007
Location: New Orleans, LA
Posts: 1,062
Likes: 0
Received 1 Like on 1 Post
My lines look and feel brand new. It is a garage b**** and has 158,000 miles on these lines. As far as checking that valve wasn't stuck, I stuck my lips to and sucked. Found one stuck open and one slightly open. Just used my syringe and sucked purple degreaser until didn't suck anymore. And rechecked an cleaned and flushed with oil until I get my new engine. I have access to someone that can fabricate small aluminum tubing for oil lines. Don't know if I will go that route or not though.
Hesselrode is offline
Old 11-18-2011, 07:34 AM
  #36
Registered

tofu_box's Avatar

Join Date: Apr 2009
Posts: 604
Likes: 0
Received 0 Likes on 0 Posts
You can get goodridge stainless steel omp lines from

http://www.rotorsportsracing.com/per...g/OMPlines.htm

It says FD, but if you call up they have ones made specifically for RX8 aswell, i got myself a set, very good quality, however only issue is that they were not sleeved.
tofu_box is offline
Old 11-18-2011, 08:51 AM
  #37
Turbo Member
iTrader: (10)

Chris's Avatar

Join Date: May 2006
Location: Tampa, FL
Posts: 2,496
Likes: 0
Received 4 Likes on 4 Posts
^ that seems a tad expensive... you will need 4. the site says $100 for 2 so rx8 owners will need to spend 200 on those lines.
Chris is offline
Old 11-18-2011, 10:54 AM
  #38
Registered
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,744
Received 347 Likes on 279 Posts
I don't see how those SS will route very nicely without touching each other and having vibration and abrasion issues. Not worth it IMO. The factory lines are just fine and last up to 100k easy, if yours need replacing that is the way to go.

Last edited by 9krpmrx8; 11-18-2011 at 10:56 AM.
9krpmrx8 is offline
Old 01-04-2012, 08:03 PM
  #39
ZOOM, ZOOM, FOREVER

Join Date: May 2010
Location: louisville, ky
Posts: 34
Likes: 0
Received 0 Likes on 0 Posts
Is it possible to get to the omp lines and injectors with the engine in the car or do you have to take it out? I think I have a clogged injector and I don't have access to a engine hoist
Samcs06 is offline
Old 01-04-2012, 08:33 PM
  #40
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,833
Received 100 Likes on 97 Posts
Just need to pull the upper intake and all the stuff off the top
dannobre is offline
Old 01-04-2012, 11:17 PM
  #41
Out of NYC
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,867
Received 14 Likes on 13 Posts
Just want to share this . The omp lines on my fc has over 200k. And it still ok until i removed then and broke it all
nycgps is offline
Old 01-05-2012, 08:56 AM
  #42
Koi no Ousama
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 21,042
Received 344 Likes on 280 Posts
A new set from Mazda is about $200 retail. The other thing about the braided lines is that you can't see if they are all filled with oil or not.
TeamRX8 is offline
Old 01-05-2012, 10:16 AM
  #43
Out of NYC
iTrader: (1)

nycgps's Avatar

Join Date: Jun 2005
Location: Planet Earth
Posts: 19,867
Received 14 Likes on 13 Posts
another thing I wanna point out is, these "injectors" will clog no matter what. 2 of them on my FC are already clogged up. it was easy to unclog it, just spray some brake cleaner thru it for a few seconds, good as new.
nycgps is offline
Old 01-06-2012, 08:52 AM
  #44
ZOOM, ZOOM, FOREVER

Join Date: May 2010
Location: louisville, ky
Posts: 34
Likes: 0
Received 0 Likes on 0 Posts
Is it hard to get the intake off? Will I need any new gaskets? Sorry I'm asking so many noon questions lol. I just like to know what I'm getting into before I do it
Samcs06 is offline
Old 01-06-2012, 10:59 AM
  #45
WENTGERMAN
iTrader: (6)

shadycrew31's Avatar

Join Date: Apr 2008
Location: Burbs,PA
Posts: 5,805
Likes: 0
Received 15 Likes on 12 Posts
when you take off the intake you will see if you need new gaskets or not...

most likely not though.
shadycrew31 is offline
Old 03-06-2015, 12:38 PM
  #46
wcs
no agenda
iTrader: (2)

wcs's Avatar

Join Date: Feb 2005
Location: Ontario
Posts: 5,057
Received 9 Likes on 8 Posts
EDIT: I had a bigger write up but it didn't save for some reason only this chunk. Stupid servers. I'm not writing that **** all out again. Cole's Note version coming

Ya, a bit of a thread revival but I wanted to put this somewhere without having to start yet another OMP thread.

2005 MT - 150,000 km's, running standard OMP -- SOHN being implemented.

I decided to tear down my OMP system for several reasons:
1) Heat damage to OMP
2) I was suspecting the lines were plugged or the injectors were plugged.

I have a spare used OMP of which I'm assuming works.
Also a spare set of OMP Lines which in no better condition than my current lines.

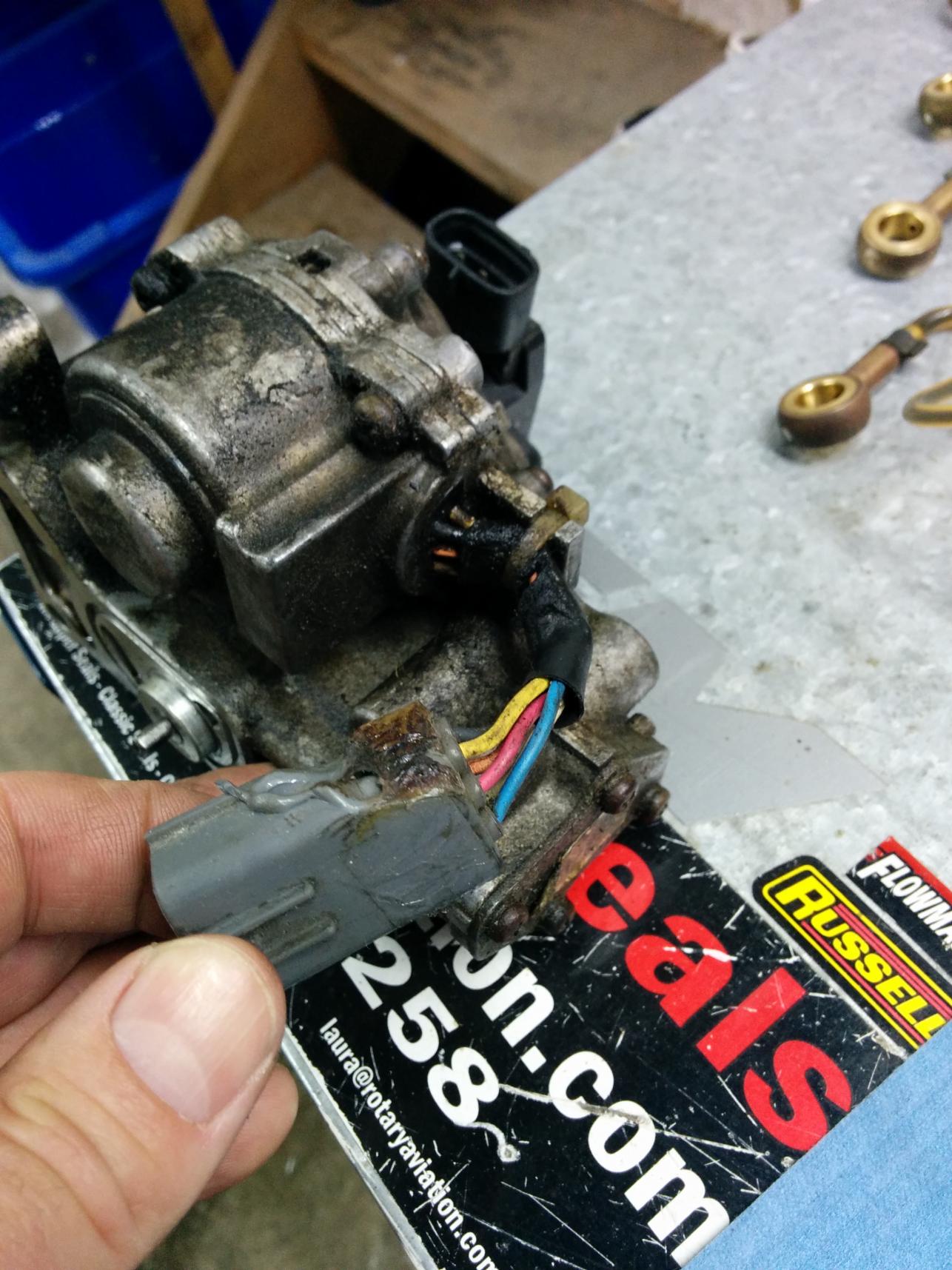

Heat Damage on the OMP:
The plug end still functions, but can it be replaced?
DIY: Clean your OMP/MOP injectors-omg.jpg

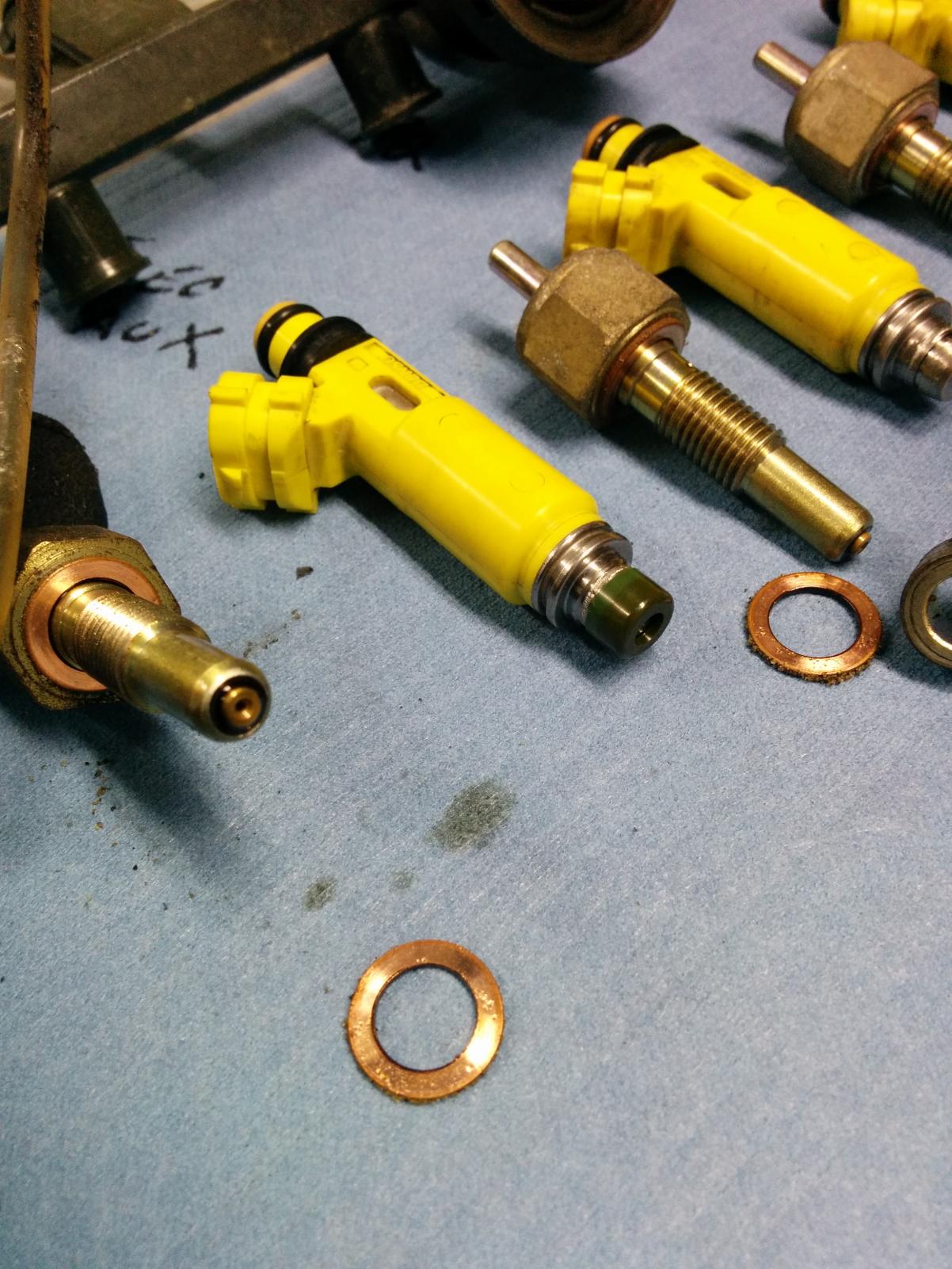

Injectors tested out fine and look good
DIY: Clean your OMP/MOP injectors-oilinjector.jpg

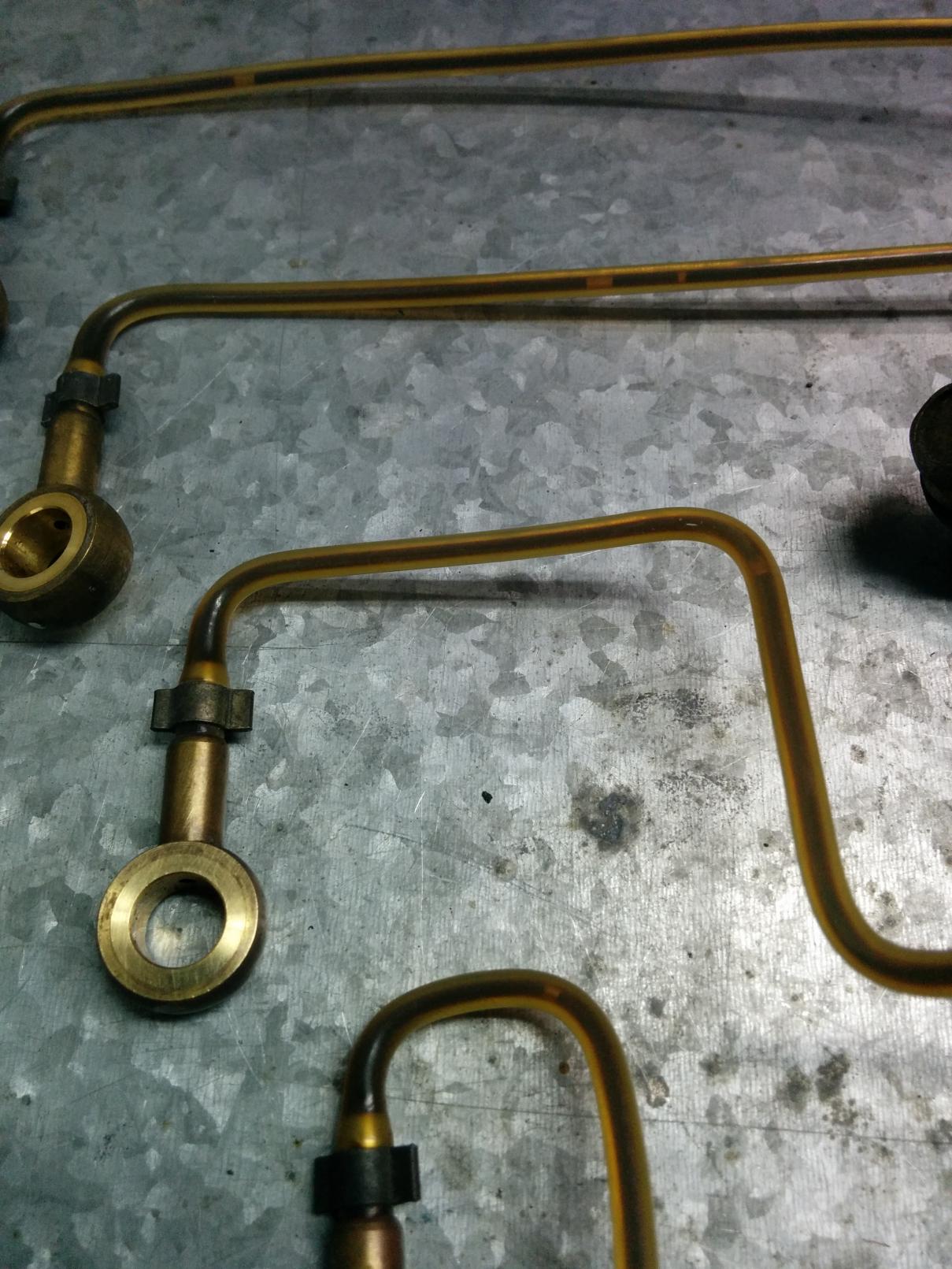

Oil Lines are completely clogged. I've ordered a new set.

DIY: Clean your OMP/MOP injectors-oillines.jpg

Last edited by wcs; 03-06-2015 at 12:55 PM.
wcs is offline
