DIY: Best Route for Amp Power
#26
Hooking remote from the amp plug

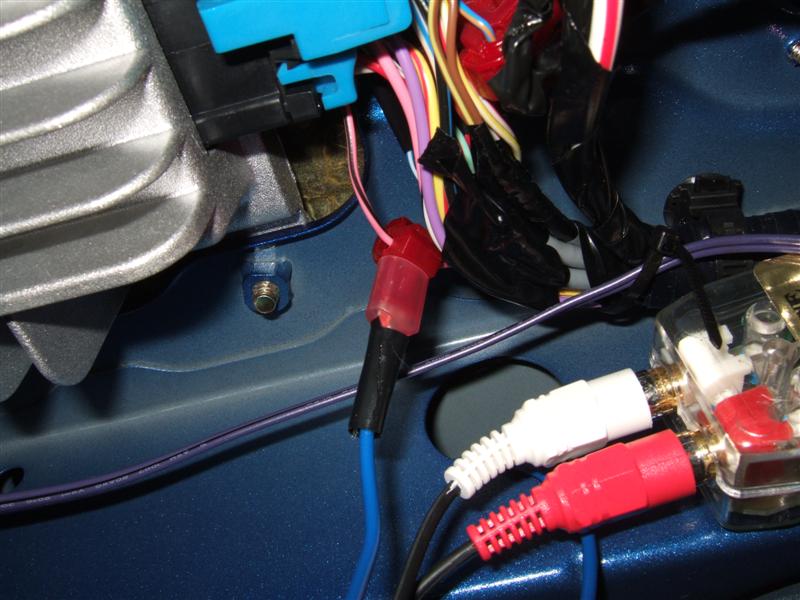

I installed my sub amp and woofer today and I did not hook the remote turn-on to the electrical outlet. BTW, I had the Bose system. I found out on the service manual that there is actually a wire named "amp control". It is a pink/black (P/B) wire (location 1V if you have the service manual) on the plug connecting to the main amp (Bose). It does function like the accessory thou. When the key is switched to ACC, it will have 12 V. The advantage is that it is much closer than the electrical outlet. It worked fine for me so far. Just want to share this with you.
Last edited by supra0083; 06-20-2007 at 08:43 PM. Reason: Correct the color code of the wire and added pic.
The following users liked this post:
Nuke It (07-31-2021)
#27
the stig is my hero
Join Date: Feb 2006
Location: NC
Posts: 701
Likes: 0
Received 0 Likes
on
0 Posts
Are you guys all using line-level converters for your installs? I'm assuming that's the only way to do it with OEM stereo, but I don't know that for sure.
And supra- do you have a pic you could post of that wire, or a description of where it's located? I don't have the service manual, but this sounds like a good route to go.
And supra- do you have a pic you could post of that wire, or a description of where it's located? I don't have the service manual, but this sounds like a good route to go.
#29
I'm a little late for you zen, but
1) Yes, I'm using a LOC.
2) That wire Supra was talking about is only there on the BOSE system, so it may not apply to you. I have the base stereo, and just wired into the rear ACC wire.
1) Yes, I'm using a LOC.
2) That wire Supra was talking about is only there on the BOSE system, so it may not apply to you. I have the base stereo, and just wired into the rear ACC wire.
#30
can someone here tell me how i can hood up 2 amps to the factory deck? do we have preouts? whats the deal. i will say that i have not taken out the unit yet but i dont feel like taking it out just to say crap no preouts. what am i going for here? i have 2 600 watt amps for my 2 12 inch subs.
#31
Chairman RX8 Club S.A
Join Date: Nov 2006
Location: south africa
Posts: 295
Likes: 0
Received 0 Likes
on
0 Posts
PROBLEM!!!!!! pls help! i removed the washer bottle and drilled a hole not 2 far in to the car, saw i had 2 stick the wie downwards and managed 2 get it right and was happy and excited 2 finish the rest of the wiring but went 2 the shop 2 get a sof drink but was shocked when i was driving to the shop i saw when i pushed my BRAKE pedal the ABS light on the right side guage display came on and the light which shows a car with a slippery wheel mark sign below it on the middle guage display also came on simultaneously. The ABS is also not working! IM CONCERNED!! W.T.F? when i switch the 8 off and start it up again the lights r off but as soon as i touch the brake pedal the same thing happens!
#33
Chairman RX8 Club S.A
Join Date: Nov 2006
Location: south africa
Posts: 295
Likes: 0
Received 0 Likes
on
0 Posts
Thanx alot. I did'nt disconnect the battery, as it did'nt say it was neccesary in the diy thread i believed there was no problamatic wires behind the fire wall. i've tried what u said with the ignition on, nothing. With the car running, nothing. does anyone know how or a thread explaining how 2 strip behind the glove compartment? aircon unit etc... so i can try c if any thing got damaged. much appreciated.
#34
Originally Posted by phat8
Thanx alot. I did'nt disconnect the battery, as it did'nt say it was neccesary in the diy thread i believed there was no problamatic wires behind the fire wall. i've tried what u said with the ignition on, nothing. With the car running, nothing. does anyone know how or a thread explaining how 2 strip behind the glove compartment? aircon unit etc... so i can try c if any thing got damaged. much appreciated.
Did you find out what the problem was give us a update.
I will be installing some amps soon and don't want to run into the same problem.
Also did you drill the hole behind the washer bottle like Exentric showed in his Picture or did you drill some where else.
U1cracka
#36
Registered
Originally Posted by u1cracka
Did you find out what the problem was give us a update.
I will be installing some amps soon and don't want to run into the same problem.
Also did you drill the hole behind the washer bottle like Exentric showed in his Picture or did you drill some where else.
U1cracka
I will be installing some amps soon and don't want to run into the same problem.
Also did you drill the hole behind the washer bottle like Exentric showed in his Picture or did you drill some where else.
U1cracka
#37
9K Smokin!
Join Date: Jul 2007
Location: N. Fort Worth, TX
Posts: 103
Likes: 0
Received 0 Likes
on
0 Posts
I installed my sub amp and woofer today and I did not hook the remote turn-on to the electrical outlet. BTW, I had the Bose system. I found out on the service manual that there is actually a wire named "amp control". It is a pink/black (P/B) wire (location 1V if you have the service manual) on the plug connecting to the main amp (Bose). It does function like the accessory thou. When the key is switched to ACC, it will have 12 V. The advantage is that it is much closer than the electrical outlet. It worked fine for me so far. Just want to share this with you.
How do you hook up the Hi-Lo converter? Which wires need to be tapped?
Thanks in advance.
#38
i think the easiest way is to splice a wire into the stock amp in the back thats what i did and i just changed the fuse in the fusebox to 10 amps higher and havent had any problems. the wires are sufficient enough to hold the power so you dont have to worry about a fire or anything. i believe i used a 12 guage wire to splice into the amp power. not that big stupid wire thats overly huge and excessive unless your connecting straight to the battery but yet its still way bigger than what is needed.
#39
and for my remote wire i didnt need one cause i used the speaker line input on my kenwood 1000 watt amp which uses sound sensing to turn the amp on and off so no remote wire needed.
#40
anyone try it like this?
#44
can someone here tell me how i can hood up 2 amps to the factory deck? do we have preouts? whats the deal. i will say that i have not taken out the unit yet but i dont feel like taking it out just to say crap no preouts. what am i going for here? i have 2 600 watt amps for my 2 12 inch subs.
charlie
#47
Ill try to get a picture tomorrow. I tried the route behind the water bottle. If you look at the picture, I think they have pulled the
AC unit as as well as the glove box and gb door. If you don't do that, there is no access from inside the cabin to to pull the wire. Wish id seen that before I drilled a hole...
AC unit as as well as the glove box and gb door. If you don't do that, there is no access from inside the cabin to to pull the wire. Wish id seen that before I drilled a hole...
#48
Amp connection to Bose headunit
FYI, for easy headunit connection and amp control wiring I can recommend this cheap kit: Mazda 3 5 6MIATA MX5 Tribute MX 5 RX7 Add An Amp Amplifier Adapter Interface | eBay It plugs directly into the back of the headunit and splits into left and right, rear and front channels (4 in total) + an amp control wire. Now that you've pulled out the headunit anyway, I can also recommend this kit AUX input (USB and jack) that plugs directly into the back of the headunit as well: Car USB SD MP3 Player Interface Aux in Adapter for Mazda 5 323 Miata MX5 MPV RX8 | eBay.
