New Cooling Fans

Designed to replace the factory plastic fan assembly this new high performance model offers quiet operation, excellent engine cooling and has features making it very efficient at high vehicle speeds or during competition events.
The unit incorporates a two speed curved blade fan providing high airflow from a single fan while dual sets of brushes allow the fan speed to change based on temperature as well as a/c loads. The eight black rectangular boxes are actually flaps. These are designed to be sucked shut under vacuum at low vehicle speed increasing airflow across the entire radiator core. At high vehicle speeds they open, reducing drag and allowing maximum airflow.
We designed the unit to fit both our high performance dual pass radiator (pictured) as well as a replacement for the OE fan unit on stock radiators.
Features:
  • 2-speed Bosch dual brushed high performance fan
  • 8 integrated flaps to allow increased airflow at high vehicle speed
  • Strong 6061 aluminum construction
  • Integrates into factory fan control system
  • Weighs 8.8lbs
Radiator not included but available!






RX-Tuner is offline   Reply With Quote
Old 04-04-2016, 03:31 PM   #2
RX8Club.com Premium Sponsor
Thread Starter

Join Date: Apr 2015
Location: RX8Performance.com
Posts: 162
Here is a link to the product on the site guys.
RX-Tuner is offline   Reply With Quote
Old 04-04-2016, 03:40 PM   #3
Boosted Kiwi
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 17,295
Interesting .... What testing have you done to prove this flapper concept ?
Brettus is online now   Reply With Quote
Old 04-04-2016, 03:54 PM   #4
RX8Club.com Premium Sponsor
Thread Starter

Join Date: Apr 2015
Location: RX8Performance.com
Posts: 162
Quote:
Originally Posted by Brettus View Post
Interesting .... What testing have you done to prove this flapper concept ?
I actually cannot take credit for the idea Brettus. I believe the first time I saw the concept was on either a VW Scricco or a Fiat Spyder many years ago. We just implemented multiple units here to provide more airflow at high vehicle speed.

Last edited by RX-Tuner; 04-04-2016 at 03:57 PM.
RX-Tuner is offline   Reply With Quote
Old 04-04-2016, 03:56 PM   #5
WENTGERMAN
iTrader: (6)

shadycrew31's Avatar

Join Date: Apr 2008
Location: Burbs,PA
Posts: 5,792
Quote:
Originally Posted by Brettus View Post
Interesting .... What testing have you done to prove this flapper concept ?
*Looks cool, lets add it and say it works*
shadycrew31 is offline   Reply With Quote
Old 04-04-2016, 04:50 PM   #6
SARXGROUP on FB
iTrader: (37)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 32,676
Yeah they have those flaps on a Mazda 3 so it should work excellent on a RX-8. How many CFM is that fan rated at?
9krpmrx8 is offline   Reply With Quote
Old 04-04-2016, 05:22 PM   #7
Registered

New Yorker's Avatar

Join Date: Sep 2003
Location: NYC
Posts: 3,026
Quote:
Originally Posted by Brettus View Post
Interesting .... What testing have you done to prove this flapper concept ?
I don't need to see any testing. Your company's reputation is testing enough for me.
New Yorker is offline   Reply With Quote
Old 04-04-2016, 05:42 PM   #8
Registered
iTrader: (3)

Join Date: Aug 2014
Location: Dallas TX
Posts: 529
Sounds good to me, Scott. I look forward to receiving my unit. Anything we can do to beat the Texas heat
BigBadChris is offline   Reply With Quote
Old 04-04-2016, 05:52 PM   #9
Modulated Moderator
iTrader: (3)

dannobre's Avatar

Join Date: Feb 2004
Location: Smallville
Posts: 12,154

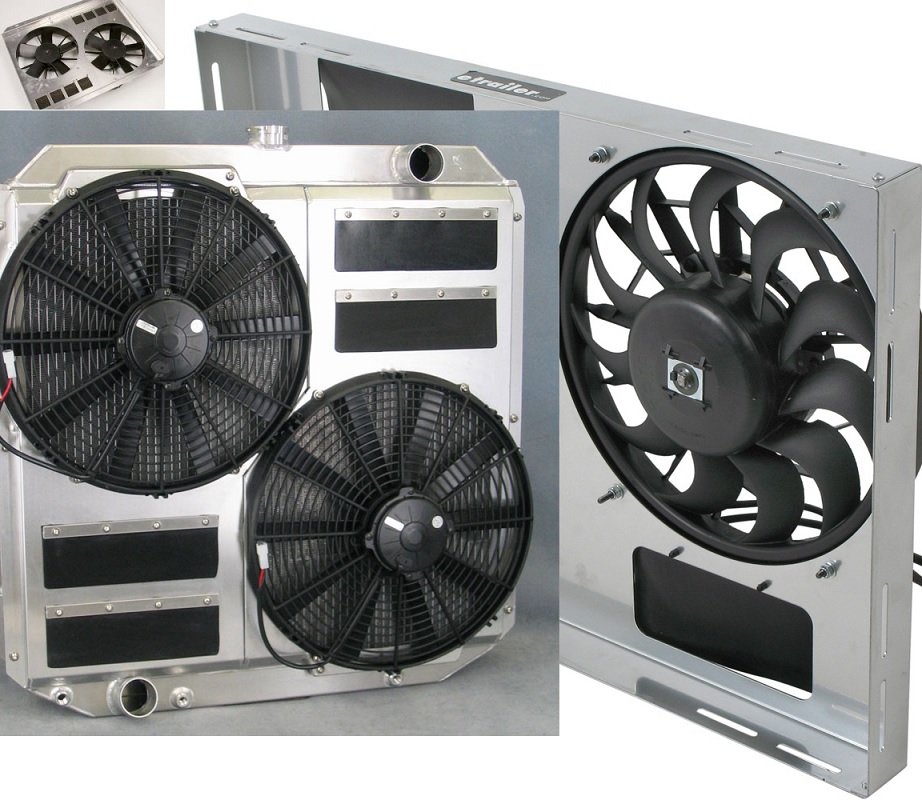

The flapper doors are a common mod on aftermarket shrouds. Especially when a high output fan that is relatively "closed" in profile is used.

It gives you more airflow when the vehicle is moving...and they close off when the fan is in operation...best of both worlds in my opinion


The big one in the picture is a Ron Davis custom setup...
Attached Thumbnails
New Cooling Fans-shroud.jpg
dannobre is offline   Reply With Quote
Old 04-04-2016, 05:54 PM   #10
Dark Moderator
iTrader: (16)

Williard's Avatar

Join Date: Jul 2011
Location: PA, Shamokin. Ho-bud
Posts: 1,889
Can't wait to get my hands on one

Travis
Williard is offline   Reply With Quote
Old 04-05-2016, 03:41 PM   #11
Boosted Kiwi
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 17,295
Quote:
Originally Posted by Williard View Post
Can't wait to get my hands on one

Travis
one flapper ?
Brettus is online now   Reply With Quote
Old 04-05-2016, 04:47 PM   #12
Dark Moderator
iTrader: (16)

Williard's Avatar

Join Date: Jul 2011
Location: PA, Shamokin. Ho-bud
Posts: 1,889
Nope, cooling fan lol


Travis
Williard is offline   Reply With Quote
Old 04-05-2016, 05:32 PM   #13
Boosted Kiwi
iTrader: (2)

Brettus's Avatar

Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 17,295
The rx8 fan regime has the fans running constantly once the on temp is reached . They don't turn off at speed ................................

I think (but have not tested) the 'speed' parameter in the ecu is for the air con fan on setting.
Brettus is online now   Reply With Quote
Old 04-06-2016, 12:46 AM   #14
Sicker than your average

Nisaja's Avatar

Join Date: Nov 2012
Location: Colombo, Sri Lanka
Posts: 915
I thought the fans turn off when you're moving fast. If that's the case, I'd love to know the exact speed they turn off at.
Nisaja is offline   Reply With Quote
Old 04-27-2016, 03:00 PM   #15
RX8Club.com Premium Sponsor
Thread Starter

Join Date: Apr 2015
Location: RX8Performance.com
Posts: 162
Quote:
Originally Posted by shadycrew31 View Post
*Looks cool, lets add it and say it works*
Lol, as I mentioned Shady they have been around for many, many years. We just implemented it here to help further improve high and low speed efficiency.

Quote:
Originally Posted by 9krpmrx8 View Post
Yeah they have those flaps on a Mazda 3 so it should work excellent on a RX-8. How many CFM is that fan rated at?
I agree! The fan's rated at 2100cfm @ 0 static pressure. The fan does flow incredibly well, after testing it became pretty obvious why they would patent the design.

Quote:
Originally Posted by BigBadChris View Post
Sounds good to me, Scott. I look forward to receiving my unit. Anything we can do to beat the Texas heat
Without a doubt Chris! Sending you an email regarding your other inquiry.

Quote:
Originally Posted by Williard View Post
Can't wait to get my hands on one


Travis
Let me know, we will get one headed your way!

Thank you to those of you that have already purchased these unit's, we appreciate your business and continued support, Scott

Last edited by RX-Tuner; 04-27-2016 at 03:20 PM.
RX-Tuner is offline   Reply With Quote
Old 05-04-2016, 11:35 AM   #16
Registered
iTrader: (3)

Join Date: Aug 2014
Location: Dallas TX
Posts: 529
Received my unit last week. Unwrapped it last night. Fit and finish is excellent. Looks good, and the flanges cover the radiator well. A big improvement over my OEM unit, much less leakage.

Looking forward to getting the engine back in the car so I can give an instrumented test.
BigBadChris is offline   Reply With Quote
Old 05-04-2016, 01:59 PM   #17
ZiG
05 GT

ZiG's Avatar

Join Date: Oct 2012
Posts: 297
Cool. Should be pretty easy to calculate the speed at which the flappers would have to open assuming the fan is already on. Take the surface area of the radiator (as seen from in front, account for the tilt). Express as x square feet. The airflow the radiator sees at speed is a function of that number and the speed of the car in feet per second (or per minute if you're working in CFM). Set that flow rate to be equal to the fan's max rated flow rate, solve for speed.
ZiG is offline   Reply With Quote
Old 05-05-2016, 09:00 AM   #18
1% evil, 99% hot gas.
iTrader: (20)

wankelbolt's Avatar

Join Date: Nov 2007
Location: Forest Hill, MD
Posts: 916
How are the flappers attached to the shroud? That's my only concern.

Note that in the Ron Davis examples shown and every production example I've seen they are riveted or screwed on. If they are held with adhesive on this one, I expect they will eventually fall off unless it is some expensive high-heat, adhesive.
wankelbolt is offline   Reply With Quote
Old 05-05-2016, 12:04 PM   #19
RX8Club.com Premium Sponsor
Thread Starter

Join Date: Apr 2015
Location: RX8Performance.com
Posts: 162
Quote:
Originally Posted by New Yorker View Post
I don't need to see any testing. Your company's reputation is testing enough for me.
Thank you for your pm New Yorker! We value and appreciate your support!

Quote:
Originally Posted by BigBadChris View Post
Received my unit last week. Unwrapped it last night. Fit and finish is excellent. Looks good, and the flanges cover the radiator well. A big improvement over my OEM unit, much less leakage.

Looking forward to getting the engine back in the car so I can give an instrumented test.
Very pleased to hear your feedback and that you like the product Chris. The combination of this and the dual pass radiator will be a nice 1-2 punch dealing with the Texas heat!

Quote:
Originally Posted by wankelbolt View Post
How are the flappers attached to the shroud? That's my only concern.
They are attached using multiple one way pins that protrude thru the shroud and then lock into place. I completely agree with you Wanklebolt, using an adhesive, glue or epoxy would likely end up as a point of failure.
RX-Tuner is offline   Reply With Quote
Old 06-08-2016, 03:52 AM   #20
Registered

Join Date: May 2013
Posts: 60
Two questions for you.

You stated the fans push 2100cfm, the Flex a Lite 420 pushes 2500cfm and cost about the same. So is this comparable in performance even with slightly less air being pushed through?

Also, can it bolt up to say, a KoyoRad or OE type replacement radiator?
Jesus Martinez is offline   Reply With Quote
Old 06-08-2016, 04:41 PM   #21
RX8Club.com Premium Sponsor
Thread Starter

Join Date: Apr 2015
Location: RX8Performance.com
Posts: 162
Quote:
Originally Posted by Jesus Martinez View Post
Two questions for you.

You stated the fans push 2100cfm, the Flex a Lite 420 pushes 2500cfm and cost about the same. So is this comparable in performance even with slightly less air being pushed through?

Also, can it bolt up to say, a KoyoRad or OE type replacement radiator?
Yes it is Jesus. We have been very pleased with the real world results from our fan/shroud assembly compared to the FAL units. The fan itself is extremely efficient and our shroud makes a significant difference due to how it pulls air through the radiator core. At high vehicle speed the flaps open to provide maximum (vehicle speed) airflow/cooling and at low speed they close which provides very efficient airflow across the entire radiator core.

During the design process we wanted to develop a unit that could be used with our dual pass radiator (fal is not compatible without modifications) as well as standard OE designed units and aftermarket like the Koyo.

Our unit achieves this and does an excellent job in cooling on the street and for competition events.
RX-Tuner is offline   Reply With Quote
Old 06-09-2016, 03:20 AM   #22
Sicker than your average

Nisaja's Avatar

Join Date: Nov 2012
Location: Colombo, Sri Lanka
Posts: 915
Anyone who bought this checked the coolant temps? Is it a big improvement over stock?
Nisaja is offline   Reply With Quote
Old 06-14-2016, 10:48 AM   #23
Registered

Join Date: May 2013
Posts: 60
One last question, since this is made specifically for the RX8, is it plug and play? As in it has a connector to connect the fan without having to splice anything?
Jesus Martinez is offline   Reply With Quote
Old 06-14-2016, 03:46 PM   #24
RX8Club.com Premium Sponsor
Thread Starter

Join Date: Apr 2015
Location: RX8Performance.com
Posts: 162
Quote:
Originally Posted by Nisaja View Post
Anyone who bought this checked the coolant temps? Is it a big improvement over stock?
I won't speak for/quote customers directly but I will say we have received very positive reports from several.

Quote:
Originally Posted by Jesus Martinez View Post
One last question, since this is made specifically for the RX8, is it plug and play? As in it has a connector to connect the fan without having to splice anything?
The OE connectors with age are becoming brittle and are beginning to fail. Rather than hope one (or both) don't fail during the install or down the road, we include barrel crimps and shrink wrap to eliminate the OE failure point. This makes it a very secure and straightforward process to wire them.
RX-Tuner is offline   Reply With Quote
Old 06-14-2016, 09:32 PM   #25
1% evil, 99% hot gas.
iTrader: (20)

wankelbolt's Avatar

Join Date: Nov 2007
Location: Forest Hill, MD
Posts: 916
If you don't want to crimp the connections solid, look into Anderson Powerpoles to replace the stock connectors. They are much more robust and will outlast the car. The 50 Amp version ought to be overkill enough, though the 45 or even 30 Amp version might be more sensible. Reasonably priced from the usual Intarwebz stores.
wankelbolt is offline   Reply With Quote
