chironwsc

Hi Guys

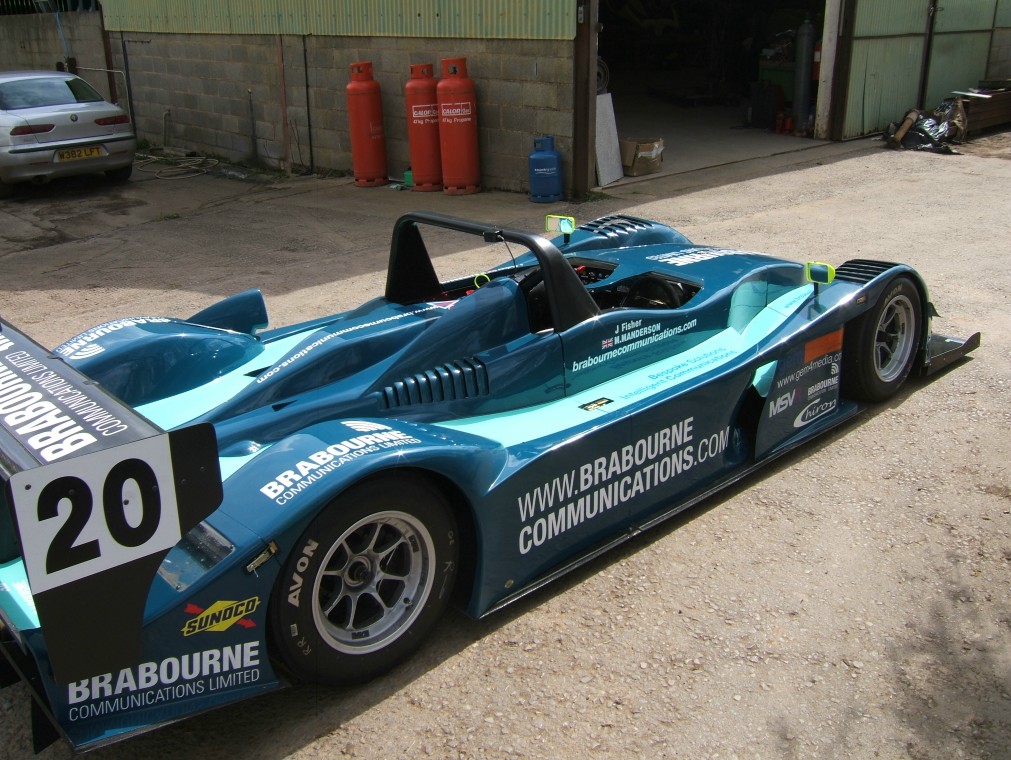

We build race cars and we are looking for an alternative engine for our race cars. We have to run engines built to FIA group N spec which basically is standard internally and standard inlet system. Mods we can make are re-mapping with race ecu Motec etc. Free exhaust system, dry sump, light weight flywheel and engine pulleys. We can remove all the power steering pumps etc and all the emissions and heater piping etc.
What sort of power is possible from a Renesis with the above minor modifications? Any power and torque figures would be very useful. We run long races 3hr, 6hr races so fuel is a big issue anyone have any fuel consumption figures for a race Renesis engine? Also does anyone know what the height from centre of the eccentric shaft to the bottom of dry sump plate would be on the Renesis engine?
The Honda engine we currently use are about 250bhp@ 8200bhp.

Regards
Henry

kersh4w

iTrader: (3)

i think current estimates put the renesis close to that honda engine. most discussions estimate the koni challenge rx8s to be around 260hp.

i know when i go tracking i see 7-8mpg, but that was in my 3100lb car, with 150lb me and 250lb instructor.

contacting eric meyer (of eric meyer motorsports) might be a good idea. his team races in the koni challenge. i dont know how much he'd be willing to share, but he's always been helpful around these forums.

Phoenix7

The renesis is the most powerful 13B rotary in NA form. The Japanese tuners have been able to push 320hp on an NA block (I'm still trying to figure out how they PP the Renesis) and the results are out there.

I'll see if I can get someone to come here and post some info.

swoope

iTrader: (5)

i would do some searching for the star mazda series..

if i recall they use motec also..

beers

chiketkd

iTrader: (5)

The OP's in these two threads built RX-8's to Koni Challenge specs - not sure what they'd be willing to share but it might be worth a pm.

WTB: Speedsource Sway Bars & Exhaust Manifold

New endurance racer build

I8U

iTrader: (1)

I'll tell you this without running MoTec, the NA RX-8 will never see 260hp. As for the KONI RX-8 teams we all are putting down around the same power numbers.
There are a few other teams you can contact also, ROAR Racing, Hickham Motorsports, and Brass Mitchell Racing.

I8U

iTrader: (1)

I knew I should have moved to Japan! LOL When you find out something Phoenix let me know! HAHA

Brettus

iTrader: (2)

how about fuel consumption - my guess it would be slightly better than equivalent piston engine cars ?

racewithroar

Depending on track, driver, etc. With a stock fuel pump @ stock pressure with stock fuel injectors.

Around 5 minutes per gallon.

TeamRX8

iTrader: (25)

olddragger

iTrader: (3)

mpg will increase greatly if you stay out of the 8-9K range--i can get 10mpg then.
Several engine specialist out there. Also call Mazmart--they build engines for surprising people.
olddragger

Brettus

iTrader: (2)

you mean drive like a nanny ?

swoope

iTrader: (5)

i can assure you he does not.. shift early. i think he does now. less is more sometimes, a lot more.

beers

takahashi

You must be talking about PanSpeed.

They have some throttle change and the intake is coming from the left side. I think the intake manifold is also changed.

It is motec'ed and fully exhausted from engine to tip.

I think they are still talking reaching 300hp rather than 320hp.

The car goes 59 seconds at Tsukuba, the fastest Jap NA renesis.

olddragger

iTrader: (3)

good thing about the rotary is size and how the weight is sorted. most engines subcome to heat only--so cool her and a 6 hr race is no problem. we have one fella in our little group that has over 6K track miles on his car--oridginal engine and it is a daily driver with approx 70K on it. Top dog in the TTF class with Nasa Se at present--with worn out overheatcycled dot r compounds and just a few bolt ons.
You can get the power you want.
olddragger

whoneedspistons

iTrader: (2)

Well I was going to post in here earlier but it totally slipped my mind... I think swoope had the right idea... I would not only look into the Koni challange series but also the star mazda series..

here are some of the specs of the cars that are racing:
Constructor: Star Race Cars, 10639 Glenoaks Blvd, Pacoima, CA 91331
(818) 686-3350
Chassis: Carbon fiber composite built to FIA standards with 19 U.S. gallon fuel cell
Engine: 240 HP Mazda “Renesis” rotary engine with encrypted ECU including rev limiter, pit speed limiter, traction control, fuel trim.
Transaxle: Six-speed sequential with no lift shift
Suspension: Pushrod, inboard with two-way adjustable shock absorbers, adjustable rear sway bar, cockpit adjustable front sway bar. Front suspension tethered.
Cockpit safety: FIA headrest/side head restraint, compatible with HANS device.
Dimensions: Front track 61.5”, rear track 58.5”, wheelbase 100.5” and weight 1090 lbs.
Brakes: Cockpit adjustable bias, 4-pot alloy calipers, vented, floating steel discs.
Wheels: Front 9”w x 13”d, rear 11’w x 13”d, Forged aluminum, center lock
Features: Adjustable shocks, sway bars, brake bias and wing angles
Optional (Subject to testing and rules review): Data acquisition, traction control defeat, fuel trim control on steering wheel, pixel screen display
Constructor: Star Race Cars, 10639 Glenoaks Blvd, Pacoima, CA 91331
(818) 686-3350
Dry Weight: 1140 lbs.
Engine: Sealed Mazda 13B rotary
Transaxle: Racing 5-speed plus reverse
Carb: Weber 48 DCOE
Wheelbase: 95 in.
Track: Front: 59 in. Rear: 58 in.
Brakes: 4-wheel spec discs & calipers
Wheels: Front: 8x13 BBS Rear: 10x13 BBS
Features: Adjustable shocks, sway bars, brake bias and wing angles

http://www.starmazda.com/series/specifications.htm
