yes, i mean more neg. camber at the front. Just start with that first, and see how the car drives for you. Because different track, alignment can be different too. You just have to try different setting, and see how you like it.
#154
It's Not Easy Being Green
iTrader: (1)
Join Date: Apr 2008
Location: Akron, OH
Posts: 1,846
Likes: 0
Received 0 Likes
on
0 Posts
Had mine done last Friday before taking the car down to MidOhio. Hadn't had an alignment since I bought it in 2006 and it already had 19k on it when I got it. Hard to tell how much help the alignment was from my last time down there since I also had new tires, new brakes, sways, etc. but the car felt incredible and was flying around the track.
I basically went with SilverEIGHT's setup as the starting point but the shop wasn't able to get anymore than -1 camber on the fronts. I'm putting on new shocks/springs over the Winter and having it aligned again in the Spring so we'll see if they can get me even more.

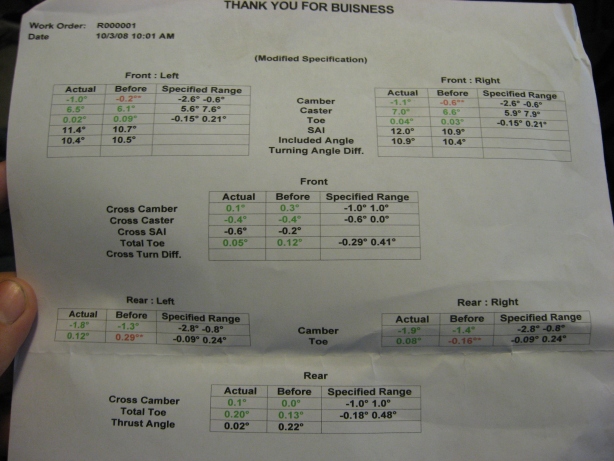

Here's the alignment sheet. You can see how effed up it was before and what it ended up at.
I basically went with SilverEIGHT's setup as the starting point but the shop wasn't able to get anymore than -1 camber on the fronts. I'm putting on new shocks/springs over the Winter and having it aligned again in the Spring so we'll see if they can get me even more.
Here's the alignment sheet. You can see how effed up it was before and what it ended up at.
#155
Getting max front camber
I dont think I saw this really discussed in this thread....
This weekend I adjusted the LF to see how much negative camber I could get (without directly adjusting caster). First I loosened the camber adjustment and turned the cam to push the lower arm out as far as possible. This gave about 0.9 deg more (neg) camber. Next I left this lower cam loose and also loosened the two inner mount bolts of the upper A-arm as well. I used a jack under the brake disk and tapped away with a hammer top and bottom to take up any play towards my goal of max neg camber. After tightening it all up again, this got me about another -0.6 deg. Kinda basic but I expect that many/most alignment shops just dial the cam around and thats it. Is this the simple difference btwn cars reported to get only <1 deg, and cars that get over 1.5 with stock caster?
BTW it then took two turns (2.5mm) more tie rod length to get the toe to about zero.
Also these are just quickie measurements from toe boards and a camber gauge, but give an idea. I wanted to see for myself how much camber I can expect and know whats going on up there before bringing it to a rack to get everything else matched up and just so. I plan to set the rear camber equal to the front as a starting point.
BTW2 boy the 8's suspension is SO much slicker than all the Mk1-4 VW's I played with over the years!! Sweet!
This weekend I adjusted the LF to see how much negative camber I could get (without directly adjusting caster). First I loosened the camber adjustment and turned the cam to push the lower arm out as far as possible. This gave about 0.9 deg more (neg) camber. Next I left this lower cam loose and also loosened the two inner mount bolts of the upper A-arm as well. I used a jack under the brake disk and tapped away with a hammer top and bottom to take up any play towards my goal of max neg camber. After tightening it all up again, this got me about another -0.6 deg. Kinda basic but I expect that many/most alignment shops just dial the cam around and thats it. Is this the simple difference btwn cars reported to get only <1 deg, and cars that get over 1.5 with stock caster?
BTW it then took two turns (2.5mm) more tie rod length to get the toe to about zero.
Also these are just quickie measurements from toe boards and a camber gauge, but give an idea. I wanted to see for myself how much camber I can expect and know whats going on up there before bringing it to a rack to get everything else matched up and just so. I plan to set the rear camber equal to the front as a starting point.
BTW2 boy the 8's suspension is SO much slicker than all the Mk1-4 VW's I played with over the years!! Sweet!
#156
Registered
My latest settings 10/22/08
- Front L Camber: -1.8º
- Front R Camber: -1.8º
- Cross Camber: -0.1º
- Front L Caster: 6.5º
- Front R Caster: 6.6º
- Cross Caster: -0.1º
- Front Toe L: 0.03"
- Front Toe R: 0.03"
- Total Toe: 0.06"
- Rear Camber L: -2.0º
- Rear Camber R: -2.0º
- Rear Toe L: 0.08"
- Rear Toe R: 0.08"
- Total Toe: 0.16"
- Thrust Angle: -0.00º
- Front L Camber: -1.8º
- Front R Camber: -1.8º
- Cross Camber: -0.1º
- Front L Caster: 6.5º
- Front R Caster: 6.6º
- Cross Caster: -0.1º
- Front Toe L: 0.03"
- Front Toe R: 0.03"
- Total Toe: 0.06"
- Rear Camber L: -2.0º
- Rear Camber R: -2.0º
- Rear Toe L: 0.08"
- Rear Toe R: 0.08"
- Total Toe: 0.16"
- Thrust Angle: -0.00º
#158
justjim
Join Date: Aug 2008
Location: St. Petersburg, Florida
Posts: 345
Likes: 0
Received 6 Likes
on
3 Posts
I dont think I saw this really discussed in this thread....
This weekend I adjusted the LF to see how much negative camber I could get (without directly adjusting caster). First I loosened the camber adjustment and turned the cam to push the lower arm out as far as possible. This gave about 0.9 deg more (neg) camber. Next I left this lower cam loose and also loosened the two inner mount bolts of the upper A-arm as well. I used a jack under the brake disk and tapped away with a hammer top and bottom to take up any play towards my goal of max neg camber. After tightening it all up again, this got me about another -0.6 deg. Kinda basic but I expect that many/most alignment shops just dial the cam around and thats it. Is this the simple difference btwn cars reported to get only <1 deg, and cars that get over 1.5 with stock caster?
BTW it then took two turns (2.5mm) more tie rod length to get the toe to about zero.
Also these are just quickie measurements from toe boards and a camber gauge, but give an idea. I wanted to see for myself how much camber I can expect and know whats going on up there before bringing it to a rack to get everything else matched up and just so. I plan to set the rear camber equal to the front as a starting point.
BTW2 boy the 8's suspension is SO much slicker than all the Mk1-4 VW's I played with over the years!! Sweet!
This weekend I adjusted the LF to see how much negative camber I could get (without directly adjusting caster). First I loosened the camber adjustment and turned the cam to push the lower arm out as far as possible. This gave about 0.9 deg more (neg) camber. Next I left this lower cam loose and also loosened the two inner mount bolts of the upper A-arm as well. I used a jack under the brake disk and tapped away with a hammer top and bottom to take up any play towards my goal of max neg camber. After tightening it all up again, this got me about another -0.6 deg. Kinda basic but I expect that many/most alignment shops just dial the cam around and thats it. Is this the simple difference btwn cars reported to get only <1 deg, and cars that get over 1.5 with stock caster?
BTW it then took two turns (2.5mm) more tie rod length to get the toe to about zero.
Also these are just quickie measurements from toe boards and a camber gauge, but give an idea. I wanted to see for myself how much camber I can expect and know whats going on up there before bringing it to a rack to get everything else matched up and just so. I plan to set the rear camber equal to the front as a starting point.
BTW2 boy the 8's suspension is SO much slicker than all the Mk1-4 VW's I played with over the years!! Sweet!
#159
Power!!
You'll need to get lower springs to get more camber. I was only able to get about -0.9 in the front on the OEM springs and with my new Swift springs I am at -1.68 in the front.
BTW good info. guys. Here are my recent settings for HPDE days. This is very streetable so far and I have to find out how this feels on the track.
LF Camber: -1.64deg.
LF Caster: 7.34deg.
LF toe: -0.5mm
RF Camber: -1.69deg.
RF Caster: 7.38deg.
RF toe: -0.5mm
Total front Toe: -1mm
Steer ahead 0.00deg
LR camber: -1.72deg
LR Toe 0.4mm
RR camber: -1.73deg
RR toe: 0.4mm
total toe: 0.8mm
Thrust angle: 0.00deg
BTW good info. guys. Here are my recent settings for HPDE days. This is very streetable so far and I have to find out how this feels on the track.
LF Camber: -1.64deg.
LF Caster: 7.34deg.
LF toe: -0.5mm
RF Camber: -1.69deg.
RF Caster: 7.38deg.
RF toe: -0.5mm
Total front Toe: -1mm
Steer ahead 0.00deg
LR camber: -1.72deg
LR Toe 0.4mm
RR camber: -1.73deg
RR toe: 0.4mm
total toe: 0.8mm
Thrust angle: 0.00deg
#161
Very interesting! I recently acquired a 2007 RX8 and I when I took it in for an aggressive alignment all I could get up front was -1.1 camber. The tech who is supportive and has done my other Acura said it was all he could get. Are there other ways, or aftermarket parts, that one needs to achieve more camber or is what Wishboneracing did the secret? I would like to get about -1.6 or-1.8 up front. Maybe I'll try his method.
Also some people may not realize how much the camber varies with ride height (wheel travel). According to the specs, just a 10mm drop in ride height adds about 0.3 deg neg camber (front or rear). This is why everyone emphasizes doing your final alignment setting with driver (and other loads) in place.
http://www.myrotarycar.com/portal/fo...3le/index.html
#162
Rotor nut
iTrader: (2)
Front Camber -0.47 Left, -0.43 Right
Front Caster 6.99 Left, 7.10 Right
Front Toe 0.04 Left, 0.04 Right
Front Cross Camber -0.04
Front Cross Caster -0.11
Front Total Toe 0.08
Rear Camber -1.27 Left, -1.18 Right
Rear Toe -0.01 Left, -0.00 Right
Rear Total Toe -0.02
Thrust angle 0.00
Tire size: 245/40/18
Please give input as this will be my first time on the track and decided to get it aligned before I go out.
Front Caster 6.99 Left, 7.10 Right
Front Toe 0.04 Left, 0.04 Right
Front Cross Camber -0.04
Front Cross Caster -0.11
Front Total Toe 0.08
Rear Camber -1.27 Left, -1.18 Right
Rear Toe -0.01 Left, -0.00 Right
Rear Total Toe -0.02
Thrust angle 0.00
Tire size: 245/40/18
Please give input as this will be my first time on the track and decided to get it aligned before I go out.
#163
Registered User
Join Date: Jan 2006
Location: Houston, TX
Posts: 694
Likes: 0
Received 0 Likes
on
0 Posts
I have racingbeat lowering springs so I had more to work with as far as negative camber is concerned.
My settings from my huge amount of research on the forum is:
-1.7 front camber
0 Toe
6 Caster
-1.5 rear camber
0 Toe
Car is insanely neutral and easy to drive. I have no idea about tire wear yet as I only have 3,000 miles on the tires so far. These are my autocross settings, but I'm sure it would work very well on the track as well.
This set up with new Dunlup Direzza Z1 Star Specs has knocked 3-5 seconds off my time on a 40-50 second course.
Edit: I even made a thread about it: https://www.rx8club.com/series-i-wheels-tires-brakes-suspension-55/koni-sports-racingbeat-springs-impressions-159409/
Also I can't remember how much castor I have, not important anyways.
Double Edit: I have yet to start a collection of trophies, but from the looks of it I'm not far off. So take my advice with a grain of salt.
My settings from my huge amount of research on the forum is:
-1.7 front camber
0 Toe
6 Caster
-1.5 rear camber
0 Toe
Car is insanely neutral and easy to drive. I have no idea about tire wear yet as I only have 3,000 miles on the tires so far. These are my autocross settings, but I'm sure it would work very well on the track as well.
This set up with new Dunlup Direzza Z1 Star Specs has knocked 3-5 seconds off my time on a 40-50 second course.
Edit: I even made a thread about it: https://www.rx8club.com/series-i-wheels-tires-brakes-suspension-55/koni-sports-racingbeat-springs-impressions-159409/
Also I can't remember how much castor I have, not important anyways.
Double Edit: I have yet to start a collection of trophies, but from the looks of it I'm not far off. So take my advice with a grain of salt.
Last edited by HeavyMetal699; 11-20-2008 at 05:10 PM.
#164
justjim
Join Date: Aug 2008
Location: St. Petersburg, Florida
Posts: 345
Likes: 0
Received 6 Likes
on
3 Posts
I've only had my RX8 a couple of months and haven't spent much time under the car other than to swithc track pads. Are there any aftermarket bolts, cams, bushings, etc. that will give additional camber adjustment beyond the limit of the OEM adjustment? I'm currently at -1.1 front with OEM springs and I don't want to lower the car to get more camber. I would like to have about -1.4 to -1.6.
#165
Add my little bit.... I'm just starting to play with alignment, starting from stock. Here's comments after 50 miles of hard dry paved mountain driving last night (mostly 7-8 tenths only, occasionally more (gotchas). From the rack:
Front Camber -1.2
Rear Camber -2.1
Total Toe-in 0.30 deg F&R (about 3mm)
This feels very safe and secure, nice n safe for hard road use, but kinda dull too. Rear is quite planted. Clear if mild understeer at limit. Hard to rotate.
(Front camber max'd at left. Caster down a little to 5.3. Feels like I need more rear roll stiffness, or find that extra front camber?? Meantime will try reducing rear toe-in a tad at a time.)
BTW my own camber settings using camber gauge were staggered, according to the rack (front -1.2 left, -1.8 right). I didn't believe it at first - my gauge indicated 1.5 each side - but later realized that my readings are based on the car's level (not road). But the car doesn't sit level - the left side sits 10 mm lower than right (even without driver). So my gauge readings were -1.5 each side relative to the car, but the car itself sits at a tilt of 0.3 degrees, so -1.2/-1.8 vs the road. Just 10 mm level difference across the width of the car equals 0.3 degrees.
Front Camber -1.2
Rear Camber -2.1
Total Toe-in 0.30 deg F&R (about 3mm)
This feels very safe and secure, nice n safe for hard road use, but kinda dull too. Rear is quite planted. Clear if mild understeer at limit. Hard to rotate.
(Front camber max'd at left. Caster down a little to 5.3. Feels like I need more rear roll stiffness, or find that extra front camber?? Meantime will try reducing rear toe-in a tad at a time.)
BTW my own camber settings using camber gauge were staggered, according to the rack (front -1.2 left, -1.8 right). I didn't believe it at first - my gauge indicated 1.5 each side - but later realized that my readings are based on the car's level (not road). But the car doesn't sit level - the left side sits 10 mm lower than right (even without driver). So my gauge readings were -1.5 each side relative to the car, but the car itself sits at a tilt of 0.3 degrees, so -1.2/-1.8 vs the road. Just 10 mm level difference across the width of the car equals 0.3 degrees.
#166
It's Not Easy Being Green
iTrader: (1)
Join Date: Apr 2008
Location: Akron, OH
Posts: 1,846
Likes: 0
Received 0 Likes
on
0 Posts
I've only had my RX8 a couple of months and haven't spent much time under the car other than to swithc track pads. Are there any aftermarket bolts, cams, bushings, etc. that will give additional camber adjustment beyond the limit of the OEM adjustment? I'm currently at -1.1 front with OEM springs and I don't want to lower the car to get more camber. I would like to have about -1.4 to -1.6.
You can get springs that barely lower the car but improve performance by stiffening up the car. MS springs are less than an inch. Tein H-Tech is even less and evens out the drop. Lots of spring options if you don't want a drop and of course you could just get coilovers.
#167
justjim
Join Date: Aug 2008
Location: St. Petersburg, Florida
Posts: 345
Likes: 0
Received 6 Likes
on
3 Posts
Didn't wishboneracing's advice help you get more?
You can get springs that barely lower the car but improve performance by stiffening up the car. MS springs are less than an inch. Tein H-Tech is even less and evens out the drop. Lots of spring options if you don't want a drop and of course you could just get coilovers.
You can get springs that barely lower the car but improve performance by stiffening up the car. MS springs are less than an inch. Tein H-Tech is even less and evens out the drop. Lots of spring options if you don't want a drop and of course you could just get coilovers.
In my previous car, an Acura RSX-S, I had installed a pair of eccentric camber bolts on either front Macpherson strut as the OEM strut had no camber adjustment, and was able to get -1.8. The Mazda has an eccentric camber bolt up front, but it seems to be maxed out at -1.1. Just trying to figure out my future options on a car I'm still getting familiar with.
#168
Row faster, I hear banjos
iTrader: (5)
Join Date: Jul 2003
Location: Charlottesville, VA
Posts: 2,217
Likes: 0
Received 0 Likes
on
0 Posts
My latest settings 10/22/08
- Front L Camber: -1.8º
- Front R Camber: -1.8º
- Cross Camber: -0.1º
- Front L Caster: 6.5º
- Front R Caster: 6.6º
- Cross Caster: -0.1º
- Front Toe L: 0.03"
- Front Toe R: 0.03"
- Total Toe: 0.06"
- Rear Camber L: -2.0º
- Rear Camber R: -2.0º
- Rear Toe L: 0.08"
- Rear Toe R: 0.08"
- Total Toe: 0.16"
- Thrust Angle: -0.00º
- Front L Camber: -1.8º
- Front R Camber: -1.8º
- Cross Camber: -0.1º
- Front L Caster: 6.5º
- Front R Caster: 6.6º
- Cross Caster: -0.1º
- Front Toe L: 0.03"
- Front Toe R: 0.03"
- Total Toe: 0.06"
- Rear Camber L: -2.0º
- Rear Camber R: -2.0º
- Rear Toe L: 0.08"
- Rear Toe R: 0.08"
- Total Toe: 0.16"
- Thrust Angle: -0.00º
#169
Power!!
One thing Eric Meyer suggested to me to figure out what camber works best is to get a probe style tire temp gauge and measure 3 places across your tires (outside, middle, inside) right after you get off the track and adjust your camber to try and make the temperatures as even as possible. You won't get it perfect but once you get it as close as you can you'll be getting the most out of your tires.
#170
Modulated Moderator
iTrader: (3)
One thing Eric Meyer suggested to me to figure out what camber works best is to get a probe style tire temp gauge and measure 3 places across your tires (outside, middle, inside) right after you get off the track and adjust your camber to try and make the temperatures as even as possible. You won't get it perfect but once you get it as close as you can to maximum cornering power.
Sounds good in theory... but is difficult depending on the track and how you can get off in the pits. Works best on a skid pad
#171
Power!!
Agreed. A skid pad or a slalom course is the best way to get repeatable results. Tracks are different and you'd be dialing in for a specific track.
#172
Merchant Of Pace
Join Date: Jan 2004
Location: Clovis, California
Posts: 651
Likes: 0
Received 0 Likes
on
0 Posts
My latest alignment is eerily close to what you have, except I had to go down to 4.5 degrees of caster inorder to get -1.8º in the front. Most people use a 0.2º increase in rear camber (over the front), as you went with. My co-driver and I wanted the car a bit looser (for concrete), so the difference is smaller.
And are Silver8s settings (below) considered fairly conservative as I'm not looking to go real aggressive in my setup for the track? My primary goal is stability in long high speed (80+MPH) sweepers.
Originally Posted by SilverEIGHT View Post
My latest settings 10/22/08
- Front L Camber: -1.8º
- Front R Camber: -1.8º
- Cross Camber: -0.1º
- Front L Caster: 6.5º
- Front R Caster: 6.6º
- Cross Caster: -0.1º
- Front Toe L: 0.03"
- Front Toe R: 0.03"
- Total Toe: 0.06"
- Rear Camber L: -2.0º
- Rear Camber R: -2.0º
- Rear Toe L: 0.08"
- Rear Toe R: 0.08"
- Total Toe: 0.16"
- Thrust Angle: -0.00º
#174
Registered
Senna, I use a company called GTE (Gran Turismo East): http://www.granturismoeast.com/
They are our local tuner shop for alignment. They're the location of choice for those that track, drift and race. You describe to the technician how aggressive you are, what level of driving skill, and talk about the wear on your tires. He ask questions about how the car handles in turns and if you are good at describing the over/under steer and how it handles then he looks at your present settings and makes adjustments based on all the info.
Mine is a moderate set-up and is for street and track. It is probably more for track because I'm getting some wear on the inside of the tires on my daily drivers. However, I'm willing to accept that for the benefit of driving on track. I don't think I will go any more aggressive than what it is right now.
My driving skill: 24 or so HPDE type events, I'm going to take the instructor clinic next month with NASA, so I'm driving pretty aggressively in DE 3/4 groups. Will probably go to Time Trials in March.
I was driving Toyo RA1's on track and now have a new set of Toyo R888's. It's my understanding that they don't require as much camber but I really don't know that by experience yet as they have not been tracked yet.
If you have any questions, you may want to give Kieran a call at GTE and ask him if he can let you talk to the guy that does the actual set-ups. don't know how much time they can give because they are really busy.
Good luck and let us know what you decide to do.
They are our local tuner shop for alignment. They're the location of choice for those that track, drift and race. You describe to the technician how aggressive you are, what level of driving skill, and talk about the wear on your tires. He ask questions about how the car handles in turns and if you are good at describing the over/under steer and how it handles then he looks at your present settings and makes adjustments based on all the info.
Mine is a moderate set-up and is for street and track. It is probably more for track because I'm getting some wear on the inside of the tires on my daily drivers. However, I'm willing to accept that for the benefit of driving on track. I don't think I will go any more aggressive than what it is right now.
My driving skill: 24 or so HPDE type events, I'm going to take the instructor clinic next month with NASA, so I'm driving pretty aggressively in DE 3/4 groups. Will probably go to Time Trials in March.
I was driving Toyo RA1's on track and now have a new set of Toyo R888's. It's my understanding that they don't require as much camber but I really don't know that by experience yet as they have not been tracked yet.
If you have any questions, you may want to give Kieran a call at GTE and ask him if he can let you talk to the guy that does the actual set-ups. don't know how much time they can give because they are really busy.
Good luck and let us know what you decide to do.
