LS2 Build
I divide by zero
Joined: Aug 2007
Posts: 1,192
Likes: 0
From: Spring Hill, FL
It's weird how the LS in the Tougefactory R3 doesn't have a rake to it.
Thread Starter
Registered
Joined: Mar 2009
Posts: 148
Likes: 0

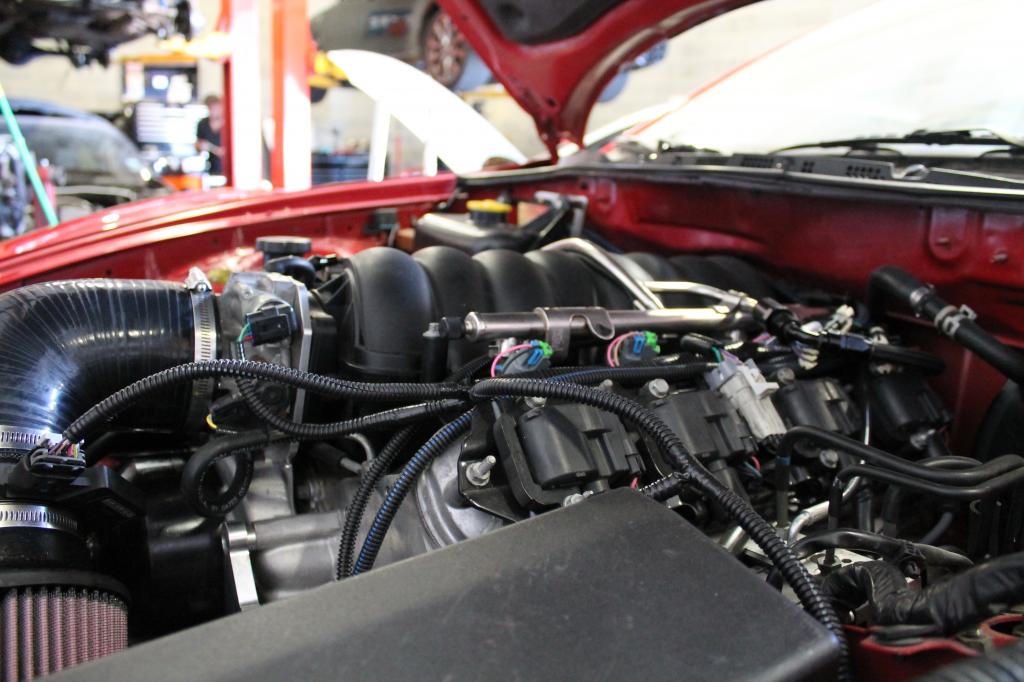

Wiring definitely taking some time. Speaking of rake, we compared it to a Silverado sitting in the shop not too long ago. They sit almost the same. I think the pictures make it look worse than it really is
Well the re-wiring when this wiring doesn't work out, possible move to a stand alone unit, new upgraded axles, larger tires and wheels, purchase of gauges and gauge assembly plus wiring (Assuming all the stock sensors don't read, again because of wiring issues).
Then you have the rebuilding of the engine after a short amount of time, because regardless of the condition they say it was in you never really know.
Once all that is complete you should be good to go.
I'm sure there are some little things I left out, lots of unknowns with a project like this.
I've seen a few people try and fail right around where you are at with this build. Getting the engine in is the easy part.
Then you have the rebuilding of the engine after a short amount of time, because regardless of the condition they say it was in you never really know.
Once all that is complete you should be good to go.
I'm sure there are some little things I left out, lots of unknowns with a project like this.
I've seen a few people try and fail right around where you are at with this build. Getting the engine in is the easy part.
I divide by zero
Joined: Aug 2007
Posts: 1,192
Likes: 0
From: Spring Hill, FL
Measure how far the driveshaft comes straight out of that Silverado transmission before there is a U joint at an extreme angle. I bet it also has a support bearing on the chassis at the end of that long shaft to keep it in line. This keeps the potential shock and flex away from the tranny. To do the same on your low RX8 with that engine rake you'd have the driveshaft digging a foot into the ground under the diff. Instead you have an abrupt and unsupported U-joint at an aggressive angle shortly out of the Tailshaft. ALL U-joints create vibration. Those at steep angles create a lot of vibration. Yours is all at your tailshaft. I suspect this will cause issues next year when the car is running.
Registered
Joined: Sep 2012
Posts: 44
Likes: 0
From: Arkansas
What degree is it setting at? Mine is setting at 4 and I have no issues. Yours -looks- to be 8-12 which will cause major issue gettting oil to the front of the crank (at high RPM's). I was always told no more than 5 degree on LS motors..... Not sure if that is to safe but I live to it.
Last edited by mdoffroad; Apr 7, 2013 at 10:50 PM. Reason: add
Measure how far the driveshaft comes straight out of that Silverado transmission before there is a U joint at an extreme angle. I bet it also has a support bearing on the chassis at the end of that long shaft to keep it in line. This keeps the potential shock and flex away from the tranny. To do the same on your low RX8 with that engine rake you'd have the driveshaft digging a foot into the ground under the diff. Instead you have an abrupt and unsupported U-joint at an aggressive angle shortly out of the Tailshaft. ALL U-joints create vibration. Those at steep angles create a lot of vibration. Yours is all at your tailshaft. I suspect this will cause issues next year when the car is running.
