Canadian Foglight Rewire
#1
Canadian Foglight Rewire
I searched and searched and searched but couldn't find any detailed instructions to do the DRL bypass as explained by StealthTL in this thread: https://www.rx8club.com/series-i-do-yourself-forum-73/diy-fog-light-rewire-11737/
If any Canadians are interested in some pics of the DRL module, you can see them here:
DRL Module behind Glovebox with arrow to plug
Pick of rewire as per StealthTL's instructions.
Done Deal
If any Canadians are interested in some pics of the DRL module, you can see them here:
DRL Module behind Glovebox with arrow to plug
Pick of rewire as per StealthTL's instructions.
Done Deal
#3
I didn't want to make this a DIY, more so an (Add on) for Canadian members. The DIY link at the beginning of my first post has an explanation of the little splice you have to do under the fuse box in the engine compartment, but those instructions are for US Spec cars that DO NOT have DRL (Daytime Running Lights) which is required by law for Canadian cars. This means not only do you have to do the instructions for the US cars, but you also have to do what I showed above to get power to the fogs working outside of the DRL restricting module.
Functionality is that you do not have to have your halogens turned on to have the fog lights work. I followed the Omicron instructions for the under the hood stuff which also protects your battery by cutting power when your key is out. Basically you can have your fogs on in any light position, even off (Daytime Running Lights) as long as the key is in the ignition and turned to the power on position. Took me no longer than 30 minutes or so to complete the whole thing.
Follow Omicron's instructions in the DIY Thread above while also following Stealths canadian car corrections below using my pics as guidelines.
To bypass the DRL module (behind the glovebox) you need to connect the 'fog in'(light green&black) and 'fog out'(yellow&red) at the big DRL connector. They are side by side at the lower left of the connector. Also, the 'brown' wire on US cars is 'brown&white' striped for DRL models, but it IS the same wire as in the Omicron instructions.
The only added note is that it seems there are two YELLOW / RED next to the GREEN/BLACK. Make sure you do the one BESIDE not in the next row on top since that will turn the halogens on full time
Functionality is that you do not have to have your halogens turned on to have the fog lights work. I followed the Omicron instructions for the under the hood stuff which also protects your battery by cutting power when your key is out. Basically you can have your fogs on in any light position, even off (Daytime Running Lights) as long as the key is in the ignition and turned to the power on position. Took me no longer than 30 minutes or so to complete the whole thing.
Follow Omicron's instructions in the DIY Thread above while also following Stealths canadian car corrections below using my pics as guidelines.
To bypass the DRL module (behind the glovebox) you need to connect the 'fog in'(light green&black) and 'fog out'(yellow&red) at the big DRL connector. They are side by side at the lower left of the connector. Also, the 'brown' wire on US cars is 'brown&white' striped for DRL models, but it IS the same wire as in the Omicron instructions.
The only added note is that it seems there are two YELLOW / RED next to the GREEN/BLACK. Make sure you do the one BESIDE not in the next row on top since that will turn the halogens on full time
#4
Nice write-up!
I'm putting together a DIY index for this forum.
DO you mind if I add this thread to it?
Thank you....
I'm putting together a DIY index for this forum.
DO you mind if I add this thread to it?
Thank you....
Last edited by EyeBall Fixer...(o)(x); 05-25-2006 at 10:36 PM.
#5
Originally Posted by EyeBall Fixer...(o)(x)
Nice write-up!
I'm putting together a DIY index for this forum.
DO you mind if I add this thread to it?
Thank you....
I'm putting together a DIY index for this forum.
DO you mind if I add this thread to it?
Thank you....
#7
Metatron
iTrader: (1)
Not so quick.....
Not quite so easy to disable the DRLs.......
The way they work is the module controls the grounding to dim them - grounds both for hi-beam, and grounds the drivers side thru the passenger side for dim (DRL)
You would need at least one relay to bypass the module, I am working on it for my HID hi-beam project .
S
The way they work is the module controls the grounding to dim them - grounds both for hi-beam, and grounds the drivers side thru the passenger side for dim (DRL)
You would need at least one relay to bypass the module, I am working on it for my HID hi-beam project .
S
#9
rotor rider
Join Date: Oct 2005
Location: Markham, Ontario
Posts: 62
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by StealthTL
Not quite so easy to disable the DRLs.......
The way they work is the module controls the grounding to dim them - grounds both for hi-beam, and grounds the drivers side thru the passenger side for dim (DRL)
You would need at least one relay to bypass the module, I am working on it for my HID hi-beam project .
S
The way they work is the module controls the grounding to dim them - grounds both for hi-beam, and grounds the drivers side thru the passenger side for dim (DRL)
You would need at least one relay to bypass the module, I am working on it for my HID hi-beam project .
S
#12
i have also noticed that the putting on the e-brake turns off the DRL's that means there is a switch that when u pull up on the e-brake it sets the switch(u can also hear it), so if u can tap into that switch and make it all on to the DRL's are always off and u just have the fogs running it would look cools too.
#13
2011 RX8 R3
Join Date: Nov 2009
Location: Toronto Ontario Canada
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
turning off DRLs
i have rewired so my fogs can be turned on anytime using ACC power to the relay but i really dont like having the DRLs on. Has anyone found out what wire to cut so the highs don't turn on at low power?????
#14
Registered
Thanks for digging this thread...when the weather gets warmer tomorrow...I'm going to do the re-wiring...lolz
________
LovelyWendie99
________
LovelyWendie99
Last edited by 2hit6; 05-02-2011 at 11:24 PM.
#16
2011 RX8 R3
Join Date: Nov 2009
Location: Toronto Ontario Canada
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
how to disable DRLs
To cover my butt so no one can say I'm breaking the law by turning your drls off I'm adding a switch in the directions so when your on public roads you can return your DRLs to normal operation.
Here is what i did to disable my DRLs.

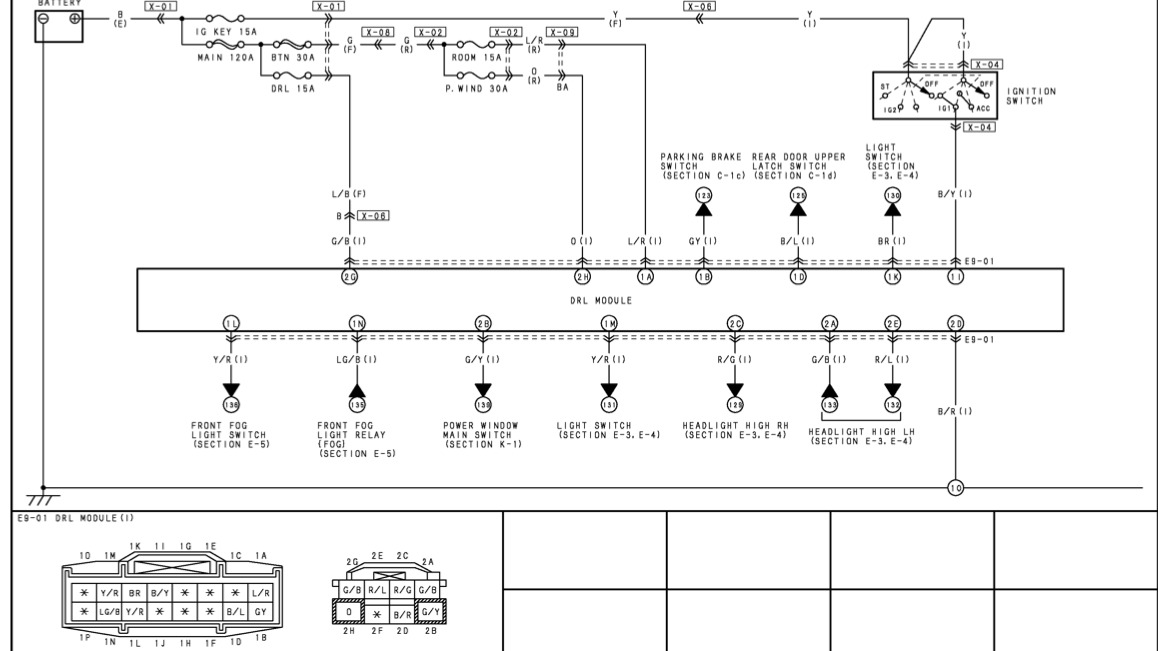

Cut the Gray wire "1B" in the big connector about 2" way from the blue box and caped it off.
Connect a 3" wire onto the Blue and Red wire "2D" in the small connector and run it to a small toggle switch and connect the Grey wire leading out of the big connector to the other side of the switch.
What this does is act like you have put the parking break on and turns the DRL off when you turn the switch on.
I have tested all the lights and everything is working just fine, now i can use my fogs as DRLs or no lights at all.
Here is what i did to disable my DRLs.
Cut the Gray wire "1B" in the big connector about 2" way from the blue box and caped it off.
Connect a 3" wire onto the Blue and Red wire "2D" in the small connector and run it to a small toggle switch and connect the Grey wire leading out of the big connector to the other side of the switch.
What this does is act like you have put the parking break on and turns the DRL off when you turn the switch on.
I have tested all the lights and everything is working just fine, now i can use my fogs as DRLs or no lights at all.
Last edited by cujoakaian; 04-10-2010 at 10:43 AM.
#17
2011 RX8 R3
Join Date: Nov 2009
Location: Toronto Ontario Canada
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
hope you don't mind me adding this to your thread.
i have posted how to disable drls in " The Do It Yourself Forum" also.
if you don't think i should have added this let me know and ill delete it but if all is cool let me know anyways lol.
enjoy.
i have posted how to disable drls in " The Do It Yourself Forum" also.
if you don't think i should have added this let me know and ill delete it but if all is cool let me know anyways lol.
enjoy.
#18
SPOOLN8
iTrader: (1)
Join Date: Nov 2008
Location: Edmonton, Alberta, Canada
Posts: 2,225
Received 208 Likes
on
156 Posts
Resurrecting this one once more... I attached my black/white (brown in US models) wire to the red/black wire of the tail fuse (MazdaManiacs way so park lights must be on for fogs to be on). This will still work right? All this does is allow power to the fog relay without the DRL's on?
#19
from what i know, my buddy tapped the fog wire into the accessory wire in the fuse box under the hood and now when i put the accessories on with my key, the fogs turn on no matter what.
now i need to look into disabling my DRL's... i changed my parking lights to LED's which look A LOT better with the HIDs but realized that the parking lights aren't the DRLs and the bulbs next to them are lol
now i need to look into disabling my DRL's... i changed my parking lights to LED's which look A LOT better with the HIDs but realized that the parking lights aren't the DRLs and the bulbs next to them are lol
Last edited by Munchy; 08-28-2010 at 03:24 AM.
#20
Girls who drive stick FTW
iTrader: (1)
bump !! Im helping my buddy do this rewire. I did mine but my rx8 is from the states so it was easy as pie. Now i know the wires are different colours and you have to bypass the DRL.
Do i just disconnect the DRL behind the glove box and proceed with the regular DIY for fog light rewire. (except the brown wire in US cars will be black/white and connect it to the red/white wire)
Is this right ?
Do i just disconnect the DRL behind the glove box and proceed with the regular DIY for fog light rewire. (except the brown wire in US cars will be black/white and connect it to the red/white wire)
Is this right ?
